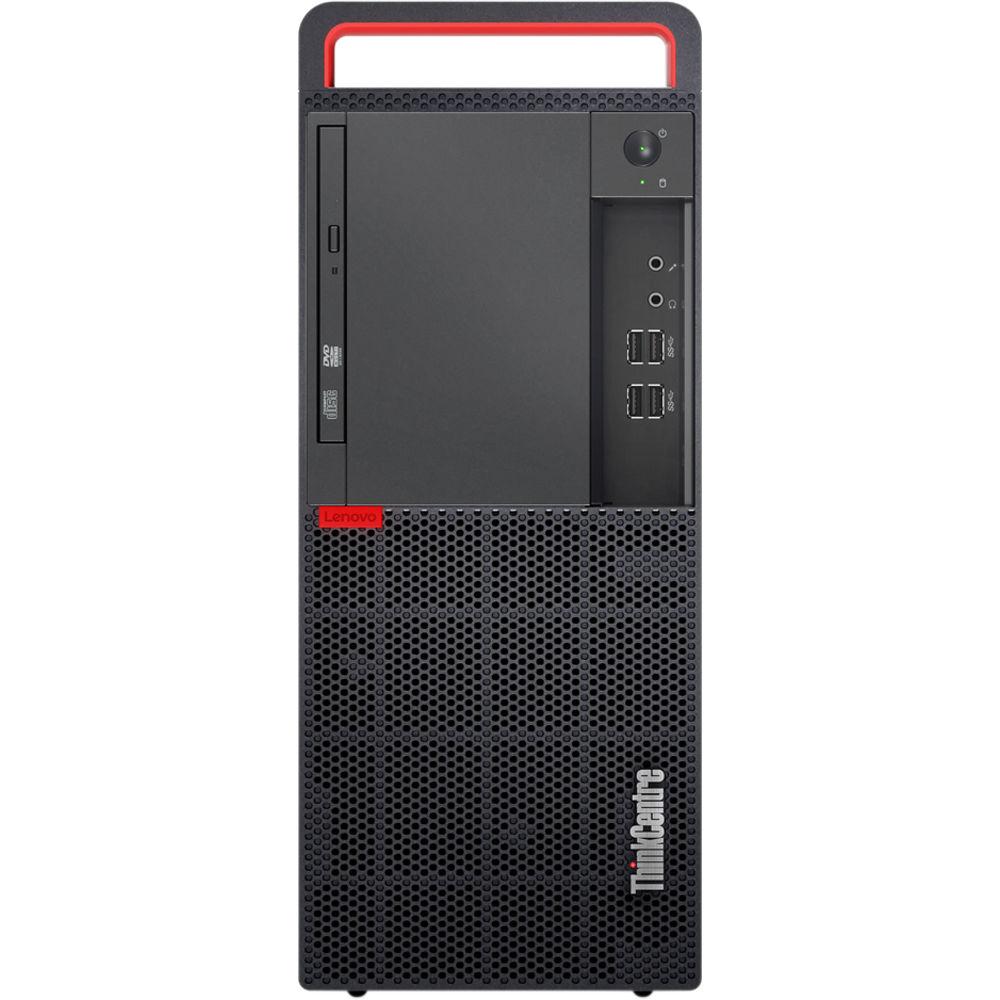

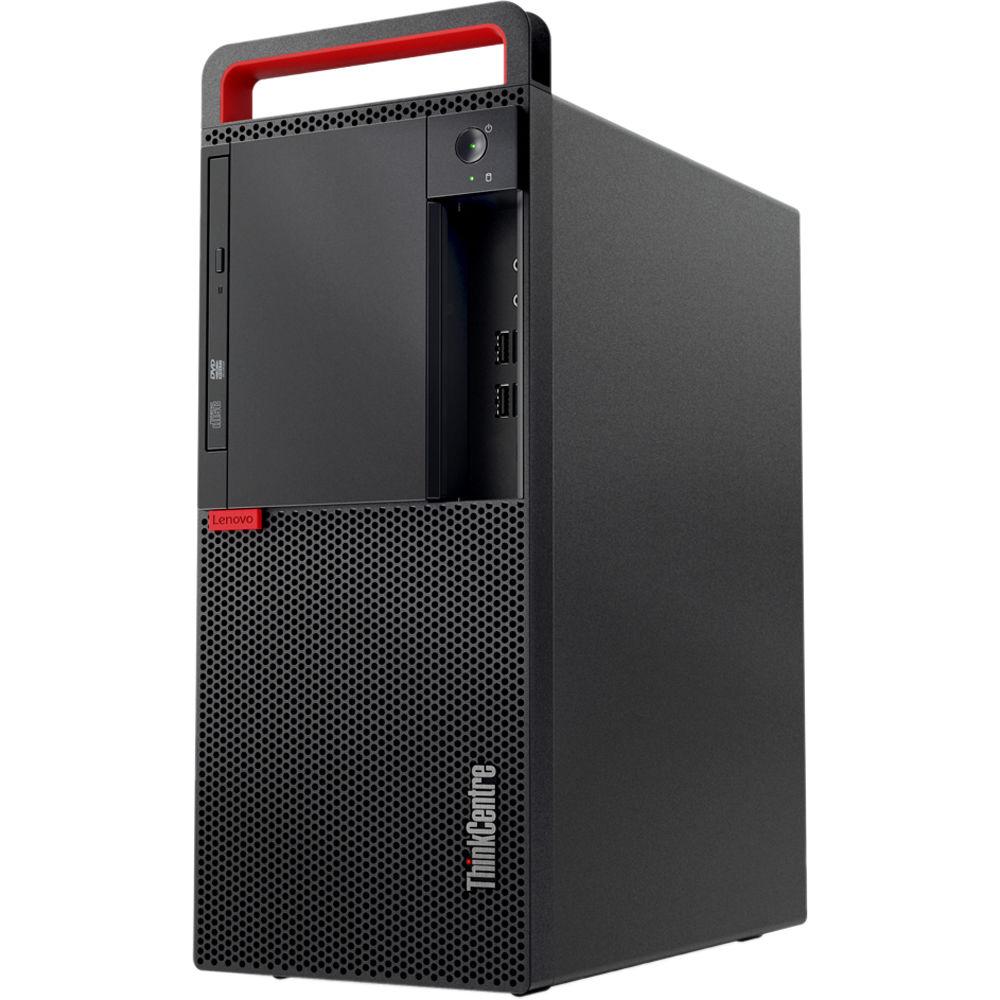

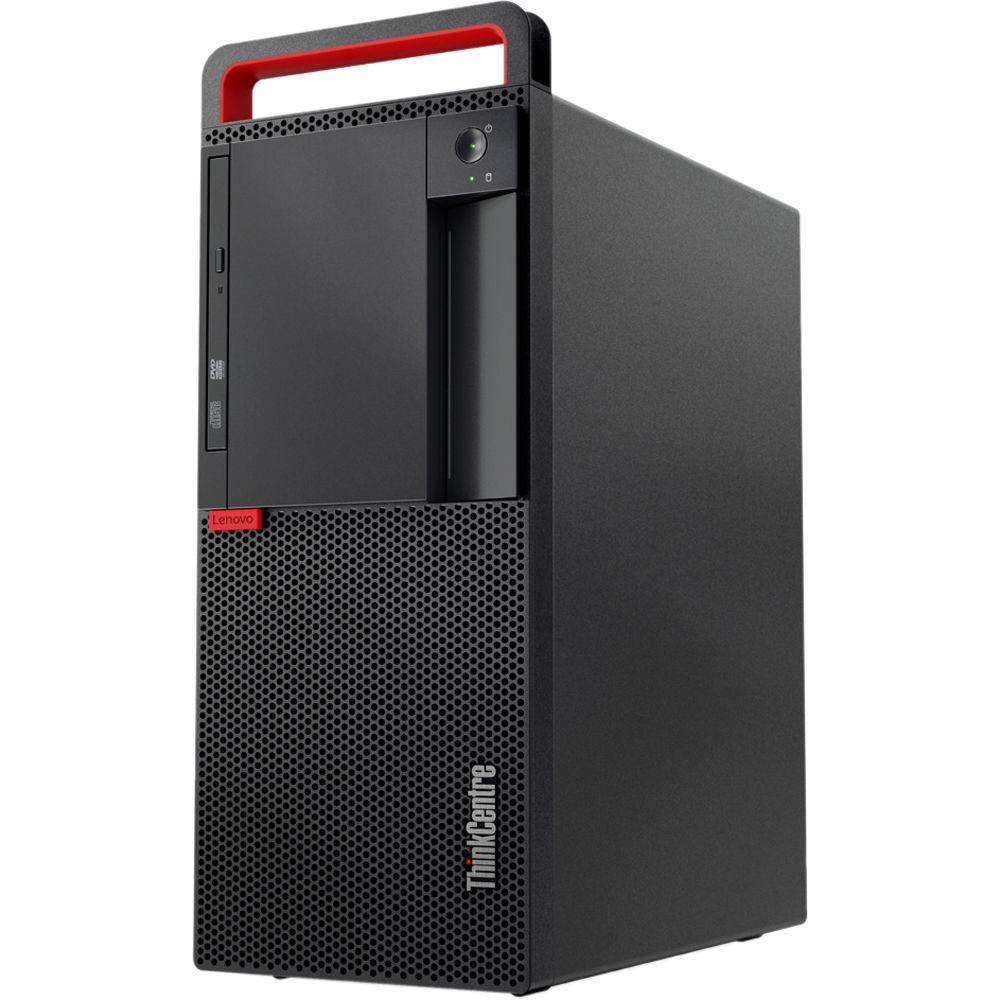

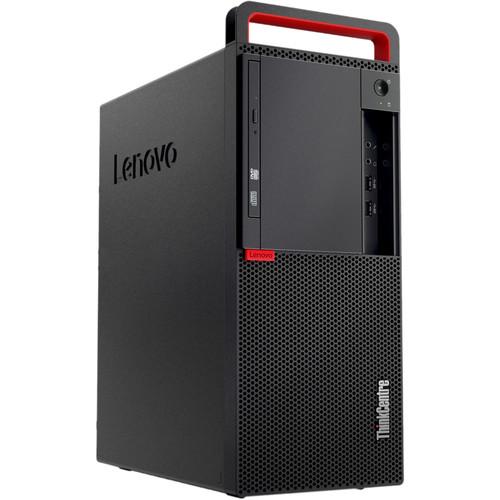

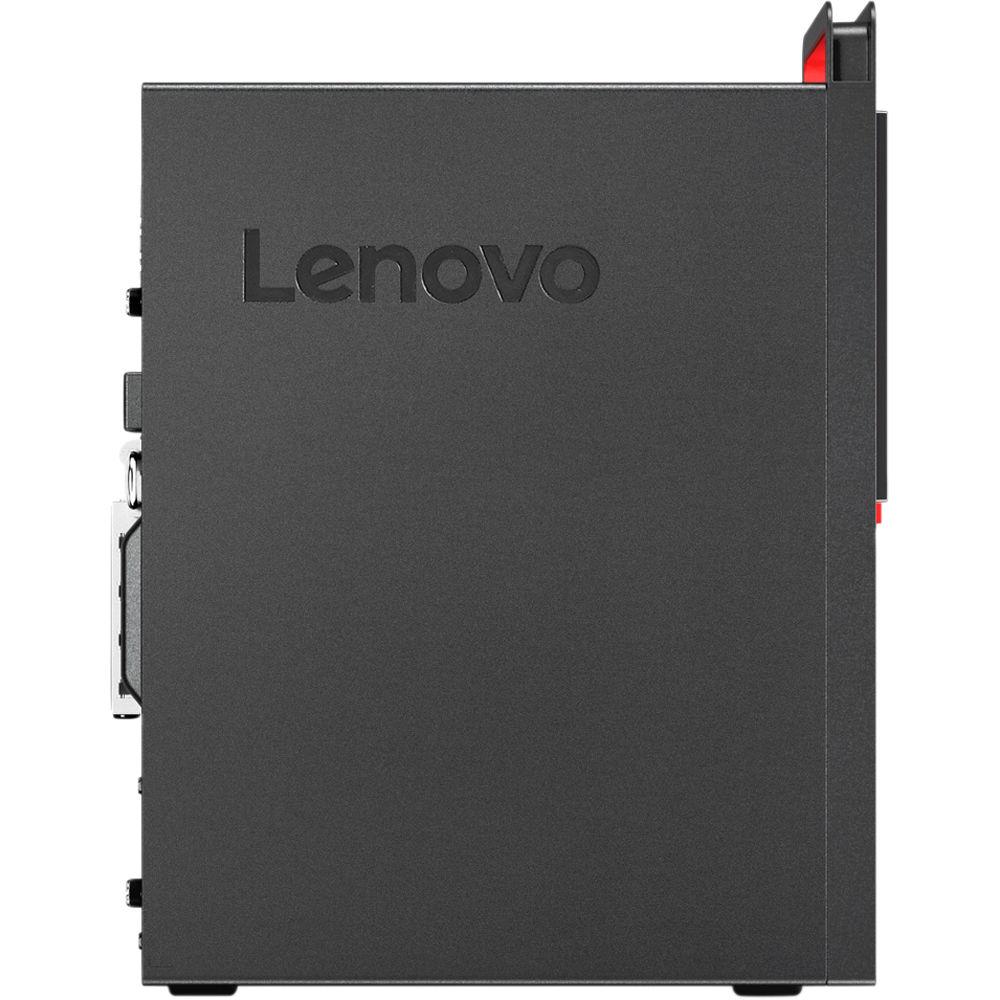

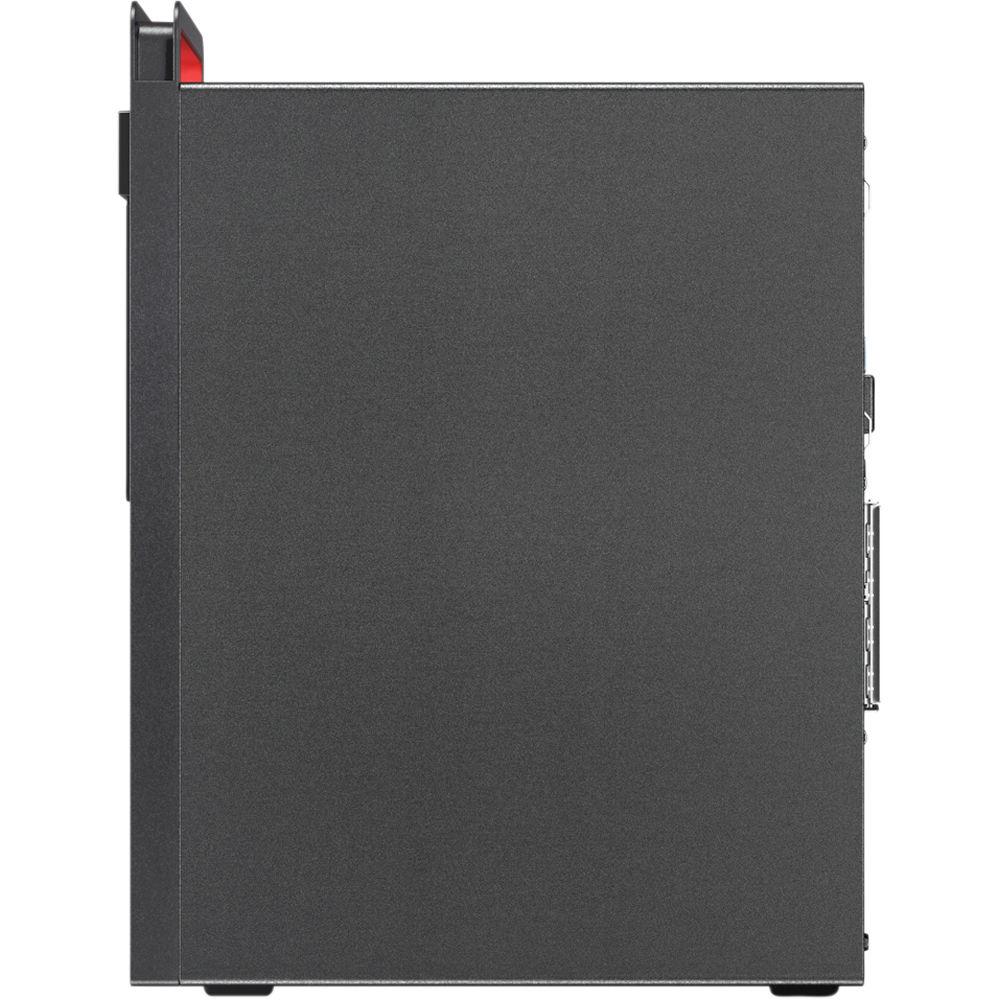

User Manual for Lenovo ThinkCentre M910 Tower Desktop Computer Click to enlarge the picture
Contents of the user manual for the Lenovo ThinkCentre M910 Tower Desktop Computer
- Product category: Desktop Computers Lenovo
- Brand: Lenovo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lenovo Desktop Computers
 |
User manual for the Lenovo ThinkCentre M910 Tower Desktop Computer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lenovo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lenovo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lenovo product will considerably shorten its lifespan!
|
Product description Fast, responsive, and efficient, the ThinkCentre M910 Tower Desktop Computer from Lenovo is powerful, easy to manage, highly configurable, and backed by security features to meet present and future computing needs. The system is powered by a 3.4 GHz Intel Core i5-7500 Quad-Core processor which will allow you to run multiple applications simultaneously. If you need more power, the CPU can be overclocked to 3.8 GHz using Intel's Turbo Boost 2.0 technology.
The 8GB of 2400 MHz DDR4 RAM helps to ensure smooth multitasking and also allows the computer to quickly access frequently-used files and programs. While the current memory configuration is 1 x 8GB, there are four total 288-pin DIMM memory slots that will allow the RAM to be upgraded to 64GB, using one 16GB module in each of the memory slots.
For long-term storage of your files, a 1TB 7200 rpm SATA 3.5" hard drive offers quick access to your data, and there is an empty 3.5" drive bay, 2.5" drive bay, and M.2 slot for additional internal storage, plus an additional M.2 slot for Wi-Fi. If you want to add external storage drives, optical drives, printers, memory card readers, or other peripherals, the M910 Tower features eight USB 3.0 Type-A ports and one serial port. The integrated Intel HD Graphics 630 chipset delivers a sharp, clear picture while allowing for three simultaneous displays to be used via its two DisplayPort and one VGA video outputs at resolutions up to 4096 x 2304 @ 60 Hz. Whether you are listening to music, watching a movie, or playing a game, the integrated Realtek ALC662 audio codec outputs high definition audio and delivers higher fidelity than standard audio controllers.

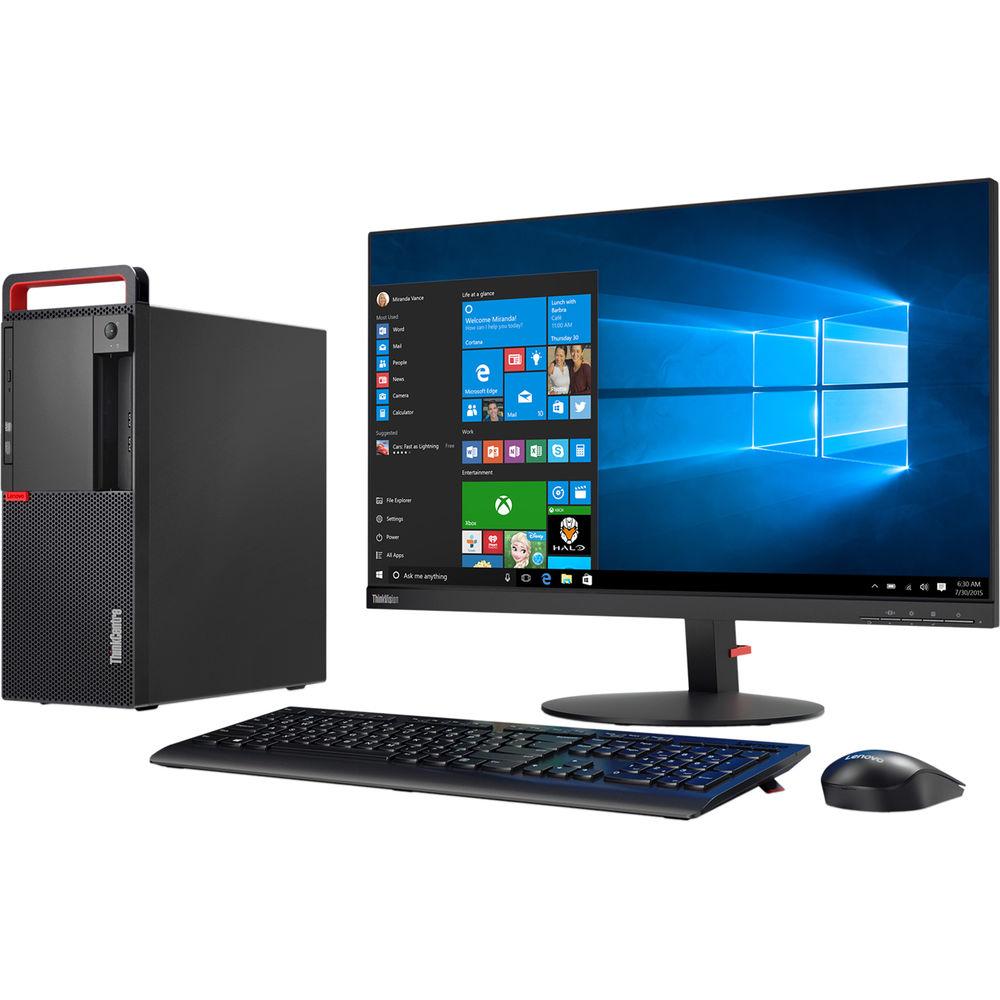

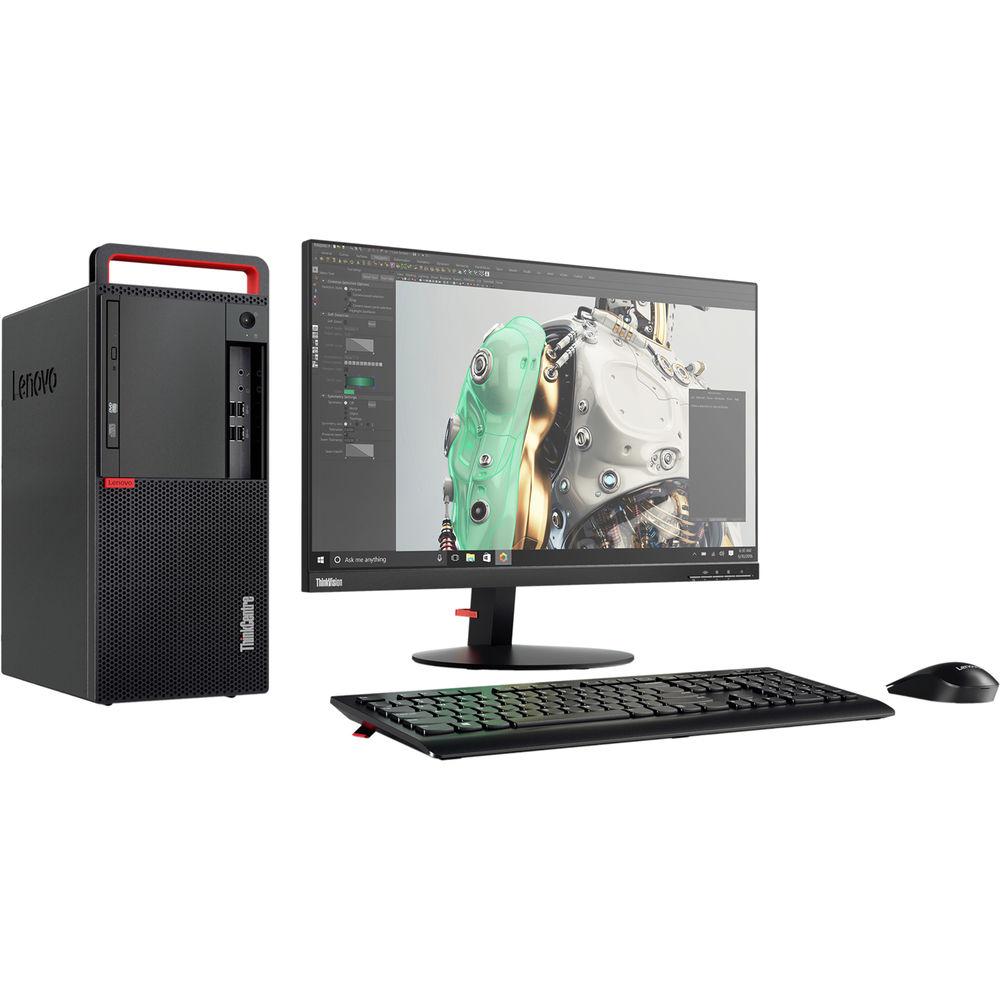

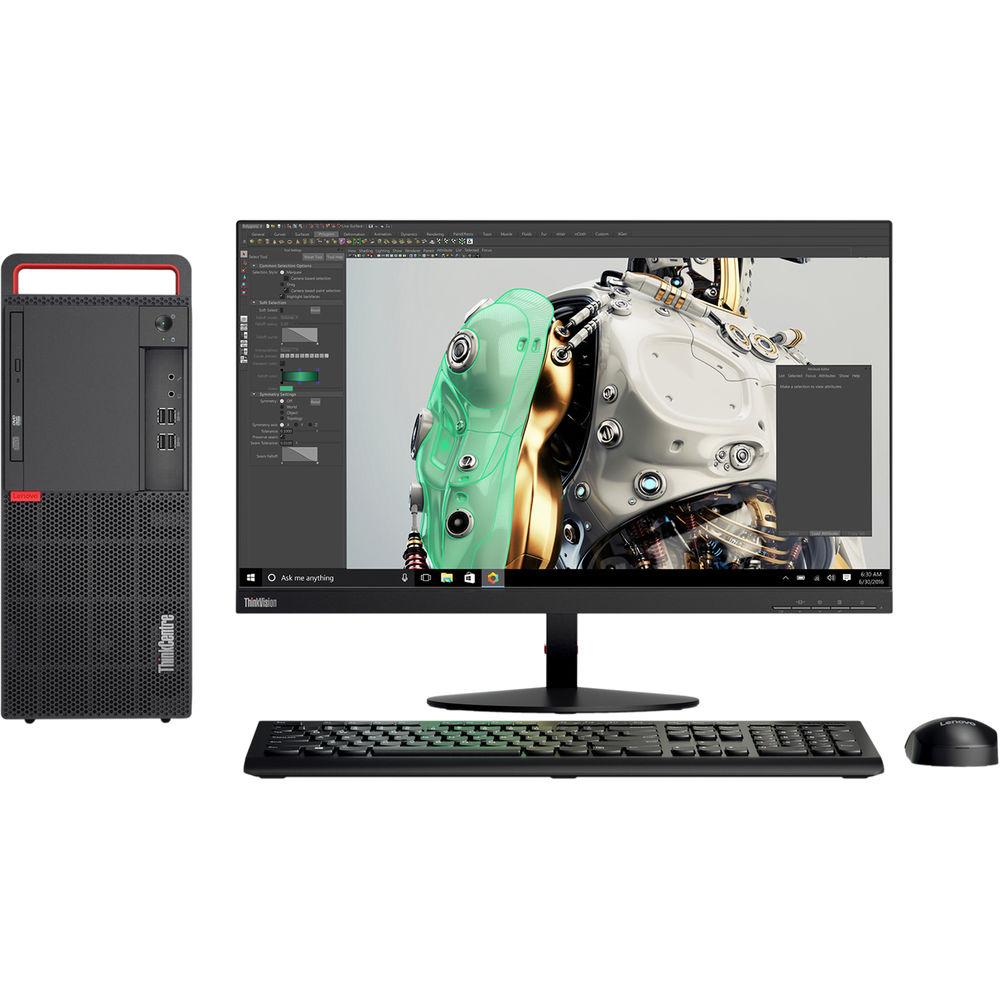

Lenovo's ThinkCentre M910 Tower Desktop Computer includes a USB keyboard, a USB mouse, and an auto-sensing 250W power adapter. The installed operating system is Windows 10 Pro (64-bit). General Features - SuperMulti DVD Burner
- The SuperMulti DVD Burner supports a wide variety of optical DVD and CD media, including DVD±RW.
- Gigabit Ethernet
- The system uses an integrated Intel I219-LM Gigabit Ethernet controller for Internet access when connected to a router, modem, or network switch.
- 8 x USB 3.0 Ports Type-A Ports
- The M910 Tower features eight 5 Gb/s USB 3.0 Type-A ports that will allow you to connect external peripherals such as hard drives, printers, and memory card readers.
- 2 x DisplayPort | 1 x VGA
- The two DisplayPort outputs support resolutions up to 4096 x 2304 @ 60 Hz, while the VGA port supports resolutions up to 2048 x 1536 @ 50 Hz. Up to three independent displays are supported.
- PCI Express Connectors
- 1 x PCIe 3.0 x16
1 x PCIe 3.0 x16 (x4 signal)
1 x PCIe e.0 x1 - Energy Efficient Power Supply
- The 250W power supply is 85% efficient.
Windows 10 Pro (64-bit) - Start Menu
- After its hiatus in Windows 8, the Start Menu has returned. Utilizing a combination of the traditional menu system and Windows 8's Live Tiles, the improved Start Menu gives you more information at a glance, showing notification information alongside your applications and other pinned items.
- Cortana
- Microsoft's digital personal assistant, Cortana can answer your questions with information gleaned from both your device and the internet at large. You can type or even talk with her, if your system has a microphone. Using her Notebook, Cortana keeps track of your needs and wants, and she learns over time to improve her information gathering skills.
- Microsoft Edge
- After nearly 20 years, Microsoft has finally replaced its Internet Explorer web browser. With Microsoft Edge, users can write directly on web pages and share notes with friends and colleagues. It also improves the online reading experience by adding a distraction-free mode and read-it-later functionality. Edge also has built-in Cortana integration; you can have her help you find a restaurant, make a reservation, and pull up directions without leaving your browser.
- Windows Store
- For Windows 10, Microsoft has unified the Windows Store. Now, apps for PCs, tablets, and phones will all be accessible from one place. And with support for Universal Apps, one version of an app can work across all your compatible devices automatically.
- Windows Continuum
- Windows 10 was designed for a variety of screen sizes and input styles, and with its Continuum feature, it automatically adapts to fit your needs. A Windows 10 tablet on its own requires a touch-centric approach, but attaching a mouse and keyboard will shift everything to a more traditional interface. You can even attach an external monitor to your Windows 10 phone for a near-desktop experience. But it's not just the operating system; Windows Universal Apps take advantage of Continuum as well.
- Xbox on Windows 10
- Gaming is a big focus of Windows 10. Xbox integration allows for PC players to match up against Xbox One players on supported games, and if you have an Xbox One, you can even stream compatible titles to your PC. Native support for recording with the new Game DVR feature makes it easy to capture and share your gameplay. The new DirectX12 takes better advantage of multi-core processors, giving games a performance boost, even on older hardware. Windows 10 also features native support for virtual reality headsets, such as the Oculus Rift.
- Windows 10 Pro
- The Pro version of Windows 10 includes all of the features of Windows 10 Home plus many designed specifically for businesses users, including Hyper-V virtualization, BitLocker disk encryption, and remote desktop access. Devices will also be able to join domains and the Azure Active Directory, and they can even access a specialized version of the Windows Store featuring custom, company-specific applications.
UPC: 191200794193 In the Box Lenovo ThinkCentre M910 Tower Desktop Computer USB Keyboard & Mouse 250W Power Supply Limited 3-Year Onsite Warranty More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the Lenovo ThinkCentre M910 Tower Desktop Computer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

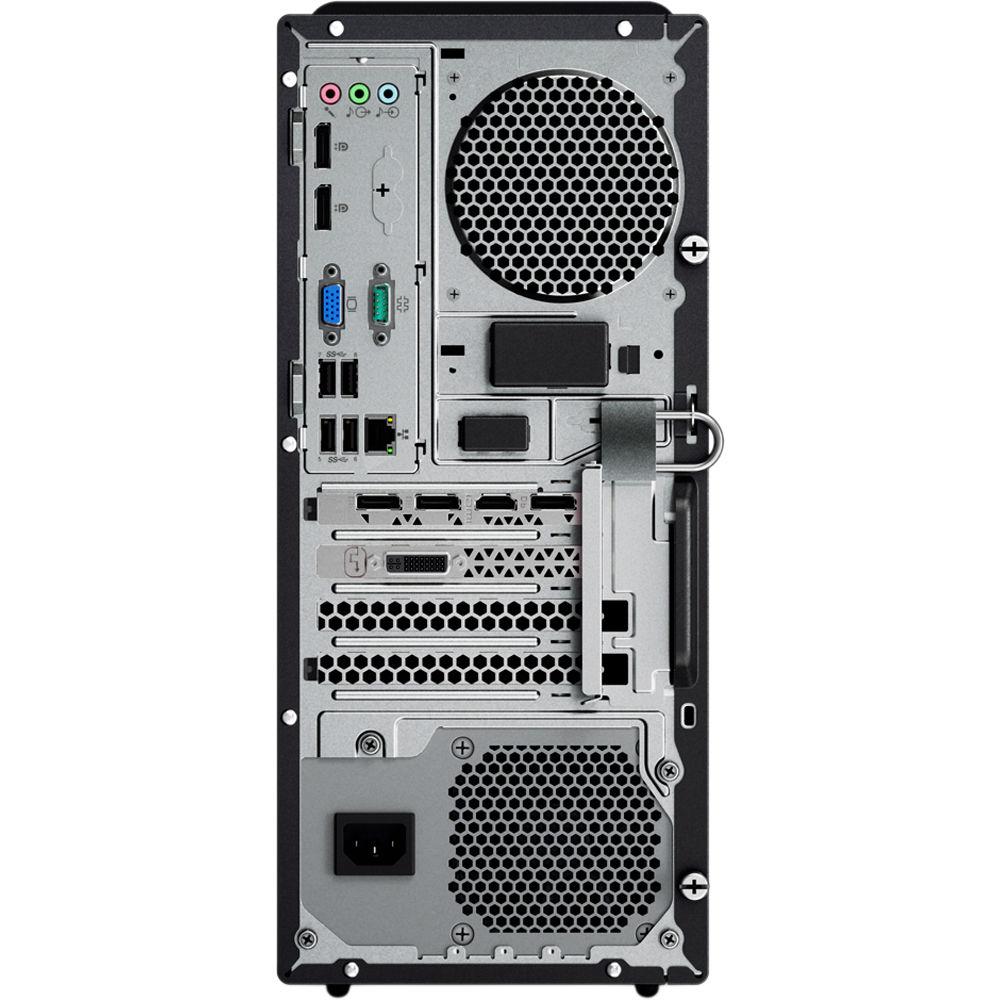

Technical parametersLenovo M910 Specs | Operating System | Windows 10 Pro (64-Bit) | | | | Chipset | Intel Q270 | | CPU | 3.4 GHz Intel Core i5-7500 Quad-Core | | Maximum Boost Speed | 3.8 GHz | | L3 Cache | 6 MB | | Memory Type | 2400 MHz DDR4 | | Total Installed Memory | 8 GB | | Memory Configuration | 1 x 8 GB (User-Replaceable) | | Maximum Memory Capacity | 64 GB | | Memory Slot Type | 288-Pin DIMM | | Available Memory Slots | 3 | | Graphics Type | Integrated | | GPU | Intel HD Graphics 630 | | | | Total Drive Bays | 1 x 2.5" (Internal)
1 x 3.5" (Internal)
1 x 5.25" (External) | | SSD Slots | 1 x M.2 (Available) | | Hard Disk Storage | 1 x 1 TB 3.5" SATA (7200 rpm) | | PCI Expansion | 1 x M.2 2230 (E-Key)
1 x PCIe Gen 3 x1 (x1 Mechanical)
1 x PCIe Gen 3 x16 (x16 Mechanical)
1 x PCIe Gen 3 x4 (x16 Mechanical) | | Optical Drive | Tray-Load SuperMulti DVD Burner with Dual Layer Support | | | | Ports | 8 x USB Type-A (USB 3.1 Gen 1)
1 x DE-9 (Serial) | | Display | 2 x DisplayPort
1 x VGA | | Audio | 1 x 1/8" / 3.5 mm Headphone Output
1 x 1/8" / 3.5 mm Line Input
1 x 1/8" / 3.5 mm Line Output
2 x 1/8" / 3.5 mm Microphone Input | | Built-In Speakers | 1 | | Media Card Slots | None | | | | Ethernet | 1 x RJ45 (Gigabit) | | Wi-Fi | None | | Bluetooth | None | | | | Keyboard | Full-Size Keyboard with Number Pad | | Pointing Device | USB Mouse | | | | Power Supply | 250 W | | Dimensions | 6.5 x 16.2 x 12.7" / 165.1 x 411.5 x 322.6 mm | | Weight | 15.4 lb / 7 kg | | | | Package Weight | 22.6 lb | | Box Dimensions (LxWxH) | 21.3 x 15.4 x 10.8" |
