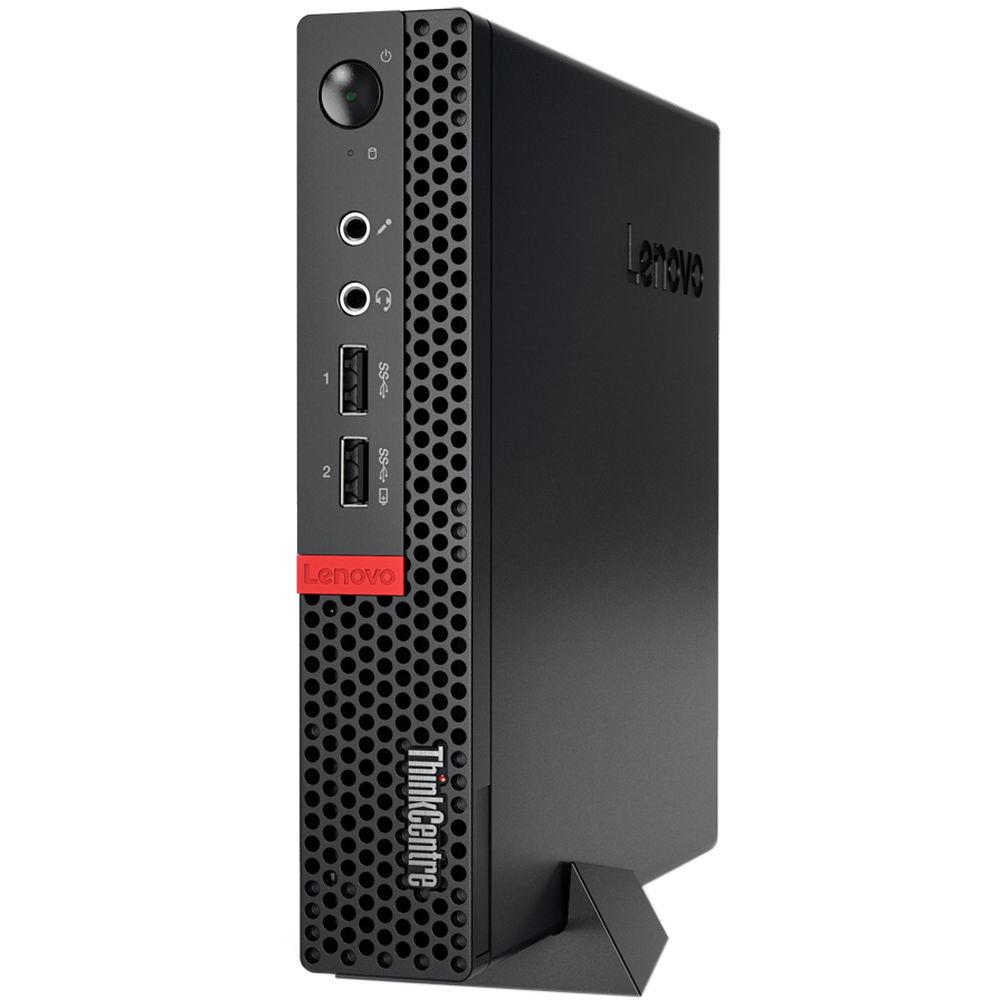

Product description The ThinkCentre M910x Tiny Desktop Computer from Lenovo is designed for progressive IT decision makers and busy professionals who require desktop performance in a portable device. Additionally, the M910x provides versatile, multiple screen support for mobile multitasking. Furthermore, the M910x can handle minor bumps and has a small footprint, allowing it to fit on a bookshelf, behind a monitor, or under a desk. The system is powered by a 2.9 GHz Intel Core i7-7700T Quad-Core processor which will allow you to run multiple applications simultaneously. If you need more power, the CPU can be overclocked to 3.8 GHz using Intel's Turbo Boost 2.0 technology.
The 8GB of 2400 MHz DDR4 RAM helps to ensure smooth multitasking while also allowing the computer to quickly access frequently used files and programs. While the current memory configuration is 1 x 8GB, there are two 260-pin SO-DIMM memory slots that will allow the RAM to be upgraded to 32GB, using one 16GB module in each of the memory slots.

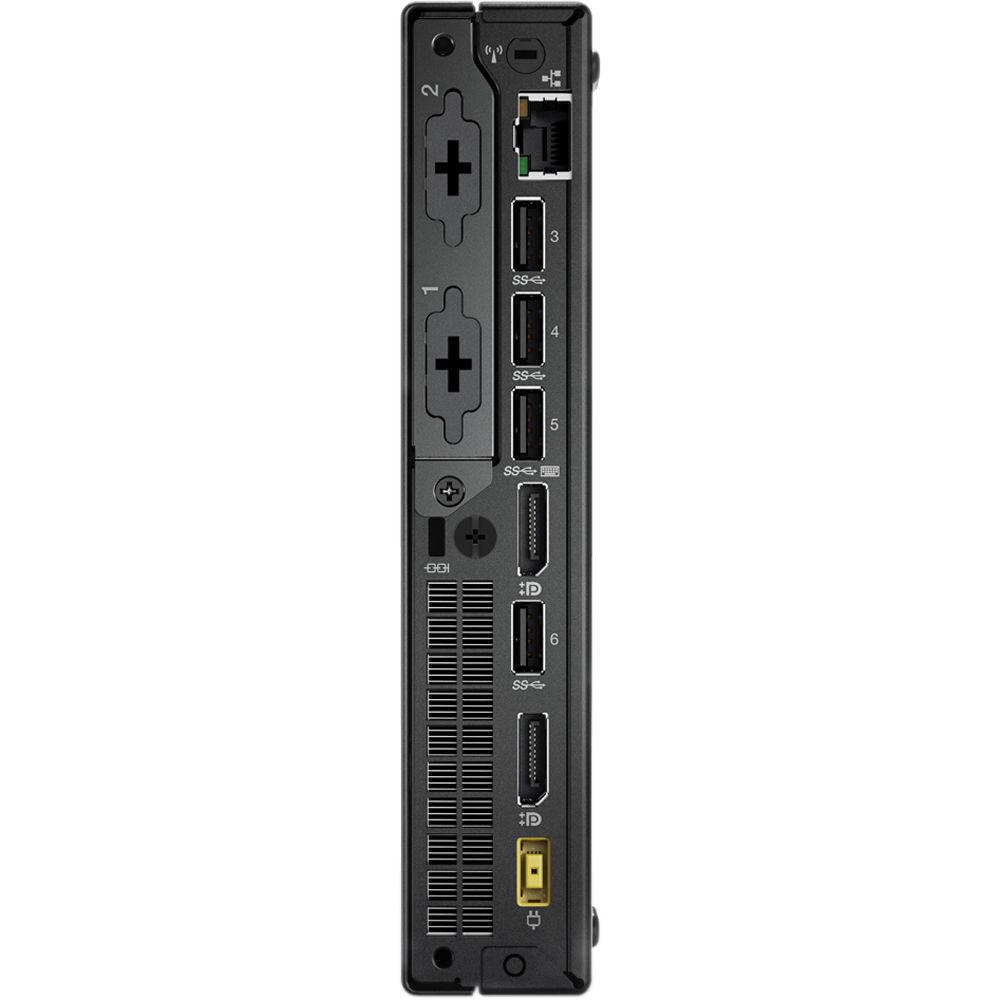

For long-term storage of your files, a 256GB NVMe PCIe M.2 SSD offers quick access to your data, and there is an available 2.5" drive bay plus another M.2 slot for additional internal storage. If you want to add external storage drives, optical drives, printers, memory card readers, or other peripherals, the M910x Tiny features six USB 3.0 Type-A ports. The M910x's dedicated AMD Radeon RX 460 graphics with its built-in 4GB of RAM delivers a sharp, clear picture while allowing for multiple simultaneous displays to be used via its four DisplayPort video outputs. Whether you are listening to music, watching a movie, or playing a game, the integrated Realtek ALC294 audio codec outputs high-definition audio and delivers higher fidelity than standard audio controllers.

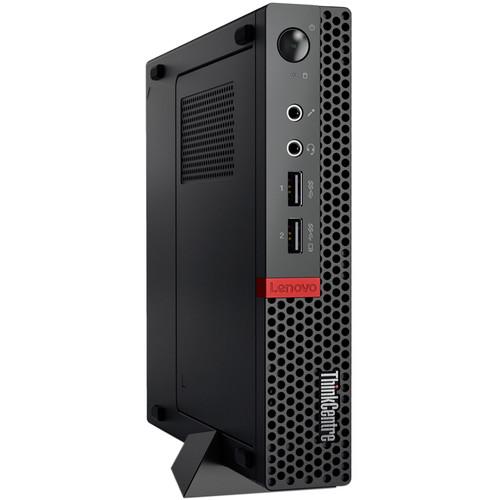

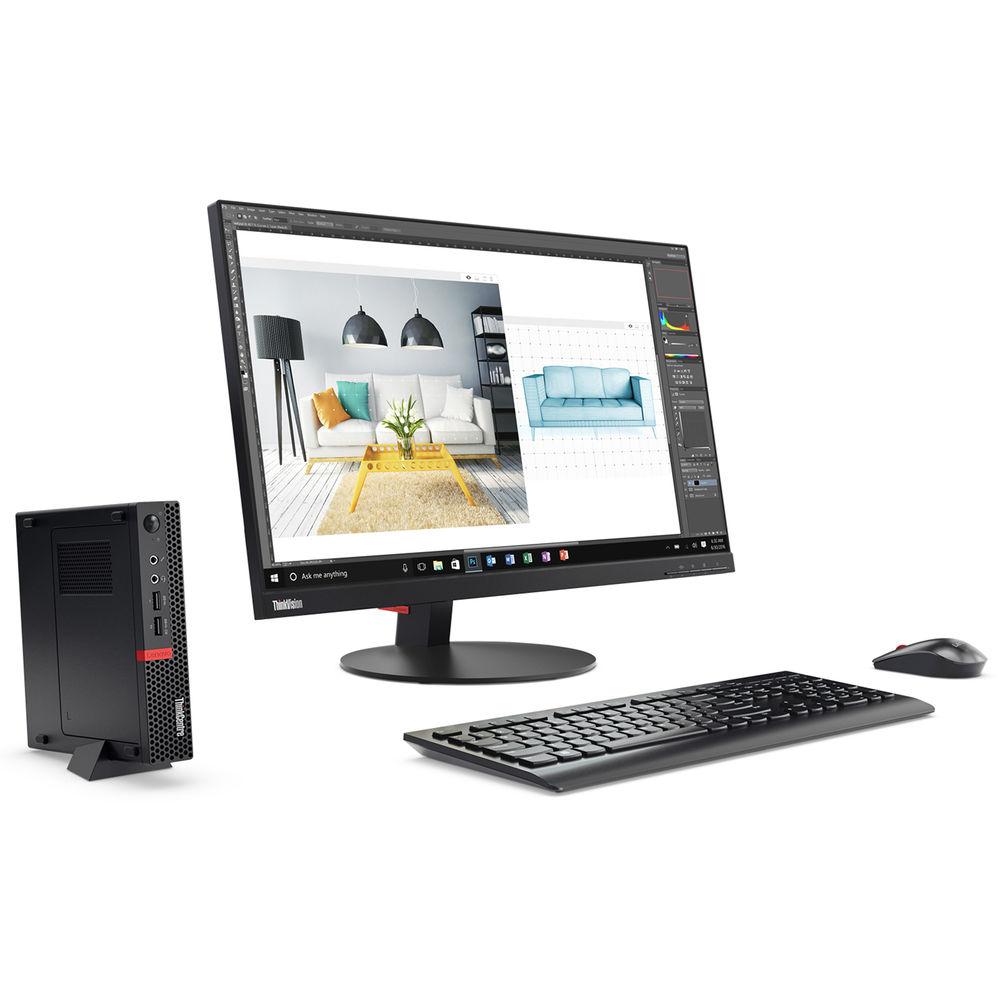

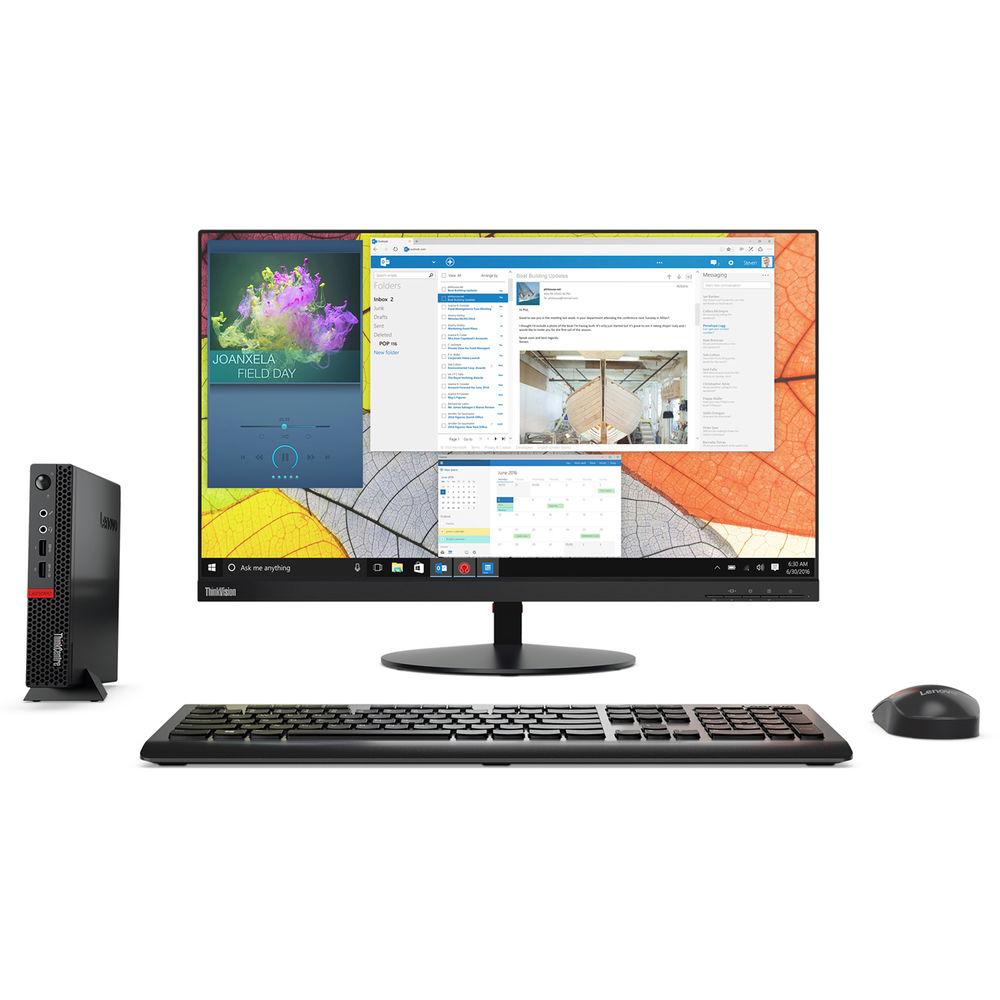

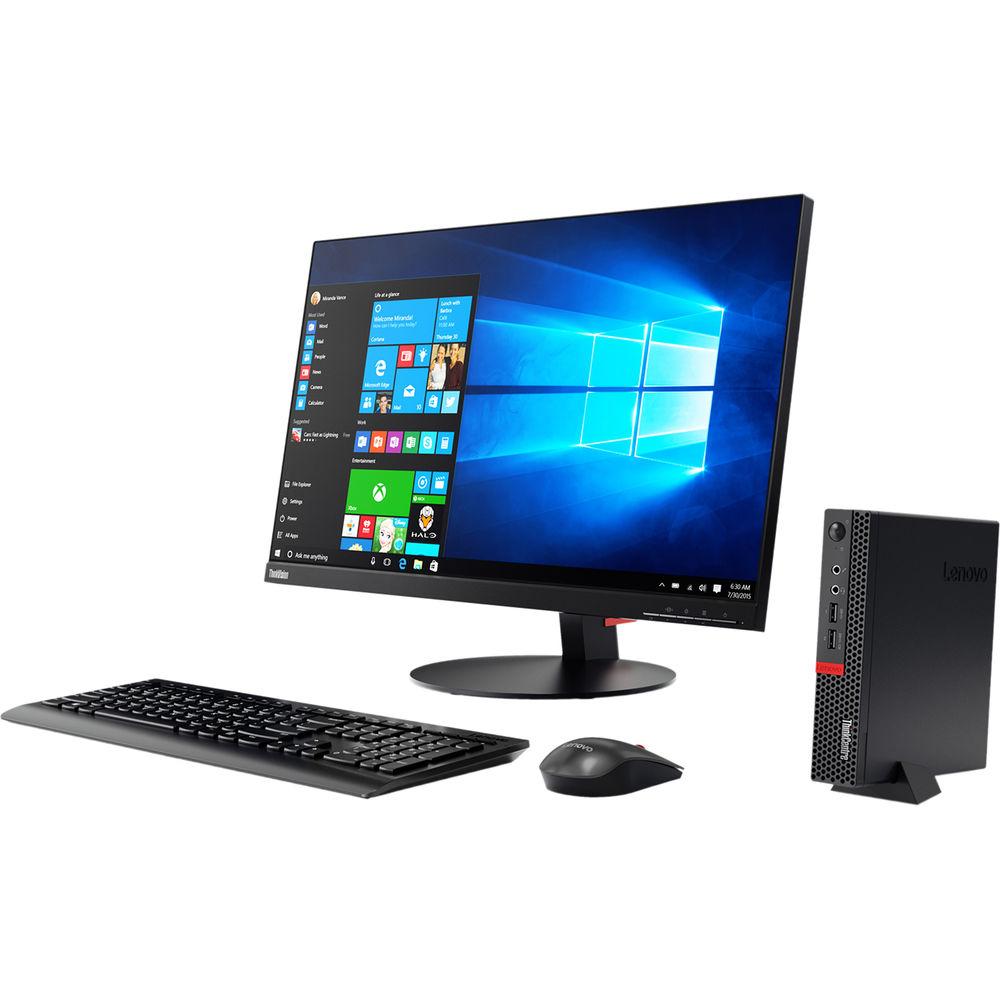

Lenovo's ThinkCentre M910x Tiny Desktop Computer includes a USB keyboard and mouse, a floor stand, and an auto-sensing 135W power adapter. The installed operating system is Windows 10 Pro. General Features - 6 x USB 3.0 Type-A Ports
- The ThinkCentre M910x Tiny Workstation features six USB 3.0 Type-A ports that allow you to connect external peripherals such as hard drives, printers, and memory card readers. Providing 5 Gb/s, USB 3.0 transfers data up to 10 times faster than USB 2.0, which operates at 480 Mb/s.
- Intel 8265ac Wi-Fi & Bluetooth 4.1
- For those who want to connect to the internet wirelessly, there is integrated Intel 8265ac dual-band Wi-Fi, and additional compatible peripherals, such as keyboards, mice, and headsets can be connected using Bluetooth 4.1 technology.
- Gigabit Ethernet
- An integrated Gigabit Ethernet controller provides internet access when connected to a router, modem, or network switch. It also supports Wake on LAN.
- Mil-SPEC Tested
- The ThinkCentre M910x Tiny passes 12 extreme military stress tests and 200 rigorous quality checks. It can endure arctic temperatures of -4°F to the desert heat of 140°F.
- Portable Design
- The ThinkCentre M910x Tiny is lightweight and compact. It's also very versatile and can fit just about anywhere, horizontally or vertically. Mount it on a wall, under a desk, or even behind a monitor to create a modular all-in-one.
Windows 10 - Start Menu
- After its hiatus in Windows 8, the Start Menu has returned. Utilizing a combination of the traditional menu system and Windows 8's Live Tiles, the improved Start Menu gives you more information at a glance, showing notification information alongside your applications and other pinned items.
- Cortana
- Microsoft's digital personal assistant, Cortana can answer your questions with information gleaned from both your device and the internet at large. You can type or even talk with her, if your system has a microphone. Using her Notebook, Cortana keeps track of your needs and wants, and she learns over time to improve her information gathering skills.
- Microsoft Edge
- After nearly 20 years, Microsoft has finally replaced its Internet Explorer web browser. With Microsoft Edge, users can write directly on web pages and share notes with friends and colleagues. It also improves the online reading experience by adding a distraction-free mode and read-it-later functionality. Edge also has built-in Cortana integration; you can have her help you find a restaurant, make a reservation, and pull up directions without leaving your browser.
- Windows Store
- For Windows 10, Microsoft has unified the Windows Store. Now, apps for PCs, tablets, and phones will all be accessible from one place. And with support for Universal Apps, one version of an app can work across all your compatible devices automatically.
- Windows Continuum
- Windows 10 was designed for a variety of screen sizes and input styles, and with its Continuum feature, it automatically adapts to fit your needs. A Windows 10 tablet on its own requires a touch-centric approach, but attaching a mouse and keyboard will shift everything to a more traditional interface. You can even attach an external monitor to your Windows 10 phone for a near-desktop experience. But it's not just the operating system; Windows Universal Apps take advantage of Continuum as well.
- Xbox on Windows 10
- Gaming is a big focus of Windows 10. Xbox integration allows for PC players to match up against Xbox One players on supported games, and if you have an Xbox One, you can even stream compatible titles to your PC. Native support for recording with the new Game DVR feature makes it easy to capture and share your gameplay. The new DirectX12 takes better advantage of multi-core processors, giving games a performance boost, even on older hardware. Windows 10 also features native support for virtual reality headsets, such as the Oculus Rift.
- Windows 10 Pro
- The Pro version of Windows 10 includes all of the features of Windows 10 Home plus many designed specifically for businesses users, including Hyper-V virtualization, BitLocker disk encryption, and remote desktop access. Devices will also be able to join domains and the Azure Active Directory, and they can even access a specialized version of the Windows Store featuring custom, company-specific applications.
UPC: 191545143366 In the Box Lenovo ThinkCentre M910x Tiny Desktop Computer USB Keyboard & Mouse 135W Power Adapter Floor Stand Limited 3-Year Onsite Warranty User Manual PDF 6mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Lenovo ThinkCentre M910x Tiny Desktop Computer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLenovo M910x Specs | Operating System | Windows 10 Pro (64-Bit) | | | | Chipset | Intel Q270 | | CPU | 2.9 GHz Intel Core i7-7700T Quad-Core | | Maximum Boost Speed | 3.8 GHz | | L3 Cache | 8 MB | | Memory Type | 2400 MHz DDR4 | | Total Installed Memory | 8 GB | | Memory Configuration | 1 x 8 GB (User-Replaceable) | | Maximum Memory Capacity | 32 GB | | Memory Slot Type | 260-Pin SO-DIMM | | Available Memory Slots | 1 | | Graphics Type | Dedicated | | GPU | AMD Radeon RX 460 with 4 GB GDDR5 VRAM | | | | Total Drive Bays | 1 x 2.5" (Internal) | | SSD Slots | 1 x M.2 | | Solid State Storage | 1 x 256 GB M.2 PCIe | | Optical Drive | None | | | | Ports | 6 x USB Type-A (USB 3.1 Gen 1) | | Display | 4 x DisplayPort | | Audio | 1 x 1/8" / 3.5 mm Headphone/Microphone Input/Output
1 x 1/8" / 3.5 mm Microphone Input | | Media Card Slots | None | | | | Ethernet | 1 x RJ45 (Gigabit) | | Wi-Fi | Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz) | | Bluetooth | 4.1 | | | | Keyboard | Full-Size Keyboard with Number Pad | | Pointing Device | USB Mouse | | | | Power Supply | 135 W | | Dimensions | 7.1 x 1.4 x 7.2" / 180.3 x 35.6 x 182.9 mm | | Weight | 2.9 lb / 1.3 kg | | | | Package Weight | 8.3 lb | | Box Dimensions (LxWxH) | 19.3 x 10.8 x 5.6" |
