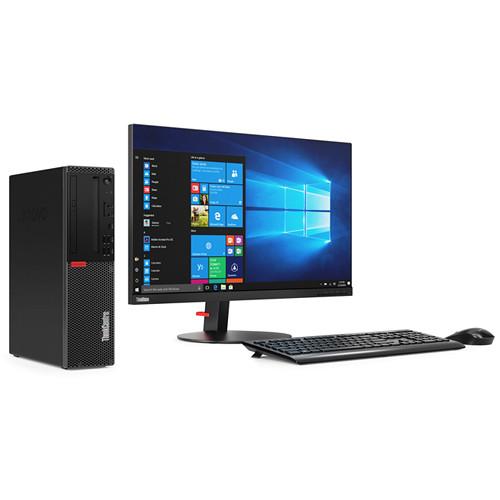

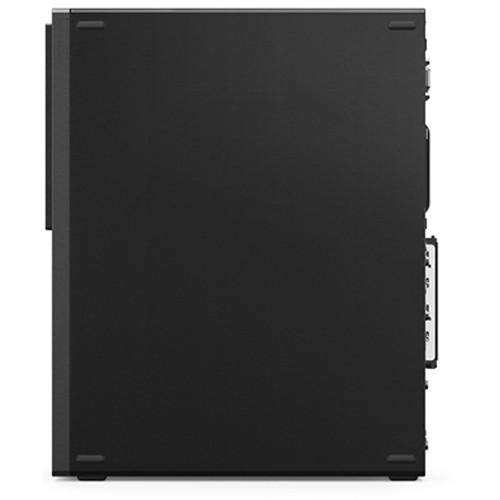

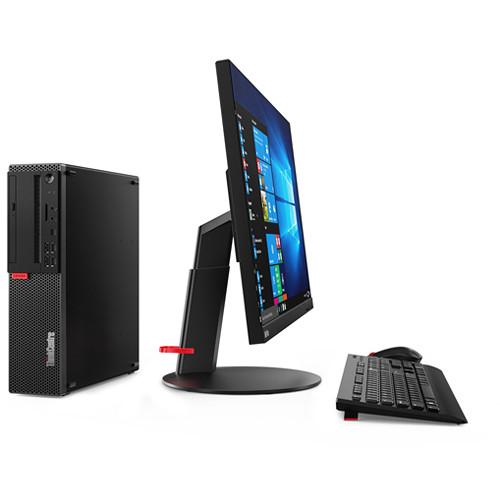

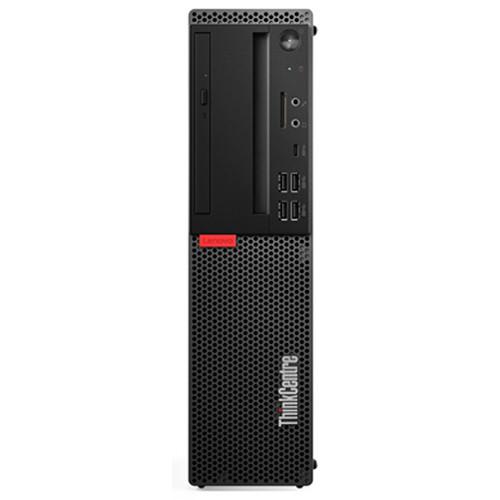

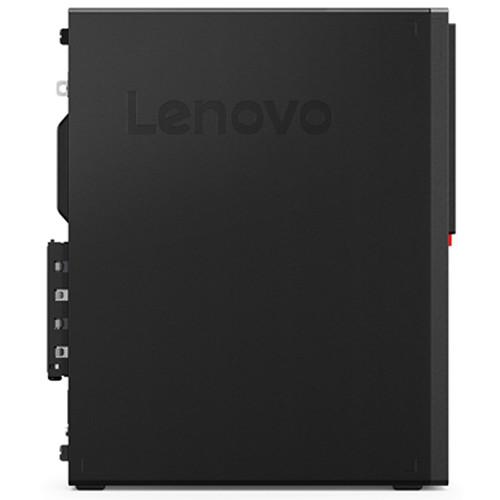

User Manual for Lenovo ThinkCentre M920 Small Form Factor Desktop Computer Click to enlarge the picture
Contents of the user manual for the Lenovo ThinkCentre M920 Small Form Factor
- Product category: Desktop Computers Lenovo
- Brand: Lenovo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lenovo Desktop Computers
 |
User manual for the Lenovo ThinkCentre M920 Small Form Factor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lenovo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lenovo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lenovo product will considerably shorten its lifespan!
|
Product description The ThinkCentre M920 Small Form Factor Desktop Computer from Lenovo is designed to be efficient in business settings with a 3.2 GHz Intel Core i7-8700 processor that sports six cores for speedy performance. If you need more powerful processing, the CPU can be overclocked to 4.6 GHz. Additionally, the ThinkCentre M920 comes with 8GB of 2666 MHz DDR4 RAM, which helps to ensure smooth multitasking and allows the computer to access frequently used files and programs quickly. While the current memory configuration is 1 x 8GB, there are four total 288-pin SO-DIMM memory slots that will allow the RAM to be upgraded to 64GB, using one 16GB module in each of the memory slots.

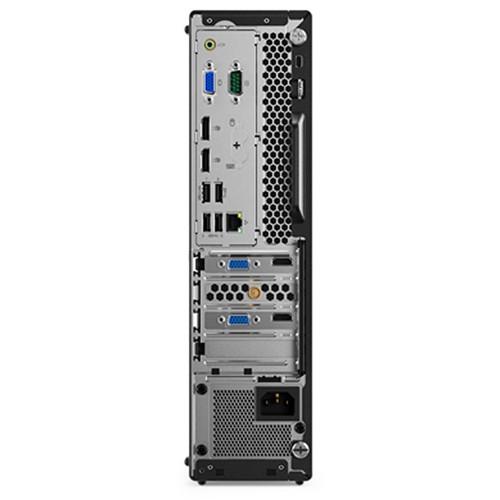

For long-term storage of your files, the ThinkCentre M920 is equipped with a 256GB M.2 solid-state drive. If you want to add external storage drives, optical drives, printers, memory card readers, or other peripherals, the M920 Small Form Factor features six USB 3.1 Gen 1 Type-A ports, two USB 3.1 Gen 2 Type-A ports, and a single USB 3.1 Type-C port that offers 15W charging power. This small form factor system has an integrated Intel UHD Graphics 630 chipset that delivers a sharp, clear picture while allowing for multiple simultaneous displays to be used via its two DisplayPort and single VGA video output.
Lenovo's ThinkCentre M920 Small Form Factor Desktop Computer can connect to networks with its on-board Gigabit Ethernet, and is even capable of burning DVDs with its SuperMulti DVD Burner. Moreover, the ThinkCentre M920 includes a USB keyboard, mouse, stand, and a 210W power adapter. The installed operating system is Windows 10 Pro (64-bit). ThinkCentre M920 SFF Features - USB 3.1 Gen 1
- USB 3.1 Gen 1 features a maximum throughput of 5 Gb/s. USB 3.1 Gen 1 and USB 3.0 are synonymous.
- USB 3.1 Gen 2
- Doubling the speed of its predecessor, USB 3.1 Gen 2 features a maximum throughput of 10 Gb/s when used with compatible devices.
- SuperMulti DVD Burner
- The SuperMulti DVD Burner supports a wide variety of optical DVD and CD media, including DVD
|
Upload User Manual
Have you got an user manual for the Lenovo ThinkCentre M920 Small Form Factor Desktop Computer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLenovo M920s Specs | Operating System | Windows 10 Pro (64-Bit) | | | | Chipset | Intel Q370 | | CPU | 3.2 GHz Intel Core i7-8700 6-Core | | Maximum Boost Speed | 4.6 GHz | | L3 Cache | 12 MB | | Memory Type | 2666 MHz DDR4 | | Total Installed Memory | 8 GB | | Memory Configuration | 1 x 8 GB (User-Replaceable) | | Maximum Memory Capacity | 64 GB | | Memory Slot Type | 288-Pin SO-DIMM | | Available Memory Slots | 1 | | Graphics Type | Integrated | | GPU | Intel UHD Graphics 630 | | | | Total Drive Bays | 1 x 2.5" (Internal) | | SSD Slots | 1 x M.2 | | Solid State Storage | 1 x 256 GB M.2 PCIe | | PCI Expansion | None | | Optical Drive | Tray-Load SuperDrive with Dual Layer Support | | | | Ports | 2 x USB Type-A (USB 3.1 Gen 2)
6 x USB Type-A (USB 3.1 Gen 1) | | USB Type-C Ports | 1 x USB 3.1 Gen 1 | | Display | 2 x DisplayPort
1 x VGA | | Audio | 1 x 1/8" / 3.5 mm Headphone/Microphone Input/Output | | Built-In Speakers | 2 | | Built-In Microphones | 1 | | | | Ethernet | 1 x RJ45 (Gigabit) | | | | Keyboard | Full-Size Keyboard with Number Pad | | Pointing Device | USB Mouse | | | | Power Supply | 310 W | | Dimensions | 3.6 x 13.5 x 11.4" / 92.5 x 343.5 x 290.5 mm | | Weight | 13.2 lb / 6 kg | | | | Package Weight | 16.485 lb | | Box Dimensions (LxWxH) | 21.0 x 15.5 x 7.7" |
