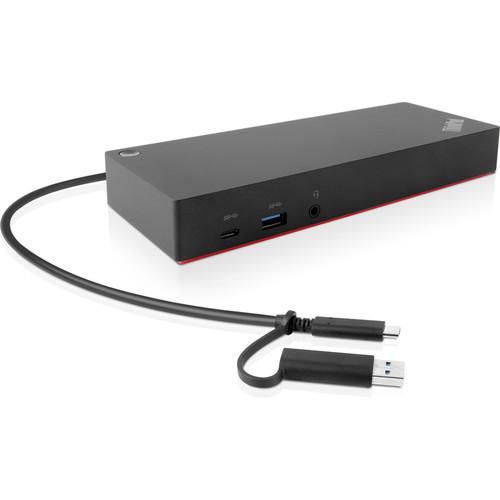

User Manual for Lenovo ThinkPad Hybrid USB Type-C Laptop Dock with USB Type-A Adapter Click to enlarge the picture
Contents of the user manual for the Lenovo ThinkPad Hybrid USB Type-C Laptop
- Product category: Docking Stations & Port Replicators Lenovo
- Brand: Lenovo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lenovo Docking Stations & Port Replicators
|
User manual for the Lenovo ThinkPad Hybrid USB Type-C Laptop contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lenovo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lenovo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lenovo product will considerably shorten its lifespan!
|
Product description Connect your laptop to a network, USB peripherals, and up to two 4K displays with the ThinkPad Hybrid USB Type-C Laptop Dock with USB Type-A Adapter from Lenovo. Compatible with most Windows laptops equipped with either a USB Type-A or USB Type-C port, the ThinkPad Hybrid Laptop Dock comes with two DisplayPort 1.2 ports and two HDMI ports, ideal for connecting to up to two 4K displays. Other connections include a USB 3.1 Gen 2 Type-C port, three USB 3.1 Gen 2 Type-A ports, a Gigabit Ethernet port, and two USB 2.0 Type-A ports. The included USB Type-C cable has an attached USB Type-A adapter that lets you use the dock with a USB Type-A-equipped laptop that lacks a USB Type-C port. - Enterprise-class capabilities with PXE boot, Wake-on-LAN, and MAC address pass-through
- Supports ThinkPad RapidCharge
- Connects with up to two UHD 4K displays with DisplayPort and HDMI ports
- Delivers up to 10 Gb/s data transfer speed on three USB 3.1 Gen 2 Type-A ports
- Compatible laptops include:
Business Edition Miix Series Lenovo MIIX 520-12IKB
ThinkCentre M AIO Series/ThinkCentre M910z
ThinkPad E Series-E470
ThinkPad E Series-E480
ThinkPad E Series-E490
ThinkPad E Series-E490s
ThinkPad E Series-E580
ThinkPad E Series-E590
ThinkPad L Series-L380
ThinkPad L Series-L390
ThinkPad L Series-L470
ThinkPad L Series-L480
ThinkPad L Series-L580
ThinkPad P Series-P51s
ThinkPad P Series-P52s
ThinkPad T Series-T460
ThinkPad T Series-T470
ThinkPad T Series-T470s
ThinkPad T Series-T480
ThinkPad T Series-T480s
ThinkPad T Series-T570
ThinkPad T Series-T580
ThinkPad T Series-TP25
ThinkPad X Series (relationship only)-X250
ThinkPad X Series 2nd generation/11e 5th generation
ThinkPad Yoga 370
ThinkPad X Series 2nd generation/X1 Carbon 5th generation
ThinkPad X Series 2nd generation/X1 Carbon 6th generation
ThinkPad X Series 2nd generation/X1 Yoga 3rd generation
ThinkPad X Series 2nd generation/X250
ThinkPad X Series 2nd generation/X260
ThinkPad X Series 2nd generation/X270
ThinkPad X Series 2nd generation/X280
ThinkPad X Series 2nd generation/X380 Yoga
ThinkPad X Series-A485
ThinkPad X1 Tablet/ThinkPad X1 Tablet generation 3 UPC: 191999788441 In the Box Lenovo ThinkPad Hybrid USB Type-C Laptop Dock with USB Type-A Adapter ThinkPad Slim-Tip 135W AC Power Adapter USB Type-C Cable with USB Type-A Adapter (3.3') Power Cord Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lenovo ThinkPad Hybrid USB Type-C Laptop Dock with USB Type-A Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLenovo ThinkPad Hybrid Dock Specs | | | USB | 1 x USB 3.1 Gen 2 Type-C (3 A)
3 x USB 3.1 Gen 2 Type-A
2 x USB 2.0 Type-A | | Thunderbolt | None | | Ethernet | 1 x RJ45 (10/100/1000 Mbps) | | FireWire | None | | Display | 2 x DisplayPort 1.2
2 x HDMI | | Audio | 1 x 1/8" / 3.5 mm Headphone/Microphone Combo | | Memory Card Slots | None | | | | System Connection | 1 x USB 3.1 Gen 1 Type-C Male | | Connection Type | Detachable Cable | | | | Number of Displays Supported | 2 | | Maximum Resolution Supported | 3840 x 2160 at 60 Hz (Dual Display)
5120 x 2880 at 60 Hz (Single Display) | | Data Transfer Rate | 5 Gb/s USB 3.0/USB 3.1 Gen 1
10 Gb/s USB 3.1 Gen 2 | | Operating System Support | Windows | | UASP Support | No | | | | Power Source | AC Adapter | | Maximum Power Consumption | 135 W (AC Adapter) | | | | Certifications | BSMI, CB, CE, EAC, FCC, Kcc, RCM, TUV, VCCI, as per Manufacturer | | Operating Temperature | 32 to 95°F / 0 to 35°C (Recommended) | | | | Lock Slot | Yes, Kensington | | Dimensions | 8.27 x 3.15 x 1.18" / 210 x 80 x 30 mm | | Weight | 1.1 lb / 480 g | | | | Package Weight | 3.05 lb | | Box Dimensions (LxWxH) | 10.7 x 6.5 x 3.5" |
