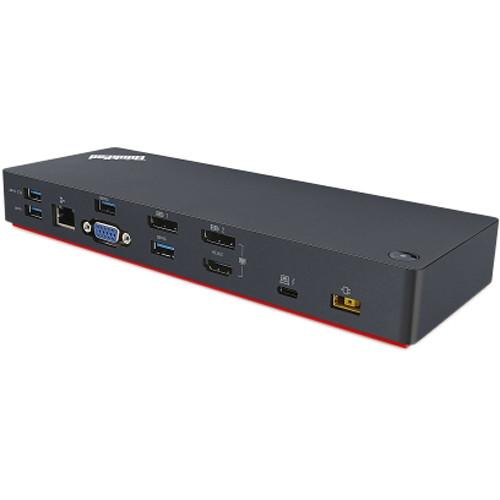

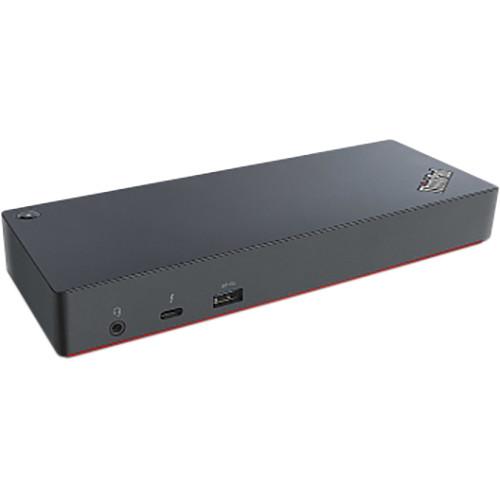

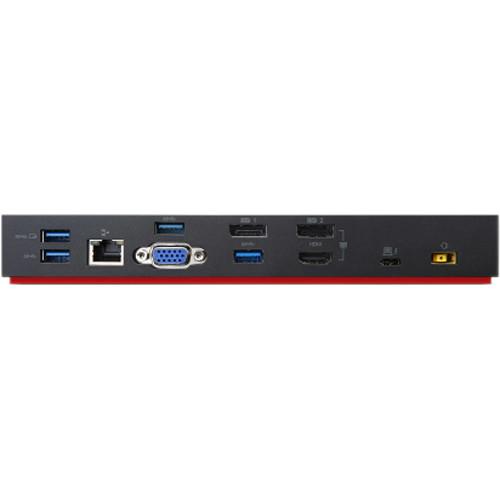

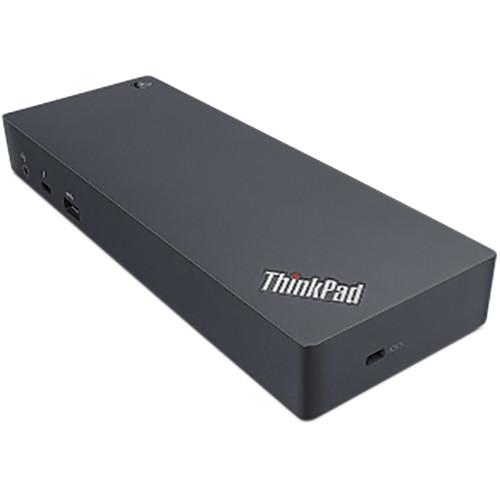

User Manual for Lenovo ThinkPad Thunderbolt 3 Dock Click to enlarge the picture
Contents of the user manual for the Lenovo ThinkPad Thunderbolt 3 Dock
- Product category: Docking Stations & Port Replicators Lenovo
- Brand: Lenovo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lenovo Docking Stations & Port Replicators
 |
User manual for the Lenovo ThinkPad Thunderbolt 3 Dock contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lenovo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lenovo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lenovo product will considerably shorten its lifespan!
|
Product description With the Thinkpad Thunderbolt 3 Dock from Lenovo, you can connect a variety of peripherals directly to your notebook or tablet. This dock comes equipped with a variety of video inputs including DisplayPort, HDMI, and VGA ports. Accompanying the video inputs, you will find a single Thunderbolt 3 port that also doubles as a USB Type-C port providing up to 5V, 3A of power to compatible USB Type-C devices. If that's not enough, this dock also comes equipped with five USB 3.0 ports, a single Gigabit Ethernet port, and one 3.5mm combination stereo/mic jack. - Features
-
- Charge your mobile device with the always-power-on USB 3.0 port
- Pairs with the ThinkPad X1 with rapid charging support
- Experience UHD video with dual video outputs or with up to three FHD displays for multi-tasking with ease
- Immediate connection to peripherals with a single cable
- The front Thunderbolt port offers up to 40 Gb/s data transfer speeds
- Enterprise IT Companion Now—it's easier for your IT team to manage selected ThinkPad systems with solutions such as PXE boot, and Wake-On LAN
- Supports passing the ThinkPad MAC address through the dock for the IT to identify the system—adding an extra level of safety against unauthorized users, and boosting your network security
- This dock can charge mobile devices with 15W and 10.5W from USB-C port and USB 3.0 always power-on port respectively
- Compatibility
- P52s, P51s, ThinkPad 25, T580, T480, T480s, T570, T470, T470s, X1 Carbon Gen 6, X1 Carbon Gen 5, X1 Yoga Gen 3, X1 Yoga Gen 2, X1 Tablet Gen 3, X280, X380 Yoga, and Yoga 370
UPC: 190940147085 In the Box Lenovo ThinkPad Thunderbolt 3 Dock Power Adapter Power Cord Thunderbolt 3 Cable Limited 3-Year Warranty More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the Lenovo ThinkPad Thunderbolt 3 Dock in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLenovo Thunderbolt 3 Dock Specs | | | USB | 5 x USB 3.1 Gen 1 Type-A | | Thunderbolt | 1 x Thunderbolt 3 | | Ethernet | 1 x RJ45 (10/100/1000 Mbps) | | FireWire | None | | Display | 2 x DisplayPort
1 x HDMI
1 x VGA | | Audio | 1 x 1/8" / 3.5 mm Headphone/Microphone Combo | | Memory Card Slots | None | | | | Compatibility | Lenovo ThinkPad X1 Carbon
Lenovo ThinkPad Yoga 370
Lenovo ThinkPad T470s | | | | Dimensions | 8.66 x 3.15 x 1.18" / 22 x 8 x 3 cm | | Weight | 0.6 lb / 0.3 kg | | | | Package Weight | 2.6 lb | | Box Dimensions (LxWxH) | 10.6 x 6.6 x 3.5" |
Rating76% users recommend this product to others. And what about you?
This product has already been rated by 10 owners. Add your rating and experience with the product.
