User Manual for Lenovo ThinkPad USB 3.0 Basic Dock Click to enlarge the picture
Contents of the user manual for the Lenovo ThinkPad USB 3.0 Basic Dock
- Product category: Docking Stations & Port Replicators Lenovo
- Brand: Lenovo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lenovo Docking Stations & Port Replicators
 |
User manual for the Lenovo ThinkPad USB 3.0 Basic Dock contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lenovo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lenovo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lenovo product will considerably shorten its lifespan!
|

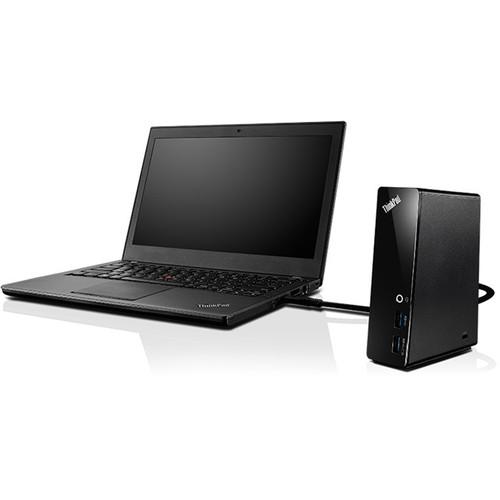

Product description The Lenovo ThinkPad USB 3.0 Basic Dock provides four USB ports as well as one DVI and Gigabit Ethernet port for quickly attaching peripherals to your notebook. The dock connects to your notebook using a single USB 3.0 cable to offer a quick option for attaching all your external gear. The two USB 2.0 ports are suitable for accessing printers and mice, while two USB 3.0 ports transmit data at speeds of up to 5 Gb/s, making them optimal for thumb drives and external storage drives. Additionally, one of the two USB 3.0 ports features always-on mobile device charging, so you can recharge a battery-powered device without the notebook attached.
To expand your notebook's onscreen workspace, the dock can connect to an external monitor that sports a DVI connection. For VGA-outfitted displays, a DVI to VGA adapter is included. Aside from visuals, the dock has an audio combo port for your headset, microphone, headphone, or pair of speakers. Moreover, the notebook can reliably and quickly access the Internet with the available Gigabit Ethernet port located on the rear panel of the dock. - Instantly connect to printers and external storage drives as well as the Internet and external display
- One single USB cable eliminates cable clutter to your notebook
- Charge a mobile device, even when your notebook is not connected

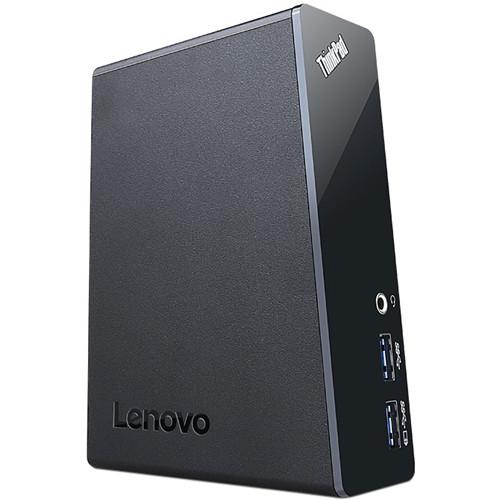

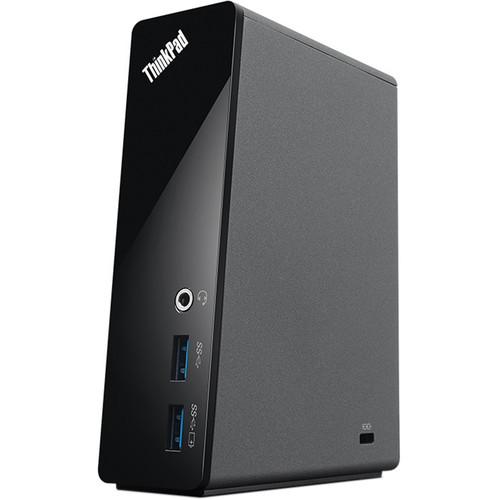

- Stereo/mic combo audio port along with two USB 3.0 (one always-on mobile device charge) located in the front panel

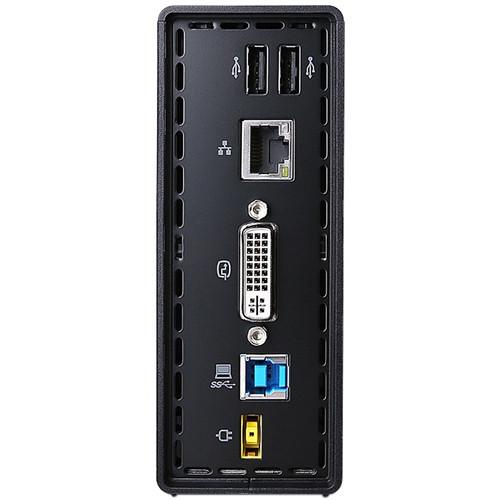

- One DVI and Gigabit Ethernet as well as two USB 2.0 ports offered in the rear panel
- DVI to VGA adapter included
- Cable lock slot for physical security on the side of the dock
- Power button for turning on and off the dock
UPC: 190793284050 In the Box Lenovo ThinkPad USB 3.0 Basic Dock AC Power Adapter Power Cord USB 3.0 Cable DVI to VGA Adapter Limited 1-Year Warranty More from Manufacturer caxecattdayew Table of Contents
|
Upload User Manual
Have you got an user manual for the Lenovo ThinkPad USB 3.0 Basic Dock in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLenovo 40AA0045US Specs | | | USB | 2 x USB 3.1 Gen 1 Type-A
2 x USB 2.0 Type-A | | Thunderbolt | None | | Ethernet | 1 x RJ45 (10/100/1000 Mbps) | | FireWire | None | | Display | 1 x DVI | | Audio | 1 x 1/8" / 3.5 mm Headphone/Microphone Combo | | Memory Card Slots | None | | | | System Connection | 1 x USB 3.1 Gen 1 Type-A Female | | | | Operating Temperature | 41 to 104°F / 5 to 40°C | | Operating Humidity | 5 to 95% | | Storage Temperature | -4 to 140°F / -20 to 60°C | | | | Cable Length | 5.8' / 1.8 m | | Dimensions | 5.3 x 1.9 x 3.6" / 135 x 48 x 91 mm | | Weight | 0.7 lb / 0.3 kg | | | | Package Weight | 2.05 lb | | Box Dimensions (LxWxH) | 11.6 x 8.3 x 2.7" |
