User Manual for Lenovo Thinkpad USB Type-C Dock Click to enlarge the picture
Contents of the user manual for the Lenovo Thinkpad USB Type-C Dock
- Product category: Docking Stations & Port Replicators Lenovo
- Brand: Lenovo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lenovo Docking Stations & Port Replicators
 |
User manual for the Lenovo Thinkpad USB Type-C Dock contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lenovo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lenovo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lenovo product will considerably shorten its lifespan!
|

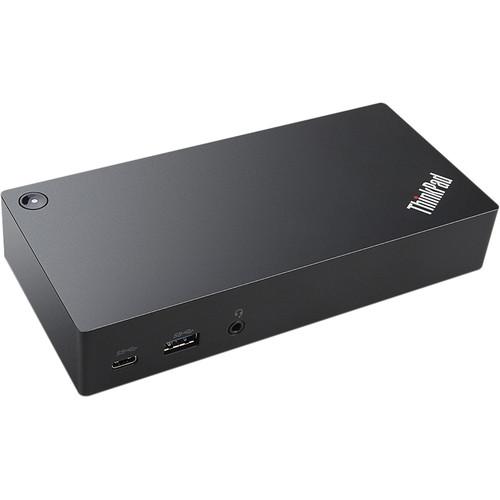

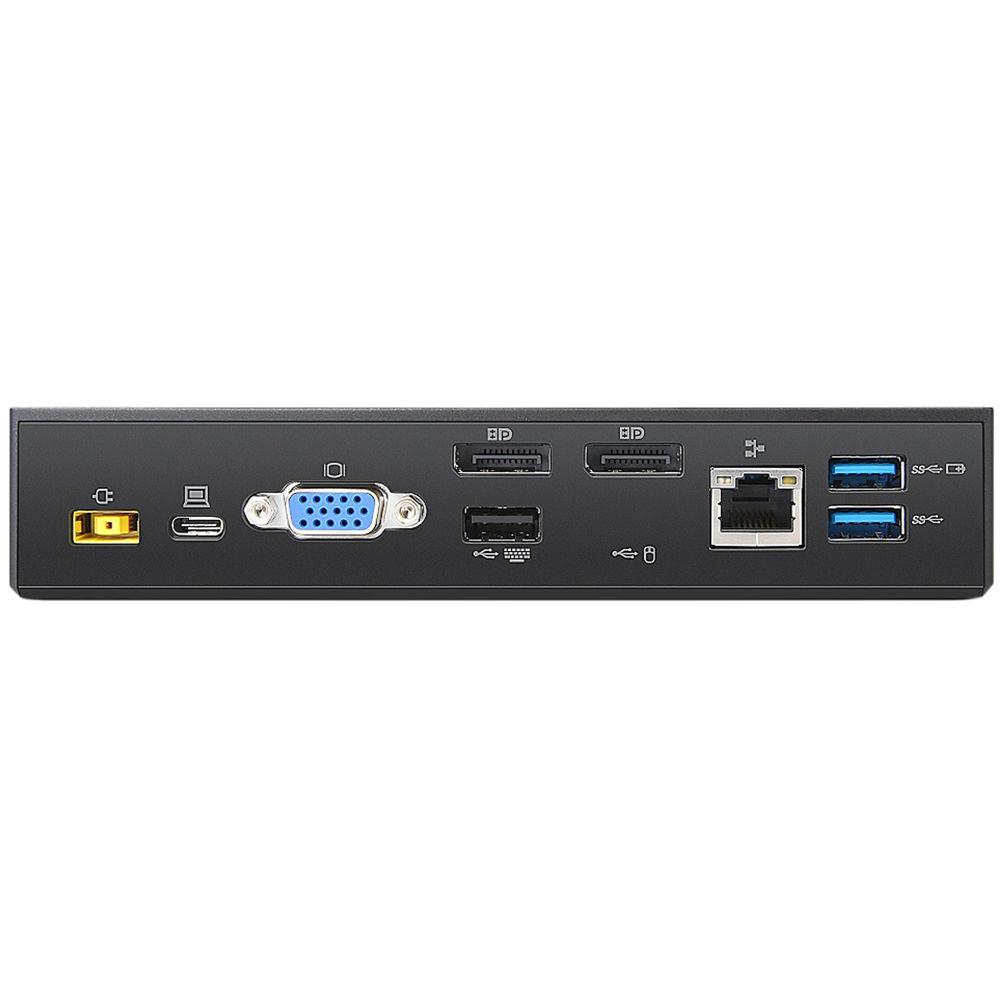

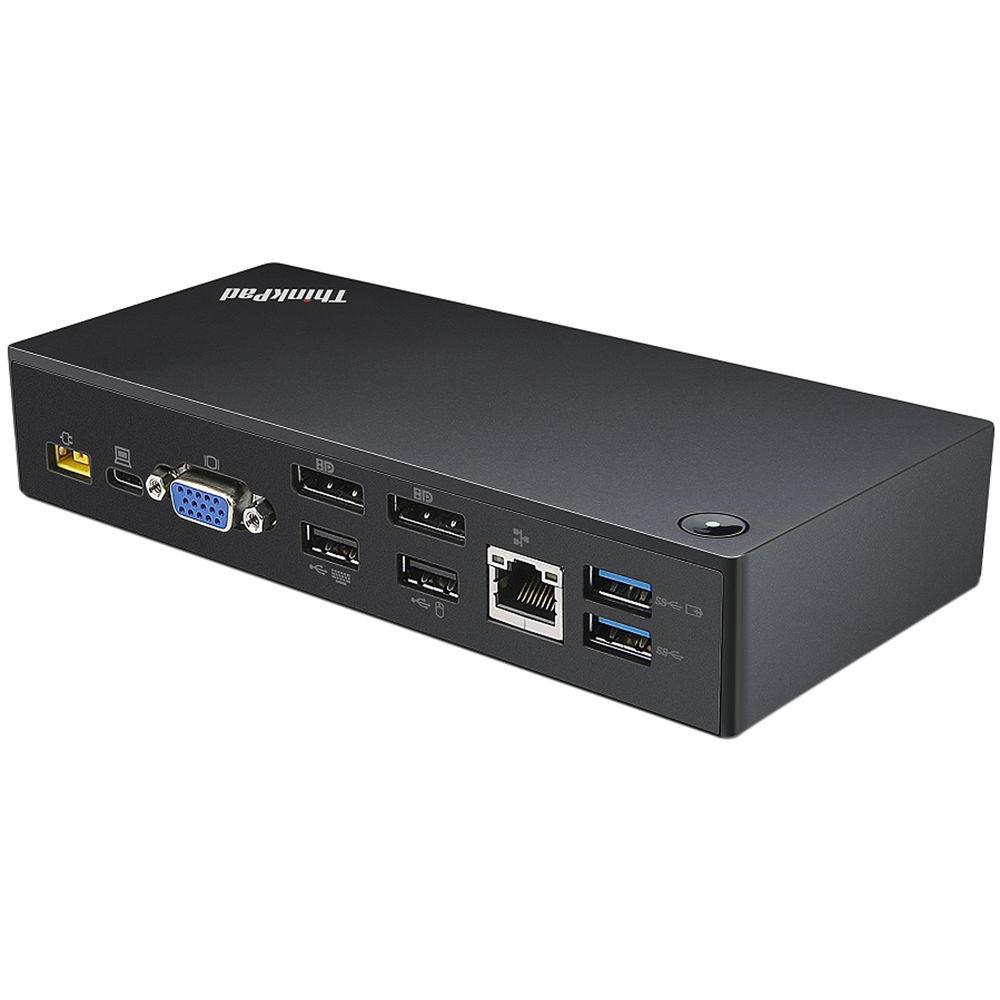

Product description The Thinkpad USB Type-C Dock from Lenovo provides you with extra connectivity for your USB Type-C equipped notebook. It features a total of eleven ports: three USB 3.0 Type-A ports, two USB 2.0 Type-A ports, one USB Type-C port, one VGA port, two DisplayPorts, one Ethernet LAN jack, and a 3.5mm headset jack. Plug this dock into your system via the included USB Type-C cable, and a wall outlet for power, which can deliver up to 60 W of power for your notebook. One of the USB 3.0 ports is always on, so you can charge your devices without having to power on your system. Even though this dock has three video ports, it only supports up to two displays at once. - Compatibility
- USB Type-C-equipped systems including: A475, A275, E585, E485, E580, E480, E570,L380 Yoga, L380, L580, L480, Lenovo tablet 10, Miix 720, Miix 520, Miix 510, Miix 510, T580, T570, T480, T480s, T470, T470s, X1 Tablet Gen 3,X1 Tablet Gen 2, X1 Tablet Gen 1, X1 Carbon Gen 6, X1 Carbon Gen 5, X1 Yoga Gen 3, X1 Yoga Gen 2, X380 Yoga, X280, X270,Yoga 370, 13 Gen 2 Windows, 13 Gen 1 Windows, 11e Gen 5, Yoga 11e Gen 5, V330S-15ARR,V330-15ISK, V330-14IKB, V330-15IKB, and ThinkPad 25.

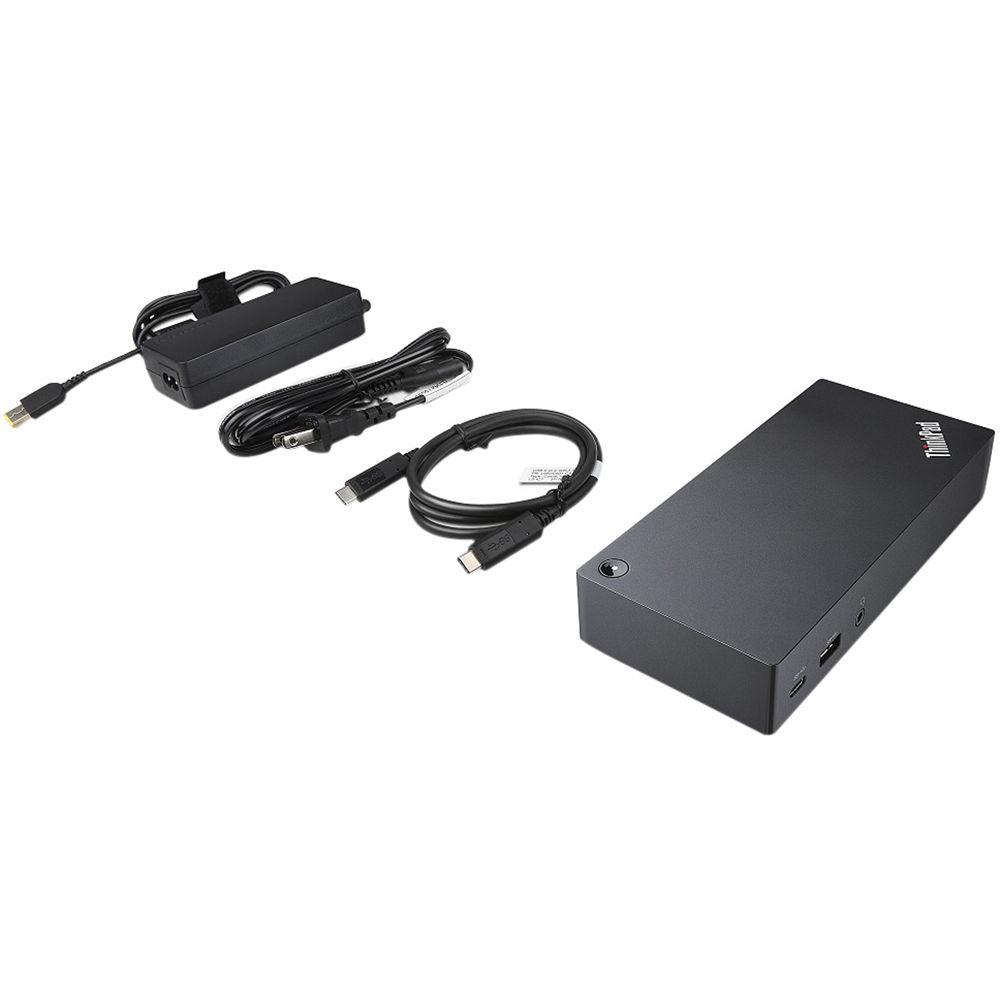

UPC: 190725799225 In the Box Lenovo Thinkpad USB Type-C Dock USB Type-C Cable Power Cable & Adapter Limited 3-Year Warranty More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the Lenovo Thinkpad USB Type-C Dock in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLenovo USB Type-C Dock Specs | | | USB | 3 x USB 3.1 Gen 1 Type-A
2 x USB 2.0 Type-A
1 x USB (Unspecified Type) Type-C | | Thunderbolt | None | | Ethernet | 1 x RJ45 | | FireWire | None | | Display | 1 x VGA
2 x DisplayPort | | Audio | 1 x 1/8" / 3.5 mm Headphone/Microphone Combo | | Memory Card Slots | None | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 20 to 95% | | | | Dimensions | 6.73 x 1.28 x 3.15" / 171 x 32.5 x 80 mm | | Weight | 0.6 lb / 0.3 kg | | | | Package Weight | 2.0 lb | | Box Dimensions (LxWxH) | 8.4 x 6.2 x 3.0" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 05 owners. Add your rating and experience with the product.
