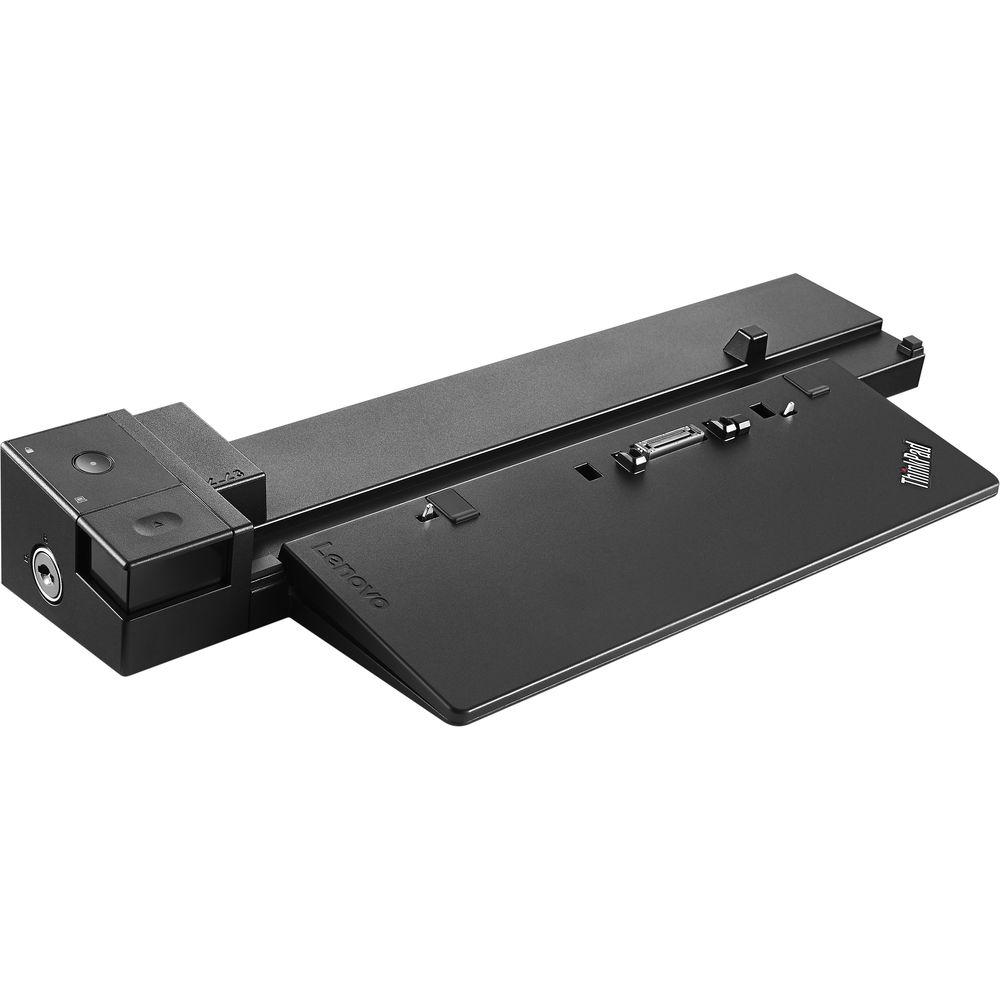

User Manual for Lenovo ThinkPad Workstation Dock Click to enlarge the picture
Contents of the user manual for the Lenovo ThinkPad Workstation Dock
- Product category: Docking Stations & Port Replicators Lenovo
- Brand: Lenovo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lenovo Docking Stations & Port Replicators
 |
User manual for the Lenovo ThinkPad Workstation Dock contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lenovo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lenovo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lenovo product will considerably shorten its lifespan!
|

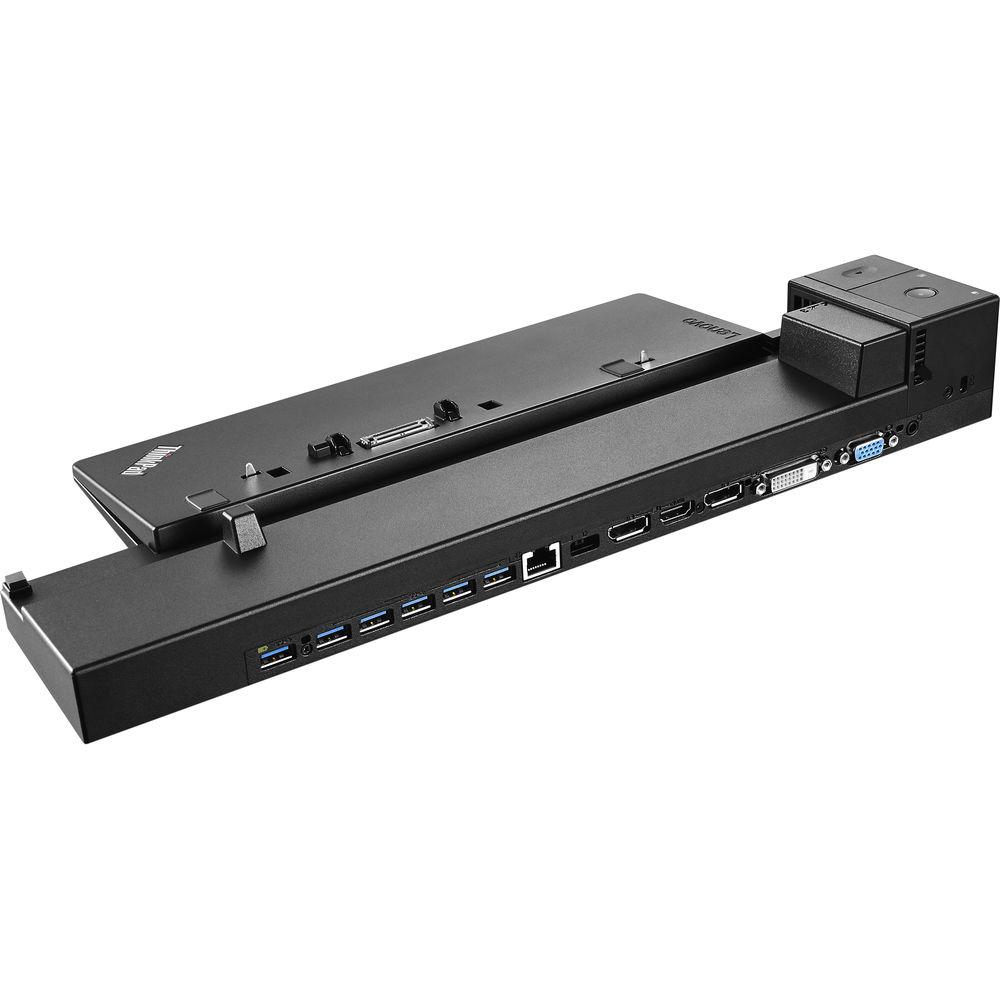

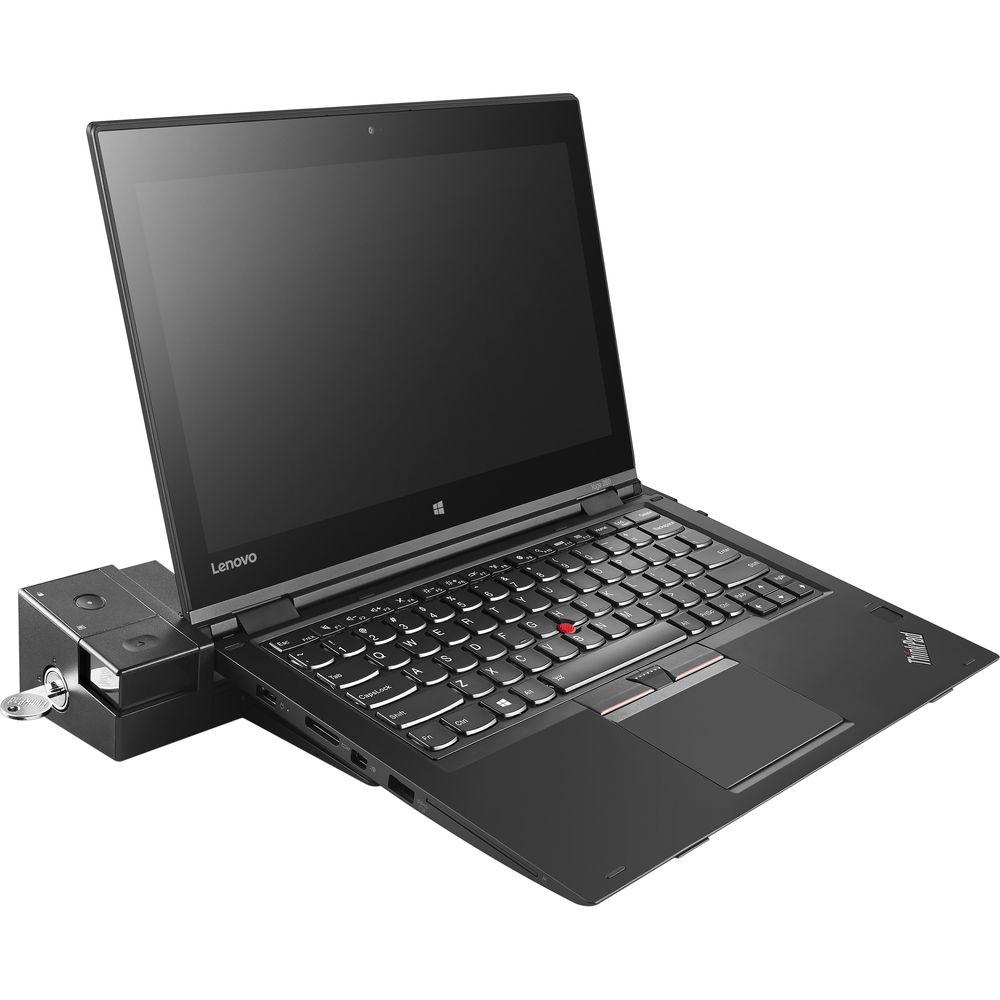

Product description Charge and quickly connect your peripherals to your ThinkPad notebook with the ThinkPad Workstation Dock from Lenovo. This dock comes with a docking connector that is compatible with select Lenovo notebooks and offers six USB 3.0 ports for your printers, scanners, and external hard drives. Lenovo has designed one of these USB ports to charge a battery-powered device even if the notebook is off. Utilizing the video performance of your notebook, you can connect up to two DisplayPort monitors to create a 4K workspace. Aside from the DisplayPort connections, this dock sports a VGA, DVI-D, and HDMI port for compatibility with a wider selection of displays. To conduct IP voice chats, you can connect a headset to the dock's combo audio jack as well as access the Internet reliably by leaving a networking cable connected to the Gigabit Ethernet port. Furthermore, included with the ThinkPad Workstation Dock is a ThinkPad 230W AC adapter for powering the dock and your notebook. - Compatible with ThinkPad P50 and P70 mobile workstation notebooks

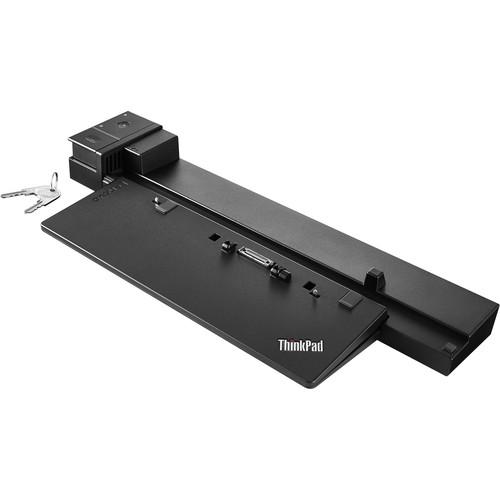

- Security lock lets you conveniently secure your notebook to the dock with a single key
- ThinkPad 230W AC adapter included

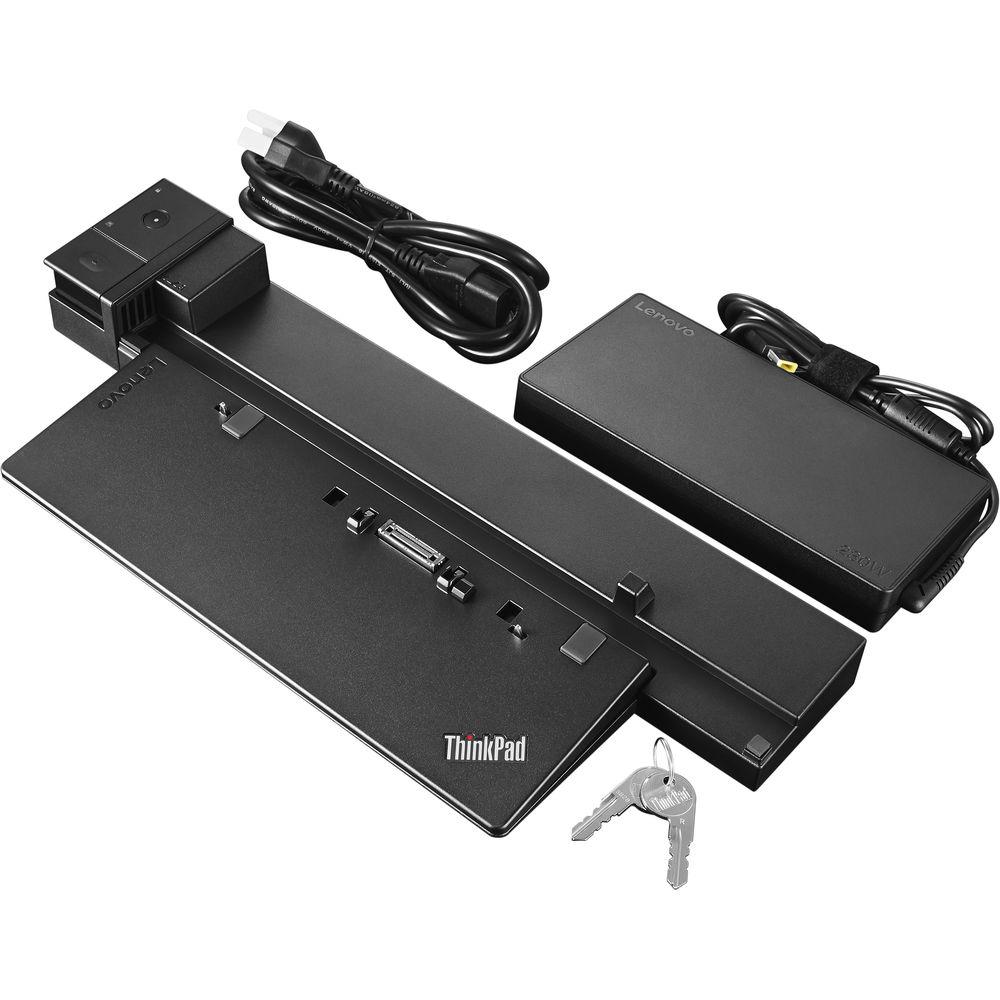

UPC: 889233920398 In the Box Lenovo ThinkPad Workstation Dock 230W AC Power Adapter Limited 1-Year Warranty More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the Lenovo ThinkPad Workstation Dock in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLenovo 40A50230US Specs | | | USB | 6 x USB 3.1 Gen 1 Type-A | | Thunderbolt | None | | Ethernet | 1 x RJ45 (10/100/1000 Mbps) | | FireWire | None | | Display | 2 x DisplayPort 1.2
1 x DVI-D
1 x HDMI 1.4
1 x VGA | | Audio | 1 x 1/8" / 3.5 mm Headphone/Microphone Combo | | Memory Card Slots | None | | | | Maximum Resolution Supported | 3840 x 2160 at 60 Hz (Single Display)
3840 x 2160 at 30 Hz (Dual Display) | | Compatibility | Lenovo ThinkPad P50
Lenovo ThinkPad P70 | | | | Certifications | CE, FCC, as per Manufacturer | | Operating Humidity | 8 to 95% | | Storage Temperature | 41 to 109°F / 5 to 43°C | | | | Dimensions | 6.5 x 2.2 x 15.8" / 165.4 x 55.6 x 402.2 mm | | Weight | 2.2 lb / 1 kg | | | | Package Weight | 6.1 lb | | Box Dimensions (LxWxH) | 17.7 x 8.5 x 4.4" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 85 owners. Add your rating and experience with the product.
