User Manual for Lenovo ThinkStation P320 Series Small Form Factor Workstation Click to enlarge the picture
Contents of the user manual for the Lenovo ThinkStation P320 Series Small Form
- Product category: PC Workstations Lenovo
- Brand: Lenovo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lenovo PC Workstations
 |
User manual for the Lenovo ThinkStation P320 Series Small Form contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lenovo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lenovo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lenovo product will considerably shorten its lifespan!
|

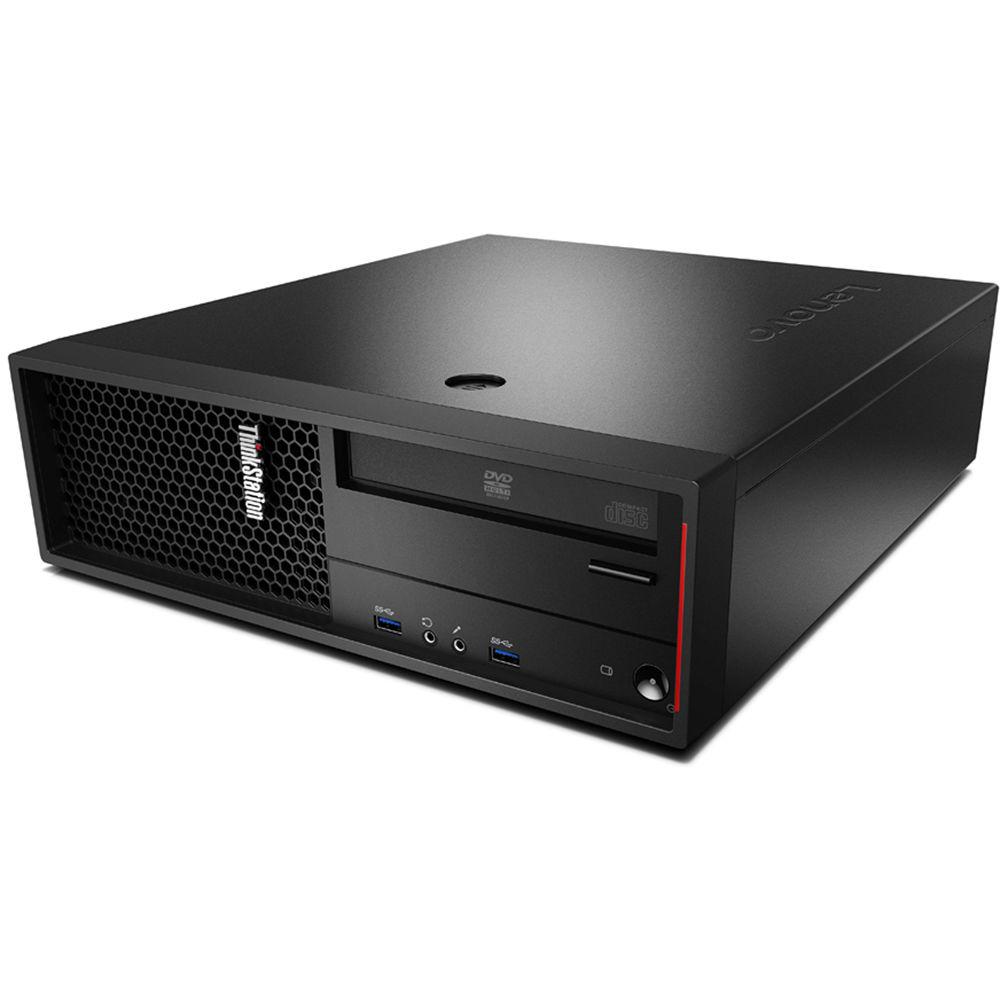

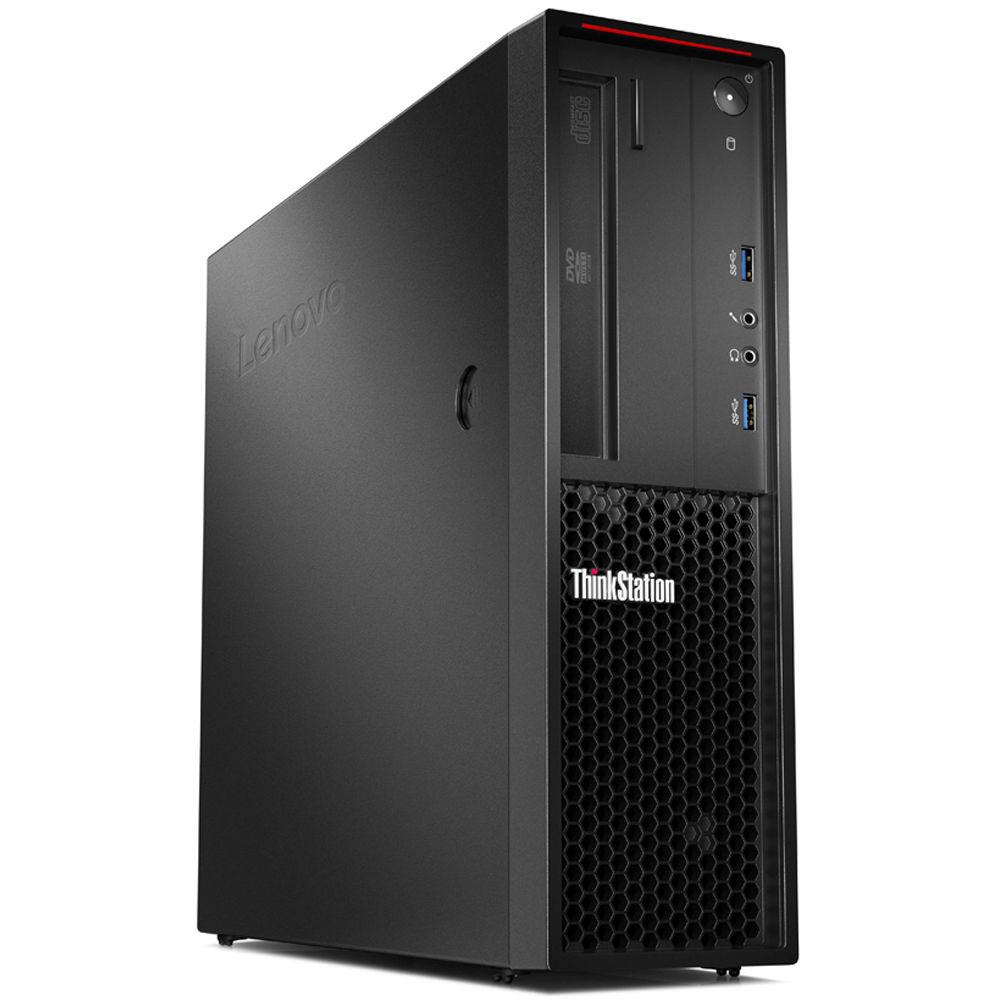

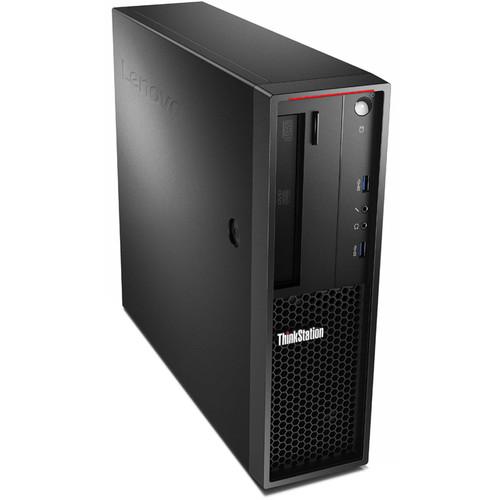

Product description The ThinkStation P320 Series Small Form Factor Workstation from Lenovo is a reliable, stable, configurable, and scalable system that also boasts productivity features, and is ISV-certified. The system is powered by a 3.5 GHz Intel Core i5-7600 Quad-Core processor that can deliver extra performance by increasing the clock speed up to 4.1 GHz utilizing Intel's Turbo Boost 2.0 technology. The 8GB of 2400 MHz DDR4 RAM allows the computer to run multiple applications simultaneously and also to quickly access frequently used files and programs. This ThinkStation P320 SFF is able to support four 288-pin DIMM slots and the current 8GB memory configuration is made up of 1 x 8GB module, which can be upgraded to 16GB per slot for a total of 64GB of RAM.
For long-term storage of your files, this system is equipped with a 1TB 7200 rpm SATA III 3.5" hard drive. If you want to add external storage drives or other peripherals, the ThinkStation P320 features six USB 3.0 Type-A ports, two USB 2.0 Type-A ports, and one serial port. For users who wish to add additional components to the drive bays, there is one external 5.25" bay and one internal 3.5" bay. The integrated Intel HD Graphics 630 chipset delivers a sharp, clear picture while allowing for a multi-display setup to be utilized via its two DisplayPort and one VGA video outputs. Whether you are listening to music, watching a movie, or playing a game, the integrated Realtek ALC662 audio controller outputs high-definition audio and delivers higher fidelity than standard audio controllers.
Lenovo's ThinkStation P320 Series Small Form Factor Workstation is powered by a 210W Bronze power supply and includes a USB keyboard, a USB mouse, and a power cord. The installed operating system is Windows 10 Professional (64-bit). Lenovo ThinkStation P320 SFF - SuperMulti DVD Burner
- A SuperMulti DVD Burner is included for reading and writing to a variety of CD and DVD media.
- 9-in-1 Media Card Reader
- A 9-in-1 media card reader lets users access content from their digital devices.
- Gigabit Ethernet Port
- An integrated Gigabit Ethernet controller, the Intel I219LM, allow for Internet access when connected to a router, modem, or network switch. It also supports Wake on LAN (WoL).
- 6 x USB 3.0 Type-A | 2 x USB 2.0 Type-A
- The ThinkStation P320 Series Small Form Factor Workstation features six USB 3.0 Type-A ports and two USB 2.0 Type-A ports that will allow you to connect external peripherals such as hard drives, printers, and memory card readers. At 5 Gb/s, USB 3.0 transfers data up to 10 times faster than USB 2.0, which operates at 480 Mb/s. USB 3.0's high-speed transfer rate helps to significantly reduce data transfer times, meaning you spend less time waiting and more time focusing on the task at hand
- Designed to Perform
- When it comes to mission-critical systems and performance, you can count on the ThinkStation P320. Featuring a 3.5 GHz Intel Core i5-7600 Quad-Core processor, 8GB of 2400 MHz DDR4 RAM, a 1TB 7200 rpm SATA III 3.5" hard drive, and the integrated Intel HD Graphics 630 chipset, this workstation is compact, scalable, and can be configured to meet your business needs, both now and in the future.
- Designed to be Uncomplicated
- From integrated handles to tool-free access, the P320 is designed to help simplify life. Moving it around is easy, while upgrading hardware is a user-friendly process. This 12L case also has a range of customizable optional ports and bays.
- Peace of Mind
- The P320 has undergone extreme testing and has been ISV-certified.
- Green
- The P320 has been awarded GREENGUARD certification and has also been rated EPEAT Gold and ENERGY STAR 6.1 with its 210W Bronze PSU.
Windows 10 - Start Menu
- After its hiatus in Windows 8, the Start Menu has returned. Utilizing a combination of the traditional menu system and Windows 8's Live Tiles, the improved Start Menu gives you more information at a glance, showing notification information alongside your applications and other pinned items.
- Cortana
- Microsoft's digital personal assistant, Cortana can answer your questions with information gleaned from both your device and the internet at large. You can type or even talk with her, if your system has a microphone. Using her Notebook, Cortana keeps track of your needs and wants, and she learns over time to improve her information gathering skills.
- Microsoft Edge
- After nearly 20 years, Microsoft has finally replaced its Internet Explorer web browser. With Microsoft Edge, users can write directly on web pages and share notes with friends and colleagues. It also improves the online reading experience by adding a distraction-free mode and read-it-later functionality. Edge also has built-in Cortana integration; you can have her help you find a restaurant, make a reservation, and pull up directions without leaving your browser.
- Windows Store
- For Windows 10, Microsoft has unified the Windows Store. Now, apps for PCs, tablets, and phones will all be accessible from one place. And with support for Universal Apps, one version of an app can work across all your compatible devices automatically.
- Windows Continuum
- Windows 10 was designed for a variety of screen sizes and input styles, and with its Continuum feature, it automatically adapts to fit your needs. A Windows 10 tablet on its own requires a touch-centric approach, but attaching a mouse and keyboard will shift everything to a more traditional interface. You can even attach an external monitor to your Windows 10 phone for a near-desktop experience. But it's not just the operating system; Windows Universal Apps take advantage of Continuum as well.
- Xbox on Windows 10
- Gaming is a big focus of Windows 10. Xbox integration allows for PC players to match up against Xbox One players on supported games, and if you have an Xbox One, you can even stream compatible titles to your PC. Native support for recording with the new Game DVR feature makes it easy to capture and share your gameplay. The new DirectX12 takes better advantage of multi-core processors, giving games a performance boost, even on older hardware. Windows 10 also features native support for virtual reality headsets, such as the Oculus Rift.
- Windows 10 Pro
- The Pro version of Windows 10 includes all of the features of Windows 10 Home plus many designed specifically for businesses users, including Hyper-V virtualization, BitLocker disk encryption, and remote desktop access. Devices will also be able to join domains and the Azure Active Directory, and they can even access a specialized version of the Windows Store featuring custom, company-specific applications.
UPC: 191545730337 In the Box Lenovo ThinkStation P320 Series Small Form Factor Workstation USB Keyboard & Mouse Power Cord Limited 3-Year Onsite Service Warranty with 9x5/NBD More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the Lenovo ThinkStation P320 Series Small Form Factor Workstation in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

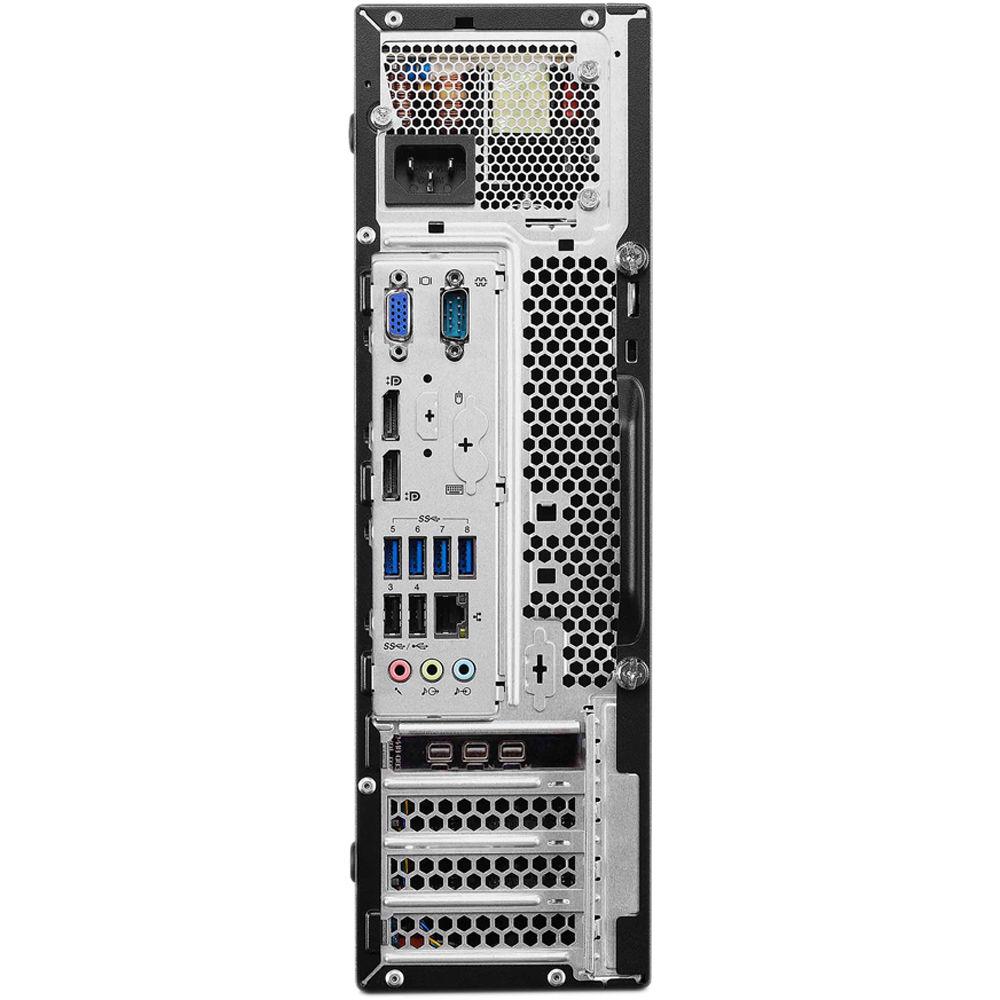

Technical parametersLenovo P320 SFF Specs | Operating System | Windows 10 Pro (64-Bit) | | | | Chipset | Intel C236 | | CPU | 3.5 GHz Intel Core i5-7600 Quad-Core | | Maximum Boost Speed | 4.1 GHz | | L3 Cache | 6 MB | | Memory Type | 2400 MHz DDR4 | | Total Installed Memory | 8 GB | | Memory Configuration | 1 x 8 GB (User-Replaceable) | | Maximum Memory Capacity | 64 GB | | Memory Slot Type | 288-Pin DIMM | | Available Memory Slots | 3 | | Graphics Type | Integrated | | GPU | Intel HD Graphics 630 | | | | Total Drive Bays | 1 x 3.5" (Internal)
1 x 5.25" (External) | | Hard Disk Storage | 1 x 1 TB 3.5" SATA (7200 rpm) | | PCI Expansion | 1 x PCIe Gen 3 x16 (x16 Mechanical)
1 x PCIe Gen 3 x4 (x16 Mechanical)
2 x PCIe Gen 3 x1 (x1 Mechanical) | | Optical Drive | SuperMulti DVD Burner with Dual Layer Support | | | | Ports | 6 x USB Type-A (USB 3.1 Gen 1)
2 x USB Type-A (USB 2.0)
1 x DE-9 (Serial) | | Display | 2 x DisplayPort
1 x VGA | | Audio | 1 x 1/8" / 3.5 mm Headphone Output
1 x 1/8" / 3.5 mm Line Input
1 x 1/8" / 3.5 mm Line Output
2 x 1/8" / 3.5 mm Microphone Input | | | | Ethernet | 1 x RJ45 (Gigabit) | | Wi-Fi | None | | Bluetooth | None | | | | Keyboard | Full-Size Keyboard with Number Pad | | Pointing Device | USB Mouse | | | | Power Supply | 210 W | | Dimensions | 4 x 13.3 x 15.5" / 101.6 x 337.8 x 393.7 mm | | Weight | 17.2 lb / 7.8 kg | | | | Package Weight | 20.315 lb | | Box Dimensions (LxWxH) | 22.1 x 17.7 x 9.0" |
