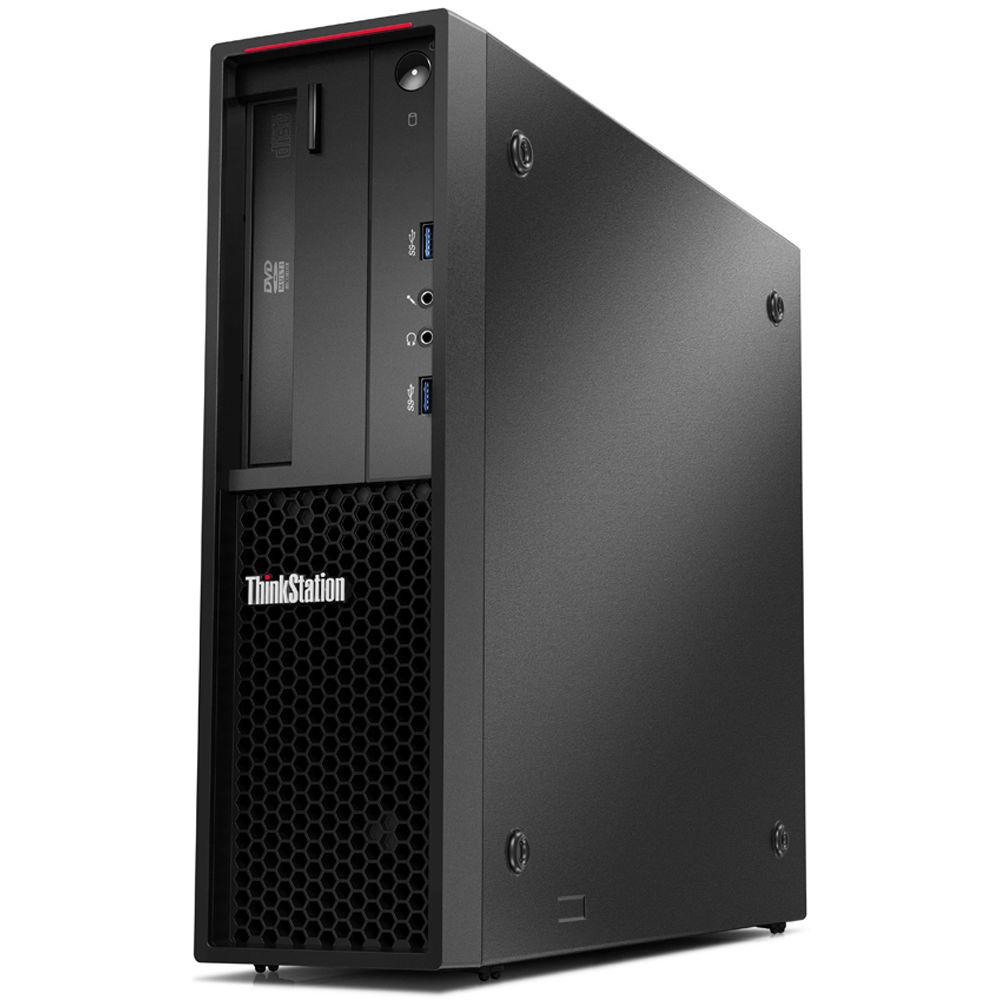

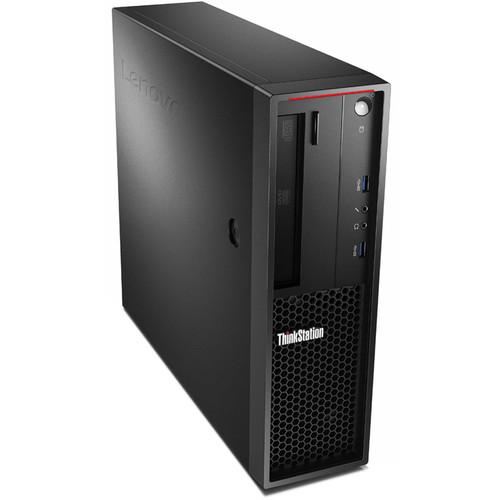

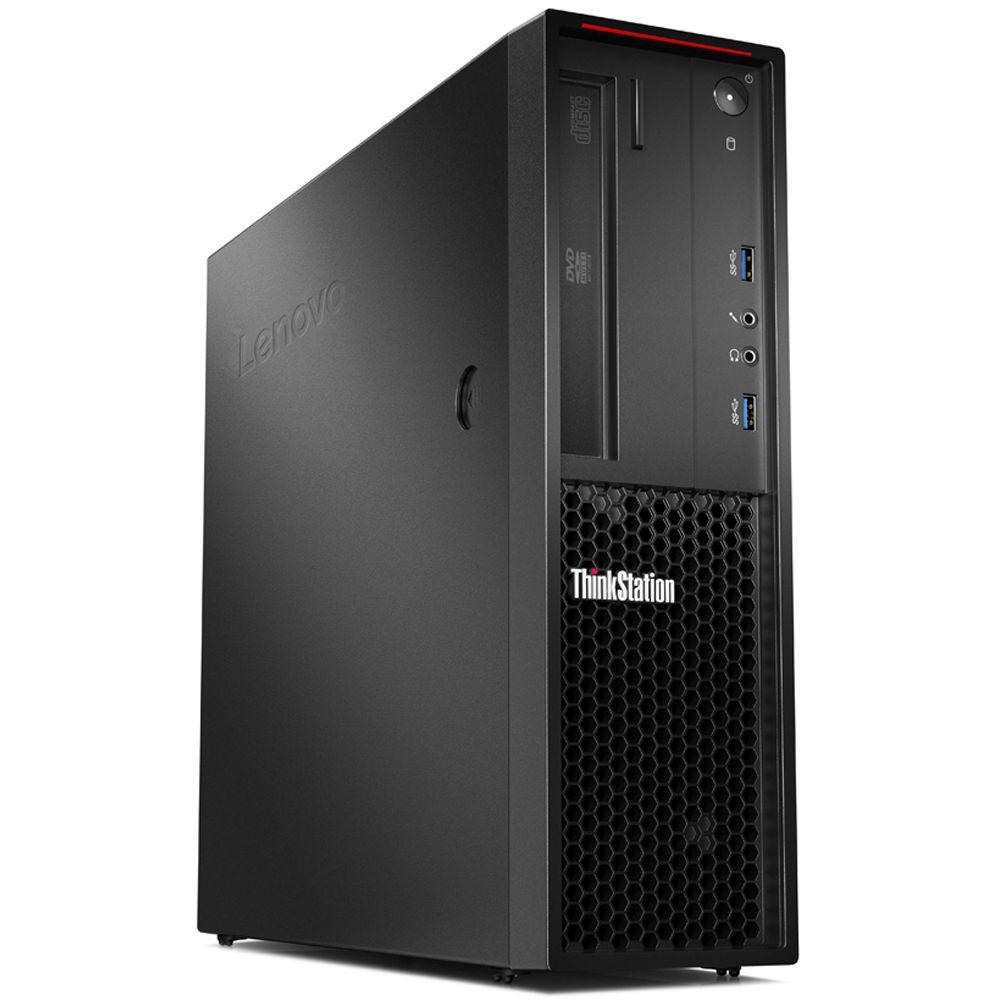

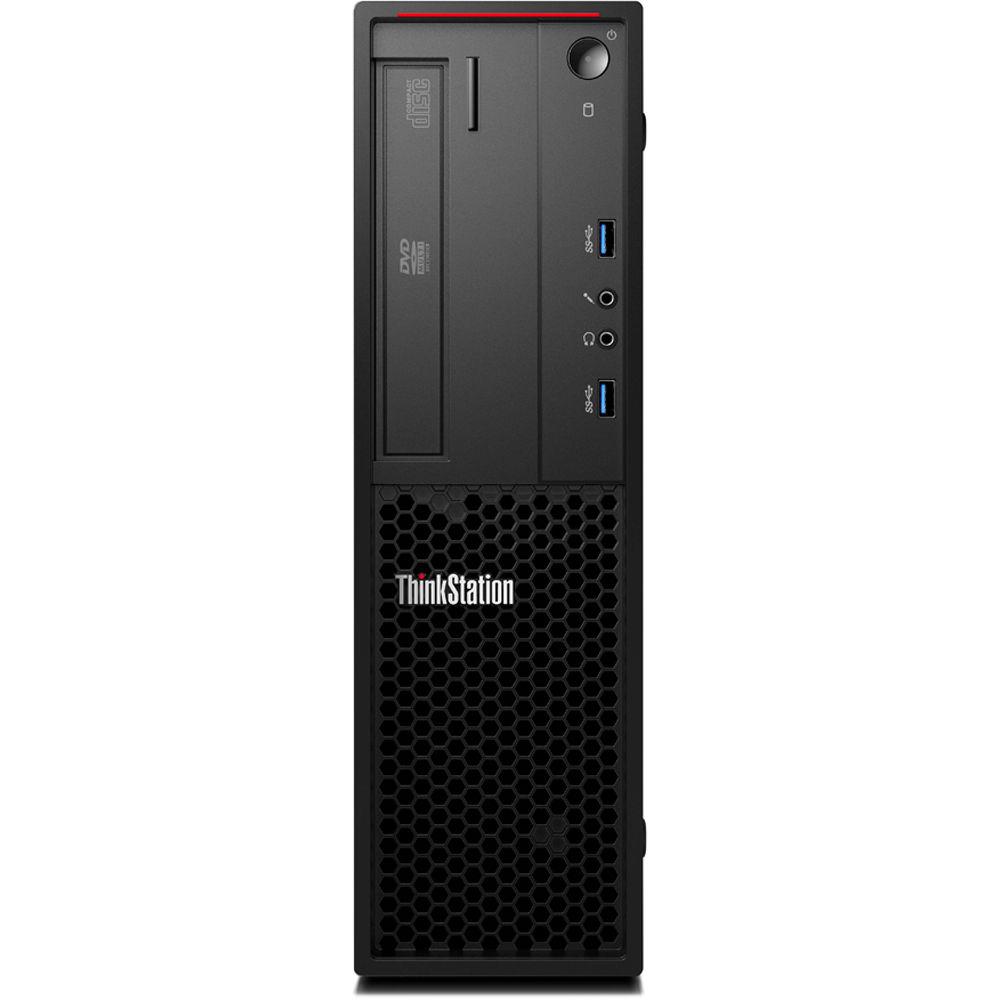

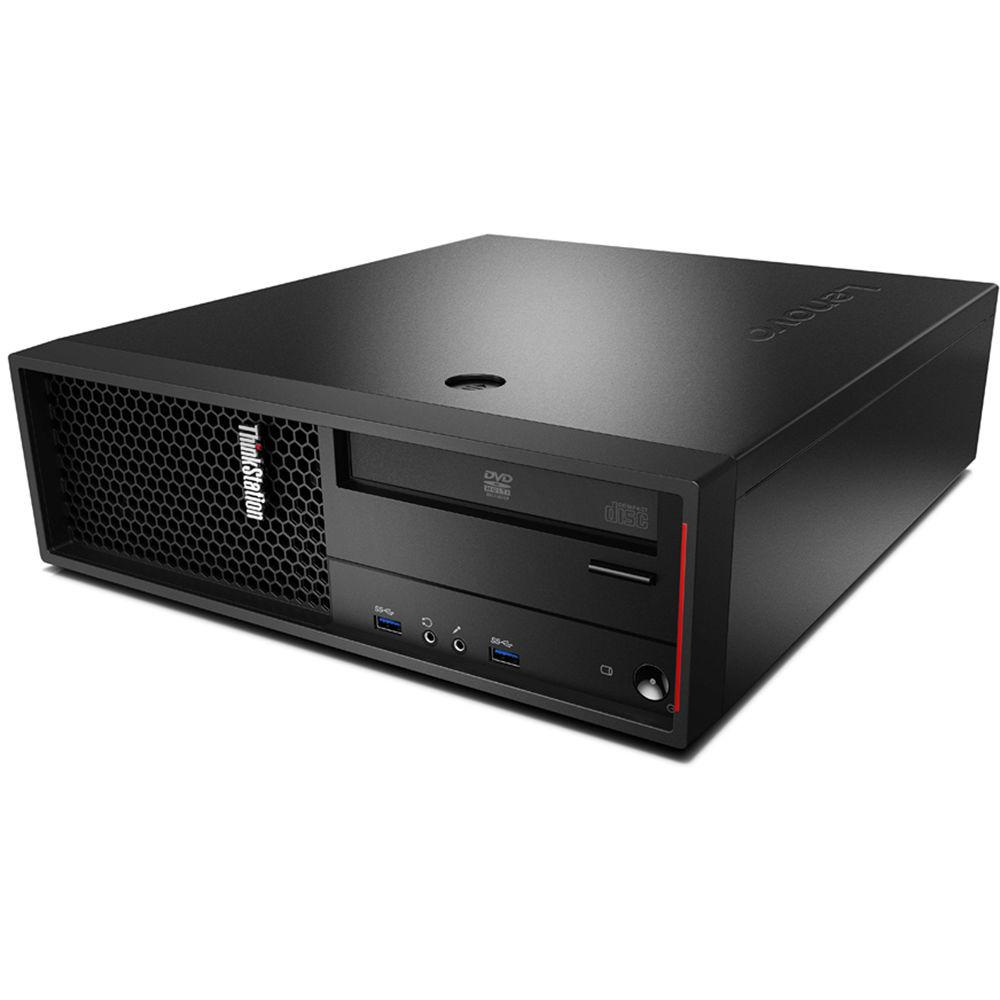

Product description The ThinkStation P320 Series Small Form Factor Workstation from Lenovo is a reliable, stable, configurable, and scalable system that also boasts productivity features and is ISV-certified. The system is powered by a 3.2 GHz Intel Core i5-6500 Quad-Core processor that can deliver extra performance by increasing the clock speed up to 3.6 GHz utilizing Intel's Turbo Boost 2.0 technology. The 8GB of 2400 MHz DDR4 RAM allows the computer to run multiple applications simultaneously and also to quickly access frequently used files and programs. This ThinkStation P320 SFF is able to support four 288-pin DIMM slots and the current 8GB memory configuration is made up of 1 x 8GB module, which can be upgraded up to 16GB per slot for a total of 64GB of RAM.

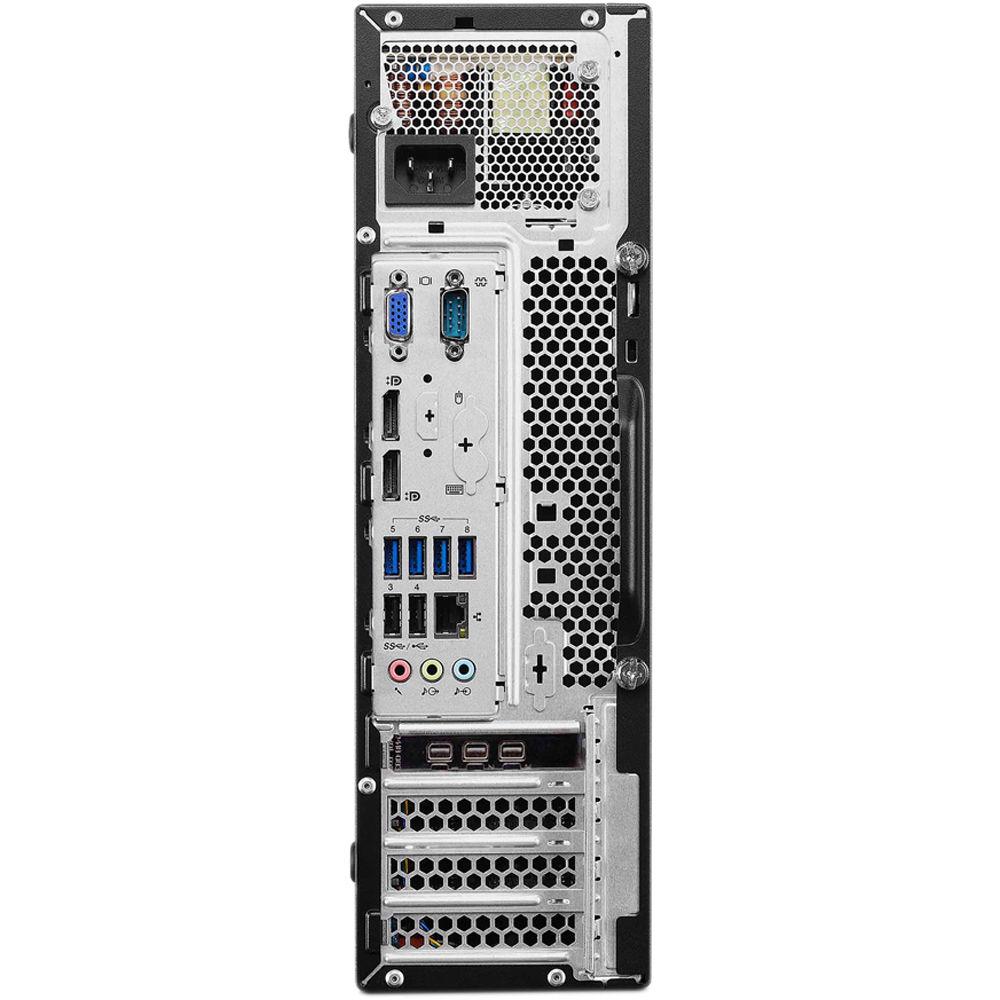

For long-term storage of your files, this system is equipped with a 1TB 7200 rpm SATA III 3.5" hard drive. If you want to add external storage drives or other peripherals, the ThinkStation P320 features six USB 3.0 Type-A ports, two USB 2.0 Type-A ports, and one serial port. For users who wish to add additional components to the drive bays, there is one external 5.25" bay and one internal 3.5" bay. The integrated Intel HD Graphics 530 chipset delivers a sharp, clear picture while allowing for a multi-display setup to be utilized via its two DisplayPort and one VGA video outputs. Whether you are listening to music, watching a movie, or playing a game, the integrated Realtek ALC662 audio controller outputs high-definition audio and delivers higher fidelity than standard audio controllers.
Lenovo's ThinkStation P320 Series Small Form Factor Workstation is powered by a 210W Bronze power supply and includes a USB keyboard, a USB mouse, and a power cord. While the installed operating system is Windows 7 Professional (64-bit), a Windows 10 Professional (64-bit) license is included at no additional cost. Lenovo ThinkStation P320 SFF - SuperMulti DVD Burner
- A SuperMulti DVD Burner is included for reading and writing to a variety of CD and DVD media.
- 9-in-1 Media Card Reader
- A 9-in-1 media card reader lets users access content from their digital devices.
- Gigabit Ethernet Port
- An integrated Gigabit Ethernet controller, the Intel I219LM, provides Internet access when connected to a router, modem, or network switch. It also supports Wake on LAN (WoL).
- 6 x USB 3.0 Type-A | 2 x USB 2.0 Type-A
- The ThinkStation P320 Series Small Form Factor Workstation features six USB 3.0 Type-A ports and two USB 2.0 Type-A ports that will allow you to connect external peripherals such as hard drives, printers, and memory card readers. At 5 Gb/s, USB 3.0 transfers data up to 10 times faster than USB 2.0, which operates at 480 Mb/s. USB 3.0's high-speed transfer rate helps to significantly reduce data transfer times, meaning you spend less time waiting and more time focusing on the task at hand
- Designed to Perform
- When it comes to mission-critical systems and performance, you can count on the ThinkStation P320. Featuring a 3.2 GHz Intel Core i5-6500 Quad-Core processor, 8GB of 2400 MHz DDR4 RAM, a 1TB 7200 rpm SATA III 3.5" hard drive, and the integrated Intel HD Graphics 530 chipset, this workstation is compact, scalable, and can be configured to meet your business needs, both now and in the future.
- Designed to be Uncomplicated
- From integrated handles to tool-free access, the P320 is designed to help simplify life. Moving it around is easy, while upgrading hardware is a user-friendly process. This 12L case also has a range of customizable optional ports and bays.
- Peace of Mind
- The P320 has undergone extreme testing and has been ISV-certified.
- Green
- The P320 has been awarded GREENGUARD certification and has also been rated EPEAT Gold and ENERGY STAR 6.1 with its 210W Bronze PSU.
- Windows 7 Pro (64-bit) + Windows 10 Pro (64-bit) License
- This system is pre-installed with Windows 7 Professional software and also comes with a license and media for Windows 10 Pro software. You may use only one version of the Windows software at a time. Switching between versions will require you to uninstall one version and install the other version. You must back up all data (files, photos, etc.) before uninstalling and installing operating systems to avoid loss of your data.
UPC: 191545729287 In the Box Lenovo ThinkStation P320 Series Small Form Factor Workstation USB Keyboard & USB Mouse Power Cord Windows 10 Pro (64-bit) License Limited 3-Year Onsite Service Warranty with 9x5/NBD More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the Lenovo ThinkStation P320 Series Small Form Factor Workstation in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLenovo P320 SFF Specs | | | Maximum Boost Speed | 3.6 GHz | | L3 Cache | 6 MB | | Total Installed Memory | 8 GB | | Maximum Memory Capacity | 64 GB | | Available Memory Slots | 3 | | Memory Slot Type | 288-Pin DIMM | | Graphics Type | Integrated | | | | Optical Drive | SuperMulti DVD Burner with Dual Layer Support | | PCI Expansion | 1 x PCIe Gen 3 x16 (x16 Mechanical)
1 x PCIe Gen 3 x4 (x16 Mechanical)
2 x PCIe Gen 3 x1 (x1 Mechanical) | | | | Modem | None | | Wi-Fi | None | | Bluetooth | None | | | | Operating System | Windows 7 Professional (64-Bit) |
