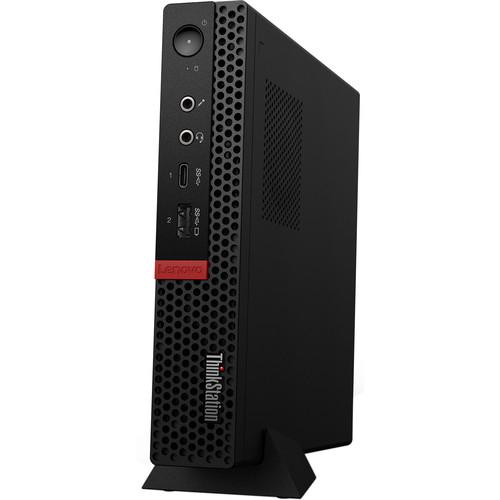

User Manual for Lenovo ThinkStation P330 Series Tiny Workstation Click to enlarge the picture
Contents of the user manual for the Lenovo ThinkStation P330 Series Tiny Workstation
- Product category: PC Workstations Lenovo
- Brand: Lenovo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lenovo PC Workstations
|
User manual for the Lenovo ThinkStation P330 Series Tiny Workstation contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lenovo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lenovo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lenovo product will considerably shorten its lifespan!
|

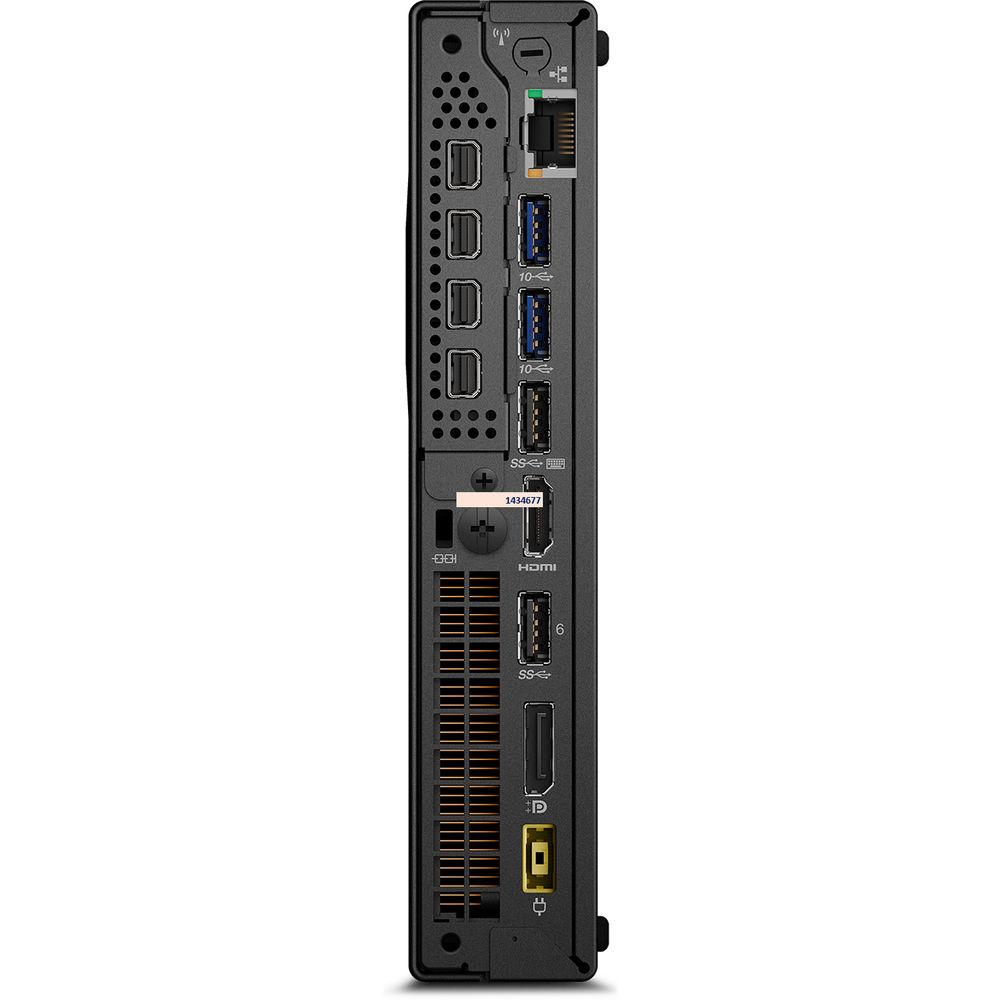

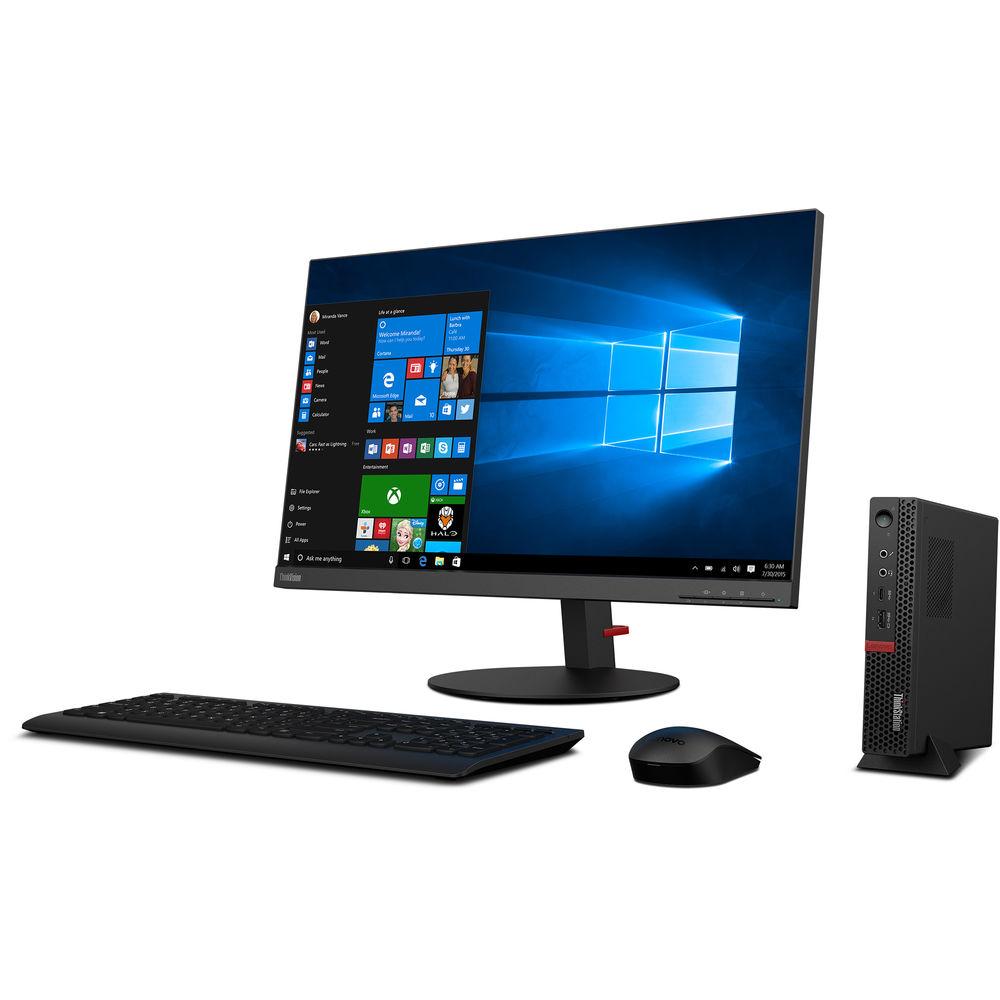

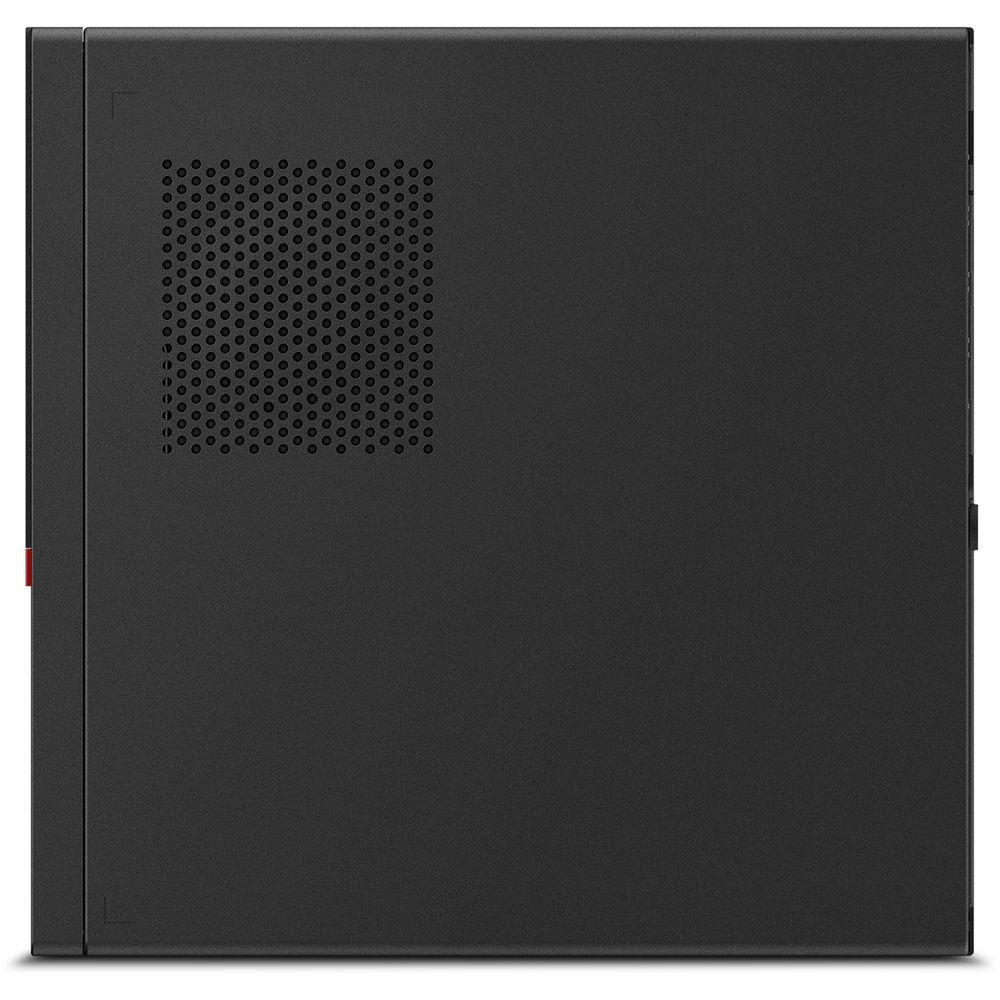

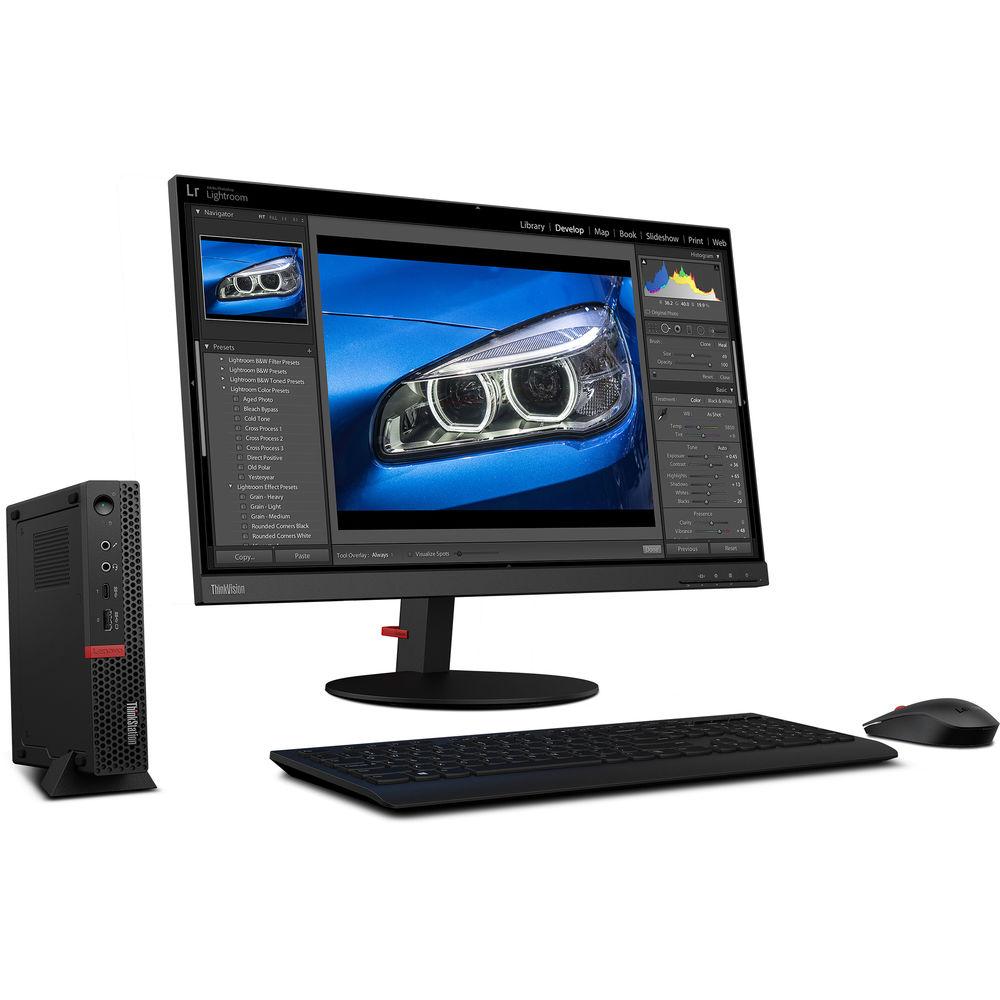

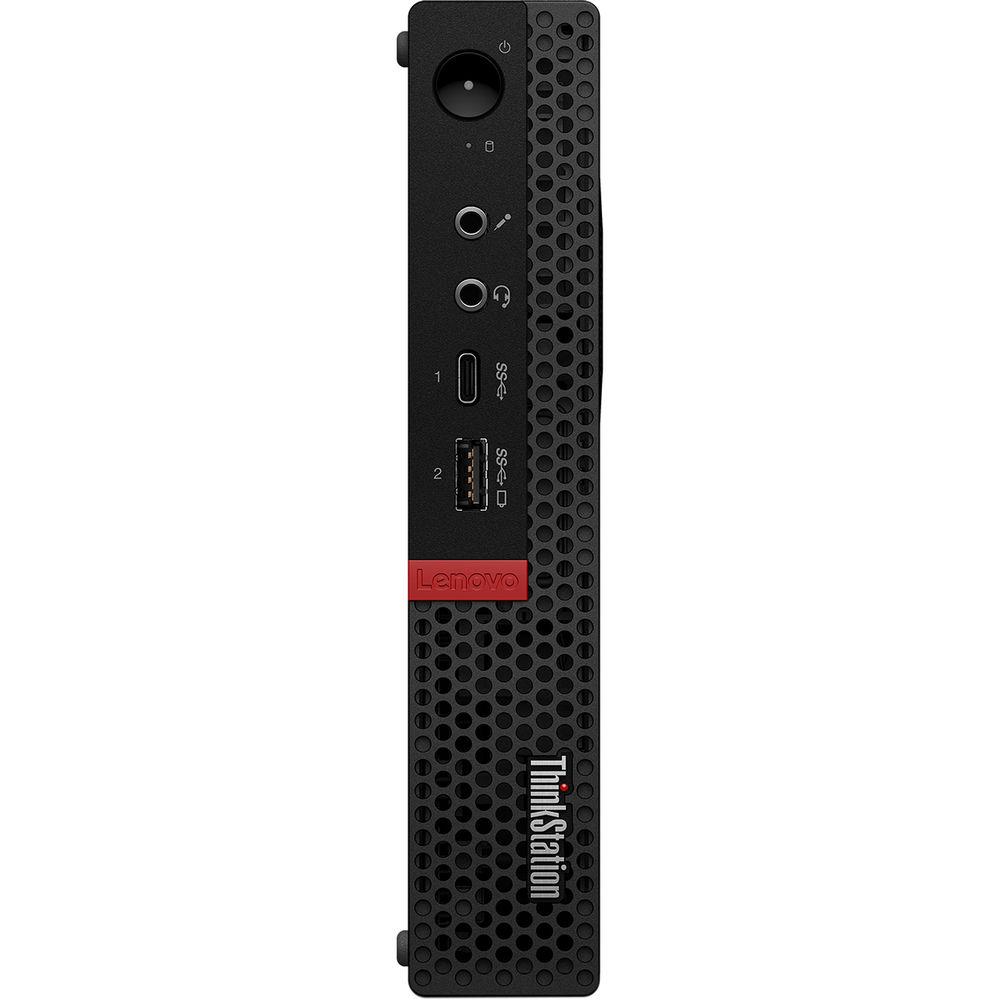

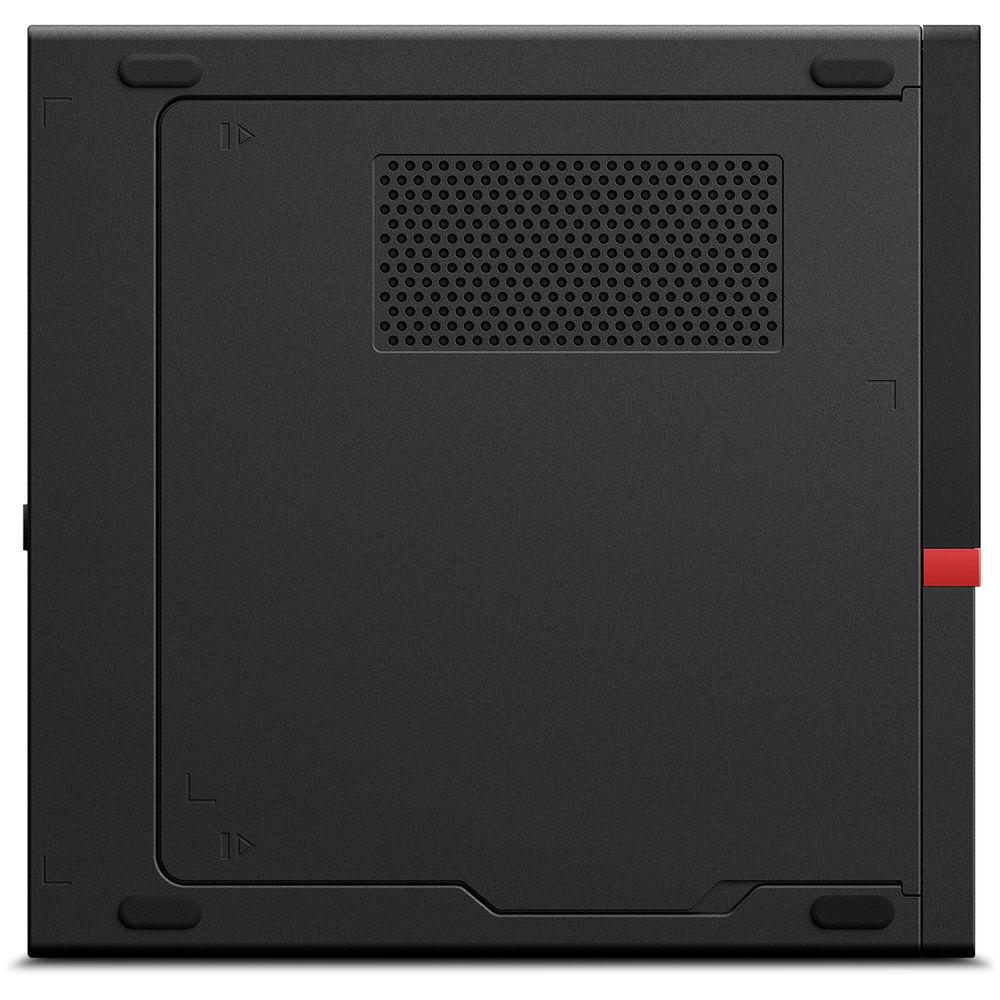

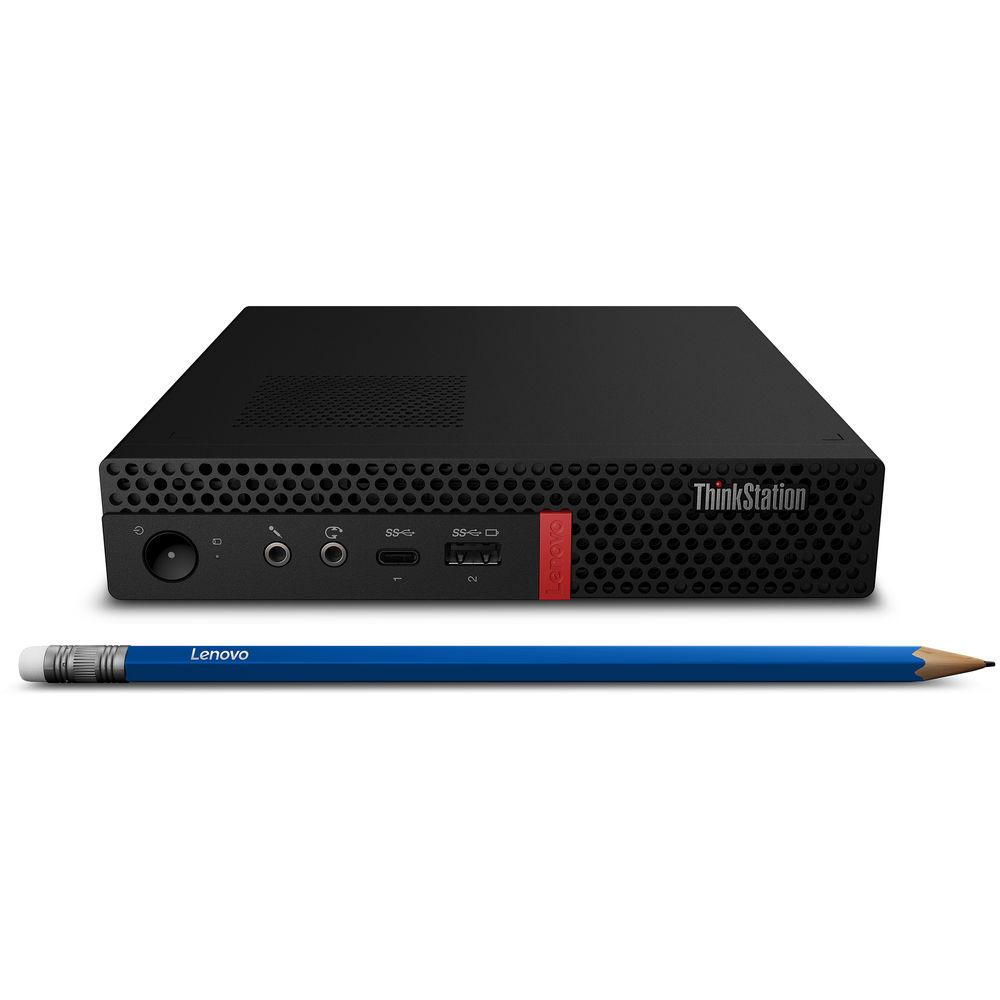

Product description The ThinkStation P330 Series Tiny Workstation from Lenovo is designed for those who need an ISV-certified workstation that's well-suited for professional industries. This compact workstation can be positioned horizontally or vertically, whether it be mounted on a wall, under a desk, or behind a monitor. Furthermore, this system is powered by a 2.4 GHz Intel Core i7-8700T six-core processor and 16GB of 2666 MHz DDR4 RAM, which allows this computer to run multiple applications simultaneously and access frequently used files quickly. The ThinkStation P330 Tiny can also be upgraded to a total of 32GB of RAM. For long-term storage of your files, this small system is equipped with a 1TB Opal NVMe PCIe M.2 SSD. If you'd like to add external storage drives or other peripherals, the ThinkStation P330 Tiny features three USB 3.1 Gen 1 Type-A ports, one of which doubles as an always-on charging port, as well as two USB 3.1 Gen 2 Type-A ports, and a single USB Type-C port.

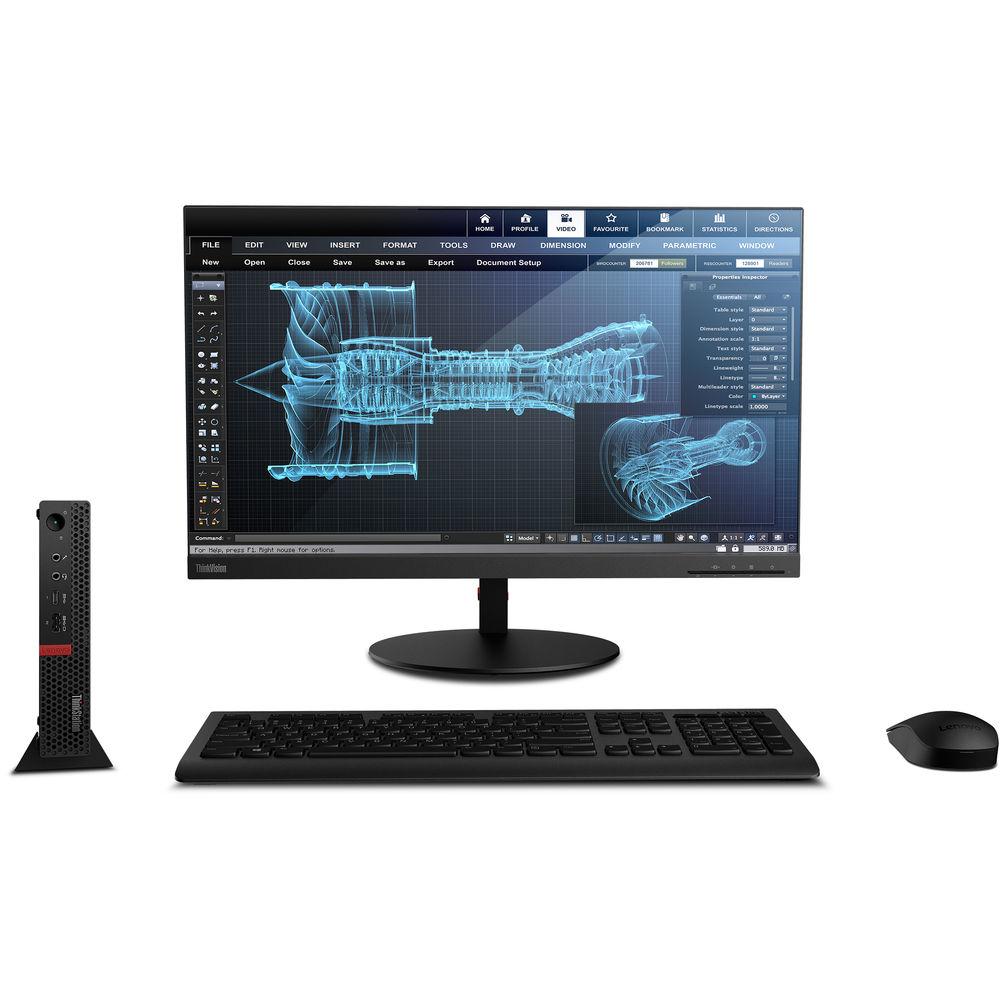

The dedicated single-slot NVIDIA Quadro P620 graphics card has 2GB of GDDR5 RAM that delivers a sharp, clear picture while allowing for up to four connected displays to be used simultaneously via its four Mini DisplayPort outputs. For those who require additional displays, the integrated Intel HD Graphics 630 chipset can drive additional monitors using a single DisplayPort output. For connecting to wireless networks, the ThinkStation P330 Tiny has a built-in Gigabit Ethernet jack and Wi-Fi 5 (802.11ac). It also supports Bluetooth 5.0 technology, so you can connect multiple Bluetooth-enabled devices to this little system. Lenovo includes a USB keyboard and mouse, a 135W AC/DC adapter, and a floor stand, which allows you to get work done with ease. Furthermore, the ThinkStation P330 Tiny's installed operating system is Windows 10 Pro (64-bit). - Robust Performance
- The ThinkStation P330 Tiny workstation delivers performance and speed to power through tasks with up to six cores per CPU, along with 8th Gen Intel Core processing combines fast memory and dual M.2 storage support. Additionally, the ThinkStation P330 Tiny is equipped with security, data encryption through TPM, and a door to internal components that physically locks.
- Adaptable Design

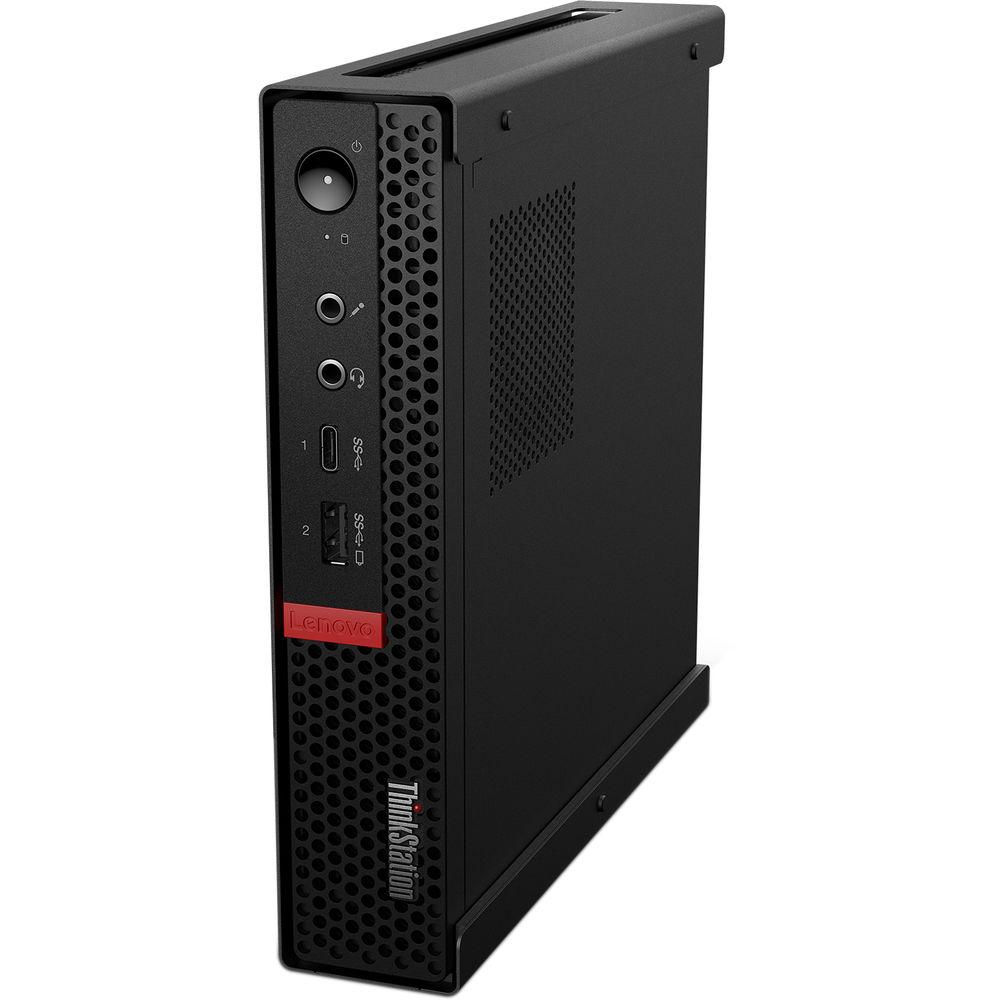

- Lenovo's ThinkStation P330 Tiny workstation can be positioned horizontally or vertically. You can mount it on a wall, behind a monitor, or under a desk.
- NVIDIA Quadro P620 Graphics
- With an NVIDIA Quadro P620 graphics chipset onboard, this workstation can support up to six independent displays. You can use these professional graphics and rest assured that with Independent Software Vendor certifications.
- Customizable Tasks
- The Lenovo Performance Tuner allows you to get the most out of your ThinkStation P330 Tiny. Simply download the free software, and choose a focus area: Processor Affinity, which lets you designate an app to run on specific cores, Power Management, Resource Monitoring and Tuning, Graphics Management, and BIOS Management. Additionally, there's a tutorial to help get you started with the intuitively designed interface.
Windows 10 - Start Menu
- After its hiatus in Windows 8, the Start Menu has returned. Utilizing a combination of the traditional menu system and Windows 8's Live Tiles, the improved Start Menu gives you more information at a glance, showing notification information alongside your applications and other pinned items.
- Cortana
- Microsoft's digital personal assistant, Cortana can answer your questions with information gleaned from both your device and the internet at large. You can type or even talk with her, if your system has a microphone. Using her Notebook, Cortana keeps track of your needs and wants, and she learns over time to improve her information gathering skills.
- Microsoft Edge
- After nearly 20 years, Microsoft has finally replaced its Internet Explorer web browser. With Microsoft Edge, users can write directly on web pages and share notes with friends and colleagues. It also improves the online reading experience by adding a distraction-free mode and read-it-later functionality. Edge also has built-in Cortana integration; you can have her help you find a restaurant, make a reservation, and pull up directions without leaving your browser.
- Windows Store
- For Windows 10, Microsoft has unified the Windows Store. Now, apps for PCs, tablets, and phones will all be accessible from one place. And with support for Universal Apps, one version of an app can work across all your compatible devices automatically.
- Windows Continuum
- Windows 10 was designed for a variety of screen sizes and input styles, and with its Continuum feature, it automatically adapts to fit your needs. A Windows 10 tablet on its own requires a touch-centric approach, but attaching a mouse and keyboard will shift everything to a more traditional interface. You can even attach an external monitor to your Windows 10 phone for a near-desktop experience. But it's not just the operating system; Windows Universal Apps take advantage of Continuum as well.
- Xbox on Windows 10
- Gaming is a big focus of Windows 10. Xbox integration allows for PC players to match up against Xbox One players on supported games, and if you have an Xbox One, you can even stream compatible titles to your PC. Native support for recording with the new Game DVR feature makes it easy to capture and share your gameplay. The new DirectX12 takes better advantage of multi-core processors, giving games a performance boost, even on older hardware. Windows 10 also features native support for virtual reality headsets, such as the Oculus Rift.
- Windows 10 Pro
- The Pro version of Windows 10 includes all of the features of Windows 10 Home plus many designed specifically for businesses users, including Hyper-V virtualization, BitLocker disk encryption, and remote desktop access. Devices will also be able to join domains and the Azure Active Directory, and they can even access a specialized version of the Windows Store featuring custom, company-specific applications.
UPC: 192940616424 In the Box Lenovo ThinkStation P330 Series Tiny Workstation USB Keyboard & Mouse 135W AC/DC Adapter Floor Stand Limited 3-Year Onsite Service Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lenovo ThinkStation P330 Series Tiny Workstation in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLenovo ThinkStation P330 Tiny Specs Operating System | Windows 10 Pro (64-Bit) | | CPU | 2.4 GHz Intel Core i7-8700T 6-Core | L3 Cache | 12 MB | Memory Type | 2666 MHz DDR4 | Total Installed Memory | 16 GB | Memory Configuration | 1 x 16 GB (User-Replaceable) | Maximum Memory Capacity | 32 GB | Buffered Memory | No | ECC Memory | No | Graphics Type | Integrated | GPU | NVIDIA Quadro P620 with 2 GB GDDR5 VRAM | | Solid State Storage | 1 x 1 TB M.2 PCIe | PCI Expansion | None | Optical Drive | None | | Ports | 2 x USB Type-A (USB 3.1 Gen 2) 3 x USB Type-A (USB 3.1 Gen 1) | USB Type-C Ports | 1 x Unspecified USB | Display | 1 x DisplayPort 4 x Mini DisplayPort 1 x HDMI | Audio | 1 x 1/8" / 3.5 mm Microphone Input 1 x 1/8" / 3.5 mm Headphone/Microphone Input/Output | Built-In Speakers | Yes | Built-In Microphones | Yes | Media Card Slots | None | | Ethernet | 1 x RJ45 (Gigabit) | Wi-Fi | Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz) | Bluetooth | 5.0 | | Keyboard | Full-Size Keyboard with Number Pad | Pointing Device | USB Mouse | | Power Supply | 135 W | Dimensions | 1.3 x 7.1 x 7.2" / 33 x 180.3 x 182.9 mm | Weight | 2.9 lb / 1.3 kg | | Package Weight | 8.24 lb | Box Dimensions (LxWxH) | 19.3 x 10.7 x 5.7" |
