User Manual for Lenovo ThinkStation P520 Tower Workstation Click to enlarge the picture
Contents of the user manual for the Lenovo ThinkStation P520 Tower Workstation
- Product category: PC Workstations Lenovo
- Brand: Lenovo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lenovo PC Workstations
 |
User manual for the Lenovo ThinkStation P520 Tower Workstation contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lenovo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lenovo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lenovo product will considerably shorten its lifespan!
|

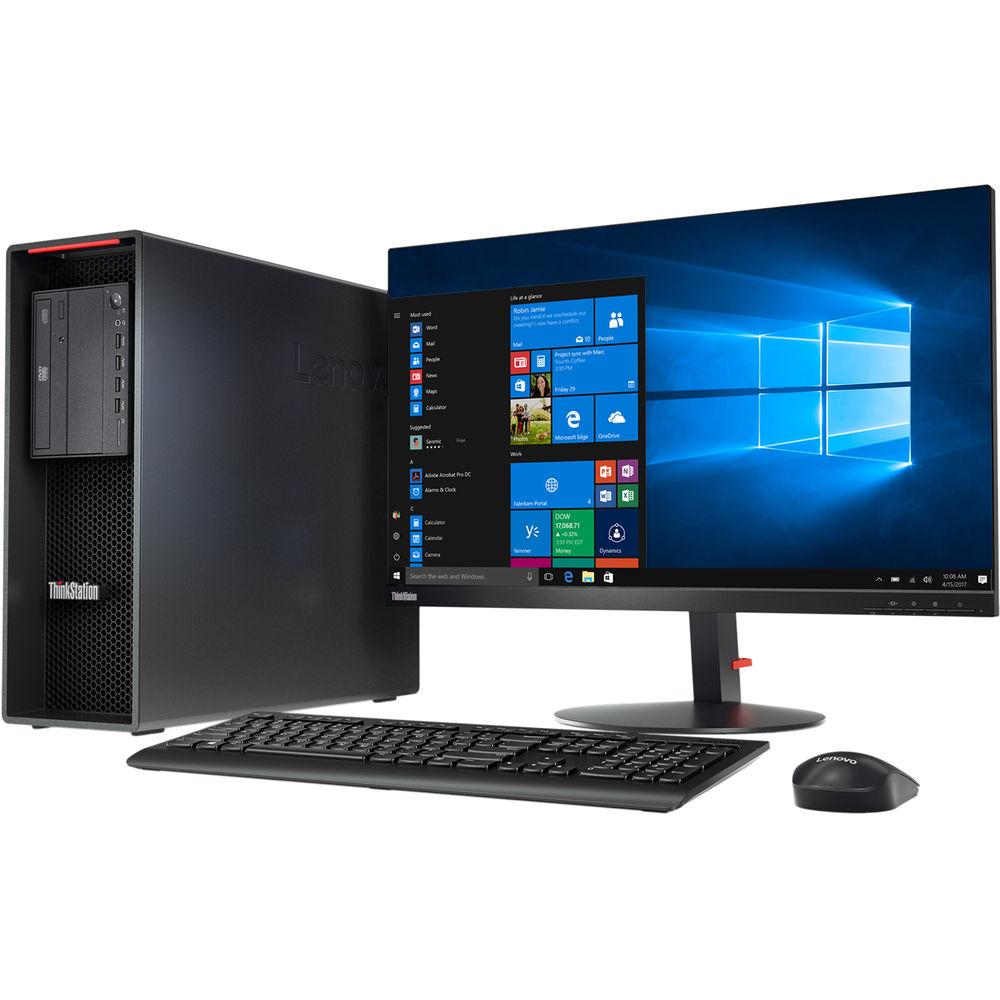

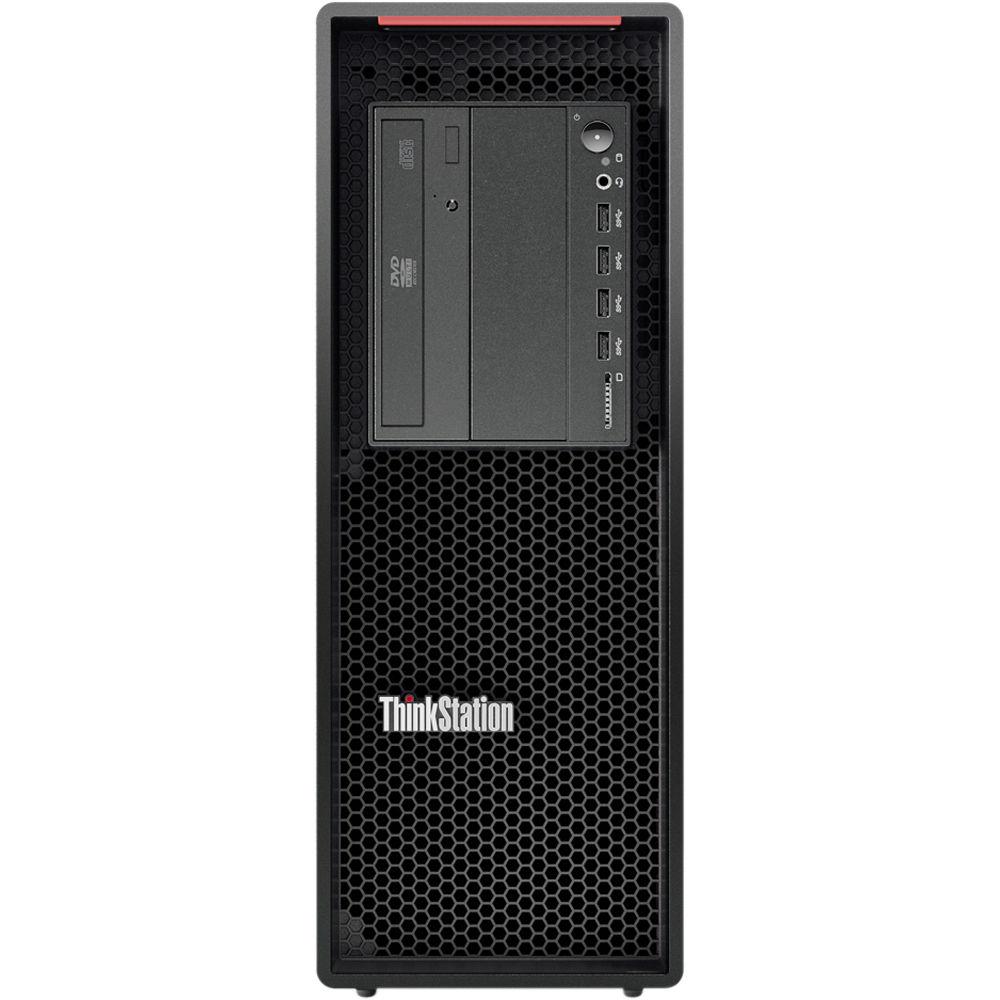

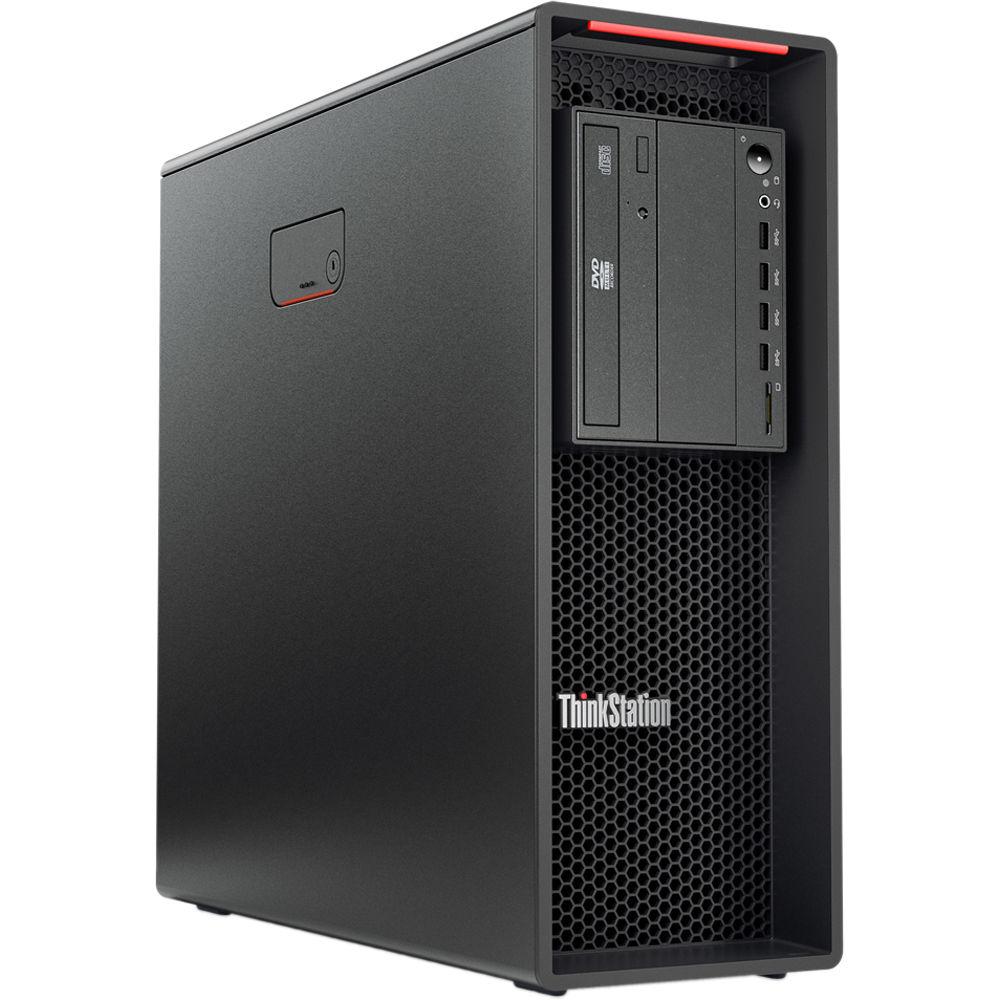

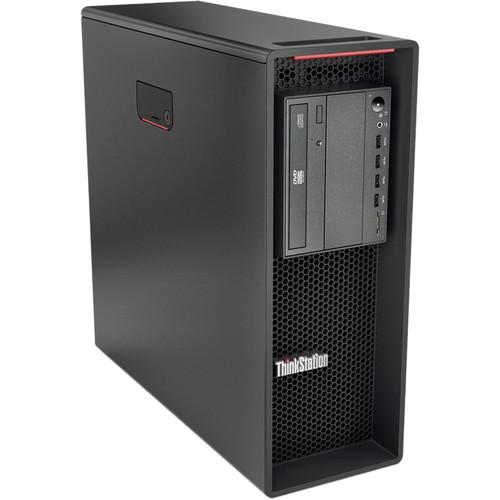

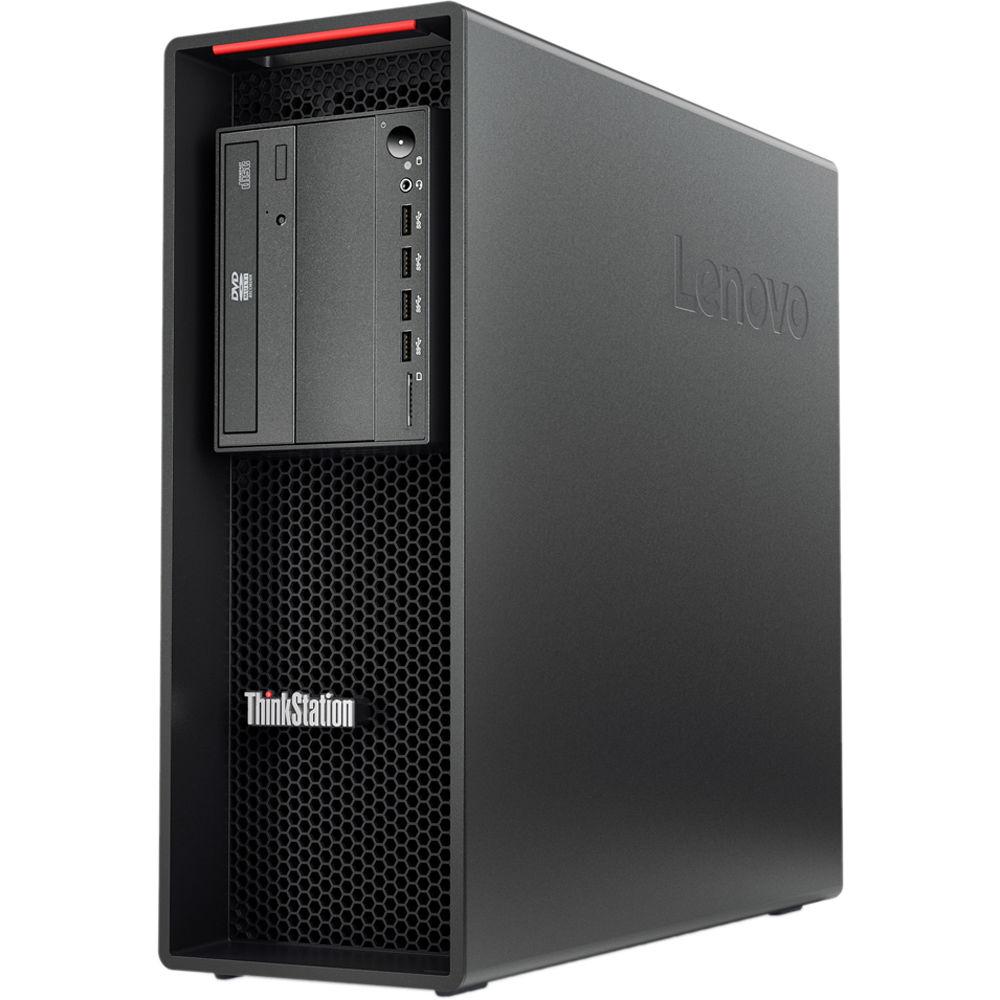

Product description The ThinkStation P520 Tower Workstation from Lenovo is a powerful workstation designed for professionals in the creative field who need performance, storage, and processing capabilities. Specs-wise, it's equipped with a 3.6 GHz Intel Xeon W-2133 6-Core processor, 16GB of 2666 MHz DDR4 RAM, and a 512GB Opal PCIe M.2 SSD. To enhance this system's performance, you can install additional components including RAM modules, 2.5"/3.5"/M.2 storage drives, as well as PCIe-based expansion cards. Moreover, with Lenovo's optional Flex Module, you can add even more hardware and connectivity options as needed. Other integrated features include multiple USB ports, a SuperMulti DVD drive, a 9-in-1 media card reader, Gigabit Ethernet LAN, and audio jacks. The operating system installed is Windows 10 Pro (64-Bit). - Upgrade-Friendly

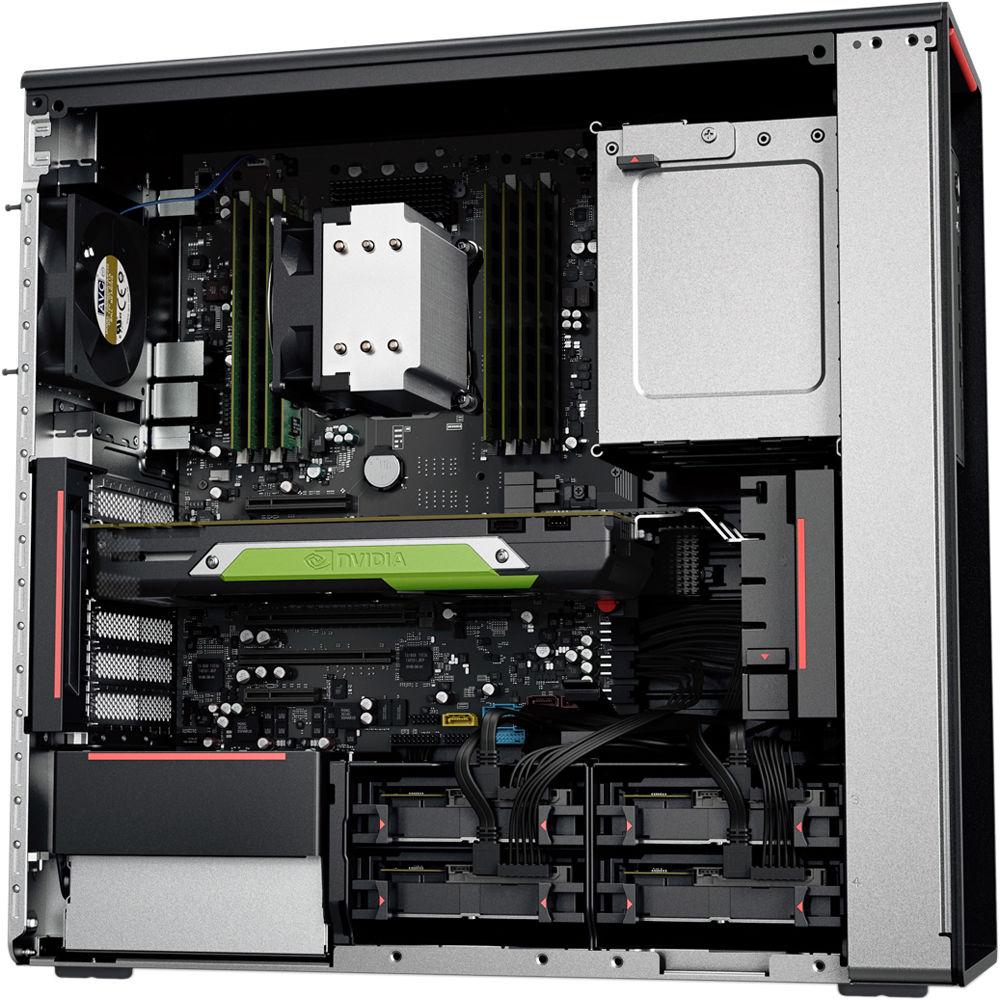

- The ThinkStation P520 has a total of eight RAM slots that can support up to a max of 256GB of DDR4 RAM. It also has two 5.25" optical bays, two 2.5"/3.5" drive bays, and two PCIe M.2 slots for storage. Lastly, there are two PCIe 3.0 x16, one PCIe 3.0 x8, two PCIe 3.0 x4, and one PCI slot for additional hardware.
|
Upload User Manual
Have you got an user manual for the Lenovo ThinkStation P520 Tower Workstation in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLenovo P520 Tower Specs | Operating System | Windows 10 Pro (64-Bit) | | | | CPU Socket | LGA 2066 | | CPU | 3.6 GHz Intel Xeon W-2133 6-Core | | Maximum Boost Speed | 3.9 GHz | | L3 Cache | 8.25 MB | | Memory Type | 2666 MHz DDR4 | | Total Installed Memory | 16 GB | | Memory Configuration | 1 x 16 GB (User-Replaceable) | | Maximum Memory Capacity | 256 GB | | Memory Slot Type | 288-Pin DIMM | | Available Memory Slots | 7 | | Buffered Memory | Yes | | ECC Memory | Yes | | Graphics Type | None | | | | Total Drive Bays | 2 x 2.5/3.5" (Internal)
2 x 5.25" (External) | | SSD Slots | 2 x M.2 (Available) | | Solid State Storage | 1 x 512 GB M.2 PCIe | | PCI Expansion | 2 x PCIe Gen 3 x16
1 x PCIe Gen 3 x8
2 x PCIe Gen 3 x4

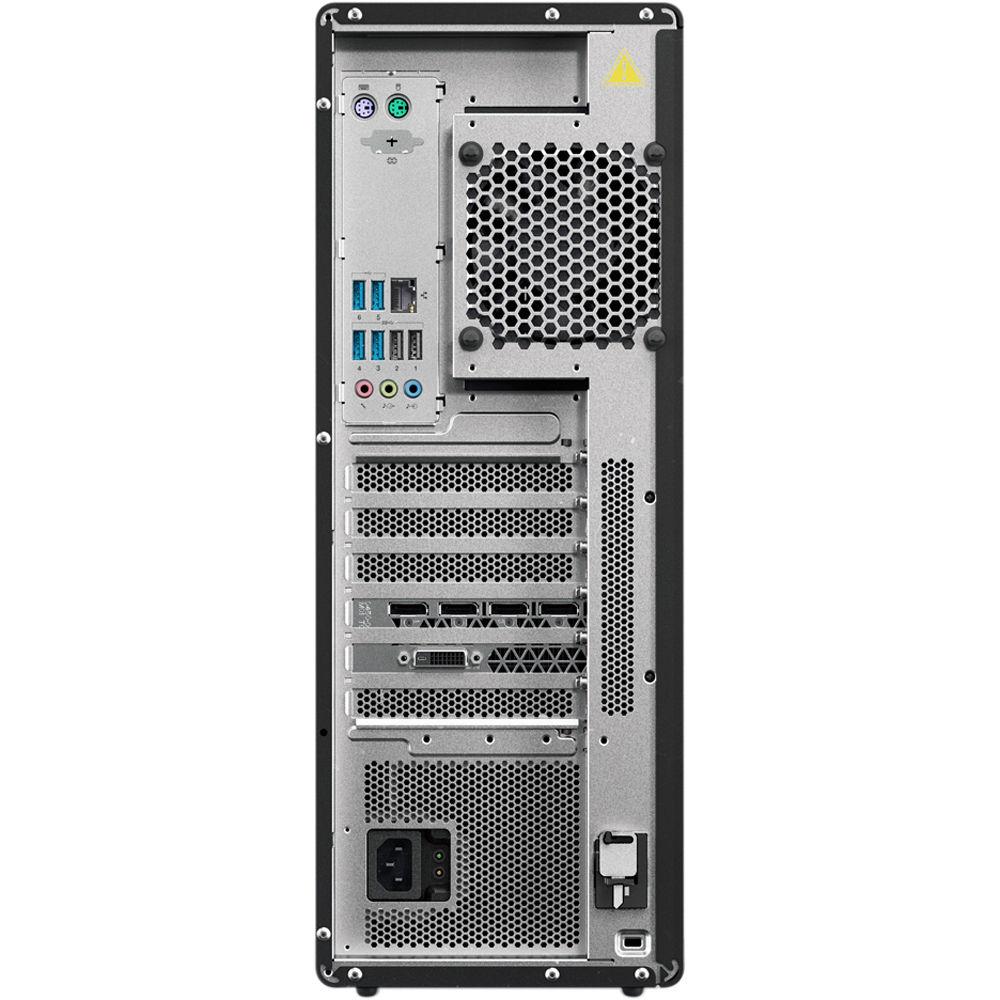

1 x PCI | | Optical Drive | SuperMulti DVD Burner | | | | Ports | 2 x PS/2
8 x USB Type-A (USB 3.1 Gen 1)
2 x USB Type-A (USB 2.0) | | Display | None | | Audio | 1 x 1/8" / 3.5 mm Headphone/Microphone Input/Output
1 x 1/8" / 3.5 mm Line Input
1 x 1/8" / 3.5 mm Line Output
1 x 1/8" / 3.5 mm Microphone Input | | | | Ethernet | 1 x RJ45 (Gigabit) | | | | Keyboard | Full-Size Keyboard | | Pointing Device | USB Mouse | | | | Power Supply | 690 W | | Dimensions | 6.5 x 17.9 x 17.3" / 165 x 455 x 440 mm |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 32 owners. Add your rating and experience with the product.
