User Manual for Lenovo ThinkStation P520c Tower Workstation Click to enlarge the picture
Contents of the user manual for the Lenovo ThinkStation P520c Tower Workstation
- Product category: PC Workstations Lenovo
- Brand: Lenovo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lenovo PC Workstations
 |
User manual for the Lenovo ThinkStation P520c Tower Workstation contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lenovo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lenovo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lenovo product will considerably shorten its lifespan!
|

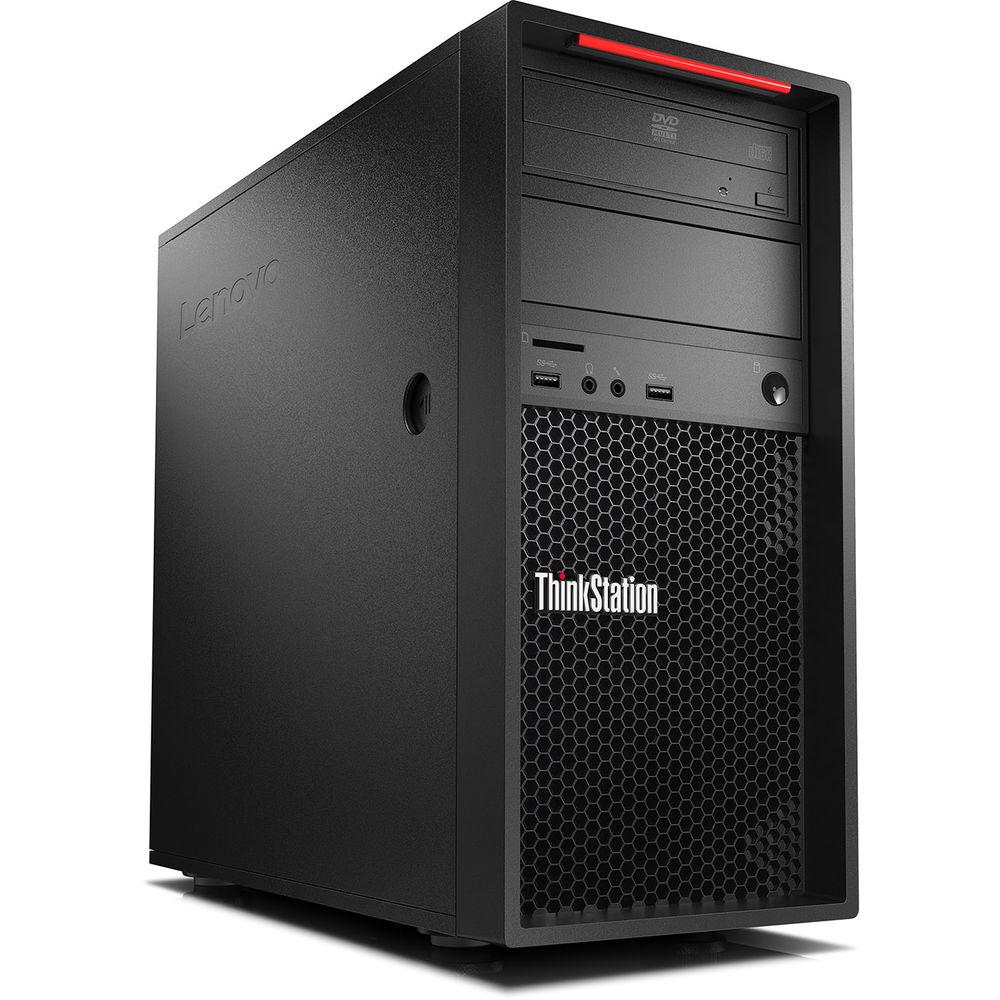

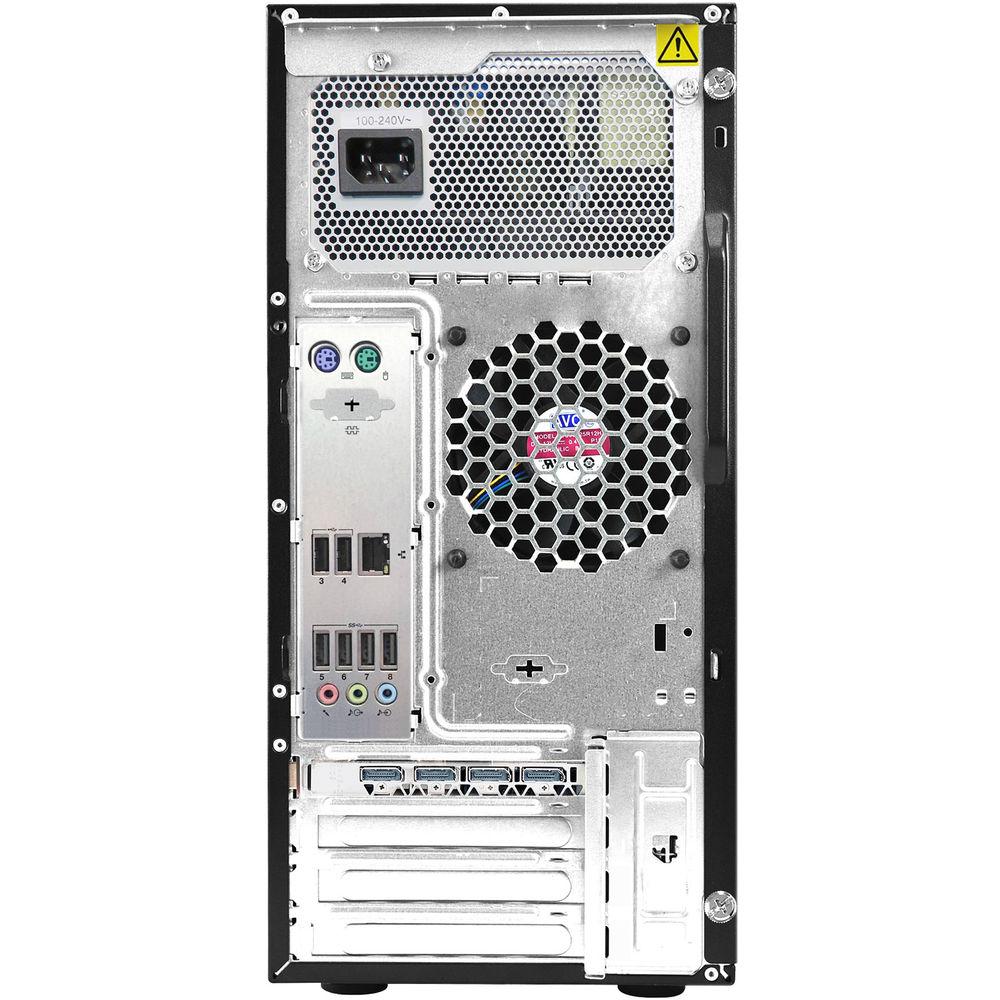

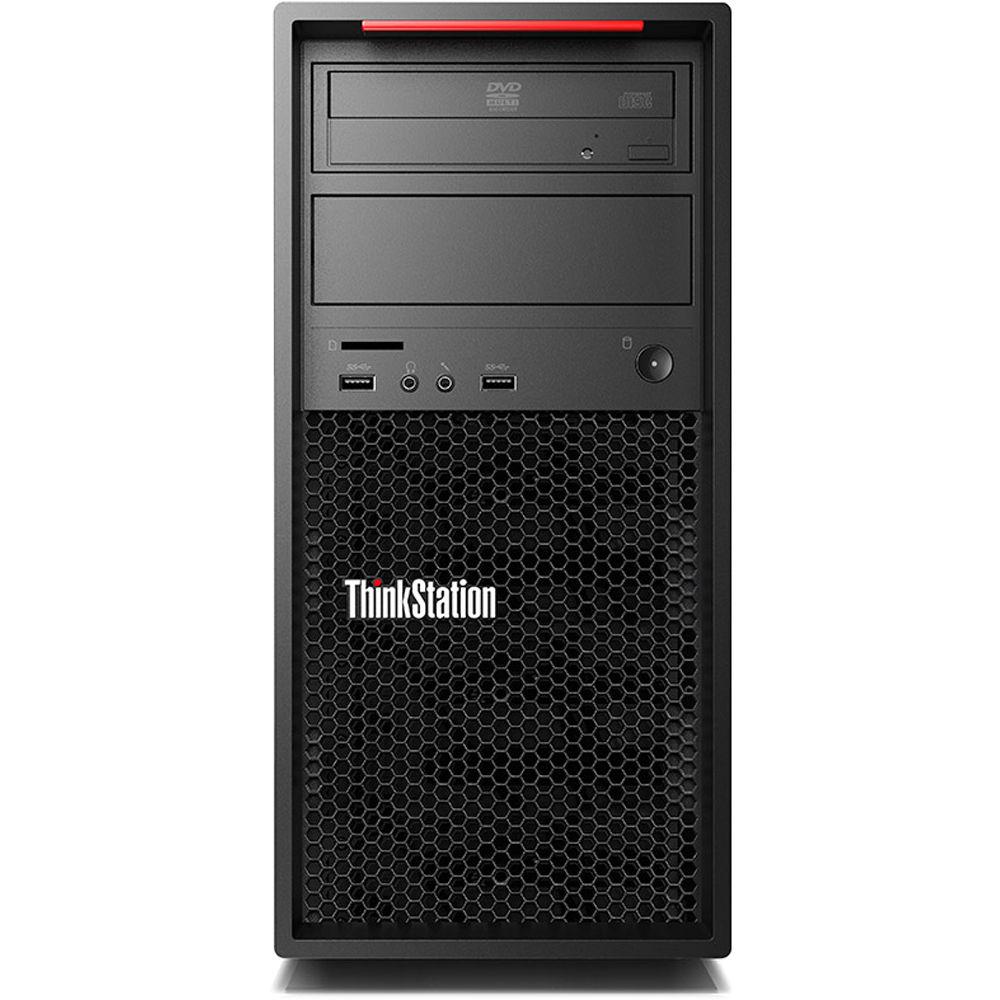

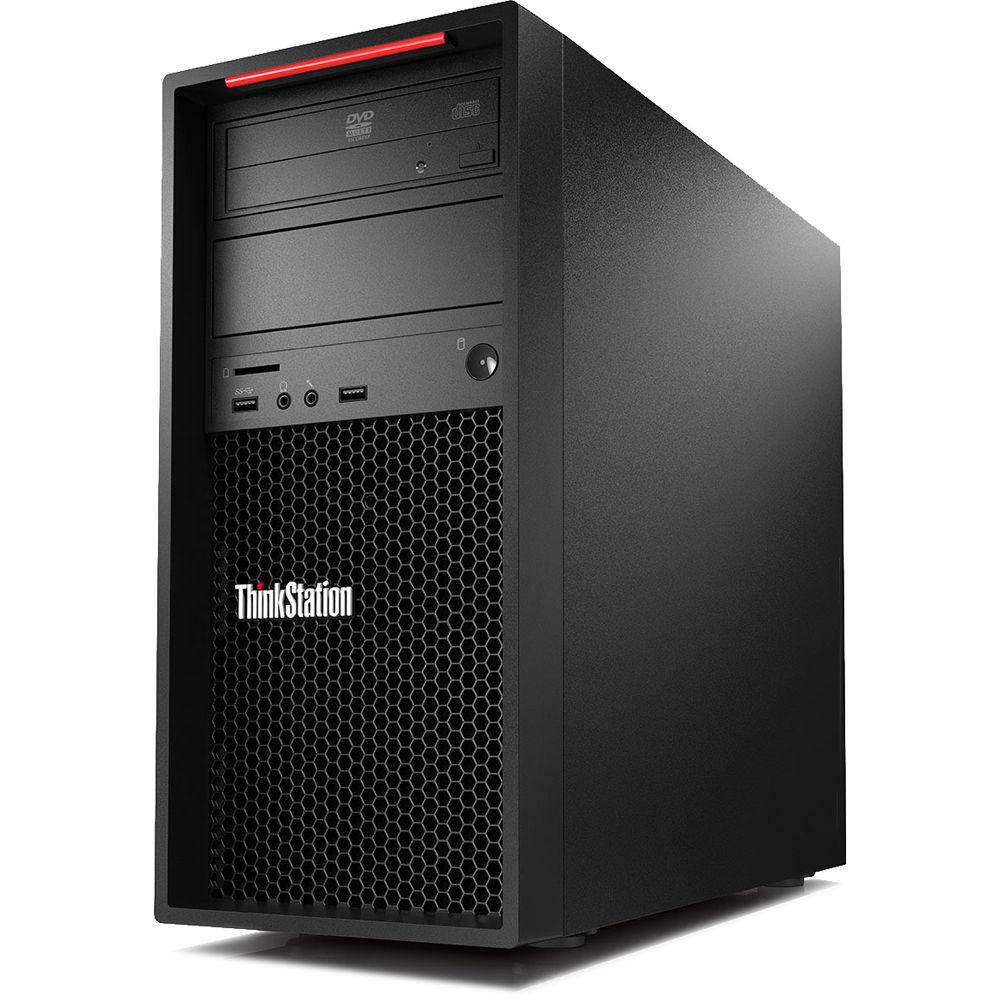

Product description The ThinkStation P520c Tower Workstation from Lenovo is a powerful workstation designed for professionals in the creative field who need performance, storage, and processing capabilities. Specs-wise, it's equipped with a 3.6 GHz Intel Xeon W-2123 Quad-Core processor, 8GB of 2666 MHz DDR4 RAM, and a 1TB 7200 rpm HDD. To enhance this system's performance, you can install additional components including RAM modules, 2.5"/3.5"/M.2 storage drives, as well as PCIe-based expansion cards. Moreover, with Lenovo's optional Flex Module, you can add even more hardware and connectivity options as needed. Other integrated features include multiple USB ports, a SuperMulti DVD drive, 9-in-1 media card reader, Gigabit Ethernet LAN, and audio jacks. The operating system installed is Windows 10 Pro (64-bit). General Features - Upgrade-Friendly
- The ThinkStation P520c has a total of four RAM slots that can support up to a max of 128GB of DDR4 RAM. It also has two 5.25" optical bays, two 2.5"/3.5" drive bays, and two PCIe M.2 slots for storage. Lastly, there are two PCIe 3.0 x16, one PCIe 3.0 x8, and one PCIe 3.0 x4 slots for additional hardware.
- SuperMulti DVD±RW Burner & 9-in-1 Media Card Reader
- A SuperMulti DVD±RW Burner is included for reading from and writing to a variety of CD and DVD media. It also has a 9-in-1 media card reader that you can use to transfer data to and from storage cards.
- Support
- The optional Lenovo PC Diagnostics app, available for both desktops and smartphones, can help you diagnose and troubleshoot potential system issues. You can also download the Lenovo Performance Tuner software to optimize your system's performance.
Windows 10 Pro - Start Menu
- After its hiatus in Windows 8, the Start Menu has returned. Utilizing a combination of the traditional menu system and Windows 8's Live Tiles, the improved Start Menu gives you more information at a glance, showing notification information alongside your applications and other pinned items.
- Cortana
- Microsoft's digital personal assistant, Cortana can answer your questions with information gleaned from both your device and the internet at large. You can type or even talk with her, if your system has a microphone. Using her Notebook, Cortana keeps track of your needs and wants, and she learns over time to improve her information gathering skills.
- Microsoft Edge
- After nearly 20 years, Microsoft has finally replaced its Internet Explorer web browser. With Microsoft Edge, users can write directly on web pages and share notes with friends and colleagues. It also improves the online reading experience by adding a distraction-free mode and read-it-later functionality. Edge also has built-in Cortana integration; you can have her help you find a restaurant, make a reservation, and pull up directions without leaving your browser.
- Windows Store
- For Windows 10, Microsoft has unified the Windows Store. Now, apps for PCs, tablets, and phones will all be accessible from one place. And with support for Universal Apps, one version of an app can work across all your compatible devices automatically.
- Windows Continuum
- Windows 10 was designed for a variety of screen sizes and input styles, and with its Continuum feature, it automatically adapts to fit your needs. A Windows 10 tablet on its own requires a touch-centric approach, but attaching a mouse and keyboard will shift everything to a more traditional interface. You can even attach an external monitor to your Windows 10 phone for a near-desktop experience. But it's not just the operating system; Windows Universal Apps take advantage of Continuum as well.
- Xbox on Windows 10
- Gaming is a big focus of Windows 10. Xbox integration allows for PC players to match up against Xbox One players on supported games, and if you have an Xbox One, you can even stream compatible titles to your PC. Native support for recording with the new Game DVR feature makes it easy to capture and share your gameplay. The new DirectX12 takes better advantage of multi-core processors, giving games a performance boost, even on older hardware. Windows 10 also features native support for virtual reality headsets, such as the Oculus Rift.
- Windows 10 Pro
- The Pro version of Windows 10 includes all of the features of Windows 10 Home plus many designed specifically for business users, including Hyper-V virtualization, BitLocker disk encryption, and remote desktop access. Devices will also be able to join domains and the Azure Active Directory, and they can even access a specialized version of the Windows Store featuring custom, company-specific applications.
UPC: 192158654393 In the Box Lenovo ThinkStation P520c Tower Workstation Power Cable USB Keyboard & Mouse Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lenovo ThinkStation P520c Tower Workstation in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLenovo P520c Tower Specs | Operating System | Windows 10 Pro (64-Bit) | | | | Chipset | Intel C422 | | CPU Socket | LGA 2066 | | CPU | 3.6 GHz Intel Xeon W-2123 Quad-Core | | Maximum Boost Speed | 3.9 GHz | | L3 Cache | 8.25 MB | | Memory Type | 2666 MHz DDR4 | | Total Installed Memory | 8 GB | | Memory Configuration | 1 x 8 GB (User-Replaceable) | | Maximum Memory Capacity | 128 GB | | Memory Slot Type | 288-Pin DIMM | | Available Memory Slots | 3 | | Buffered Memory | Yes | | ECC Memory | Yes | | Graphics Type | None | | | | Total Drive Bays | 2 x 2.5/3.5" (Internal)
2 x 5.25" (External) | | SSD Slots | 2 x M.2 (Available) | | Hard Disk Storage | 1 x 1 TB 3.5" SATA (7200 rpm) | | PCI Expansion | 2 x PCIe Gen 3 x16
1 x PCIe Gen 3 x8
1 x PCIe Gen 3 x4 | | Optical Drive | Tray-Load SuperMulti DVD Burner with Dual Layer Support | | | | Ports | 6 x USB Type-A (USB 3.1 Gen 1)
2 x USB Type-A (USB 2.0)
2 x PS/2 | | Display | None | | Audio | 1 x 1/8" / 3.5 mm Headphone Output
1 x 1/8" / 3.5 mm Line Input
1 x 1/8" / 3.5 mm Line Output
2 x 1/8" / 3.5 mm Microphone Input | | | | Ethernet | 1 x RJ45 (Gigabit) | | | | Keyboard | Full-Size Keyboard | | Pointing Device | USB Mouse | | | | Power Supply | 500 W | | Dimensions | 6.9 x 16.8 x 14.8" / 175 x 426 x 376 mm | | Weight | 32 lb / 14.5 kg |
