User Manual for Lenovo ThinkStation P920 Tower Workstation Click to enlarge the picture
Contents of the user manual for the Lenovo ThinkStation P920 Tower Workstation
- Product category: PC Workstations Lenovo
- Brand: Lenovo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lenovo PC Workstations
 |
User manual for the Lenovo ThinkStation P920 Tower Workstation contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lenovo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lenovo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lenovo product will considerably shorten its lifespan!
|

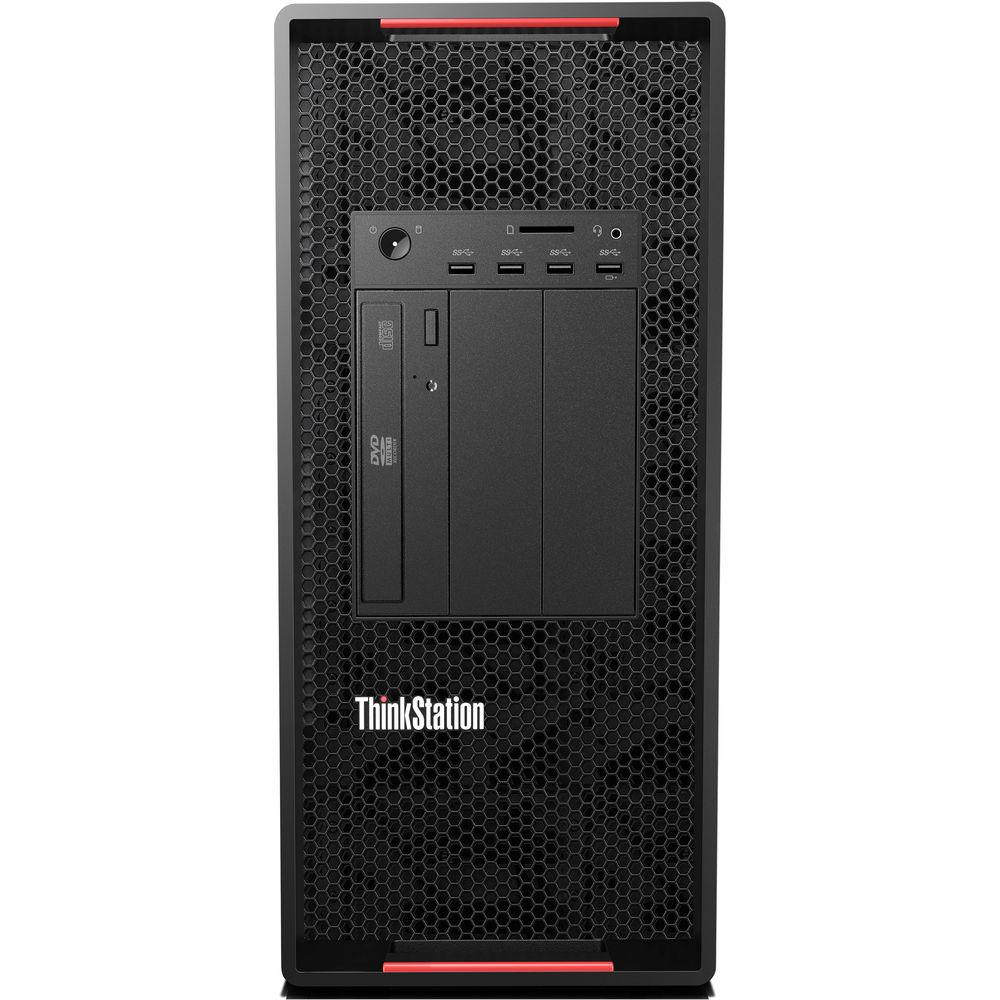

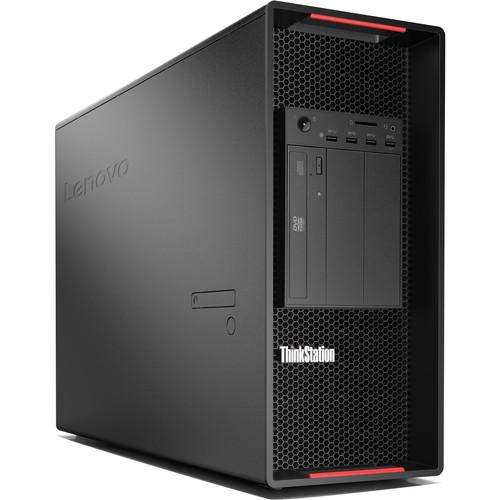

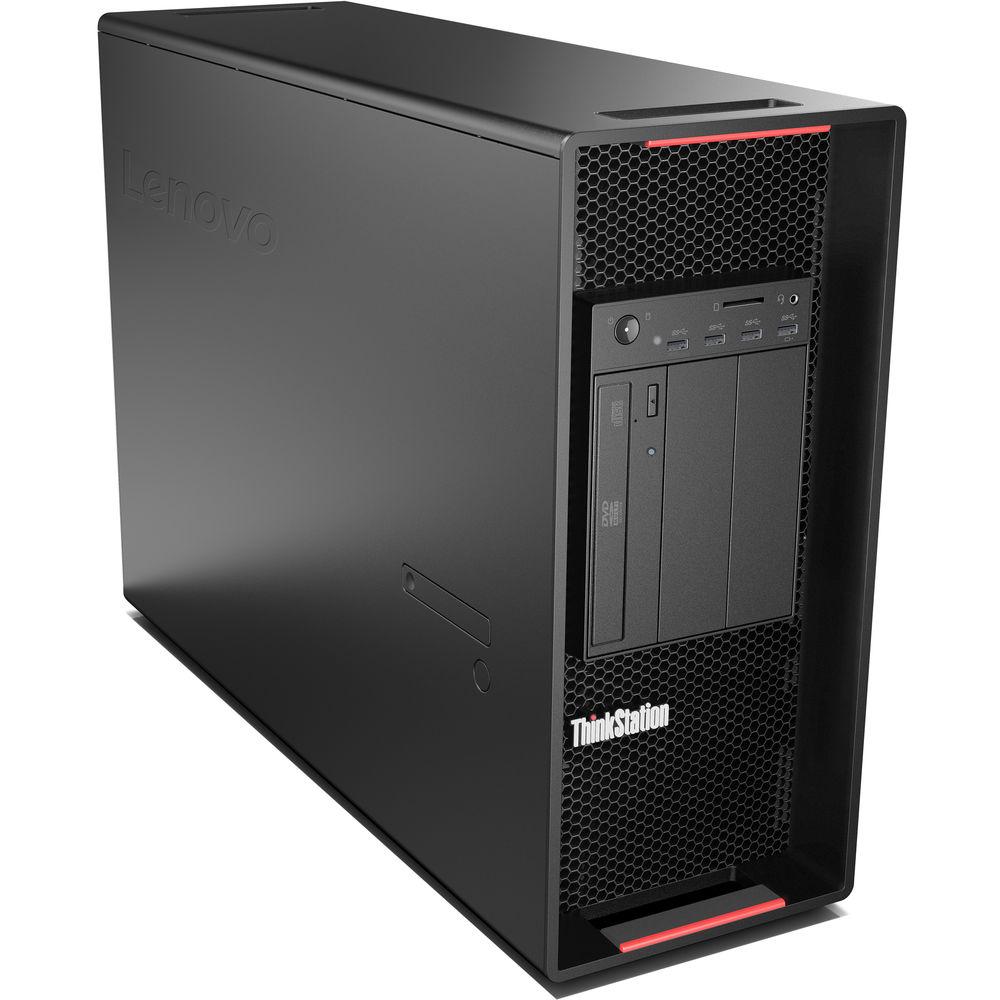

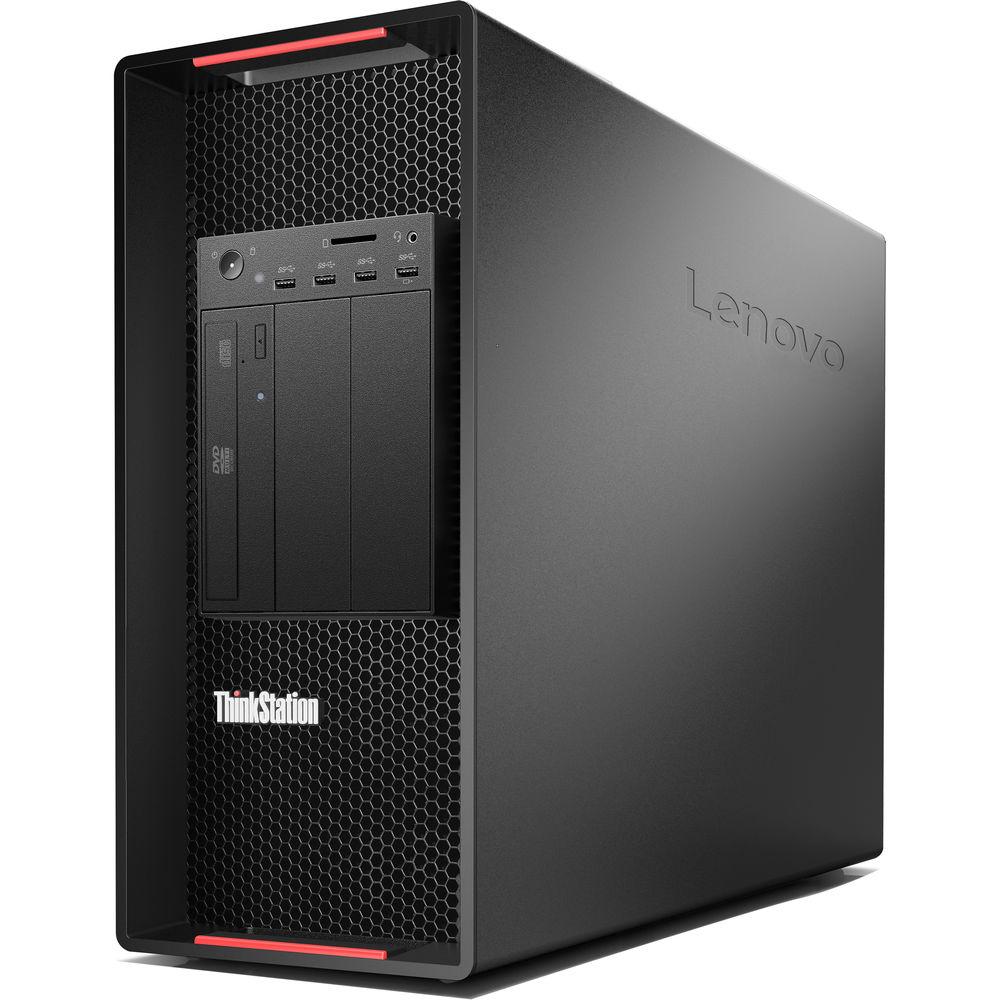

Product description The ThinkStation P920 Tower Workstation from Lenovo is a powerful workstation designed for professionals in the creative field who need performance, storage, and processing capabilities. Specs-wise, it's equipped with a 2.2 GHz Intel Xeon Silver 4114 10-Core processor, 16GB of 2666 MHz DDR4 RAM, and a 1TB 7200 rpm HDD. To enhance this system's performance, you can install additional components including another processor, RAM modules, 2.5"/3.5"/M.2 storage drives, as well as PCIe-based expansion cards. Moreover, with Lenovo's optional Flex Module, you can add even more hardware and connectivity options as needed. Other integrated features include multiple USB ports, a SuperMulti DVD drive, a 9-in-1 media card reader, Gigabit Ethernet LAN, and audio jacks. The operating system installed is Windows 10 Pro (64-Bit). - Upgrade-Friendly
- The ThinkStation 920 has a total of sixteen RAM slots that can support up to a max of 1TB of DDR4 RAM across two processors. It also has three 5.25" optical bays, four 2.5"/3.5" drive bays, and two PCIe M.2 slots for storage. Lastly, there are five PCIe x16 and three PCIe x4 slots for additional hardware.
|
Upload User Manual
Have you got an user manual for the Lenovo ThinkStation P920 Tower Workstation in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLenovo P920 Tower Specs | Operating System | Windows 10 Pro for Workstations (64-Bit) | | | | CPU Socket | LGA 3647 | | CPU | 2.2 GHz Intel Xeon Silver 4114 10-Core | | Maximum Boost Speed | 3.0 GHz | | L3 Cache | 13.75 MB | | Memory Type | 2666 MHz DDR4 | | Total Installed Memory | 16 GB | | Memory Configuration | 2 x 8 GB (User-Replaceable) | | Maximum Memory Capacity | 1 TB | | Memory Slot Type | 288-Pin DIMM | | Available Memory Slots | 14 | | Buffered Memory | Yes | | ECC Memory | Yes | | Graphics Type | None | | | | Total Drive Bays | 3 x 5.25" (External)
4 x 3.5" (Internal) | | SSD Slots | 2 x M.2 (Available) | | Hard Disk Storage | 1 x 1 TB 3.5" SATA (7200 rpm) | | PCI Expansion | 5 x PCIe x16

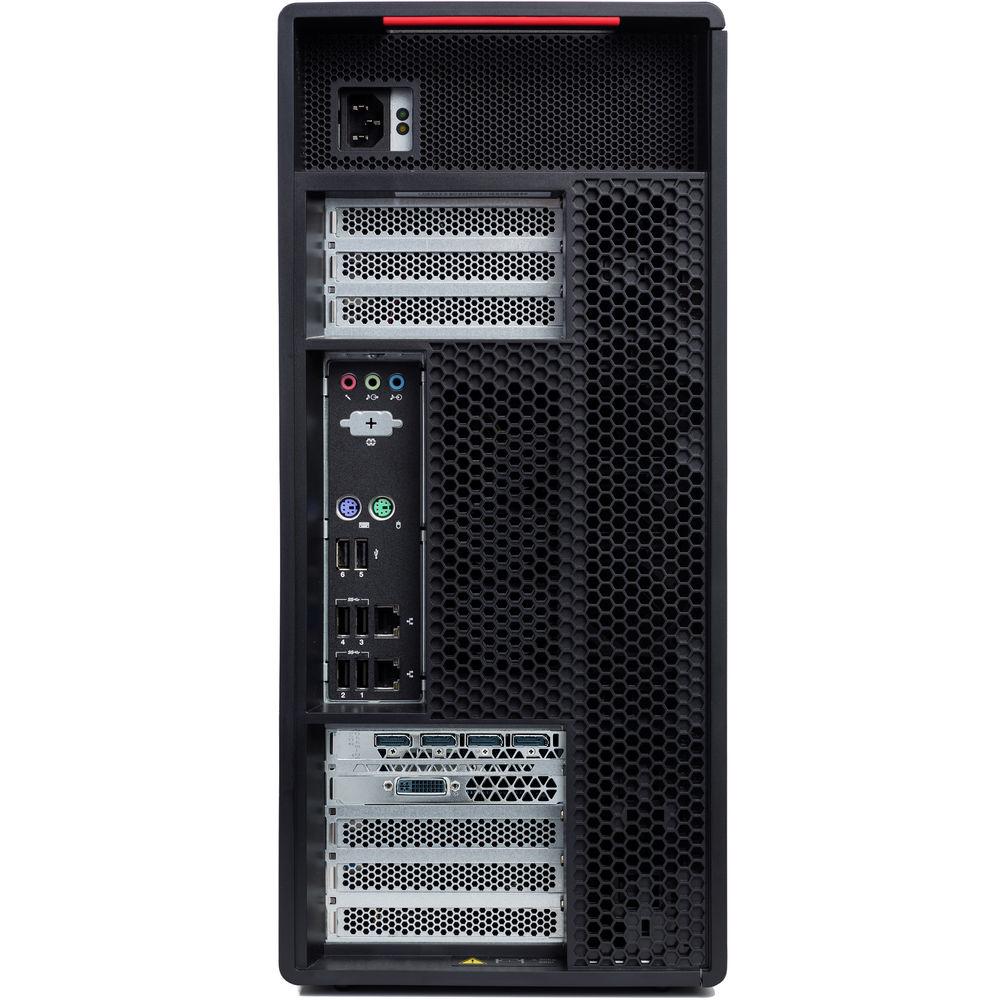

3 x PCIe x4 | | Optical Drive | SuperMulti DVD Burner | | | | Ports | 2 x PS/2
8 x USB Type-A (USB 3.1 Gen 1)
2 x USB Type-A (USB 2.0)
1 x DE-9 (Serial)
1 x DB-25 (Parallel) | | Display | None | | Audio | 1 x 1/8" / 3.5 mm Headphone Output
1 x 1/8" / 3.5 mm Line Input
1 x 1/8" / 3.5 mm Line Output
2 x 1/8" / 3.5 mm Microphone Input | | | | Ethernet | 2 x RJ45 (Gigabit) | | | | Keyboard | Full-Size Keyboard | | | | Power Supply | 1400 W | | Dimensions | 7.9 x 24.4 x 17.6" / 200 x 620 x 446 mm | | | | Package Weight | 78.0 lb | | Box Dimensions (LxWxH) | 31.1 x 25.8 x 13.8" |
