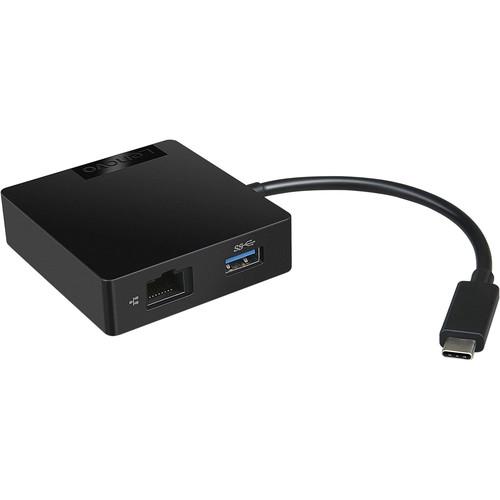

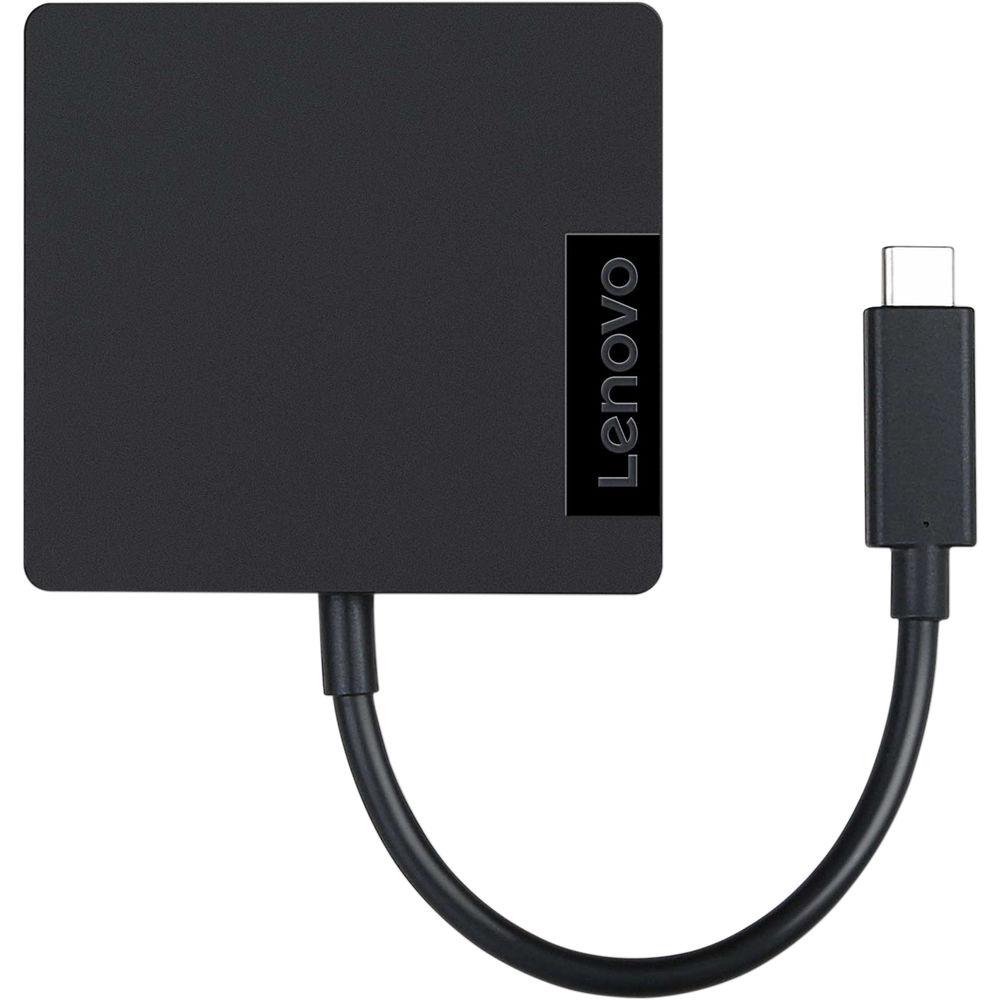

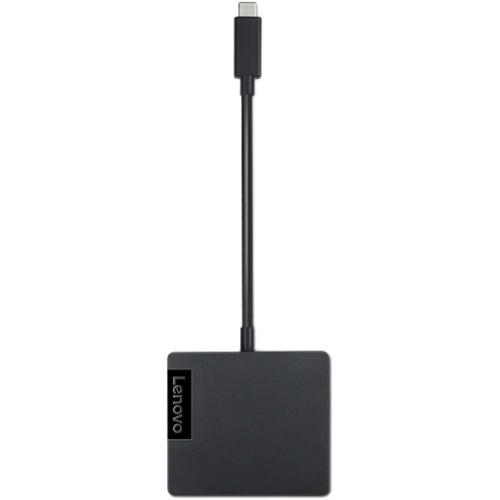

User Manual for Lenovo USB 3.0 Type-C Travel Hub Click to enlarge the picture
Contents of the user manual for the Lenovo USB 3.0 Type-C Travel Hub
- Product category: Hubs Lenovo
- Brand: Lenovo
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lenovo Hubs
 |
User manual for the Lenovo USB 3.0 Type-C Travel Hub contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lenovo product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lenovo user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lenovo product will considerably shorten its lifespan!
|
Product description Connect your USB 3.0 Type-C system to a USB Type-A device, HDMI or VGA display, and a Gigabit Ethernet network using the USB 3.0 Type-C Travel Hub from Lenovo. Compatible with select Lenovo systems, this hub interfaces with your host system using plug-and-play via an integrated USB 3.0 Type-C cable that also supports DP alt mode. Once connected, users will have access to one USB 3.0 Type-A port, an HDMI port that supports resolutions up to 3840 x 2160 @ 30 Hz, a VGA port that supports resolutions up to 1920 x 1080 @ 60 Hz, and a Gigabit Ethernet port that supports 10/100/1000 Mbps network connectivity.
Please bear in mind that this hub works with Windows 7 or 10 and requires a USB 3.0 Type-C port that can provide 5V / 3A of bus power. It will not work with lower voltages, such as 5V / 1A or 5V / 0.9A. Additionally, while there is one HDMI and one VGA port, only one external display is supported at a time. When the HDMI and VGA ports are simultaneously used, only the HDMI port will function. General Features Integrated USB 3.0 Type-C Cable - For connecting with the USB Type-C (female) port
- Compatible with notebooks in which USB Type-C port has a bus power of 5V / 3A. It will not work if the bus power is 5V / 1.5A or 5V / 0.9A
- Compatible with notebooks equipped with 5 Gb/s USB 3.0
- Supports DP alternate mode, fixed at 2-lane DP mode
USB 3.0 Type-A Port - USB Type-A receptacle connector supports 5 Gb/s USB 3.0
- Supports currents of 0.9A (900mA)
HDMI Port - Supports resolutions up to UHD 4K (3840 x 2160) @ 60 Hz
VGA Port - Supports resolutions up to 1920 x 1080 @ 60 Hz
Gigabit Ethernet Port - Meets IEEE802.3ab network specifications for Gigabit data rates
- Meets IEEE802.3 network specification for 10M/100 Mbps data rates
- PXE boot and load image from remote server are required both on legacy BIOS and UEFI BIOS systems if the host systems support it
- Supports Wake-on-LAN under S3 mode if the host system supports it
- Supports MAC address passthrough if the host system supports it
- LEDs on the connector indicate activity and link status
Compatible Systems - ThinkPad
- ThinkPad 13, ThinkPad S2 2nd Gen, ThinkPad X1 Yoga, ThinkPad X1 Yoga 2nd Gen, ThinkPad X1 Carbon (WW), ThinkPad X1 Carbon 5th (PRC), ThinkPad X270, ThinkPad T470, ThinkPad T470s, ThinkPad T570, ThinkPad P51s, ThinkPad Yoga 370, ThinkPad S1 3rd Gen (PRC)
- Lenovo
- Miix 5 Pro (Miix720), Yoga 910-13IKB, Yoga 910-13IKB Glass
UPC: 190940388099 In the Box Lenovo USB 3.0 Type-C Travel Hub Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lenovo USB 3.0 Type-C Travel Hub in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLenovo Travel Hub Specs | Ports | 1 x USB 3.0 Type-C
1 x USB 3.0 Type-A
1 x HDMI
1 x VGA
1 x Gigabit Ethernet | | Operating Environment | Temperature: 23 to 104°F / -5 to 40°C
Humidity: 20 to 95% | | Agency Approvals | KCC, FCC/ICES, EAC, RCM, VCCI, CE, BSMI, CB | | Dimensions | 0.71 x 2.48 x 2.68" / 18.03 x 62.99 x 68.07 mm | | Weight | 0.176 lb / 0.080 kg | | | | Package Weight | 0.35 lb | | Box Dimensions (LxWxH) | 6.4 x 5.2 x 1.2" |
