Product description In the Field: Lensbaby Burnside 35mm f/2.8 Lens Read More - Behold... The Burnside 35

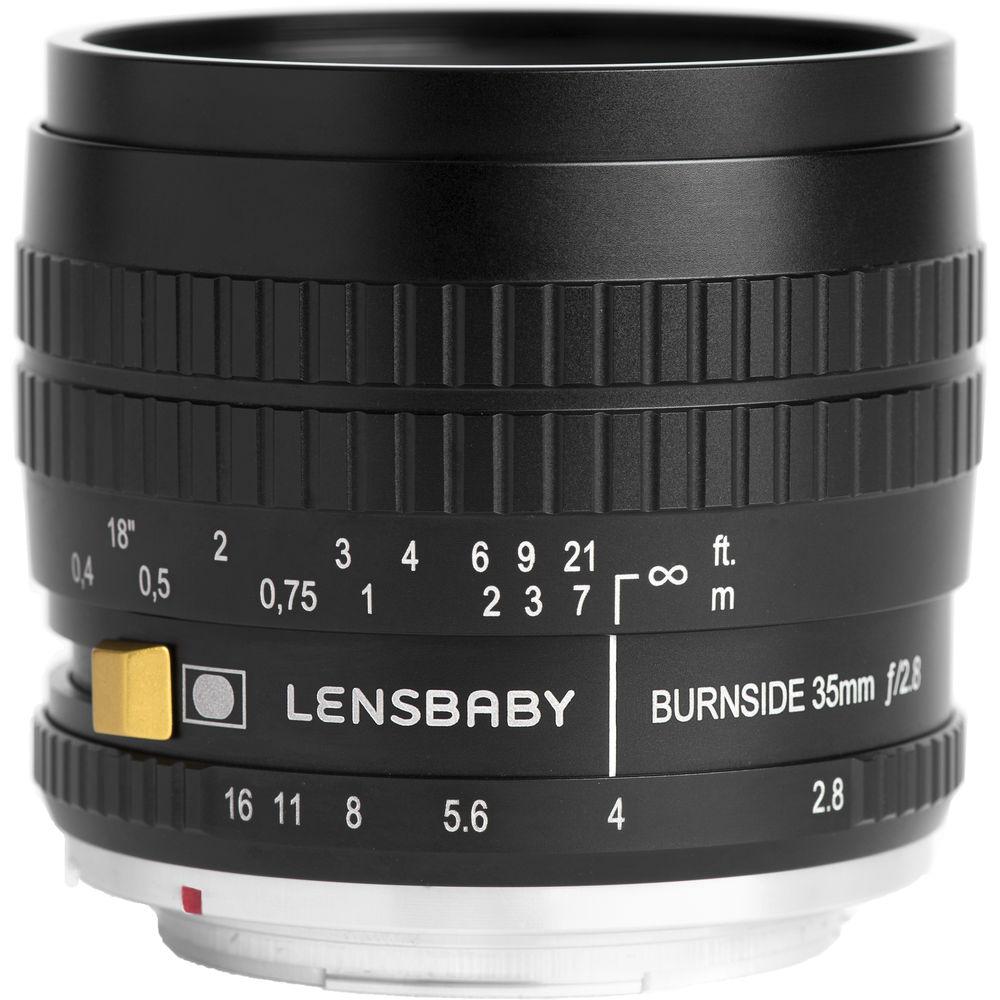

A unique lens characterized by its swirly bokeh, the Burnside 35 from Lensbaby is a 35mm f/2.8 prime for Sony E-mount cameras. Featuring two separate diaphragms, an extensive amount of control over selective focus and bokeh quality is possible, with the ability to work with large in-focus areas or smaller in-focus areas surrounded by a distinct out-of-focus swirl. The six elements, four groups optical design also contributes to the unique look, and each of the glass elements have been multi-coated to control flare and ghosting in order to realize high contrast and accurate color rendering. In addition to fully manual exposure control, the lens also requires manual focus operation and has a minimum focusing distance of 6" for working with close-up subjects. - General wide-angle prime is designed for full-frame Sony E-mount mirrorless cameras, however can also be used with APS-C models where it provides a 52.5mm equivalent focal length.
- Unique optical design features six multi-coated elements in four groups, and is designed to produce imagery with a large area of central sharpness surrounded by distinct, swirly bokeh and pronounced vignetting.
- Dual diaphragm design incorporates a primary six-blade diaphragm to control exposure and to introduce the desired amount of swirly out of focus in the image, with larger apertures producing the smallest in-focus area and most swirl and smaller apertures producing a larger in-focus area with minimal swirl.

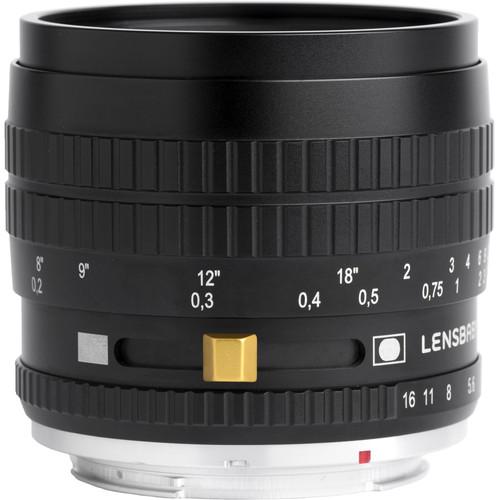

- Secondary eight-blade diaphragm can be adjusted using the bronze effect slider on the side of the lens barrel, and is used to control the amount of vignetting as well as the quality of the bokeh in the out-of-focus areas of the image. When wide open, the swirl quality will be softer and when closed down, there will be greater detail in the swirl and more vignetting will be apparent.
- Manual focus design with a smooth, dampened focusing movement is complemented by engraved focus distance indicators.
UPC: 858285007180 In the Box Lensbaby Burnside 35mm f/2.8 Lens for Sony E Front and Rear Lens Caps Limited 1-Year Warranty WPPI 2018: Lensbaby Announces Burnside 35 Lens with Double-Aperture Design Fernando Ferraz 02/15/2018 Table of Contents
|
Upload User Manual
Have you got an user manual for the Lensbaby Burnside 35mm f 2.8 Lens for Sony E in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLensbaby Burnside 35mm f/2.8 Specs | Focal Length | 35mm | | Aperture | f/2.8 to f/16 | | Lens Mount | Sony E | | Minimum Focus Distance | 6" / 15.2 cm | | Maximum Magnification | Not specified by manufacturer | | Elements/Groups | 6 elements in 4 groups | | Diaphragm Blades | 6-blade internal aperture
8-bladed secondary internal aperture for special effects | | Autofocus | No | | Filter Thread | 62 mm | | Dimensions | 2.75 x 2.6" / 69.9 x 66.7 mm | | Weight | 13.2 oz / 374.2 g | | | | Package Weight | 1.25 lb | | Box Dimensions (LxWxH) | 6.0 x 4.0 x 4.0" |
