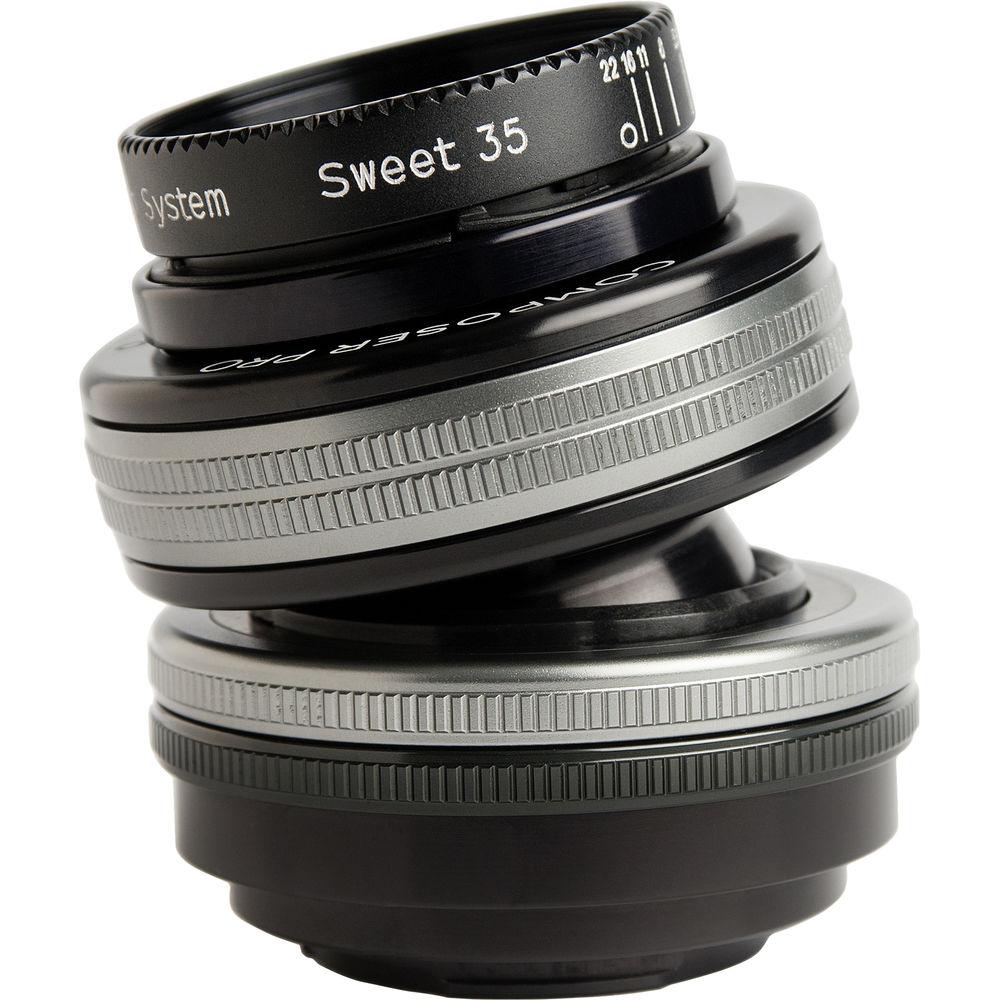

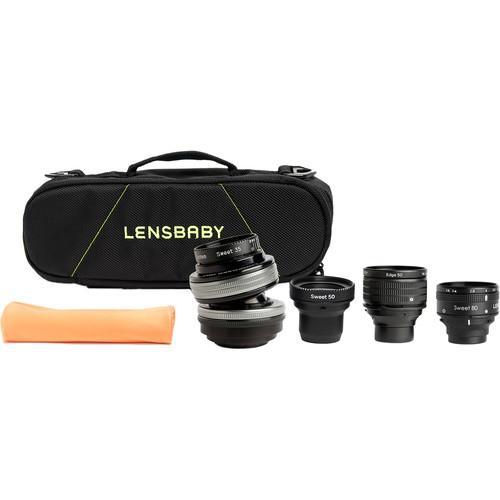

Product description Anita Kram Explores the Magic of Nature with Lensbaby Lenses Read More Comprising a series of lenses for producing creative selective focus imagery, this Composer Pro II Creator Kit from Lensbaby is designed for Sony E-mount cameras. This kit includes a Composer II along with a Sweet 35 Optic, a Sweet 50 Optic, Sweet 80 Optic, and the Edge 50 Optic, as well as a 14 x 14" lens cleaning cloth and a System Bag for protecting and storing the whole kit. - Composer Pro II with Sweet 35 Optic for Sony E Have unprecedented precision control over the "sweet spot" of focus in your selective focus photos with the Lensbaby Composer Pro II with Sweet 35 Optic available here with a Sony E mount. This updated tool is completely compatible with the established Optic Swap System and can use any of the numerous optics available. This version improves upon the original Pro model by featuring a metal body as well as an improved tilt function that ranges from 0-15° in any direction.
Bundled with it is the Sweet 35, the widest focal length of any Lensbaby selective focus optic. This curved field optic differs from your standard lens by creating a spot of focus when tilted that can be manipulated in position by tilting the Composer and manipulated in size by manually changing the aperture from f/2.5 to f/22. The optic also offers manual focus as close as 7.5" from your subject. Additionally, it has a 46mm filter thread as well as an internal 12-blade diaphragm for extra smooth out-of-focus areas. -
- Composer Pro II features an upgraded metal body with charcoal gray accents and an improved tilt control from 0-15° in any direction.
- Compatible with Lensbaby Optic Swap System.
- The Sweet 35 Optic is a curved field of focus optic that creates a spot of focus surrounded by blur when utilized with tilt. When used straight ahead, the optic functions as a normal lens.
- Aperture range from f/2.5 to f/22.
- By using built-in close focus function, the Sweet 35 Optic can focus as close as 7.5" from the subject.
- Lens construction features 4 multi-coated glass elements, in 3 groups.
- The Sweet 35 Optic accepts 46mm filters for additional creative shooting techniques.
- Internal 12-blade aperture diaphragm for smooth out-of-focus elements.

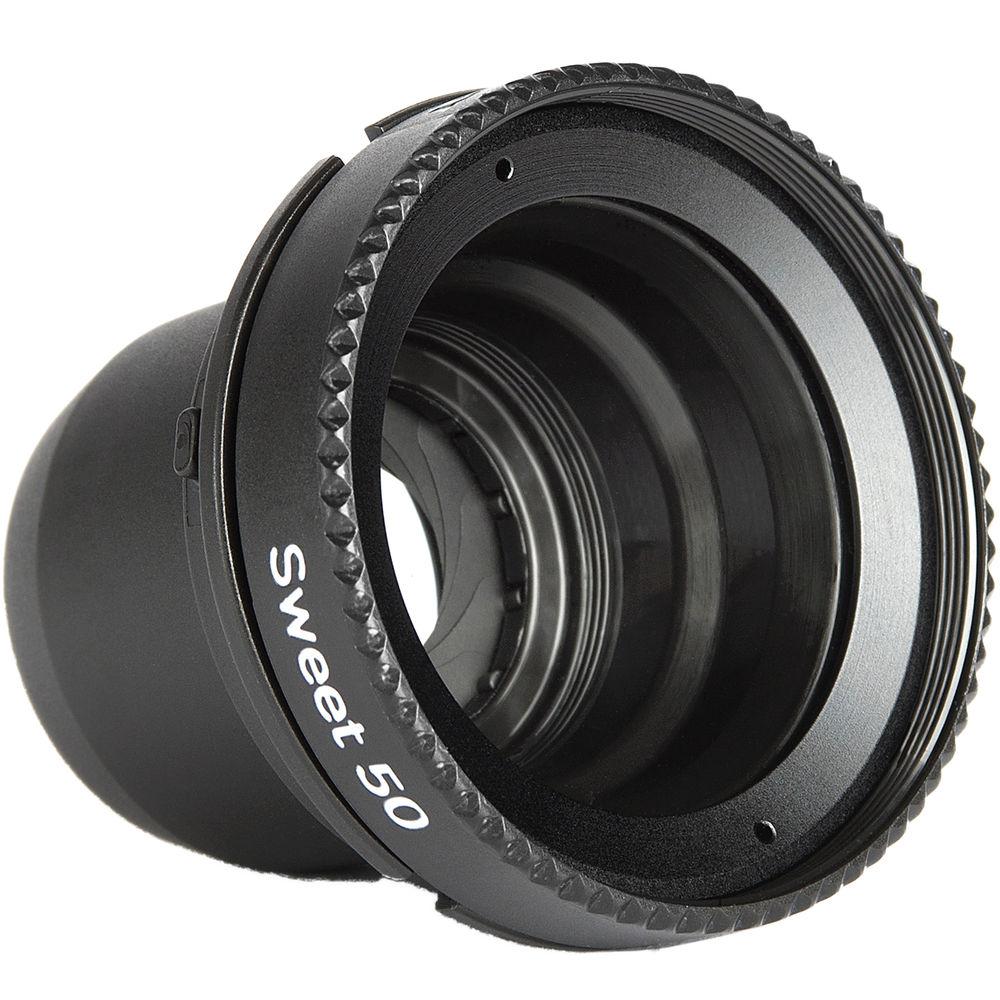

UPC: 850366006587 - Sweet 50 Optic for Composer Pro The Lensbaby Sweet 50 Optic is made for use with the Composer Pro, which can be bought separately, or used interchangeably with the Sweet 50 if you own it already with a different optic. It is a selective focus lens that uses a curved field of focus optic to create a blurred effect around the focus spot.
The 50mm focal length lens has two multi-coated glass elements in one group, and an aperture range of f/2.5 to f/22. The 12-blade internal aperture is easily controlled via a ring on the front of the optic. The sharp sweet spot of focus can be moved within the frame by tilting the Composer Pro's ball-and-socket joint. The size of the sweet spot is also controlled by changing the aperture. UPC: 188772003860 - Sweet 80 Optic Characterized by its distinct sweet spot of focus, the Sweet 80 Optic is an 80mm f/2.8 lens for the Lensbaby Optic Swap System. Designed for use with a tilting Lens Body, this optic's merits lie in its curved field of focus that allows you to place the area of sharp focus anywhere within the image frame and have the rest of the image shrouded in a smooth, ethereal blur. The aperture range helps to control the size of sweet spot of focus and 12 diaphragm blades contribute to a smooth bokeh quality to suit the selective focus look. Additionally, the lens construction uses four elements in two groups, and each of the glass elements are multi-coated to resist flare and ghosting for contrast-rich, color-accurate images.
- Part of the Lensbaby Optic Swap System, this optic requires an additional Lensbaby Lens Body for use.
- Portrait-length 80mm f/2.8 lens provides a comfortable, slightly narrow field of view that is well-suited to isolating subjects.
- Distinct curvature of field produces a sweet spot of focus to suit making selective focus imagery.
- Besides adjusting exposure, the f/2.8 to f/22 aperture range allows you to control the size of the sweet spot of focus.
- A 12-blade diaphragm contributes to a smooth, pleasing bokeh quality.
- Lens construction uses four glass elements in two groups, and each of the elements are multi-coated to resist flare and ghosting for increased contrast and color accuracy.

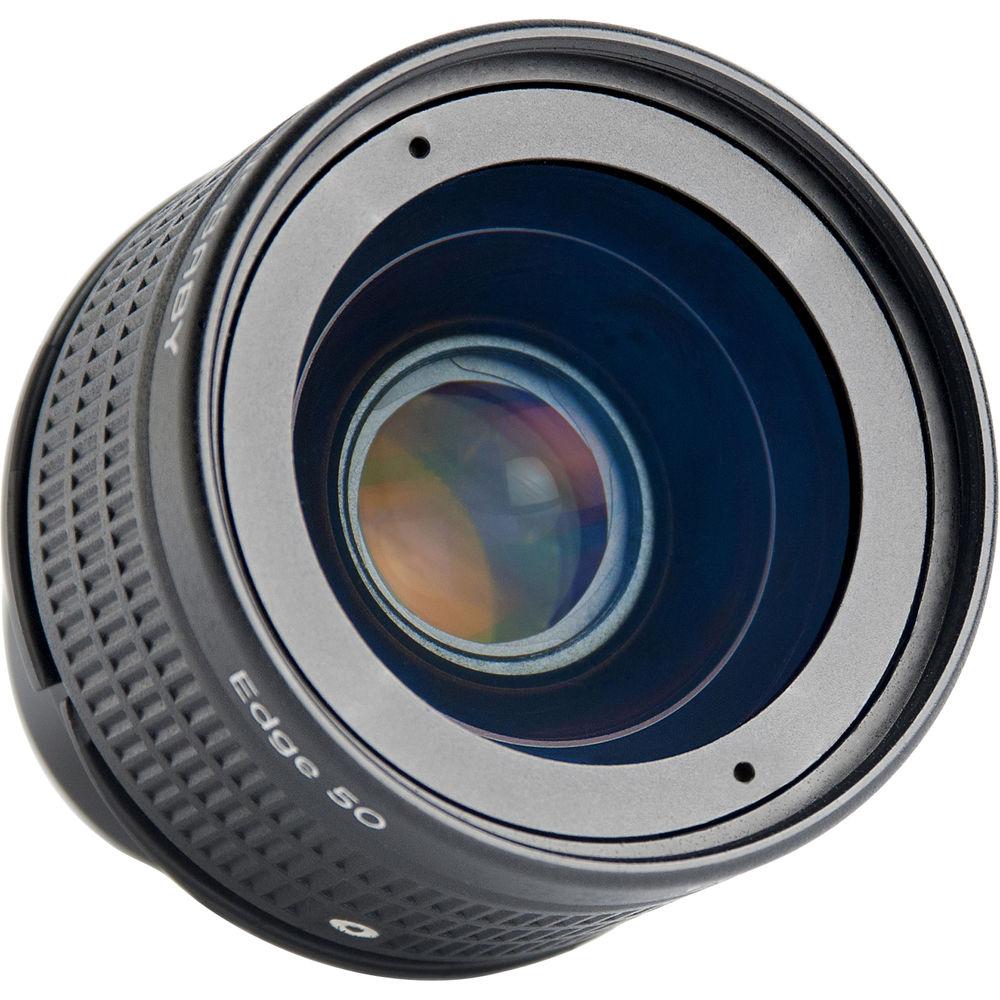

UPC: 850366006990 - Edge 50 Optic Be selective with your focus with the Lensbaby Edge 50 which offers a normal angle of view with coverage for full-frame image sensors. It is compatible with the Optic Swap System and all Lensbaby lens bodies including the Composer Pro. This flat field optic differs from your standard lens by creating a slice of focus that is bordered by gradual blur created by tilting the Edge 50 Optic in the Composer Pro or Composer Pro II in conjunction with the 9-blade adjustable aperture for smooth out-of-focus areas. If used as a 50mm prime lens, images will be crisp from edge to edge. You can manually change the aperture from f/3.2 to f/22 utilizing the dial on the front of the lens. The optic also offers manual focus which, by using the close focus extension feature, can focus as close as 8" from your subject. In addition, the Edge 50 offers 46mm front threads for any filters you would like to use. Keep your lens smudge free with the included microfiber cloth and protected when stored in its hard storage case. UPC: 850366006266

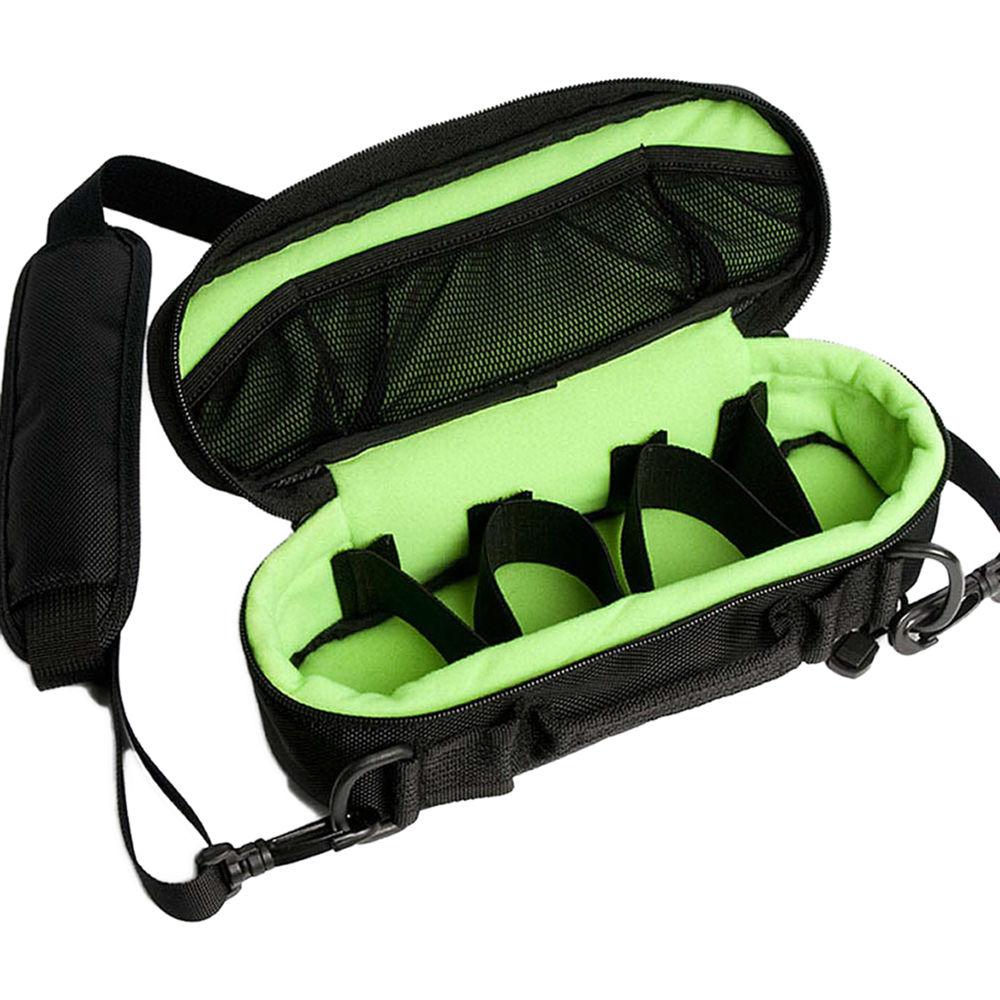

- System Bag for Combinations of Lenses, Optics and Accessories The black Lensbaby System Bag is a sturdy, flexible bag designed to carry many combinations of lenses (Muse, Control Freak, Composer, Scout and Composer with Tilt Transformer), optics or accessories. The removable and adjustable elastic straps inside the bag allow customizing the interior. The sides of the bag feature an easy-access corner flap that enables access to frequently used products. The bag features a variety of pockets, zipper closure, and a clear-mesh pocket under the lid. Carry the bag with the top handle or wear it with the shoulder strap.
- Bag Basics
-
- Holds many Lensbaby lenses, optics, and accessories combinations
- Sturdy, flexible construction
- Removable interior straps with touch fasteners are adjustable to the size of each item
- Easy-access corner flaps enable access to items at corners of bag without opening entire bag
- Pockets
-
- Zippered outside pocket
- Convenient full length mesh pocket inside lid for additional storage
- Carrying Options
-
- Carrying handle
- Removable, adjustable shoulder strap with wide non-slip pad
UPC: 188772002887 In the Box Bundle Items Composer Pro II with Sweet 35 Optic for Sony E uacbbfbcvdxfq Sweet 50 Optic for Composer Pro Sweet 80 Optic - Front Lens Cap for Edge 80, Sweet 50 & 35
- Optic Swap Tool/Container
Edge 50 Optic System Bag for Combinations of Lenses, Optics and Accessories uacbbfbcvdxfq - Removable Interior Straps

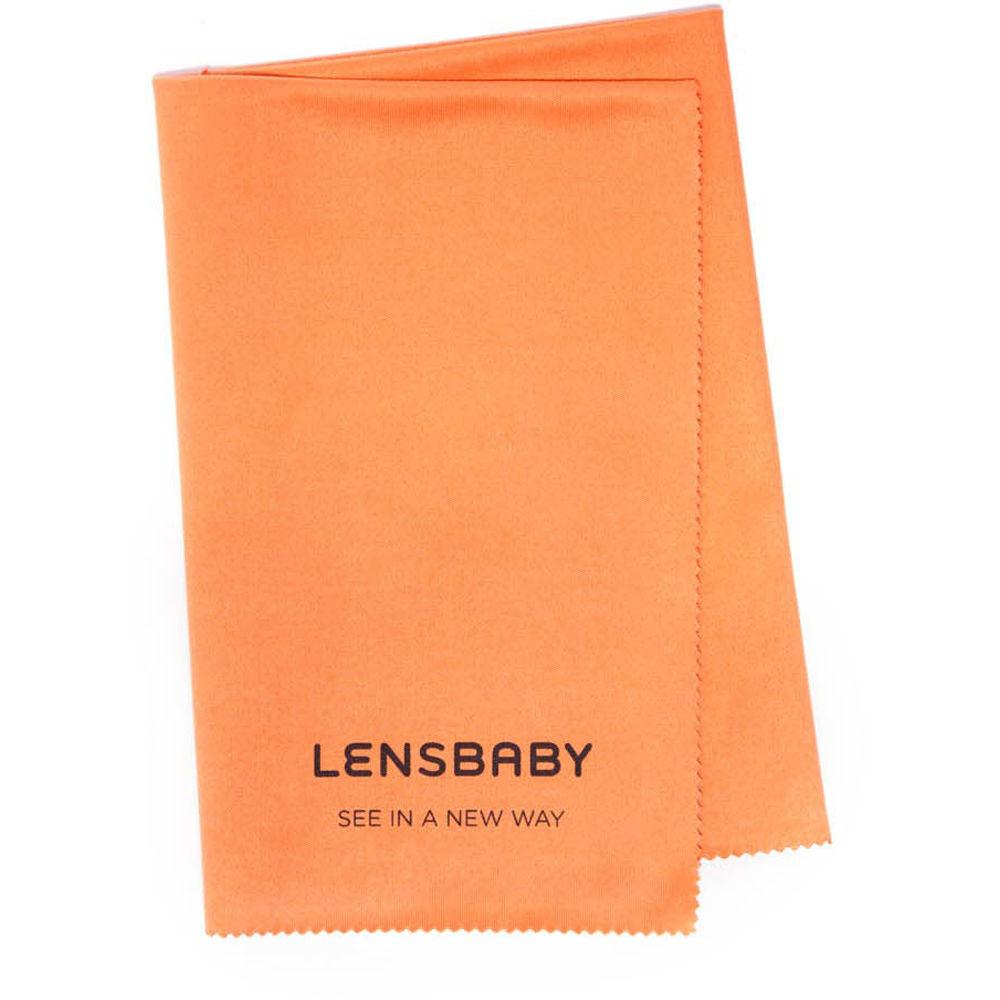

Also Includes - Lens Cleaning Cloth (14 x 14")
Table of Contents
|
Upload User Manual
Have you got an user manual for the Lensbaby Composer Pro II Creator Kit for Sony E in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Composer Pro II with Sweet 35 Optic for Sony E
Focal Length | 35mm (35mm Equivalent Focal Length: 52.5mm) | Maximum Aperture | f/2.5 | Minimum Aperture | f/22 | Lens Mount | Sony E | Format Compatibility | Full-Frame | Tilt-Shift | +/- 15° Tilt | Minimum Focus Distance | 7.5" / 19 cm | Optical Design | 4 Elements in 3 Groups | Diaphragm Blades | 12 | Focus Type | Manual Focus | Image Stabilization | None | Filter Size | 46 mm (Front) | Dimensions (
