User Manual for Lensbaby Composer Pro II Optic Swap Kit for Nikon F Click to enlarge the picture
Contents of the user manual for the Lensbaby Composer Pro II Optic Swap
- Product category: Special Effects Lenses Lensbaby
- Brand: Lensbaby
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lensbaby Special Effects Lenses
|
User manual for the Lensbaby Composer Pro II Optic Swap contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lensbaby product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lensbaby user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lensbaby product will considerably shorten its lifespan!
|

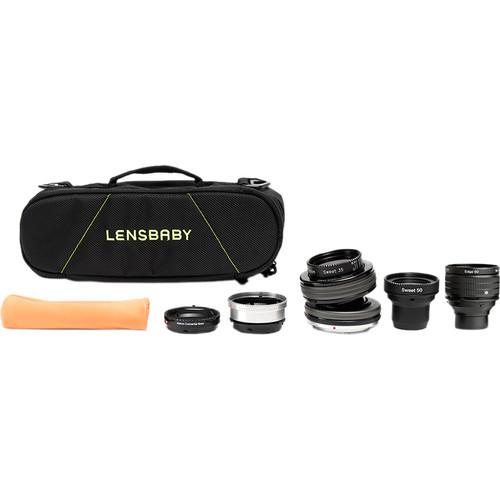

Product description Lensbaby Announces Release of Composer Pro II Optic Swap Kit Read More Comprising a series of tools for producing creative selective focus imagery, this Composer Pro II Optic Swap Kit from Lensbaby is designed for Nikon F-mount cameras. This kit includes a Composer II along with a Sweet 35 Optic, a Sweet 50 Optic, and the Edge 50 Optic, as well as 8mm and 16mm Macro Converter extension tubes, a 14 x 14" lens cleaning cloth, and a System Bag for protecting and storing the whole kit. - Composer Pro II with Sweet 35 Optic for Nikon F Have unprecedented precision control over the "sweet spot" of focus in your selective focus photos with the Lensbaby Composer Pro II with Sweet 35 Optic available here with a Nikon F mount. This updated tool is completely compatible with the established Optic Swap System and can use any of the numerous optics available. This version improves upon the original Pro model by featuring a metal body as well as an improved tilt function that ranges from 0-15° in any direction.
Bundled with it is the Sweet 35, the widest focal length of any Lensbaby selective focus optic. This curved field optic differs from your standard lens by creating a spot of focus when tilted that can be manipulated in position by tilting the Composer and manipulated in size by manually changing the aperture from f/2.5 to f/22. The optic also offers manual focus as close as 7.5" from your subject. Additionally, it has a 46mm filter thread as well as an internal 12-blade diaphragm for extra smooth out-of-focus areas. -
- Composer Pro II features an upgraded metal body with charcoal gray accents and an improved tilt control from 0-15° in any direction.
- Compatible with Lensbaby Optic Swap System.
- The Sweet 35 Optic is a curved field of focus optic that creates a spot of focus surrounded by blur when utilized with tilt. When used straight ahead, the optic functions as a normal lens.
- Aperture range from f/2.5 to f/22.
- By using built-in close focus function, the Sweet 35 Optic can focus as close as 7.5" from the subject.
- Lens construction features 4 multi-coated glass elements, in 3 groups.
- The Sweet 35 Optic accepts 46mm filters for additional creative shooting techniques.
- Internal 12-blade aperture diaphragm for smooth out-of-focus elements.
UPC: 850366006549 - Sweet 50 Optic for Composer Pro The Lensbaby Sweet 50 Optic is made for use with the Composer Pro, which can be bought separately, or used interchangeably with the Sweet 50 if you own it already with a different optic. It is a selective focus lens that uses a curved field of focus optic to create a blurred effect around the focus spot.
The 50mm focal length lens has two multi-coated glass elements in one group, and an aperture range of f/2.5 to f/22. The 12-blade internal aperture is easily controlled via a ring on the front of the optic. The sharp sweet spot of focus can be moved within the frame by tilting the Composer Pro's ball-and-socket joint. The size of the sweet spot is also controlled by changing the aperture. UPC: 188772003860 - Edge 50 Optic Be selective with your focus with the Lensbaby Edge 50 which offers a normal angle of view with coverage for full-frame image sensors. It is compatible with the Optic Swap System and all Lensbaby lens bodies including the Composer Pro. This flat field optic differs from your standard lens by creating a slice of focus that is bordered by gradual blur created by tilting the Edge 50 Optic in the Composer Pro or Composer Pro II in conjunction with the 9-blade adjustable aperture for smooth out-of-focus areas. If used as a 50mm prime lens, images will be crisp from edge to edge. You can manually change the aperture from f/3.2 to f/22 utilizing the dial on the front of the lens. The optic also offers manual focus which, by using the close focus extension feature, can focus as close as 8" from your subject. In addition, the Edge 50 offers 46mm front threads for any filters you would like to use. Keep your lens smudge free with the included microfiber cloth and protected when stored in its hard storage case. UPC: 850366006266
- Macro Converter Extension Rings for Lensbaby Lensbaby's Macro Converter Extension Rings for Lensbaby lets you take that Lensbaby look as close to your subject as you want--even touching it in some cases--and get a picture that's in focus. You can choose the 8mm ring, the 16mm ring (both included), or combine them for a 24mm ring, so you have plenty of control over exactly how close-up you want your photo to be. The converters are compatible with all Lensbaby lens bodies and optics, and provide focus distances of 0" to 8.13", depending on the optic, the camera, and the converter(s) you use. The Macro Converters simply screw into the Lensbaby lens body and the optic screws into the converter. The converters are compatible with Composer, Composer Pro, Muse, Scout, Control Freak and all optics (the Fisheye Optic is only compatible with the 8mm converter, as it allows you to actually focus on a subject that the lens is touching).
- Focus from 0" to 8.13" with any Lensbaby lens body and optic
- Includes one 8mm & one 16mm extension ring--they can be combined to form a 24mm extension ring
UPC: 188772003525 - System Bag for Combinations of Lenses, Optics and Accessories The black Lensbaby System Bag is a sturdy, flexible bag designed to carry many combinations of lenses (Muse, Control Freak, Composer, Scout and Composer with Tilt Transformer), optics or accessories. The removable and adjustable elastic straps inside the bag allow customizing the interior. The sides of the bag feature an easy-access corner flap that enables access to frequently used products. The bag features a variety of pockets, zipper closure, and a clear-mesh pocket under the lid. Carry the bag with the top handle or wear it with the shoulder strap.
- Bag Basics
-
- Holds many Lensbaby lenses, optics, and accessories combinations
- Sturdy, flexible construction
- Removable interior straps with touch fasteners are adjustable to the size of each item
- Easy-access corner flaps enable access to items at corners of bag without opening entire bag
- Pockets
-
- Zippered outside pocket
- Convenient full length mesh pocket inside lid for additional storage
- Carrying Options
-
- Carrying handle
- Removable, adjustable shoulder strap with wide non-slip pad
UPC: 188772002887 In the Box Bundle Items Composer Pro II with Sweet 35 Optic for Nikon F udqvvexbsxywyzfc Sweet 50 Optic for Composer Pro udqvvexbsxywyzfc Edge 50 Optic udqvvexbsxywyzfc Macro Converter Extension Rings for Lensbaby System Bag for Combinations of Lenses, Optics and Accessories - Removable Interior Straps
Also Includes - Lens Cleaning Cloth (14 x 14")
Anita Kram Explores the Magic of Nature with Lensbaby Lenses Jill Waterman 05/17/2017 Table of Contents
|
Upload User Manual
Have you got an user manual for the Lensbaby Composer Pro II Optic Swap Kit for Nikon F in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Composer Pro II with Sweet 35 Optic for Nikon F
Focal Length | 35mm (35mm Equivalent Focal Length: 52.5mm) | Maximum Aperture | f/2.5 | Minimum Aperture | f/22 | Lens Mount | Nikon F | Format Compatibility | Full-Frame | Tilt-Shift | +/- 15° Tilt | Minimum Focus Distance | 7.5" / 19 cm | Optical Design | 4 Elements in 3 Groups | Diaphragm Blades | 12 | Focus Type | Manual Focus | Image Stabilization | None | Filter Size | 46 mm (Front) | Dimensions (
Rating50% users recommend this product to others. And what about you?
This product has already been rated by 30 owners. Add your rating and experience with the product.
