User manual

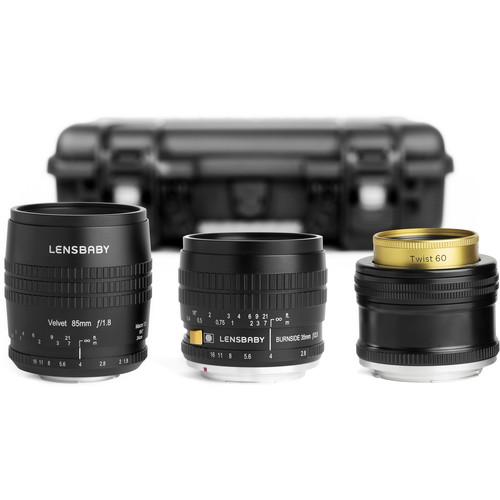

Lensbaby Pro Kit for Canon EF

User Manual for Lensbaby Pro Kit for Canon EF

• Product category: Special Effects Lenses Lensbaby
• Brand: Lensbaby
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Lensbaby Special Effects Lenses

Product description

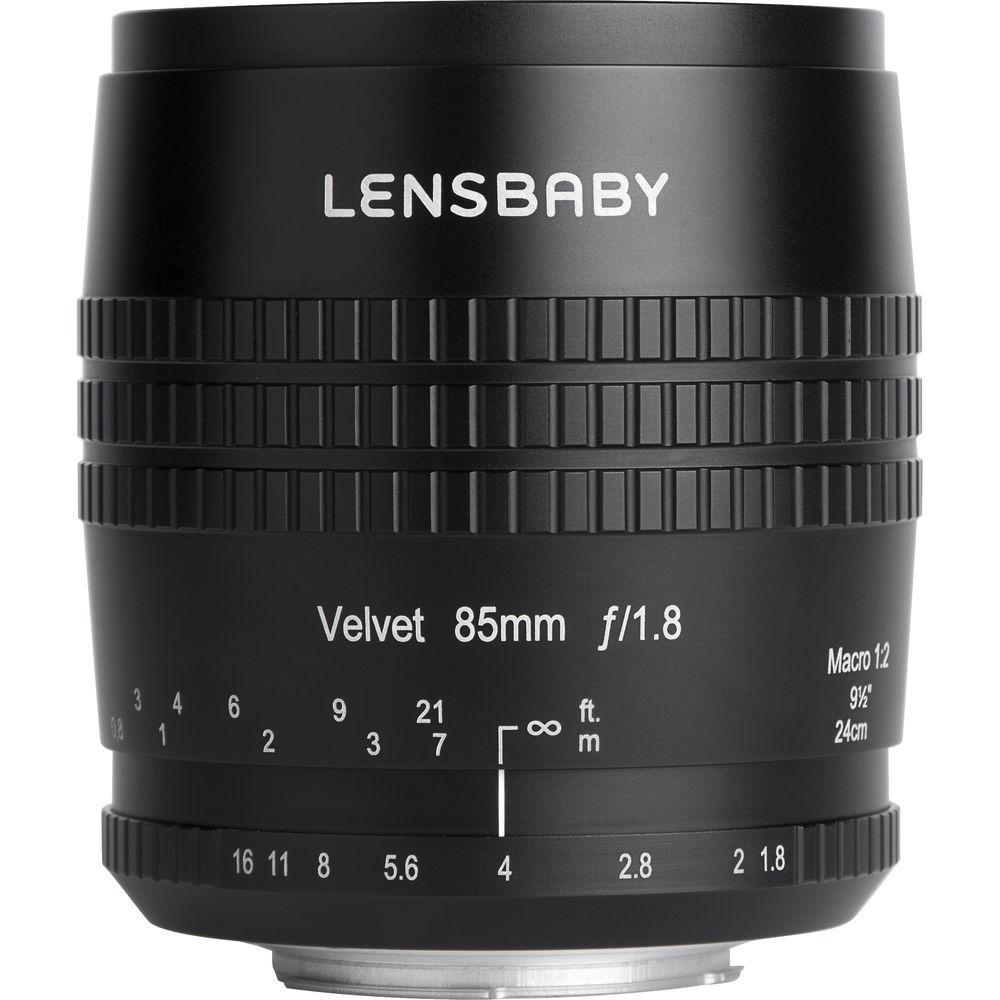

• Velvet 85mm f/1.8 Lens for Canon EF A unique short telephoto with distinct classic appeal, the Canon EF-mount Velvet 85mm f/1.8 from Lensbaby produces a mid-20th century-inspired image quality that is well-suited to portraiture. Characterized by a smooth, glowing aesthetic, this lens's softness can be controlled by stopping down in order to produce a range of effects from soft and dreamy to sharper and crunchier at smaller apertures. A 12-blade diaphragm also contributes to the lens's aesthetic, and helps to produce a smooth bokeh quality to suit shallow depth of field imagery. Additionally, the manual focus design affords a working distance of 9.5" with a maximum reproduction ratio of 1:2 to benefit working with close-up subjects.
  • Short telephoto portrait-length lens is designed for full-frame Canon EF-mount DSLRs, however it can also be used with APS-C models where it provides a 136mm equivalent focal length.
  • Bright f/1.8 maximum aperture affords greater control over depth of field for working with shallow depth of field and selective focus techniques, and also benefits working in low-light conditions.
  • Inspired by classic portrait lenses from the mid-20th century, this lens is designed to produce an ethereal glowing quality with soft, smooth tonality that is well-suited to portraiture.
  • Softness can be controlled by stopping-down the lens: when stopped-down to f/16, the image exhibits a smooth quality with greater central sharpness.
  • A working distance of 9.5" along with a 1:2 reproduction ratio suits working with close-up subjects.
  • Manual focus design with a smooth, dampened focusing movement is complemented by engraved focus distance indicators.
  • A 12-blade diaphragm contributes to a smooth bokeh quality that is ideal for selective focus imagery.
  UPC: 850366006785

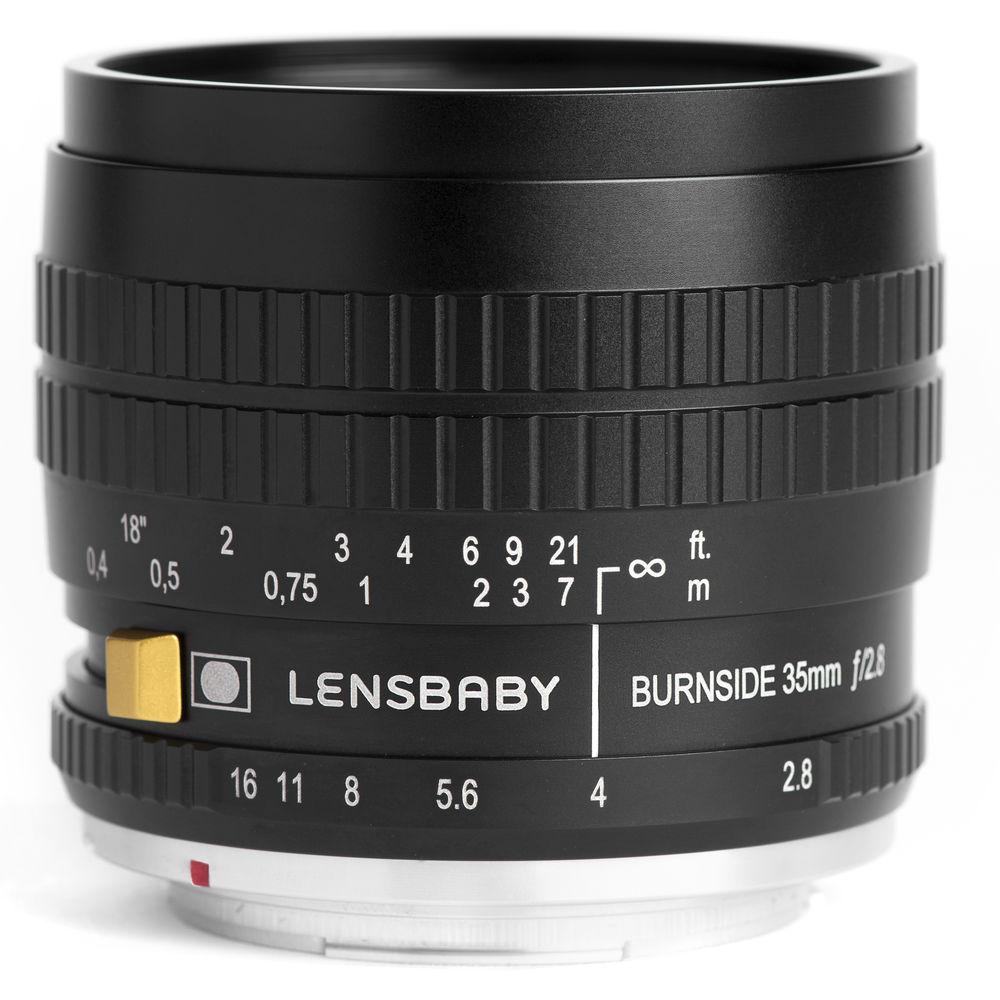

• Burnside 35mm f/2.8 Lens for Canon EF A unique lens characterized by its swirly bokeh, the Burnside 35 from Lensbaby is a 35mm f/2.8 prime for Canon EF-mount cameras. Featuring two separate diaphragms, an extensive amount of control over selective focus and bokeh quality is possible, with the ability to work with large in-focus areas or smaller in-focus areas surrounded by a distinct out-of-focus swirl. The six elements, four groups optical design also contributes to the unique look, and each of the glass elements have been multi-coated to control flare and ghosting in order to realize high contrast and accurate color rendering. In addition to fully manual exposure control, the lens also requires manual focus operation and has a minimum focusing distance of 6" for working with close-up subjects.
  • General wide-angle prime is designed for full-frame Canon EF-mount DSLRs, however can also be used with APS-C models where it provides a 56mm equivalent focal length.
  • Unique optical design features six multi-coated elements in four groups, and is designed to produce imagery with a large area of central sharpness surrounded by distinct, swirly bokeh and pronounced vignetting.
  • Dual diaphragm design incorporates a primary six-blade diaphragm to control exposure and to introduce the desired amount of swirly out of focus in the image, with larger apertures producing the smallest in-focus area and most swirl and smaller apertures producing a larger in-focus area with minimal swirl.
  • Secondary eight-blade diaphragm can be adjusted using the bronze effect slider on the side of the lens barrel, and is used to control the amount of vignetting as well as the quality of the bokeh in the out-of-focus areas of the image. When wide open, the swirl quality will be softer and when closed down, there will be greater detail in the swirl and more vignetting will be apparent.
  • Manual focus design with a smooth, dampened focusing movement is complemented by engraved focus distance indicators.
  UPC: 858285007135

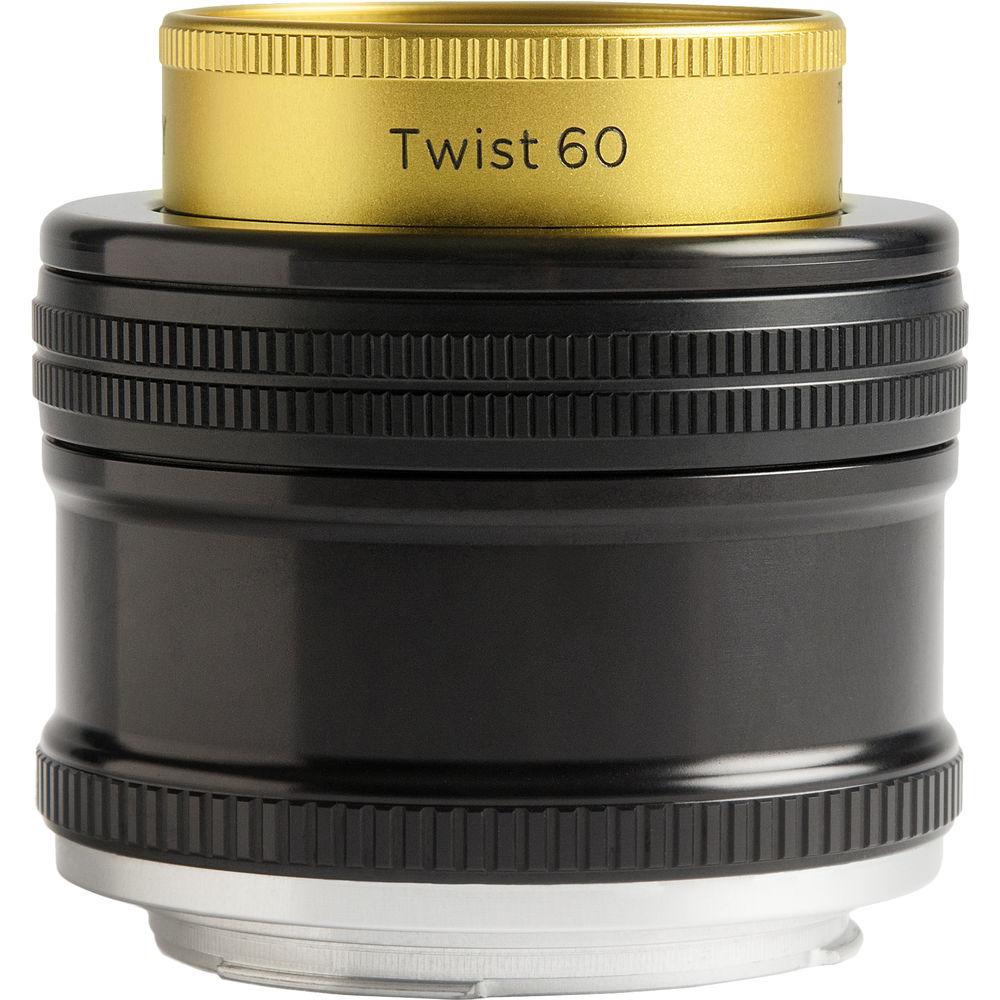

• Twist 60 Optic with Straight Body for Canon EF Draw attention to your subject by creating a smooth subtle swirl to your edges with the Lensbaby Twist 60 Optic with Straight Body available here with a Canon EF mount. This optic is compatible with the Optic Swap System and performs best when used with the included straight body.This full-frame 60mm f/2.5 lens features an internal 12-blade diaphragm for smooth out-of-focus areas. You can manually change the aperture from f/2.5 to f/22 utilizing the dial on the front of the lens and you can manually focus on subjects as close as 18".

  When shooting at a wider aperture, the Twist 60's swirled effect places more emphasis on your centered subject in full focus. As you stop down, the center area gets larger allowing you to bring more of your image into exact focus. The Twist 60 offers 46mm front threads for any filters you would like to use to further enhance your image.

  The Twist 60 works best and is recommended for use with full frame cameras. Much of the swirled blur gets lost when using the optic with an APS-C sensor. UPC: 850366006402

• Front and Rear Lens Caps

• Limited 1-Year Warranty

• Front and Rear Lens Caps

• Limited 1-Year Warranty

• Twist 60 Optic

• Straight Body

• Limited 1-Year Warranty

Also Includes

• Nanuk 910 Hard Case

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Velvet 85mm f/1.8 Lens for Canon EF

  Focal Length	85mm
  Maximum Aperture	f/1.8
  Minimum Aperture	f/16
  Lens Mount	Canon EF
  Format Compatibility	Full-Frame
  Maximum Magnification	0.5x
  Macro Reproduction Ratio	1:2
  Minimum Focus Distance	9.5" / 24.13 cm
  Diaphragm Blades	12
  Focus Type	Manual Focus
  Image Stabilization	None
  Filter Size	67 mm (Front)
  Dimensions ( Rating 80% users recommend this product to others. And what about you? This product has already been rated by 67 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
