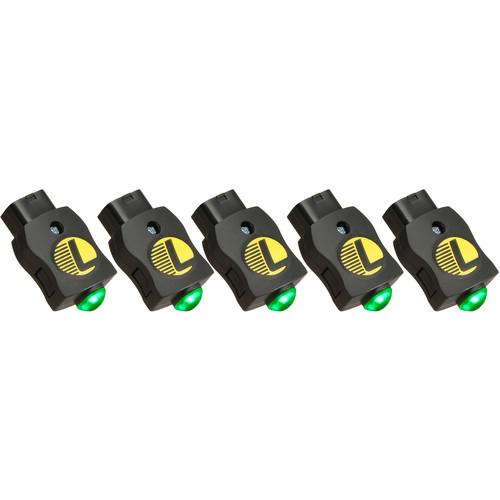

Product description The SafeTap Connector from Lentequip comes in a pack of five. It is a computer controlled connector featuring built-in intelligence monitors for reverse polarity, over/under voltage, and short circuits for protecting your equipment from damage.
The SafeTap provides user feedback via its multicolored LEDs. Continuous 8A (136W) may be drawn from the connector. A sleep mode is activated at 10V, indicated by a blue light, to guard your battery against deep discharge. This feature prevents your power source from draining into the damaging extreme low voltage zone, in case you inadvertently leave a powered accessory unattended.
The SafeTap connector features knock-out sections on the left and right side of the housing for easy cable exit. The cable strain relief is accomplished via a simple yet effective tie-wrap which resists considerable pullout forces, thanks to the friction features built into the lower shell housing. - LED Colors
-
- Green: All systems are good and the input voltage is between 11-18V
- Fast flashing orange: Input voltage is above 18V
- Slow flashing orange: Input voltage is at or just below 11V, signaling a low battery
- Blue: Input voltage has fallen to 10V and below, and the connector is in sleep mode
- Red: 8A current limit has been exceeded
- Flashing red: The SafeTap was accidentally plugged in backwards
- LED Color Output Indication
-
- Green: Output is enabled
- Fast flashing orange: Output is disabled and must be power-cycled to below 18V to enable
- Slow flashing orange: Output is enabled, but altering the user there’s low voltage
- Blue: Stays on for five minutes to alert the user that it will disconnect itself from the battery
- Red: Output is immediately disabled
- Flashing red: Output is never enabled
Table of Contents
|
Upload User Manual
Have you got an user manual for the Lentequip SafeTap Connector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLentequip LENT-ST-5PACK Specs | Connector Type | D-Tap | | Maximum Current Draw | 8 A, 136 W | | Sleep Mode | 10 V | | | | Package Weight | 0.35 lb | | Box Dimensions (LxWxH) | 7.9 x 5.85 x 2.2" |
