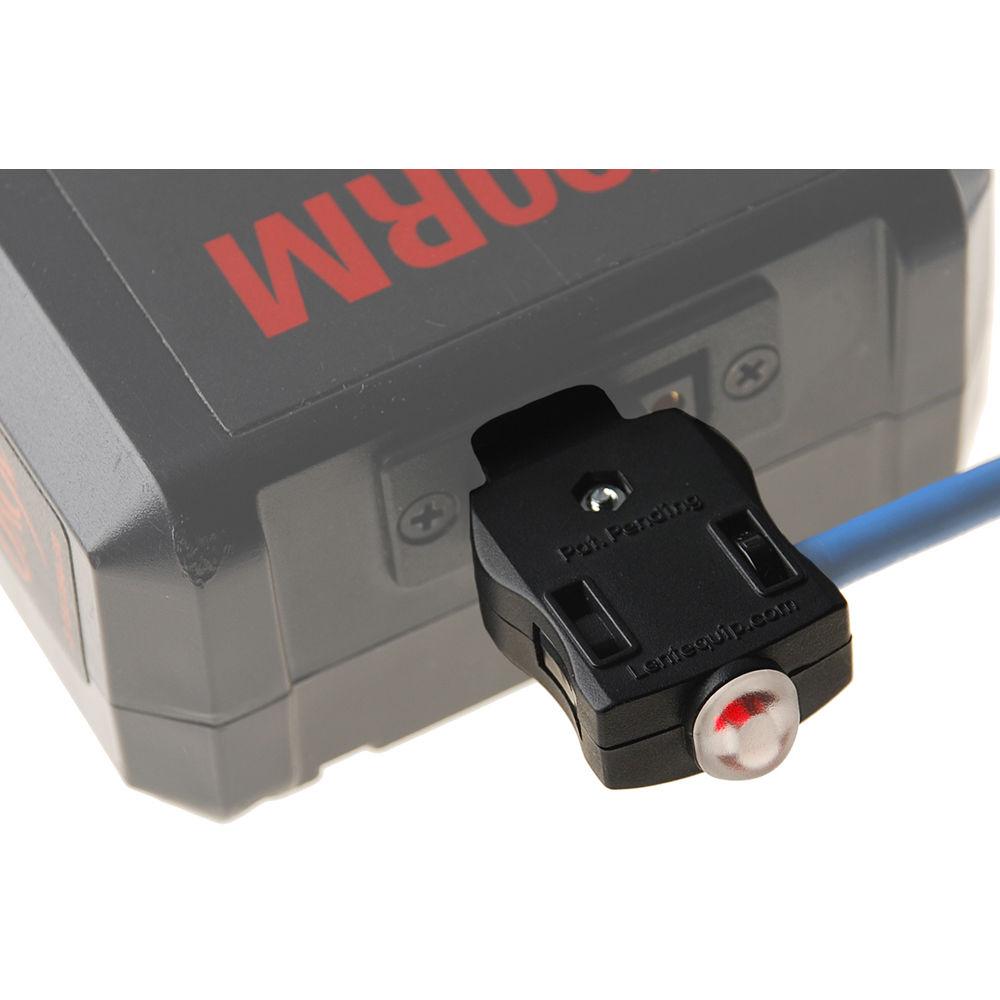

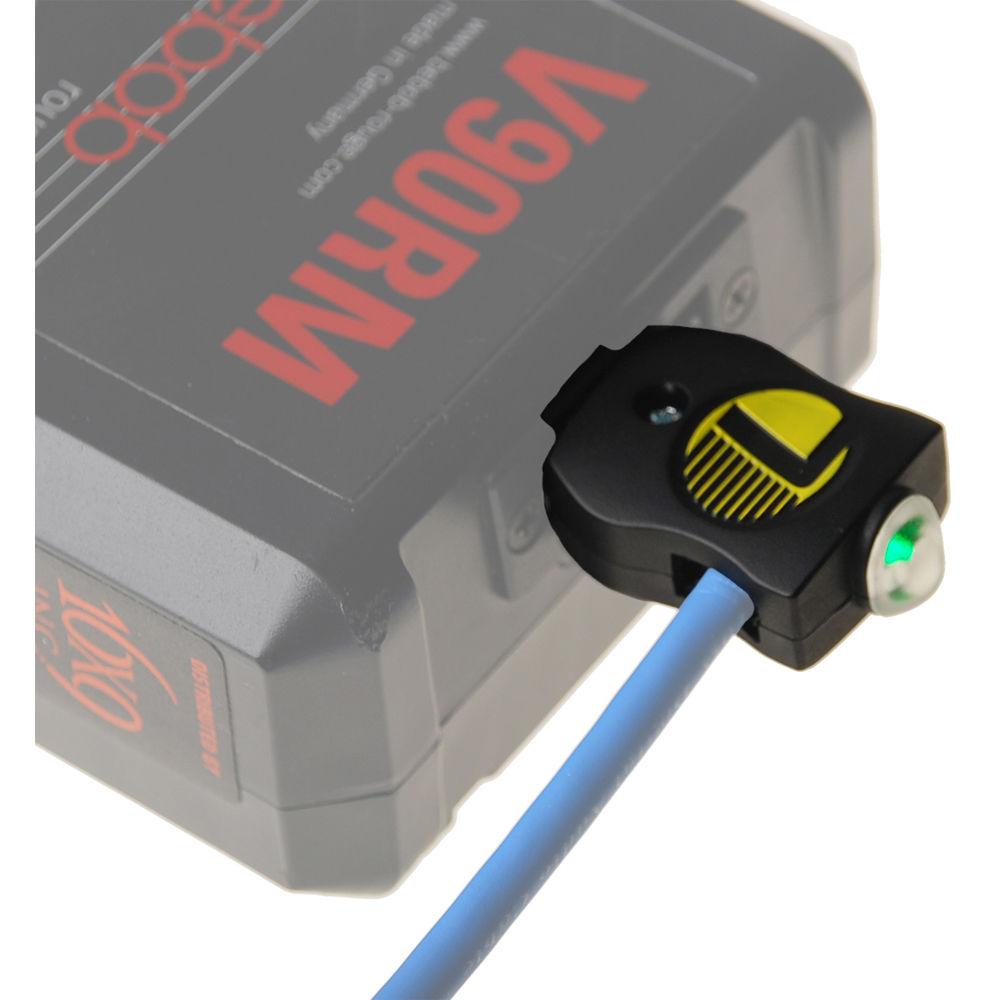

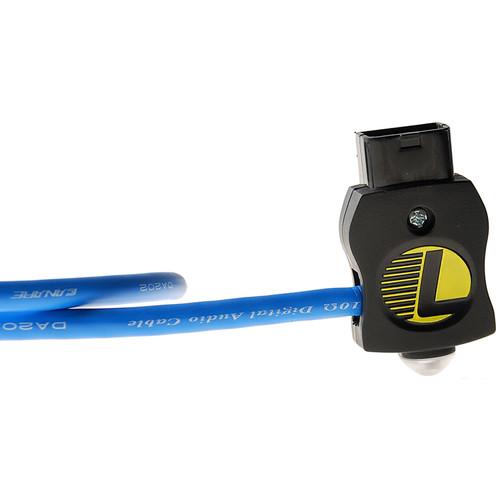

Product description The SafeTap Connector from Lentequip is an active D-Tap battery connector that helps prevent damage to your battery or equipment. It features a multicolored LED indicator that provides feedback on reverse polarity, over/under voltage, and short-circuit conditions. At 10V, a sleep mode is activated (indicated by a blue light) to protect your battery against deep discharge. Sleep mode prevents your power source from draining to extreme levels if you leave a powered accessory unattended.
SafeTap assembles quickly and easily. "Knock-out" sections on the left and right sides of the housing allow for simple cable exit, and cable strain relief is achieved via a tie-wrap that counteracts pullout forces. SafeTap comes with a 24" flying leads pigtail cable. - Multicolor LED
-
- Pulsating green: All systems are good and the input voltage is between 11 and 18V
- Fast flashing orange: Input voltage exceeds 18V (power output disabled)
- Slow flashing orange: Input voltage is at or just below 11V, indicating a low battery
- Blue: Input voltage is at 10V or less (power output disabled)
- Red: 8A current limit exceeded (power output disabled)
- Fast flashing red: SafeTap is plugged in backwards (power output disabled)
- Purple: Too hot (power output disabled)
In the Box Lentequip SafeTap with 24" Pigtail Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lentequip SafeTap with 24" Pigtail in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLentequip LENT-SAFETAP-PT24 Specs | Cable Length | 24" (61 cm) | | Indicators | LED Multicolored:
Pulsating green
Fast flashing orange
Slow flashing orange
Blue
Red
Fast flashing red
Purple | | Maximum Current Draw | 8 A, 136 W | | Sleep Mode | 10 V | | Compliance | RoHS compliant | | | | Package Weight | 0.05 lb | | Box Dimensions (LxWxH) | 5.2 x 3.4 x 0.3" |
