User Manual for Leofoto LH-30 Ball Head with Quick Release Plate Click to enlarge the picture
Contents of the user manual for the Leofoto LH-30 Ball Head with Quick
- Product category: Tripod Heads Leofoto
- Brand: Leofoto
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Leofoto Tripod Heads
 |
User manual for the Leofoto LH-30 Ball Head with Quick contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Leofoto product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Leofoto user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Leofoto product will considerably shorten its lifespan!
|

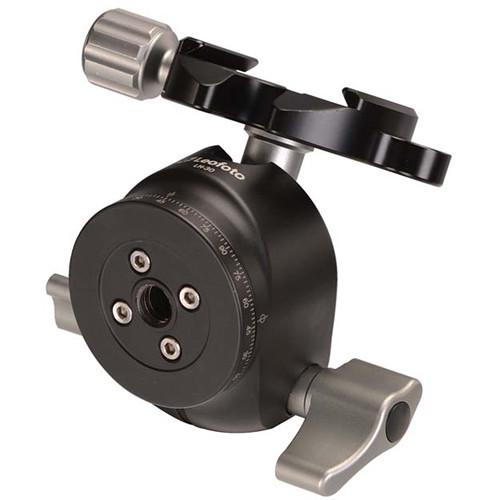

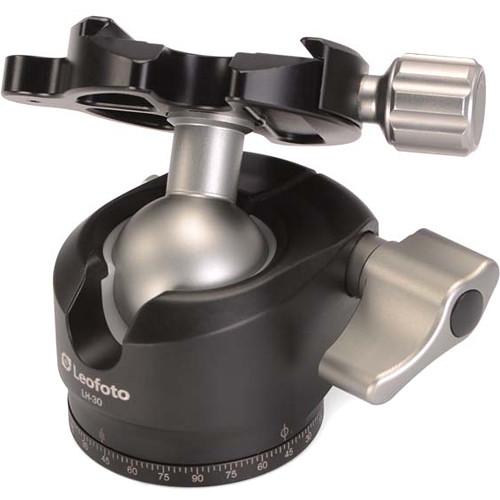

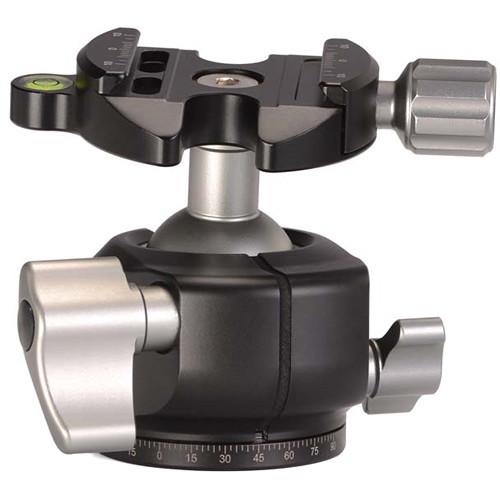

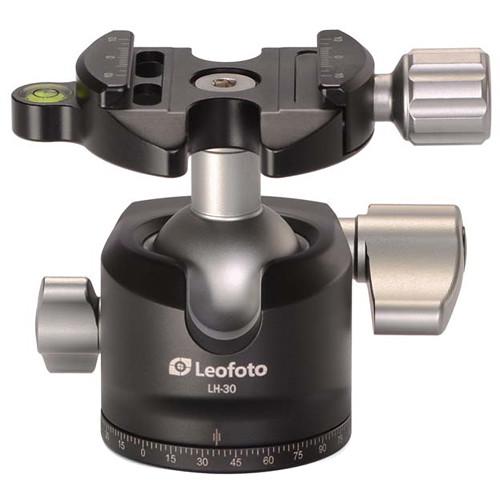

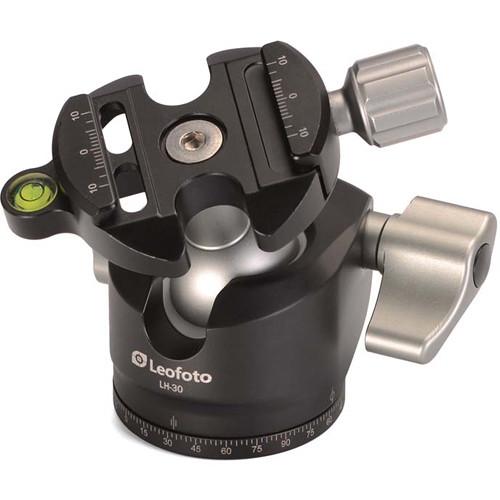

Product description Securing gear with a knob-driven clamp, the LH-30 Ball Head from Leofoto comes with a quick release plate that goes on your camera for easy attachment and detachment while shooting. With a fixed height of 2.6", this ball head can safely support equipment as heavy as 13.2 lb.The LH-30 is compatible with Arca-type plates, and features a bubble level, as well as distance markings at the top right next to where the plate is attached. A large knob on the right side is used for position adjustments, with a notch at the base enabling 90° tilt in one direction for easy portrait shooting. An independent pan lock is available and allows for smooth movement along a single axis. With a weight of 9.7 oz, the ball head is made of anodized aluminum for durability and goes on any tripod with a 3/8"-16 screw. -
- Uses a knob-driven clamp and a quick release plate to secure equipment as heavy as 13.2 lb
- Height of 2.6" and weight of 9.7 oz give the ball head stability, while keeping it compact and easy to transport
- Compatible with most Arca-type quick release plates
- Capable of 360° panning, with an independent pan lock for movement along a single axis
- Single notch at the base allows for a tilt angle of 90° in one direction
- Bubble level and distance markings at the top, next to the plate, for improved use
- Made of durable anodized aluminum, fits tripods with a 3/8"-16 mount
In the Box Leofoto LH-30 Ball Head with Quick Release Plate Quick Release Plate Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Leofoto LH-30 Ball Head with Quick Release Plate in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLeofoto LH-30 Specs | Load Capacity | 13.2 lb (6 kg) | | Base Diameter | 1.85" (4.7 cm) | | Quick Release | Yes | | Spirit Level | Yes | | Pan Range | 360° | | Maximum Tilt | 90° | | Separate Panning Lock | Yes | | Tripod Mount Thread Size | 3/8"-16 | | Height | 2.6" (6.7 cm) | | Weight | 9.7 oz (275 g) | | | | Package Weight | 0.94 lb | | Box Dimensions (LxWxH) | 4.25 x 4.05 x 3.75" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 97 owners. Add your rating and experience with the product.
