User Manual for Leofoto LH-40 Low Profile Ball Head with Quick Release Plate Click to enlarge the picture
Contents of the user manual for the Leofoto LH-40 Low Profile Ball Head
- Product category: Tripod Heads Leofoto
- Brand: Leofoto
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Leofoto Tripod Heads
 |
User manual for the Leofoto LH-40 Low Profile Ball Head contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Leofoto product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Leofoto user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Leofoto product will considerably shorten its lifespan!
|

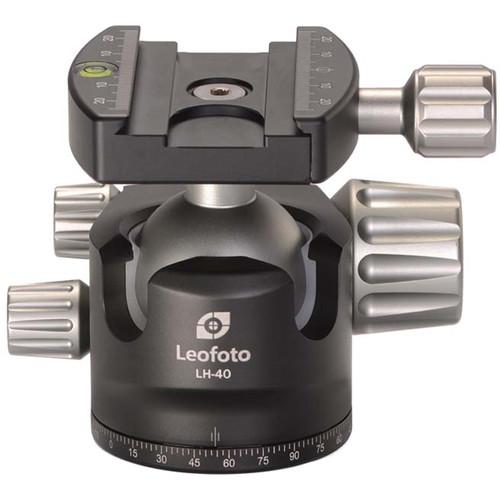

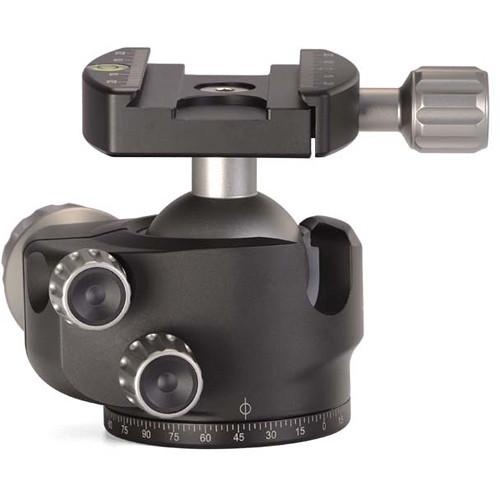

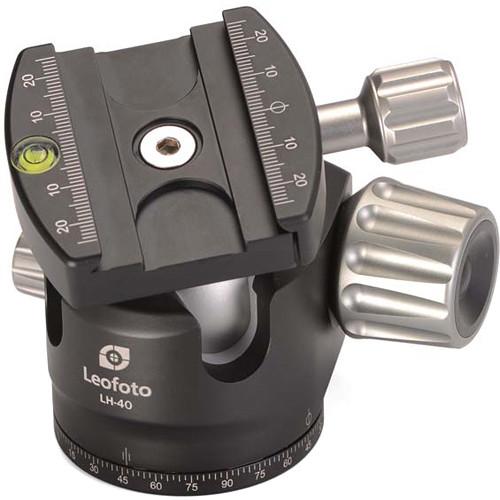

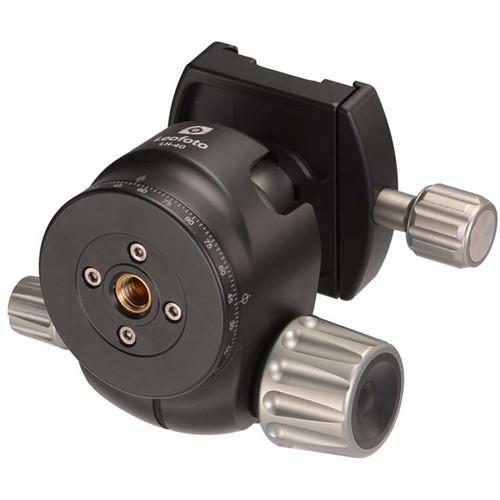

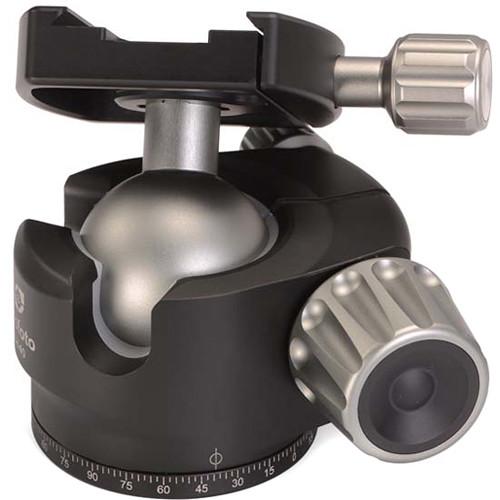

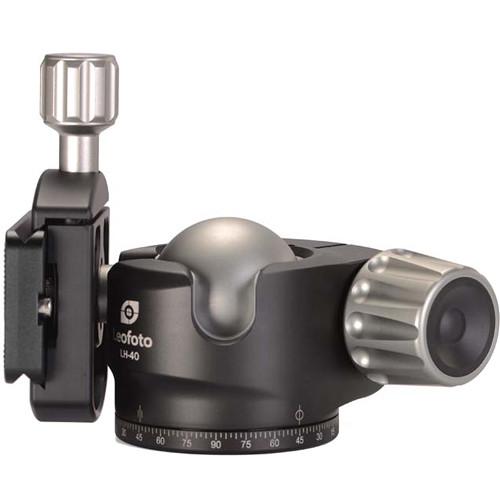

Product description Securing gear with a knob-driven clamp, the LH-40 Low Profile Ball Head from Leofoto comes with a quick release plate that goes on your camera for easy attachment and detachment while shooting. With a fixed height of 2.7" and a large ball diameter of 1.6", the low-profile design of this ball head allows it to safely support equipment as heavy as 44.1 lb. The LH-40 is compatible with Arca-type plates, and features a bubble level as well as distance markings at the top right next to where the plate is attached. A large knob on the right side is used for panning 360°, with notches on the base enabling 90° tilt in two directions for easy portrait shooting. Independent pan lock and friction control knobs are also available and can be used to easily fine-tune your composition. With a weight of 18.3 oz, the ball head is made of anodized aluminum for durability and goes on any tripod with a 3/8"-16 screw. -
- Uses a knob-driven clamp and a quick release plate to secure equipment as heavy as 44.1 lb
- Low height of 2.7", with a weight of 18.3 oz and a ball diameter of 1.6" that lends it increased stability
- Compatible with most Arca-type quick release plates
- Capable of 360° panning, with two notches on the base that allow the head to reach a tilt angle of 90°
- Three knobs for position adjustment, offering independent pan movement and tension control when used in conjunction
- Bubble level and distance markings at the top, next to the plate, for improved use
- Made of durable anodized aluminum, fits tripods with a 3/8"-16 mount
In the Box Leofoto LH-40 Low Profile Ball Head with Quick Release Plate Quick Release Plate Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Leofoto LH-40 Low Profile Ball Head with Quick Release Plate in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLeofoto LH-40 Specs | Load Capacity | 44.1 lb / 20 kg | | Ball Sphere Diameter | 1.6" / 4 cm | | Base Diameter | 2.2" / 5.7 cm | | Quick Release | Yes | | Spirit Level | Yes | | Pan Range | 360° | | Maximum Tilt | 90° | | Tension Control | Yes | | Separate Panning Lock | Yes | | Tripod Mount Thread Size | 3/8"-16 | | Height | 2.7" / 6.9 cm | | Weight | 18.3 oz / 520 g | | | | Package Weight | 1.6 lb | | Box Dimensions (LxWxH) | 6.4 x 4.7 x 4.5" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 98 owners. Add your rating and experience with the product.
