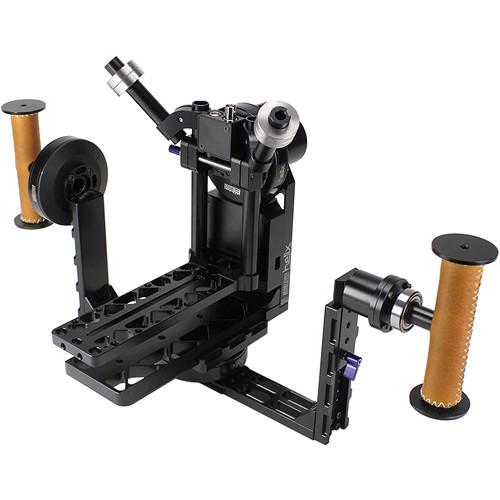

User Manual for Letus35 Helix 3-Axis Aluminum Camera Stabilizer with RC Module Click to enlarge the picture
Contents of the user manual for the Letus35 Helix 3-Axis Aluminum Camera Stabilizer
- Product category: Gimbal Stabilizers Letus35
- Brand: Letus35
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Letus35 Gimbal Stabilizers
 |
User manual for the Letus35 Helix 3-Axis Aluminum Camera Stabilizer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Letus35 product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Letus35 user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Letus35 product will considerably shorten its lifespan!
|
Product description Stabilizing your camera moves has become the name of the game, and the Helix 3-Axis Aluminum Camera Stabilizer Aluminum from Letus35 stabilizes cameras weighting up to 16 pounds in three axes with its brushless gimbals. This Helix is built from aluminum, which provides an excellent balance between weight and strength. The Helix is a powered stabilizer that features a modular design with a removable platform for each of the three axes: roll, pan, and tilt. The modular design allows you to quickly turn your three-axis stabilizer into a one-axis stabilizer. This configuration includes Bluetooth and RC modules. The factory installed RC module provides remote control of the pan and tilt functions by a second camera operator.
The Helix balances around the optical center of your camera, providing less stress on the system and your camera's image stabilization system, but also allowing nodal camera rolls. The flat bottom design of the Helix allows you to place it down on a flat surface without requiring a stand mount or other support. It incorporates a cold shoe and 1/4"-20 accessory mounting points on the unit and handgrips. The Helix is designed to stabilize your camera while hand-holding the unit; however, with an optional 4th axis, you can also mount the Helix to third party stabilizing systems if you wish. Please note: this unit does not include a battery or charger, which you must source separately. Note: The Helix is wired according to US standards. Any 3rd-party power accessories must be compatible. - The Helix is designed balance and stabilize around the optical center of your camera/lens combination. This allows you to do nodal point rolls, and as the image sensor movement is reduced significantly compared to off-center stabilizers, image stabilization is improved.
- It has been tested to work with cameras as light as the Sony a7S, and works with cameras weighing up to 16 pounds.
- This Helix comes with the RC module installed. The module provides control of the stabilizer's pan and tilt functions by a second operator. The RC module is a factory installation option only, and if you have a Helix that you want to add the RC option to, you will have to send it back to Letus35.
- The RC module allows you to remotely control the Helix using a Spektrum compatible controller (Spektrum DX7, DX6i, Dx8, etc.).
- You support the Helix system by holding onto it with two hands; the right handgrip allows you to tilt the Helix, while the left handgrip rotates freely.
- Each axis platform of the system allows balance adjustment that reduces operating stress on the unit and the operator, and is indexed in millimeters allowing quick re-sets when switching between lenses.
- Re-balancing the Helix after a lens changes is simply a matter of sliding a single axis forward or back. You can be back up and running without missing a beat.
- The Helix system can be built up or torn down to accommodate your needs. Use one axis on top of an optional arm/vest type stabilizer for an auto-horizon solution with an optional 4th axis, or switch to a three-axis setup to go full handheld.
- The electronics are protected from reverse polarity, overheating, and over-current conditions.
- The USB interface allows for configuration, control, and firmware upgrades.
- This unit does not include a battery or charger, which you must source separately.
In the Box Letus35 Helix 3-Axis Aluminum Camera Stabilizer with RC Module Helix Second Operator Receiver Upgrade Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Letus35 Helix 3-Axis Aluminum Camera Stabilizer with RC Module in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLetus35 LT-HELIX3-RC Specs | | | Number of Axes | 3-Axis | | Load Capacity | 16 lb / 7.3 kg | | | | Supported Camera Dimensions | H: 5.9 x D: 11.8" / H: 150 x D: 300 mm | | Camera Adjustment Range | Roll: 2.36" / 60 mm
Pan: 2.95" / 75 mm
Tilt: 3.15" / 80 mm | | | | Ports | 1 x HD-SDI (BNC) (Video) Output
1 x HD-SDI (BNC) (Video) Input
1 x Proprietary (Control) Input
1 x 2-Pin LEMO (18 VDC Power) Input
1 x 2-Pin LEMO (18 VDC Power) Output | | | | Materials | Aluminum | | Mounting | 4 x 1/4"-20 Female
1 x Cold Shoe Mount | | Dimensions | 20" / 50 cm | | Weight | 6.5 lb / 2.9 kg | | | | Package Weight | 12.965 lb | | Box Dimensions (LxWxH) | 22.6 x 12.6 x 5.3" |
