User Manual for Letus35 Helix 3-Axis Camera Stabilizer with Bluetooth RC Modules and Encoders Click to enlarge the picture
Contents of the user manual for the Letus35 Helix 3-Axis Camera Stabilizer with
- Product category: See All Gimbal Stabilizers Letus35
- Brand: Letus35
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Letus35 See All Gimbal Stabilizers
 |
User manual for the Letus35 Helix 3-Axis Camera Stabilizer with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Letus35 product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Letus35 user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Letus35 product will considerably shorten its lifespan!
|

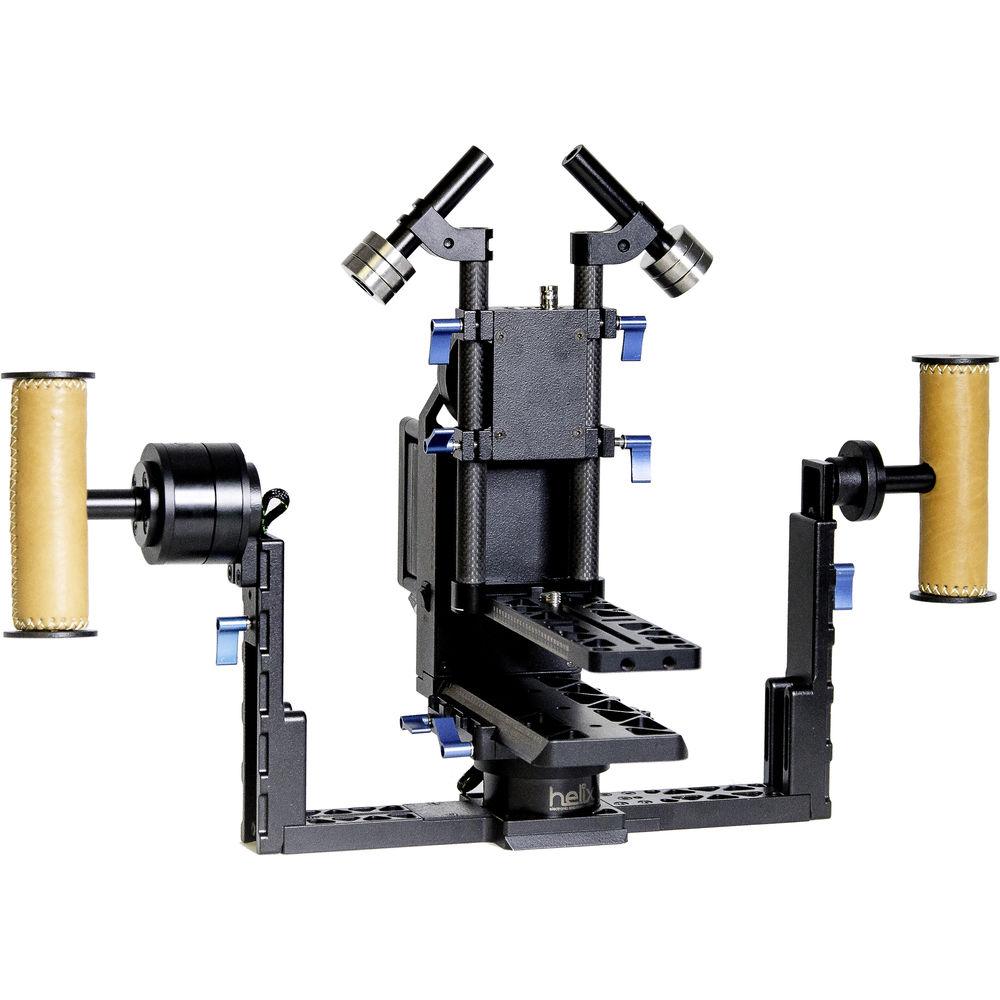

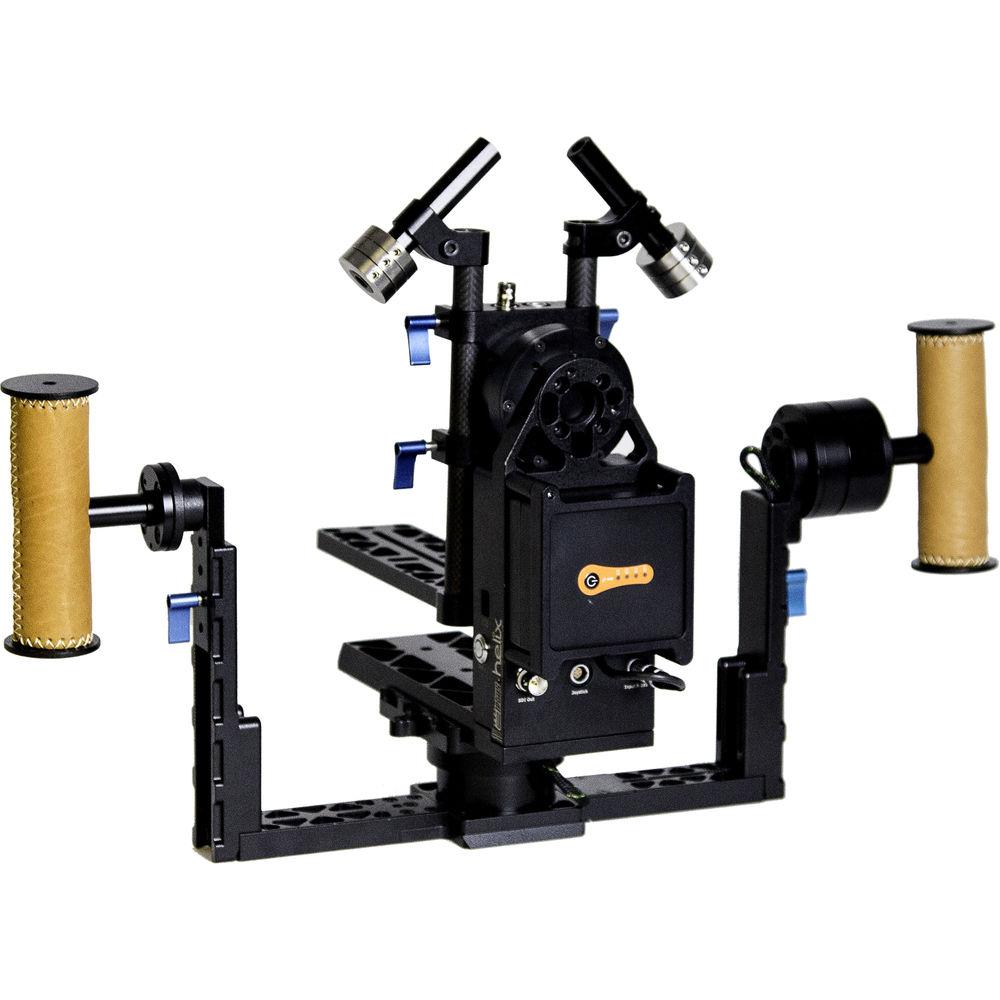

Product description The Helix 3-Axis Camera Stabilizer (Magnesium) from Letus35 stabilizes cameras weighting up to 16 lb in three axes with its brushless gimbals. The Helix is a powered stabilizer that features a modular design with a removable platform for each of the three axes: roll, pan, and tilt. The modular design allows you to quickly turn your three-axis stabilizer into a one-axis stabilizer. This configuration includes Bluetooth and RC modules. The RC module provides remote control of the pan and tilt functions by a second camera operator, while the Bluetooth module allows you to setup your Helix using an Android device running the BaseCam app, or using a laptop with the BaseCam desktop software.
The Helix balances around the optical center of your camera, reducing stress on the system and your camera's image stabilization system and it also allows nodal camera rolls. The flat bottom design of the Helix allows you to place it down on a flat surface without requiring a stand mount or other support. It incorporates a cold shoe and 1/4"-20 accessory mounting points on the unit and handgrips. The Helix is designed to stabilize your camera while hand-holding the unit; however, with an optional 4th axis, you can also mount the Helix to third party stabilizing systems. Note: This unit does not include a battery or charger, which you must source separately. Note: The Helix is wired according to US standards. Any 3rd-party power accessories must be compatible. Helix 3-Axis Camera Stabilizer - The Helix is designed to balance and stabilize around the optical center of your camera/lens combination, allowing you to do nodal point rolls.
- As the image sensor movement is reduced significantly compared to off-center stabilizers, image stabilization is improved.
- Compatible with Sony a7S and other cameras weighing up to 16 lb.
- Bluetooth and RC modules provide control of the stabilizer's pan and tilt functions by a second operator
- Bluetooth module gives you the ability to connect the Helix to your computer wirelessly, as well as use the BaseCam app to interact with the Helix via an Android device.
- You can support the Helix system by holding onto it with two hands; the right handgrip allows you to tilt the Helix, while the left handgrip rotates freely.
- Each axis platform of the system allows balance adjustment that reduces operating stress on the unit and the operator, and is indexed in millimeters allowing quick re-sets when switching between lenses.
- Re-balancing the Helix after a lens change can be achieved by sliding a single axis forward or back.
- Use one axis on top of an optional arm/vest type stabilizer for an auto-horizon solution with an optional 4th axis, or switch to a three-axis setup to go full handheld.
- Electrical parts are protected from reverse polarity, overheating, and over-current conditions.

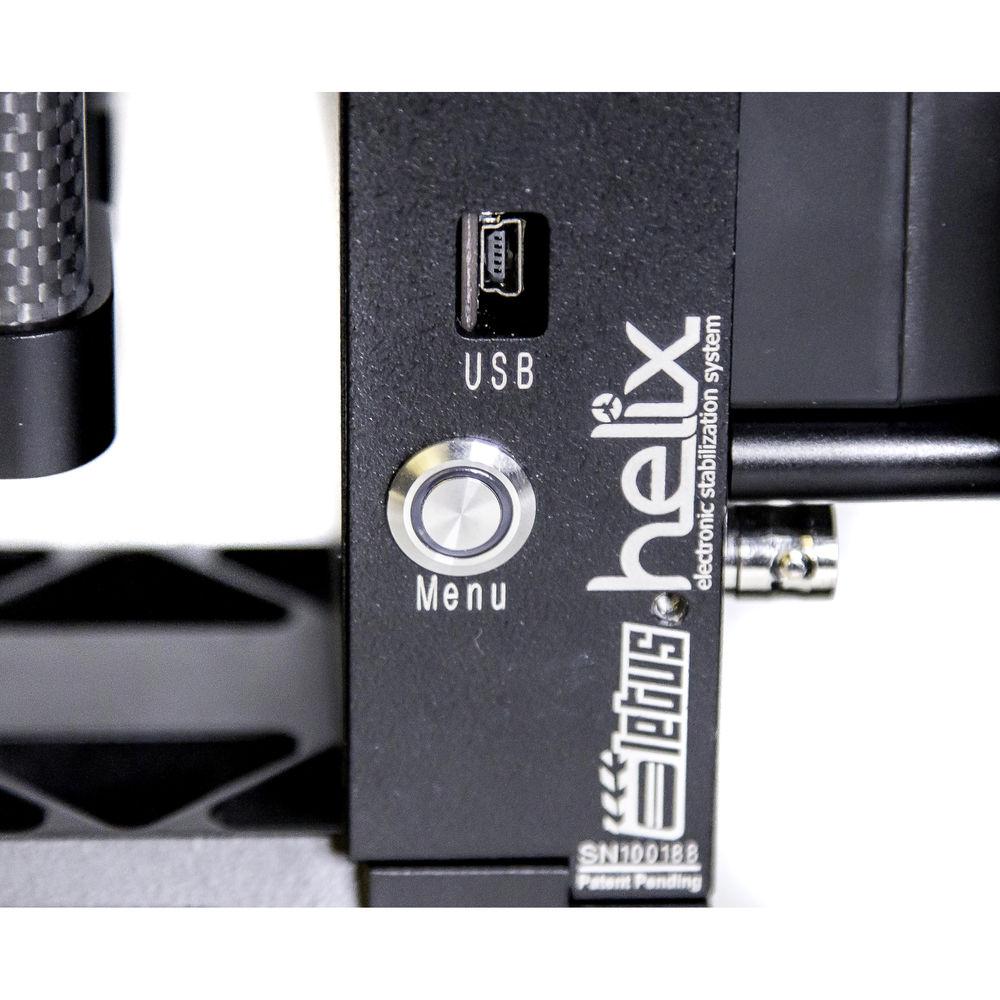

- USB interface allows for configuration, control, and firmware upgrades.
Encoders - Prevent motors from losing their position (skipping steps) when bumped or moved too vigorously
- Help in increasing the battery life
- Increases torque that helps you to capture more panning shots
- Helps you to physically adjust the camera's position by hand and have the gimbal maintain this position
- Improves stabilization precision

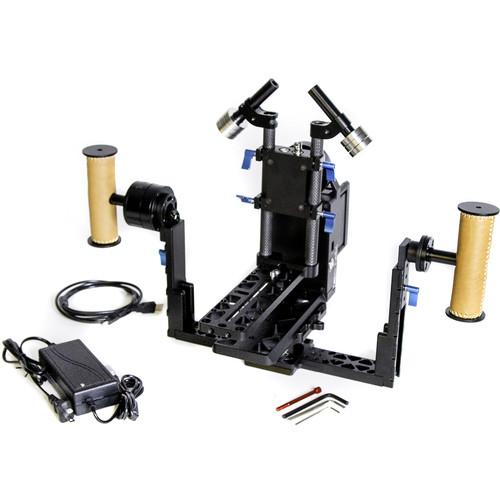

In the Box Letus35 Helix 3-Axis Camera Stabilizer with Bluetooth/RC Modules and Encoders (Magnesium) Helix Bluetooth Module Upgrade xuuzcrbcsfcweccta Helix Second Operator Receiver Upgrade Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Letus35 Helix 3-Axis Camera Stabilizer with Bluetooth RC Modules and Encoders in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLetus35 Helix Specs | Material of Construction | CNC-milled magnesium
Black anodized finish | | Load Capacity | 16 lb / 7.3 kg | | Adjustment Range | Roll: 2.36" / 60 mm
Pan: 2.95" / 75 mm (forward and back)
Tilt: 3.15" / 80 mm | | Connectors | Rear Ports
1 x HD-SDI out
1 x Joystick in
1 x 2-pin LEMO (8 to 18 VDC power in)
Top Slip-Ring Pass-Through
1 x HD-SDI in
8 to 18 VDC power out | | Mounting | 1 x 1/4"-20 threaded mounting hole on top and bottom of each handle
1 x cold shoe | | Dimension | Width: 20" / 50 cm (handle to handle)
Camera Clearance: 5.9" / 150 mm (camera mounting point to back) | | Weight | 5.0 lb / 2.3 kg |
