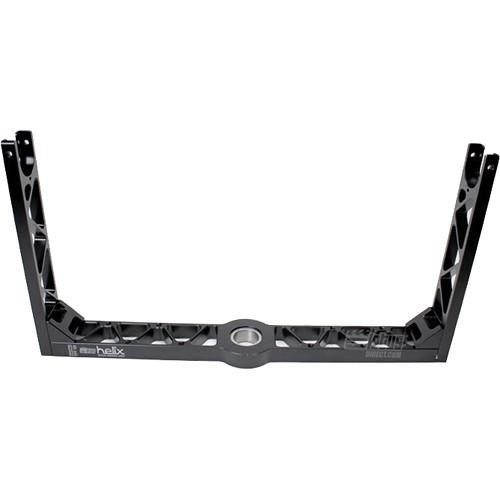

Product description The Helix 4th Axis Bracket from Letus allows you to use your Helix camera stabilizer on 3rd party camera supports such as tripods, vest/arm type supports and optional Easy Rigs when using optional accessories. The 4th axis bracket features a built-in main bearing on the cross bar for free rotation and two risers that accept bearings that allow for tilt rotation.
You mount the included bearings and o-rings onto your Helix stabilizer and then fit your Helix into the 4th axis's risers, securing them with the four included M5 set screws. At this point, you can mount the entire rig onto a Steadicam-type rig, using an optional spacer, onto a tripod with the optional spacer and Devitte mount, or to an Easy Rig (not included) using an optional top handle. The crossbar incorporates 6x threaded 1/4"-20 accessory mounting points. - CNC-machined three-piece-construction
- Relieved for light weight and increased strength
In the Box Letus35 Helix 4th Axis Bracket 2 x Bearings 2 x O-Rings 4 x M5 Set Screws Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Letus35 Helix 4th Axis Bracket in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLetus35 LT-HX-4AXIS Specs | Construction | CNC-machined three-piece aluminum construction | | Accessory Mounting | 6 x 1/4"-20 threaded mounting points | | Panel Dimensions (W x H x D) | 15.5 x 9.5 x 1.5" / 393.7 x 241.3 x 38.1 mm | | | | Package Weight | 2.6 lb | | Box Dimensions (LxWxH) | 20.1 x 4.5 x 4.5" |
