User Manual for Leupold 1.5-4x20 VX-Freedom Riflescope Click to enlarge the picture
Contents of the user manual for the Leupold 1.5-4x20 VX-Freedom Riflescope
- Product category: Riflescopes Leupold
- Brand: Leupold
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Leupold Riflescopes
 |
User manual for the Leupold 1.5-4x20 VX-Freedom Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Leupold product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Leupold user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Leupold product will considerably shorten its lifespan!
|

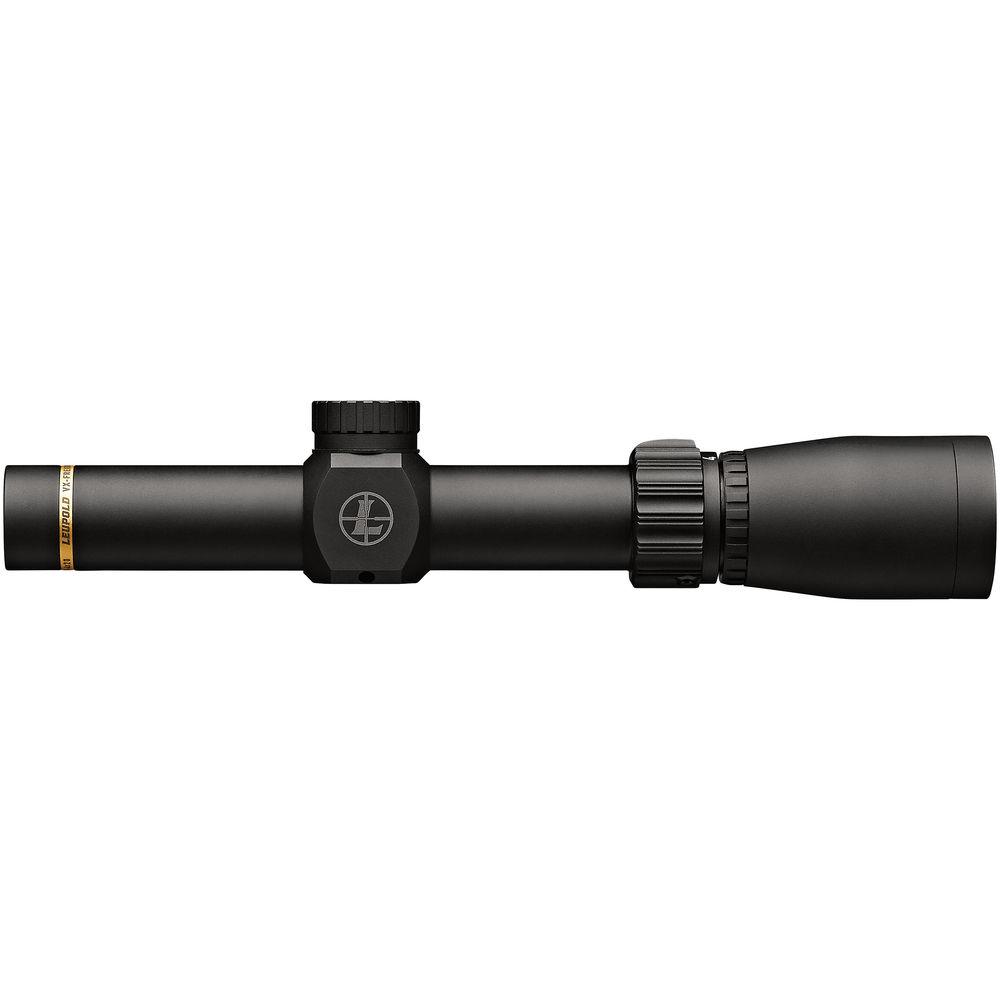

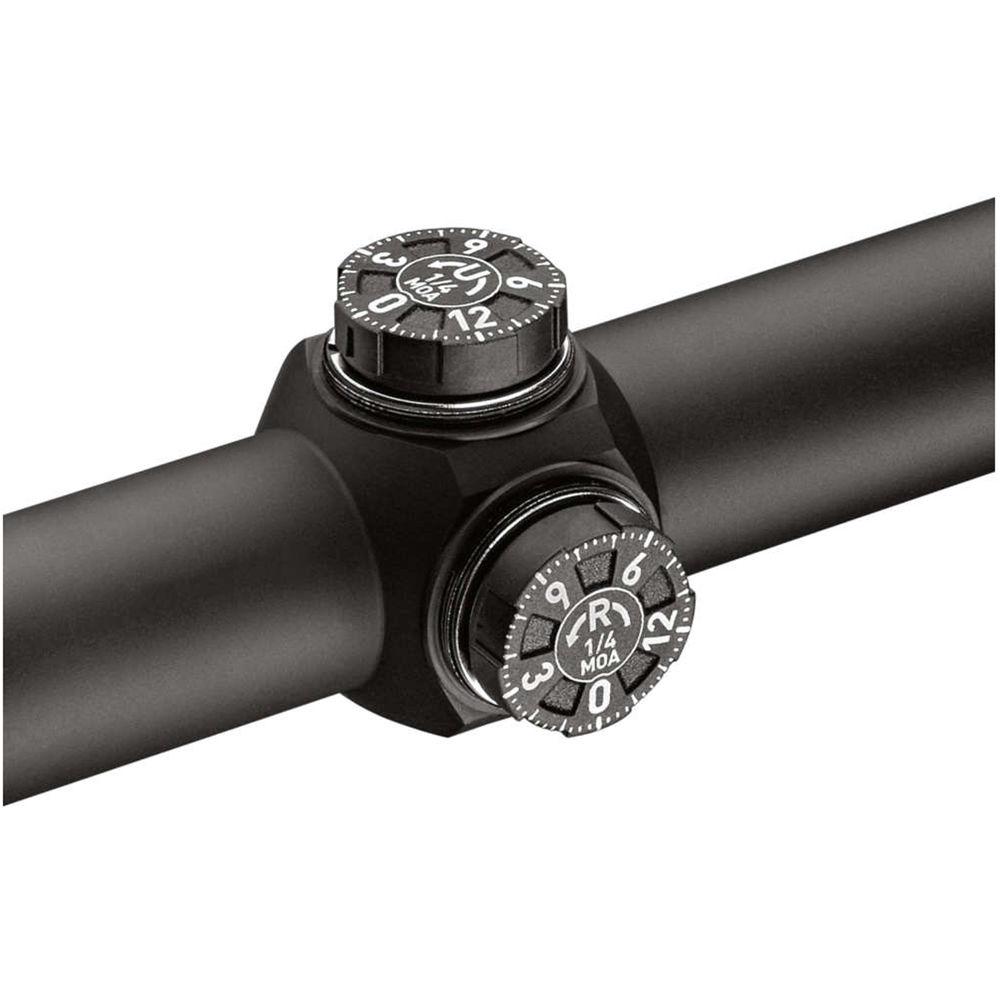

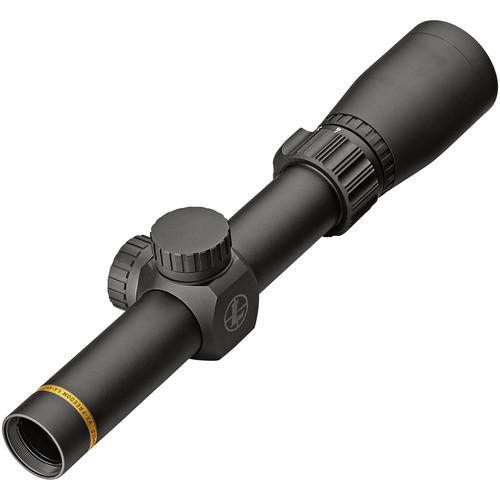

Product description Get on target with the Leupold 1.5-4x20 VX-Freedom Riflescope. This hunting style scope features clear and bright optics and a compact and durable waterproof and fogproof construction. This scope's optical system is optimized to perform well in twilight by means of the proprietary Twilight Light Management System, which features a coating that allows more usable light and reduces glare. Additionally, the exterior lenses are protected with a scratch-resistant coating. For comfortable aiming, the eyepiece offers 4.17 - 3.74" eye relief, and for making trajectory adjustments, the windage and elevation adjustments give you 125 MOA of a total range and 1/4 MOA clicks. For precise aiming, the optical system also has a 2nd focal plane Pig-Plex reticle, featuring three bold tapered posts, a crosshair, and a target circle with brackets and two ballistic dots.

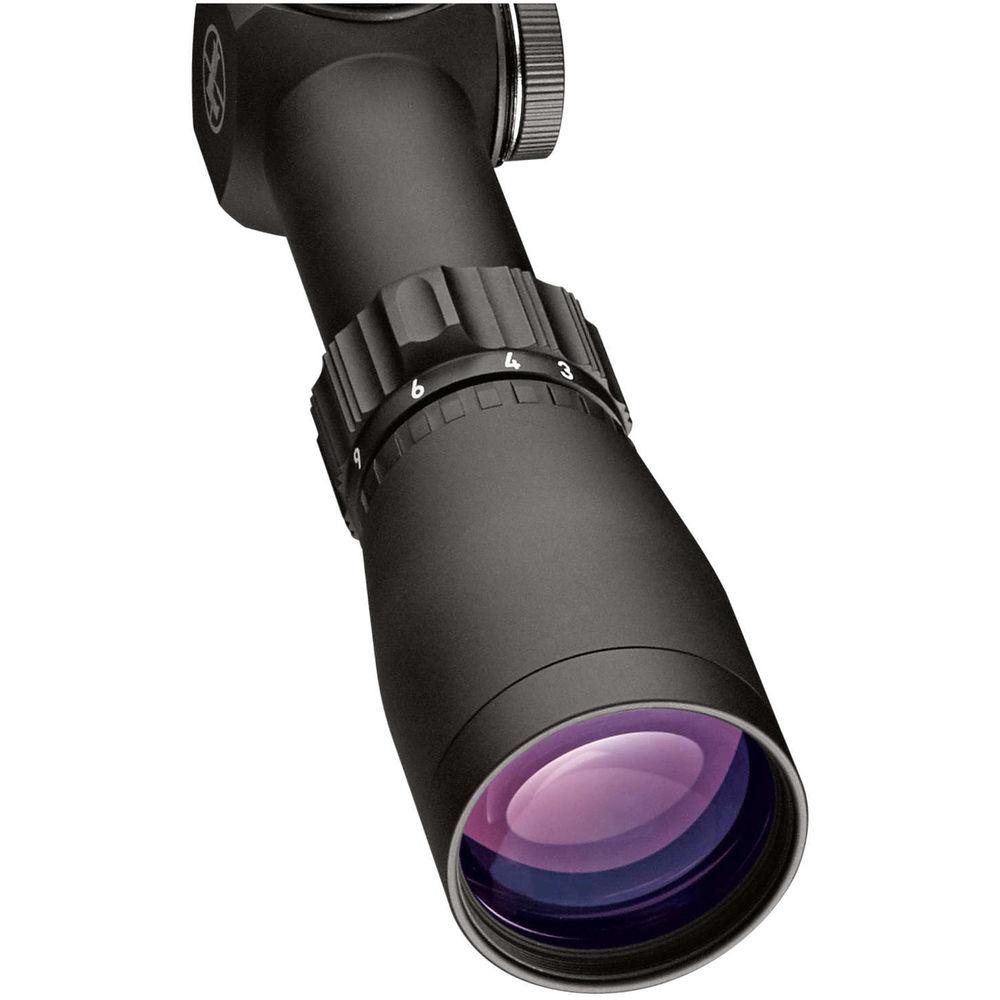

To ensure durability and strength, the housing is crafted from 6061-T6 aluminum alloy and treated with matte black finish. It also features a 1" maintube, capped elevation and windage turrets, and an eyepiece with a short zoom lever. - Optical Performance
-
- 1.5 - 4x zoom magnification
- 20mm objective diameter
- Anti-reflection coated optics
- Twilight Light Management System increases amount of usable light and reduces glare
- Scratch-resistant coating
- 4.17 - 3.74' eye relief
- Use and Handling
-
- 1/4 MOA impact point correction
- 125 MOA windage and elevation
- Construction Details
-
- 6061-T6 aluminum alloy
- 1" maintube diameter

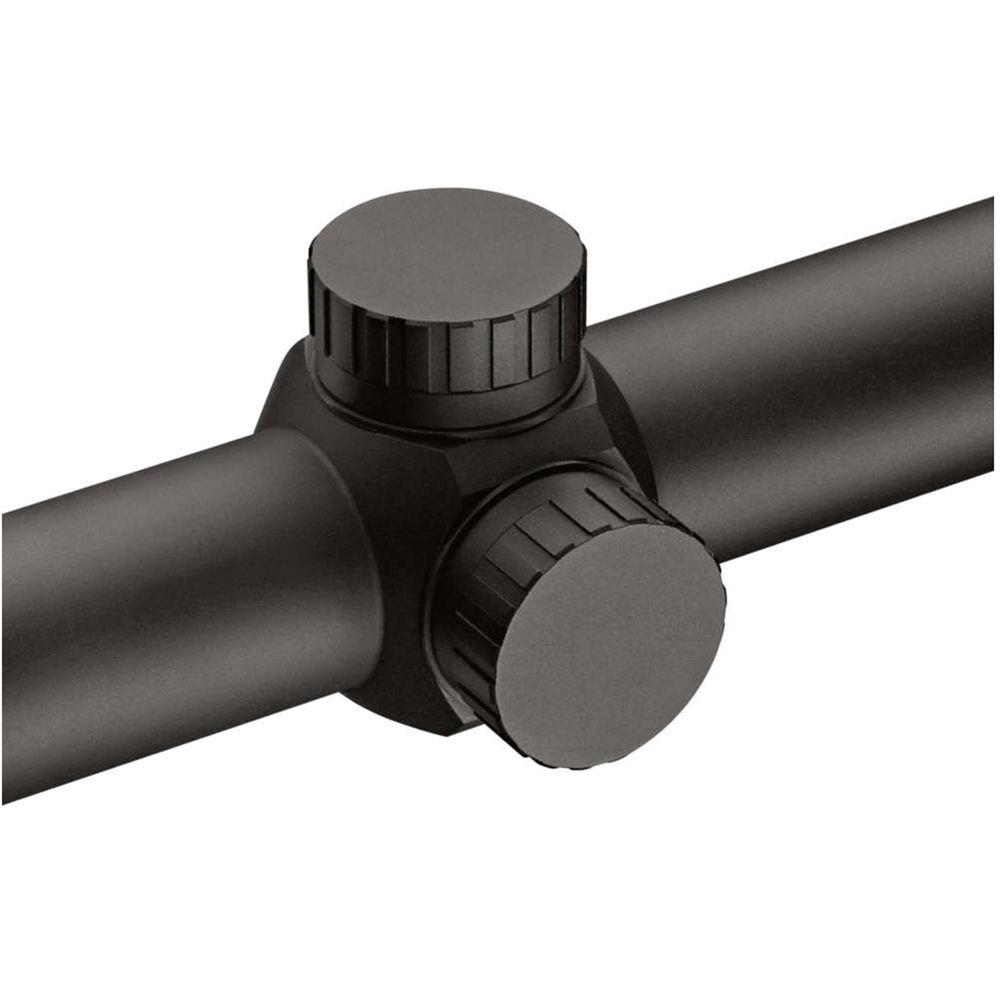

- Capped turrets
- Waterproof and fogproof

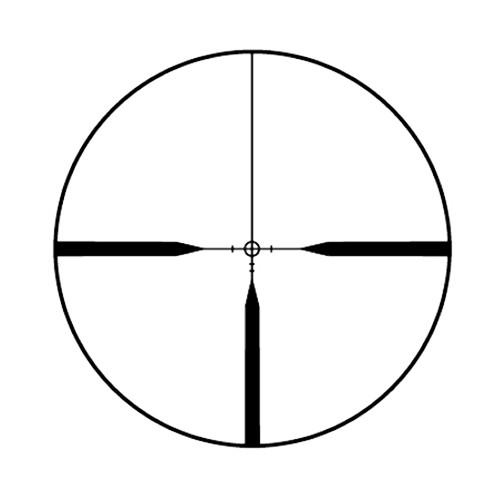

- Pig-Plex Reticle
-
- Three bold tapered posts
- Crosshair has a target circle with brackets and two ballistic dots
UPC: 030317018733 In the Box Leupold 1.5-4x20 VX-Freedom Riflescope (Pig-Plex Reticle, Matte Black) - Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Leupold 1.5-4x20 VX-Freedom Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLeupold 174177 Specs | | | Magnification | 1.5 to 4x | | Objective Lens Diameter | 20 mm | | Field of View | 1.5x: 74.2' @ 100 yd / 24.7 m @ 100 m
4x: 29.4' @ 100 yd / 9.8 m @ 100 m | | Exit Pupil Diameter | 4x: 5 mm | | Eye Relief | 3.7 to 4.2" / 95 to 106 mm | | | | Reticle Type | Pig-Plex Reticle (Second Focal Plane) | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 125 MOA | | Elevation Adjustment | 36.4 MIL | | Parallax Correction | No | | | | Water Resistance | Waterproof | | Fogproof | Yes | | | | Maintube Diameter | 1" | | Battery | None | | Dimensions | Length: 9.3" / 23.7 cm | | Weight | 9.6 oz / 272 g | | | | Package Weight | 1.1 lb | | Box Dimensions (LxWxH) | 14.0 x 3.3 x 2.9" |
