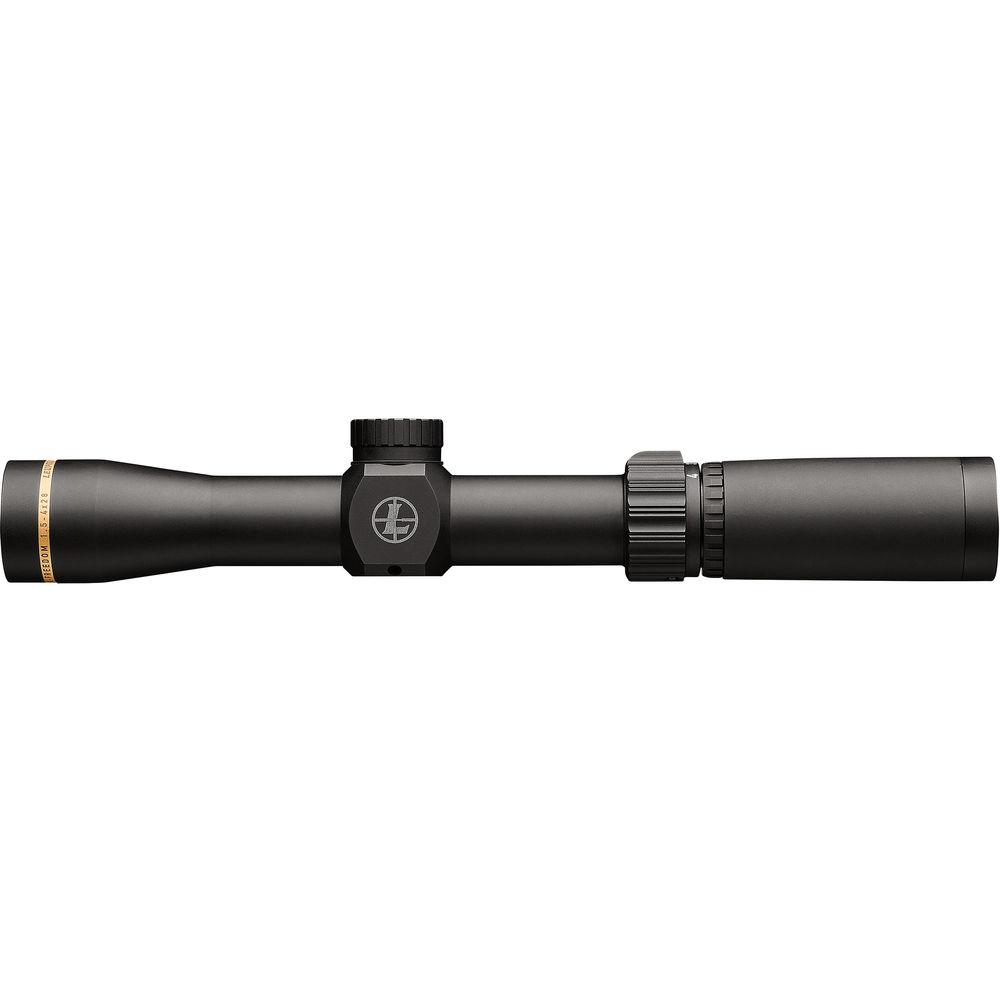

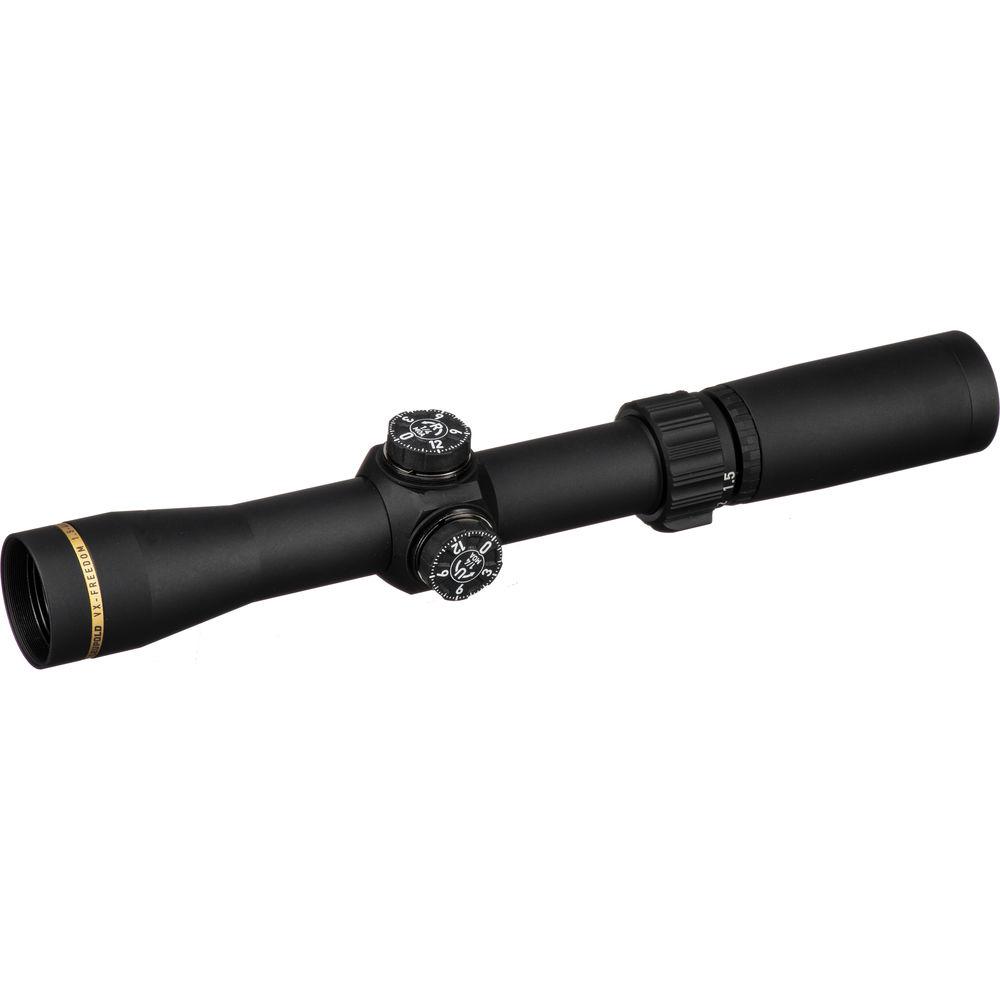

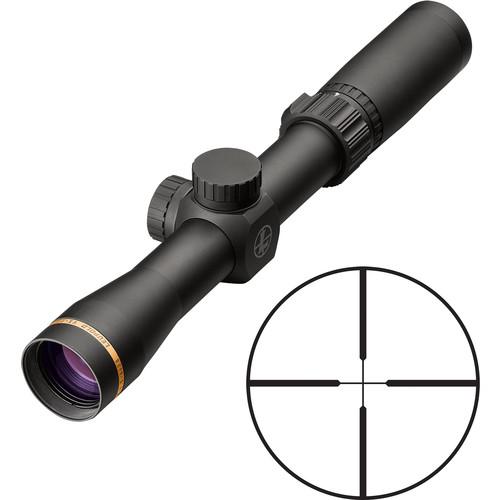

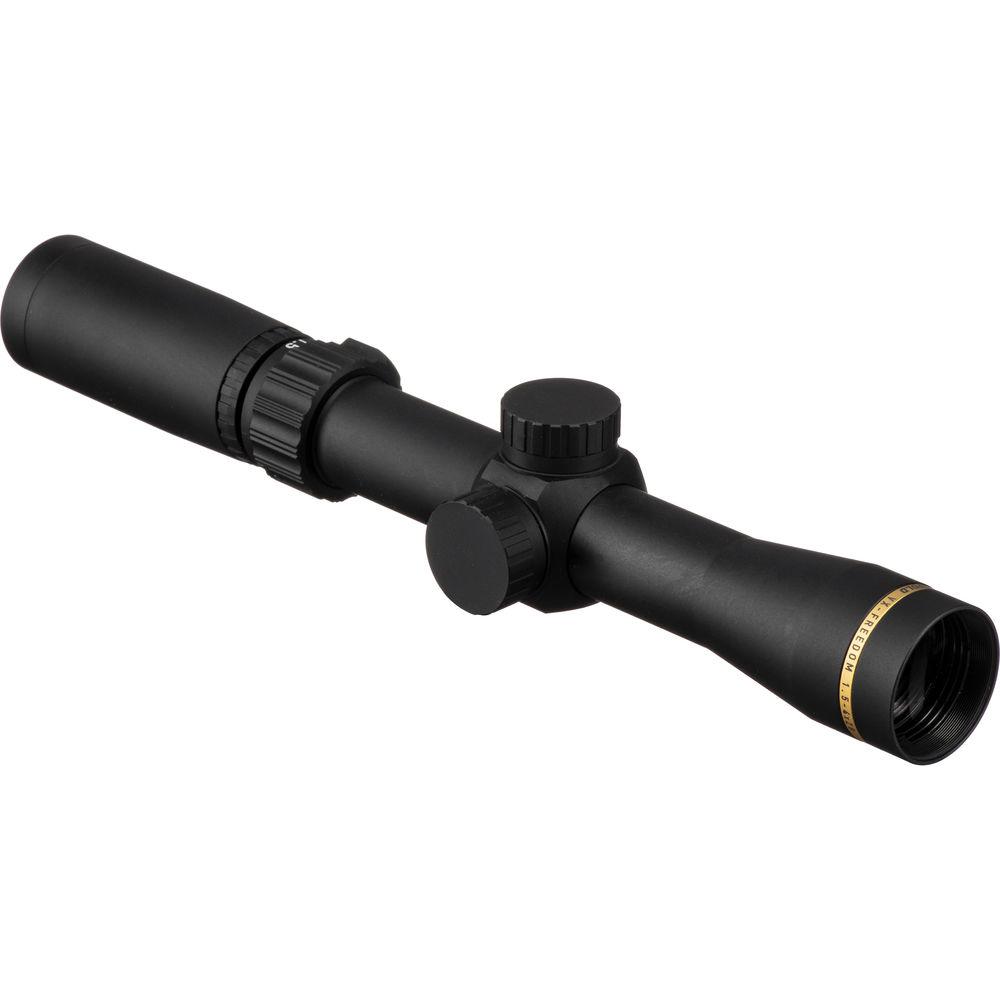

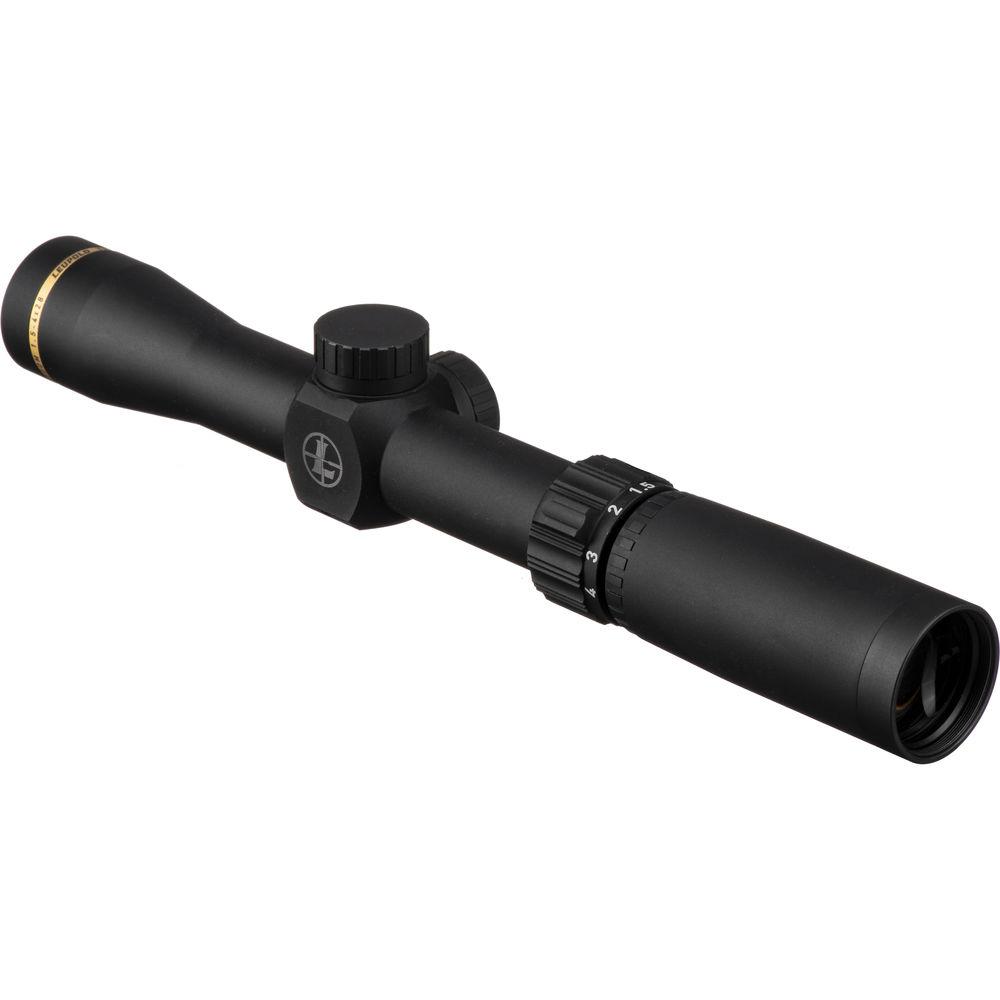

User Manual for Leupold 1.5-4x28 VX-Freedom Riflescope Click to enlarge the picture
Contents of the user manual for the Leupold 1.5-4x28 VX-Freedom Riflescope
- Product category: Riflescopes Leupold
- Brand: Leupold
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Leupold Riflescopes
 |
User manual for the Leupold 1.5-4x28 VX-Freedom Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Leupold product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Leupold user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Leupold product will considerably shorten its lifespan!
|
Product description Leupold designed the 1.5-4x28 VX-Freedom Riflescope for quick target acquisition, packaged in a compact, durable, waterproof, and fog-proof housing. This scout scope's optical system is optimized to excel in low light, thanks to the proprietary Twilight Light Management System, which lets more usable light reach your eye and reduces glare. The eyepiece offers a long 6.0-6.9" eye relief, allowing the scope to be mounted well forward on your rifle. Windage and elevation can be adjusted up to 67 MOA range in 1/4 MOA clicks. The classic Duplex reticle in the second (rear) focal plane has four bold posts which stand out against cover and a thin center that allows you to pick up the target quickly. - Optical Performance
-
- 1.5-4x zoom magnification
- 28mm objective
- Twilight Light Management System increases amount of usable light and reduces glare
- Scratch-resistant coating
- Use and Handling
-
- 1/4 MOA impact point correction
- 67 MOA windage and elevation range
- Long 6.0-6.9" eye relief for forward mounting and fast target acquisition
- Construction Details
-
- 6061-T6 aluminum alloy
- 1" diameter maintube
- Waterproof and fogproof
- Capped turrets

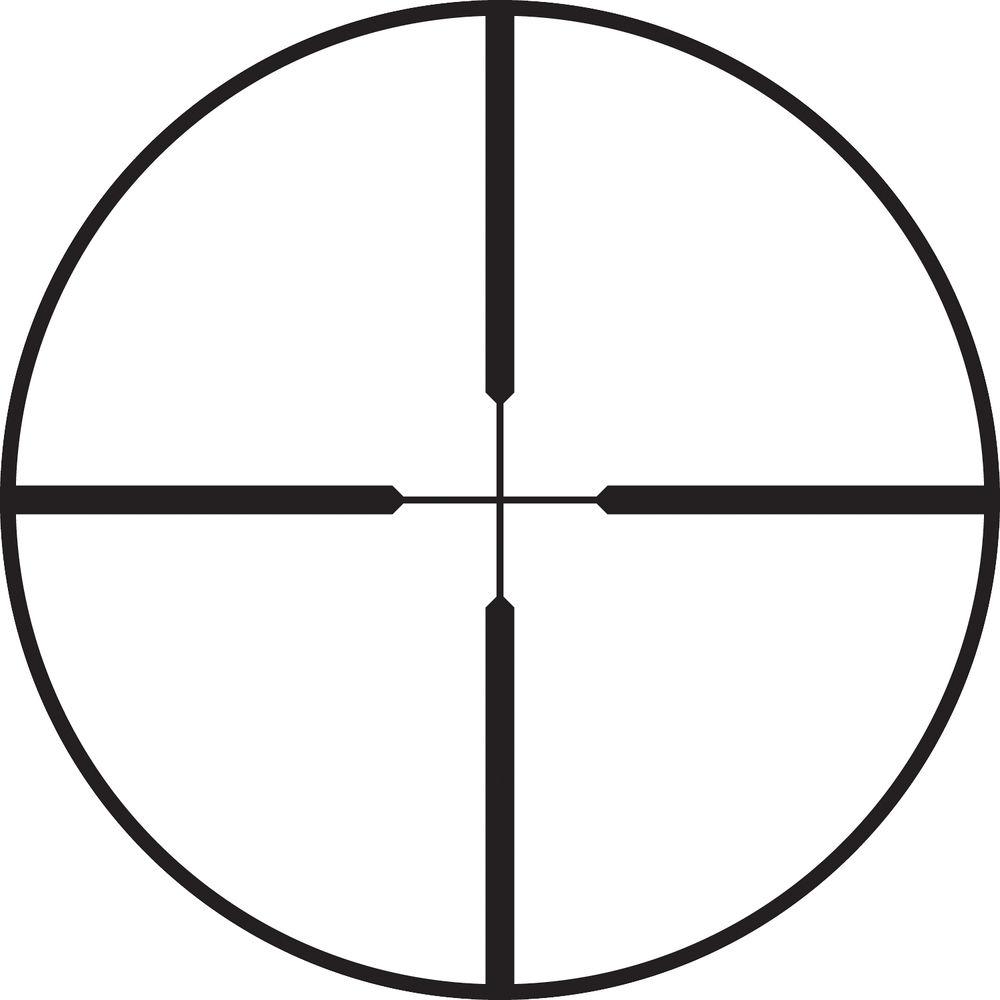

- Duplex Reticle
-
- Second focal plane
- Four bold posts
- Thin center for target visibility
UPC: 030317018979 In the Box Leupold 1.5-4x28 VX-Freedom Riflescope (Duplex Reticle, Matte Black) - Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Leupold 1.5-4x28 VX-Freedom Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLeupold 175074 Specs | Magnification | 1.5-4x | | Objective Lens Diameter | 28mm | | Maintube Diameter | 1" | | Reticle | Duplex
2nd focal plane | | Field of View | 41.7-17.3' at 100 yd / 15.0-5.8 m at 100 m | | Parallax Correction | None | | Eye Relief | 6.0-6.9" / 17.6-15.4 cm | | Exit Pupil Diameter | 13.8-6.6 mm | | Impact Point Correction | 1/4 MOA | | Maximum Windage/Elevation Adjustment | 67 MOA | | Weatherproofing | Waterproof and fog-proof | | Length | 11.2" / 28.4 cm | | Weight | 9.3 oz / 264 g | | | | Package Weight | 1.065 lb | | Box Dimensions (LxWxH) | 14.15 x 3.7 x 3.0" |
