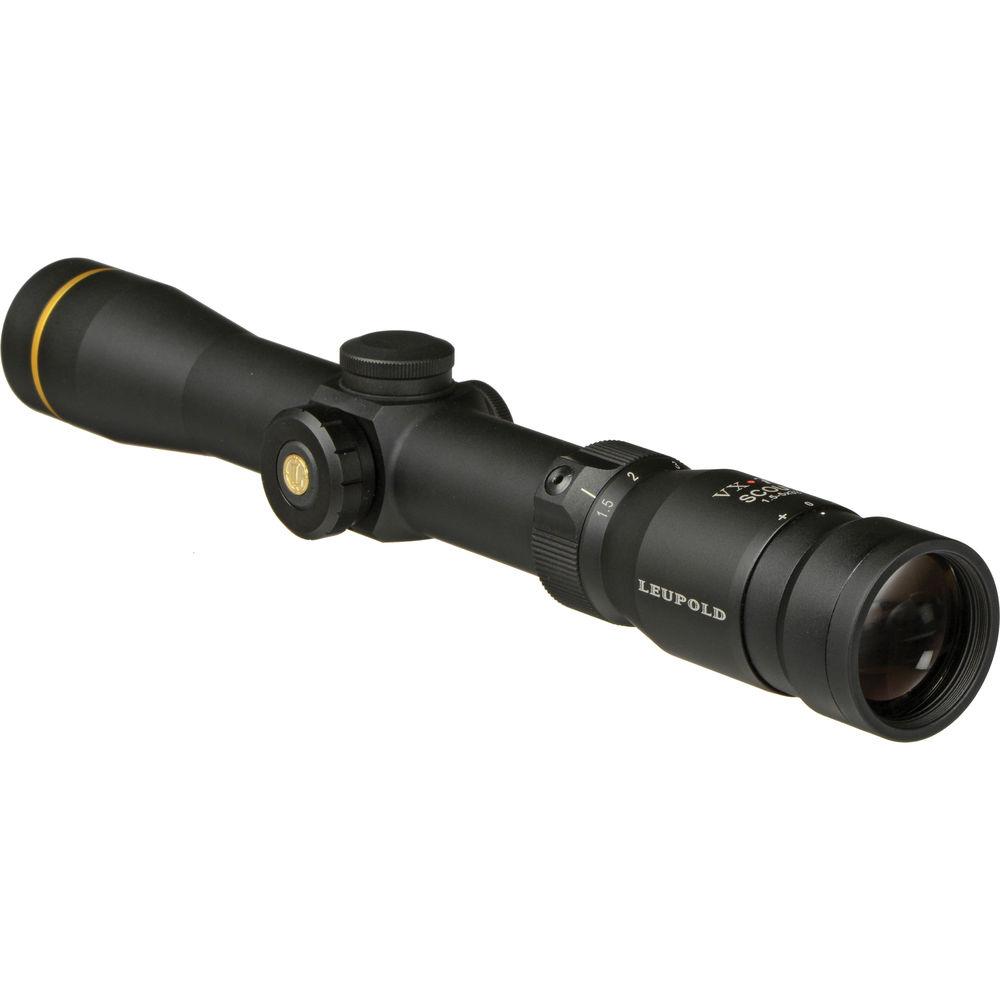

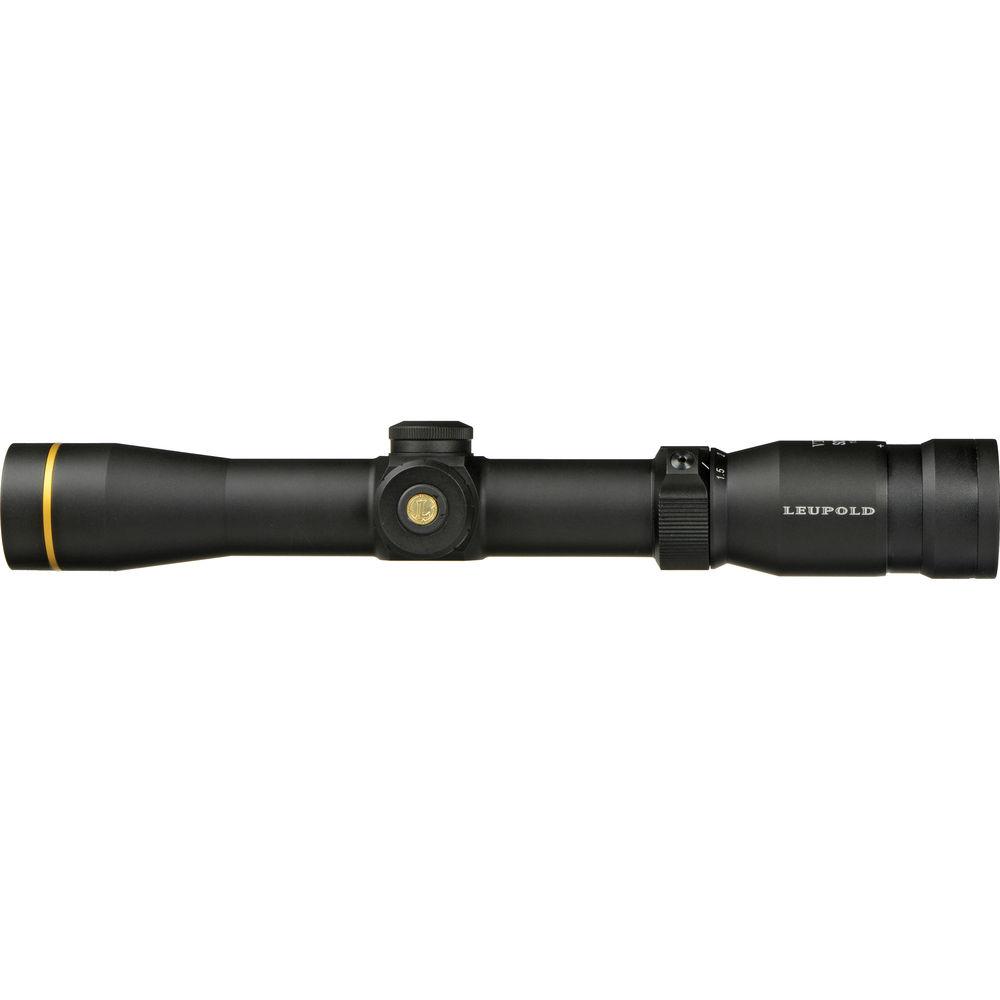

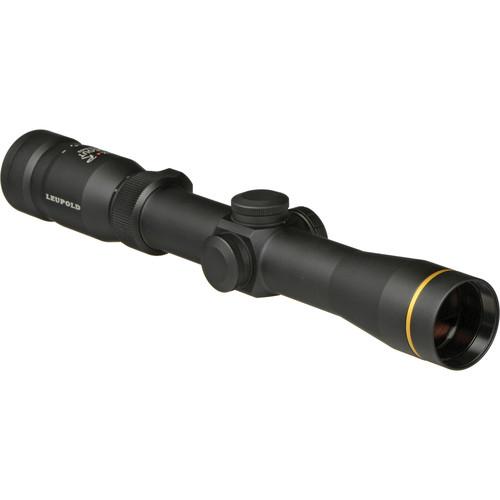

Product description Intended for close to medium-range use, the matte black 1.5-5x33 VX-R Scout Riflescope from Leupold includes multiple optical technologies to produce clear and bright images without adding bulk and weight. The glass used for the lenses is lead-free to be environmentally friendly while being clear and virtually distortion-free across the entire field of view. Each optic has blackened edges to reduce glare and diffusion, and the lens faces are fully multicoated with Leupold's DiamondCoat anti-reflection coatings. These optical coatings are index-matched to increase light transmission and contrast.Leupold has outfitted this scope with their FireDot Duplex reticle. The reticle, located on the Rear (Second) Focal Plane is non-illuminated with thick outer posts that sharply taper to thin hairs in the center. An illuminated aiming point, the FireDot, in the center of the hairs draws your eye to the center of the reticle for fast target acquisition and tracking without obstructing your subject. Powered by a single CR0232 battery, the FireDot has eight intensity levels for use in all lighting conditions. To conserve power, if the rifle remains still for five minutes it switches to Standby Mode, and when the rifle is picked up or moved, it automatically turns back on. An important feature while waiting in a blind or stand.The low-profile turrets provide a sleek minimalist design while remaining easy-to-use. An impact point correction of ¼ MOA per click provides precision adjustment to get you on-target, and the 70 MOA windage and elevation adjustment range allows you to compensate for most terrain and difficult conditions. Turret caps protect the adjustment dials from damage while in the woods or at the range.In order to withstand years of use in the field and countless recoils, the housing is made of 6061-T6 aluminum with a one-piece 30mm main-tube. A hard-anodized matte-black finish resists scratches and corrosion. The optical tube is filled with a combination of argon and krypton with o-ring seals to provide water and fogproof performance. The same DiamondCoat that provides anti-reflection performance also protects the lens surfaces from scratches and abrasions. - Optical Performance
-
- Magnification: 1.5-5x
- Objective lens: 33 mm diameter
- Eco-friendly lead-free glass elements maximize light transmission
- Index-matched lens coatings increases light transmission for brighter images
- Blackened lens edges reduce glare and diffusion through the lens edges to provide better resolution and improved contrast
- DiamondCoat lens coatings provide increased light transmission by reducing reflection
- FireDot Duplex Reticle
-
- Reticle located on the Rear (Second) Focal Plane
- Non-illuminated duplex-style crosshair
- Red illuminated FireDot center aiming point
- Thick outer posts with a sharp taper to thin hairs in the center
- Two-thirds of total crosshair is thick post, one-third thin hairs
- Illuminated center dot naturally draws the eye to the aiming point
- Aiming dot is small enough that it won't block targets even at longer ranges
- Eight reticle brightness levels to adjust to preference and lighting conditions
- The reticle switches to Standby Mode after five minutes of inactivity, when the rifle/scope is moved it automatically turns back on
- Use and Handling
-
- Low-profile capped turrets
- 1/4 MOA impact point correction
- 70 MOA windage/elevation adjustment range
- 15 MOA per rotation of travel
- Eye relief: 4.2-3.7"
- One-turn, Extended Range Focus allows for quick and easy focusing when moving from close to long range
- Construction Details
-
- One-piece 30mm diameter main tube
- Lightweight and durable 6061-T6 aluminum housing
- Scratch and corrosion-resistant anodized matte-black finish
- Argon/krypton-filled and o-ring sealed for water and fogproof performance
- Twin-Bias spring erector system resists recoil to maintain zero
- DiamondCoat protective lens coating protects lenses from abrasions and scratches
UPC: 030317005818 In the Box Leupold 1.5-5x33 VX-R Scout Riflescope (FireDot Duplex Reticle) CR 2032 Battery Limited 2-Year Warranty Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Leupold 1.5-5x33 VX-R Scout Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLeupold 119675 Specs | | | Magnification | 1.5 to 5x | | Objective Lens Diameter | 33 mm | | Field of View | 1.5x: 43.5' @ 100 yd / 14.5 m @ 100 m
5x: 17.8' @ 100 yd / 5.9 m @ 100 m | | Exit Pupil Diameter | 1.5x: 22 mm
5x: 6.6 mm | | Eye Relief | 6.1 to 7" / 154 to 181 mm | | | | Reticle Type | FireDot Duplex Reticle | | Illumination | Illuminated | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 70 MOA | | Elevation Adjustment | 70 MOA | | Parallax Correction | Yes, 150 yd / 137.2 m | | | | Water Resistance | Waterproof | | Fogproof | Yes, Argon/Krypton Filled | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 11.8" / 298 mm | | Weight | 13.6 oz / 385.6 g | | | | Package Weight | 1.35 lb | | Box Dimensions (LxWxH) | 14.0 x 3.4 x 2.9" |
