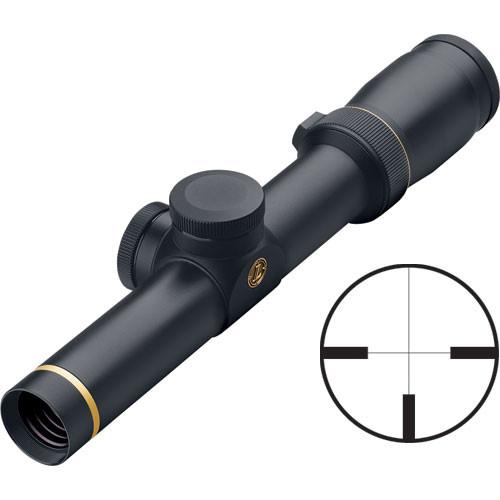

User Manual for Leupold 1.5-6x24 VX-7 Riflescope with German #4 Reticle Click to enlarge the picture
Contents of the user manual for the Leupold 1.5-6x24 VX-7 Riflescope with German
- Product category: Riflescopes Leupold
- Brand: Leupold
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Leupold Riflescopes
|
User manual for the Leupold 1.5-6x24 VX-7 Riflescope with German contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Leupold product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Leupold user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Leupold product will considerably shorten its lifespan!
|
Product description Leupold keeps their successful tradition of delivering state-of-the-art sport optics alive with their persistent attention to detail, precision and quality. This American optics company, located in Portland, Oregon, pioneered the process of nitrogen purging to waterproof riflescopes in 1947. Since then and to this day, Leupold continues to develop new technologies, and use advanced materials to push the envelope to produce some of the world's finest sport optics. The 1.5-6x24 VX-7 Riflescope from Leupold might seem to look familiar with an initial glance. However, The VX-7 series of riflescopes are not merely rehashed & upgraded versions of older optics. Instead, Leupold went to the drawing board and put down ideas and requests from hunters and outdoorsmen. The resulting designs yielded a sighting system that incorporates cutting-edge technology, state-of-the-art materials and designs, and good old-fashioned common sense. This particular VX-7 scope features a low to midrange zoom; excellent for hunting in dense wooded areas. Should your target wind up in an open field some distance away, the 6x magnification will help you make short work of executing a well placed shot across all but the longest of distances. The 30mm main tube and fast focus eyepiece give the VX-7 a European profile and enhanced performance. Older style adjustment knobs will seem difficult to use after one experience with the SpeeDial knobs on the VX-7. The integral caps eliminate the fussing with and eventual losing of covers while the solid feel of the 1/4 MOA click adjustments instill a feeling of security & confidence. In order to successfully engage your target you must have positive sight acquisition. Extreme weather, lighting and temperature will have no impact on your sight picture. High tech solutions have been applied to counteract the negative effects of these age-old issues; the Xtended Twilight Lens System with DiamondCoat 2 ensures the finest view possible regardless of the conditions while Krypton/Argon gas purging of the main tube ensures water and fogproof performance. All these fine features and many more are all backed up by Leupold's lifetime warranty and their new VX-7 Custom Care Package. Performance and durability with a lifetime guarantee, what more could you ask for? To use a riflescope with your firearm, you'll need a mounting base and mounting rings in addition to the scope itself. Bases attach to your firearm and rings attach to your scope. By affixing the scope-mounted rings to the rifle-mounted base, you create a reliable accurate and secure sighting system. Proper spacing of the rings, as well as the ring height should be considered to ensure a proper line of sight can be established. This will maximize the value of your investment, and enhance your shooting experience. It should be noted that in many mounting applications, a professional gunsmith's skills will be needed for proper installation. - German #4 Reticle
- The German #4 is a traditional European style reticle with 3 heavy posts at 3, 6, and 9 o'clock. Fine cross hairs establish your point of aim for precise shot placement. The posts stand out well in low-light conditions and against heavy cover, wooded backgrounds, and shadows.
- Generous Eyebox
- Leupold has engineered the VX-7 series of riflescopes with an eyebox that is extremely forgiving. Your ability to quickly register a full & clear sight picture is greatly enhanced. Minimizing the incidence of scope shadow and blackout gets you on target fast when the situation is less than perfect.
- Fast Focus Eyepiece
- Quick focusing European style eyepiece rotates 1.5 revolutions lock-to-lock. Fast & precise focus adjustments ensure you'll be on target in a flash. The included Alumina rubber eyepiece guard protects both your forehead and the ocular from damage.
- Dual Spring Erector System
- This dual spring configuration exerts up to 30% more force upon the erector assembly to virtually eliminate backlash and stress on the internal mechanical mechanism. The result is enhanced tracking & repeatability as well as a greater lifespan for all of the internal moving parts of your scope.
- DiamondCoat 2 Technology
- DiamondCoat 2 lens coating on exterior lens surfaces delivers the greatest level of abrasion resistance & increases light transmission for greater brightness, clarity, & contrast.
- Xtended Twilight (XT) Lens System
- Index matched lens elements with wavelength specific multicoatings optimize the transmission of low-light wavelengths resulting in greater definition and luminance during twilight.
- Second Generation Waterproofing
- Leupold's proprietary blend of argon & krypton gasses delivers greater resistance to thermal shock than standard nitrogen purging. This science is a also a longer solution as these gasses exhibit a lower incidence of diffusion for a lifetime of crystal clear viewing under all conditions.
- SpeeDial Precision Adjustment System
- Rotating the integral cap 1/2 turn from its secure & locked down position facilitates your ability to pull the cap up & engage the adjustment knob for precise, tactile and audible 1/4 MOA precision adjustments. The titanium nitride & stainless steel adjustment mechanism are engineered to extremely tight tolerances and maintain a near perfect engagement of the interior surfaces of windage, elevation and parallax adjustment dials. The result is outstanding strength and durability for a lifetime of repeatable accuracy.
In the Box Leupold 1.5-6x24 VX-7 Riflescope with German #4 Reticle (Satin) Soft Cloth Alumina Eyepiece Guard Set of Alumina Flip-back Lens Covers VX-7 Custom Care Package Full Lifetime (Transferrable) Guarantee Table of Contents
|
Upload User Manual
Have you got an user manual for the Leupold 1.5-6x24 VX-7 Riflescope with German #4 Reticle in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLeupold 63110 Specs | | | Magnification | 1.5 to 6x | | Objective Lens Diameter | 24 mm | | Field of View | 1.5x: 62.1' @ 100 yd / 20.7 m @ 100 m
6x: 16.9' @ 100 yd / 5.6 m @ 100 m | | Exit Pupil Diameter | 1.5x: 16 mm
6x: 4.2 mm | | Eye Relief | 3.8 to 4.2" / 97 to 114 mm | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 60 MOA | | Elevation Adjustment | 60 MOA | | | | Water Resistance | Waterproof | | Fogproof | Yes | | | | Maintube Diameter | 30 mm | | Battery | None | | Dimensions | Length: 10.5" / 26.7 cm
Height: 1.2" / 3.1 cm | | Weight | 1 lb / 434 g |
Rating50% users recommend this product to others. And what about you?
This product has already been rated by 10 owners. Add your rating and experience with the product.
