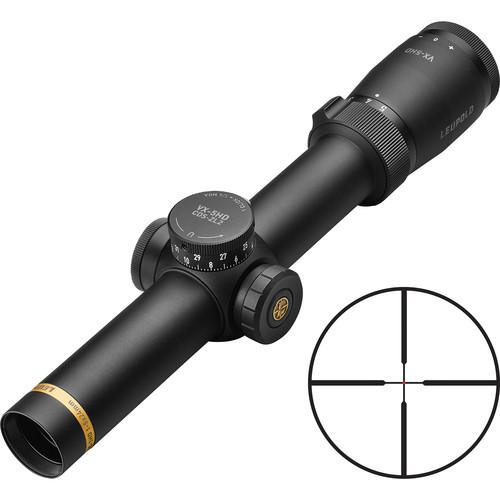

Product description Leupold takes low-light optical performance to a new level with its 1-5x24 VX-5HD CDS-ZL2 Riflescope by combining High Definition (HD) optical glass and a Twilight Max Light management System. While the Twilight Max coatings allow full visible spectrum to pass and reduce glare, the High Definition (HD) optical glass improves detail and sharpness in generated images. The exterior optical surfaces are also treated with Guard-Ion Rain Shedding Coatings to repel water droplets and dirt and to protect against oil and fingerprint stains. To improve aiming accuracy, the 2nd image plane contains an illuminated FireDot Duplex Reticle. The reticle's pattern features four tapered posts, a thin crosshair, and a brilliant red target dot. The illumination system provides adjustable brightness and a motion-activated on/off control – the Motion Control Sensor Technology (MTS). This function deactivates after 5 minutes of inactivity and reactivates it when you move your gear again. Another highlight is the included Custom Dial System ZeroLock 2 Elevation Dial (CDS-ZL2), which enables a slip-free, lockable pinch-and-turn elevation settings that prevent accidental misadjustments.
To maintain the delicate alignment of the optical elements for years of service, the housing is crafted from 6061-T6 aluminum and features a single-piece 30mm maintube. It is waterproof, fogproof, and filled with argon/krypton mixture to reduce the effect of thermal shock and diffusion of external gasses. - Optical Performance
-
- 1 - 5x magnification
- 24mm objective diameter
- High-definition (HD) optical glass delivers high resolution, clarity, and contrast
- Twilight Max Light Management System increase transmission of full visible spectrum and reduces glare
- Guard-Ion rain shedding coating protects from scratches and repels water, dirt, and oil
- Optimized for low-light performance
- 123.2 - 24.4' at 100 yd linear field of view
- Use and Handling
-
- 1/4 MOA impact point correction
- 170 MOA windage/elevation adjustment range
- 4.8mm minimum exit pupil diameter
- 3.82 - 3.7" eye relief
- CDS-ZL2 – Custom Dial System ZeroLock 2 Elevation Dial
-
- Graduated lockable dial
- Prevents accidental rotation off zero
- Release pinch-and-turn button
- 38 MOA travel
- Construction
-
- 30mm maintube diameter
- Lightweight and durable 6061-T6 aluminum housing
- Covered pop-up windage dial with an easy re-zero
- Filled with argon-krypton mixture to reduce thermal shock and diffusion of external gases
- Waterproof and fogproof
- Impact resistant

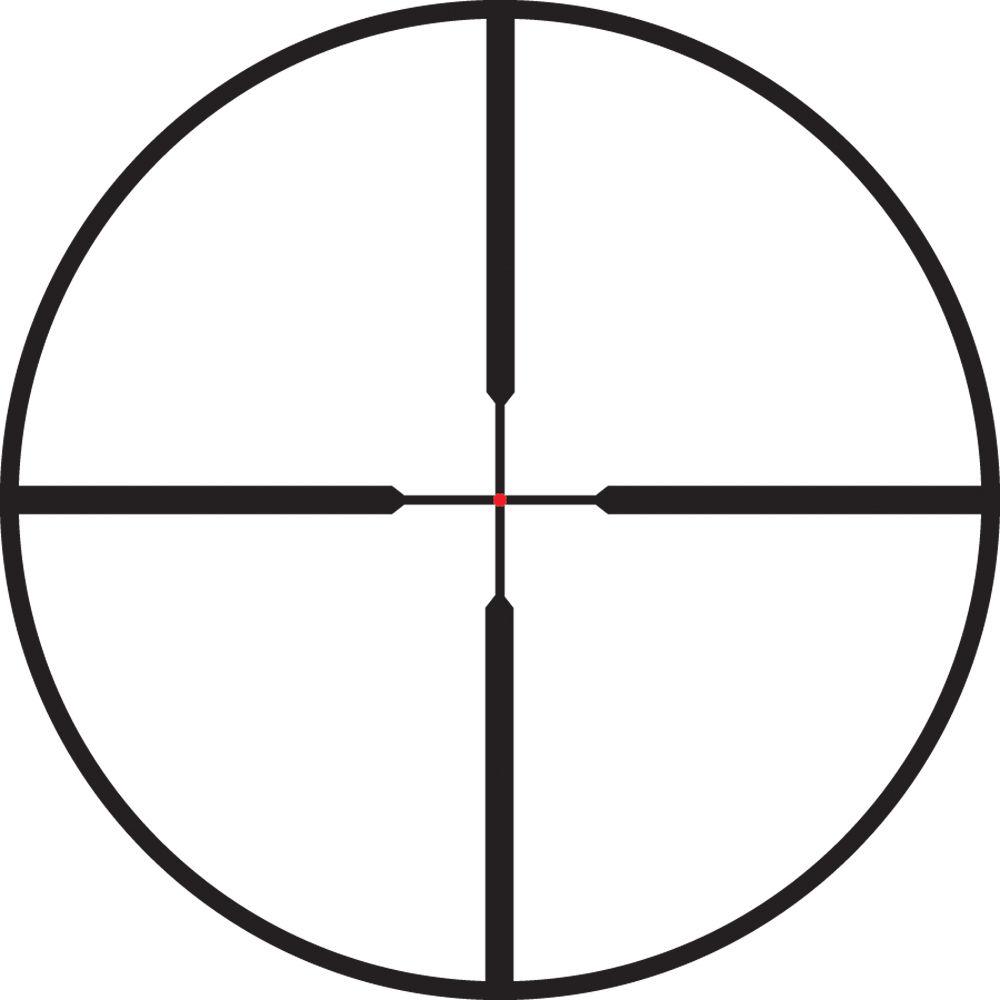

- Illuminated FireDot Duplex Reticle
-
- 2nd focal plane
- Four tapered posts
- Thin crosshair
- Brilliant red fine target dot
- Adjustable illumination
- Motion Sensor Technology (MTS) offers motion-activated control of illumination
UPC: 030317013875 In the Box Leupold 1-5x24 VX-5HD CDS-ZL2 Riflescope (Illuminated FireDot Duplex Reticle, Matte Black) - CR-2032 Battery
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Leupold 1-5x24 VX-5HD CDS-ZL2 Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLeupold 172367 Specs | | | Magnification | 1 to 5x | | Objective Lens Diameter | 24 mm | | Field of View | 1x: 123.2' @ 100 yd / 41.1 m @ 100 m
5x: 24.4' @ 100 yd / 8.1 m @ 100 m | | Exit Pupil Diameter | 5x: 4.8 mm | | Eye Relief | 3.7 to 3.8" / 94 to 97 mm | | | | Reticle Type | FireDot Duplex Reticle (Second Focal Plane) | | Illumination | Illuminated | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 170 MOA | | Elevation Adjustment | 170 MOA | | Parallax Correction | Yes, 150 yd / 137.2 m | | | | Water Resistance | Waterproof | | Fogproof | Yes, Argon/Krypton Filled | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 10.8" / 273 mm | | Weight | 13.4 oz / 379.9 g | | | | Package Weight | 1.435 lb | | Box Dimensions (LxWxH) | 14.5 x 3.65 x 3.05" |
