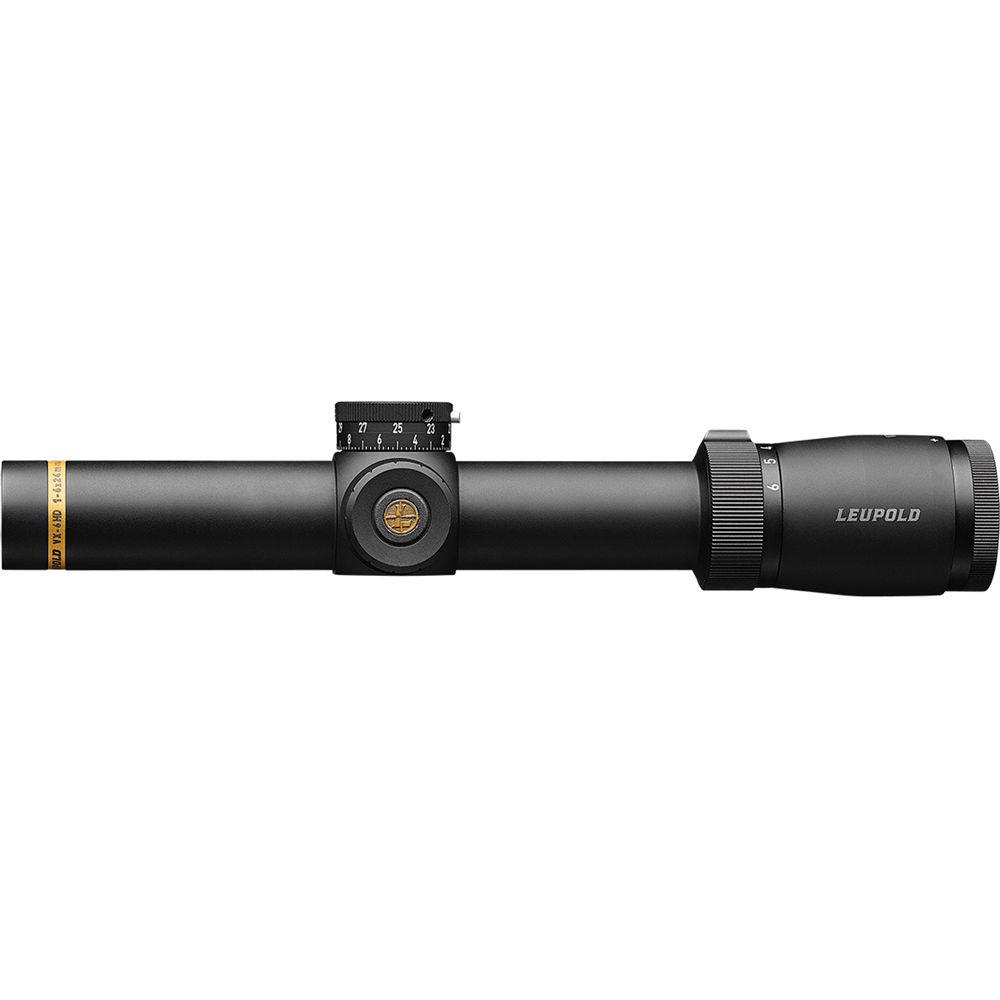

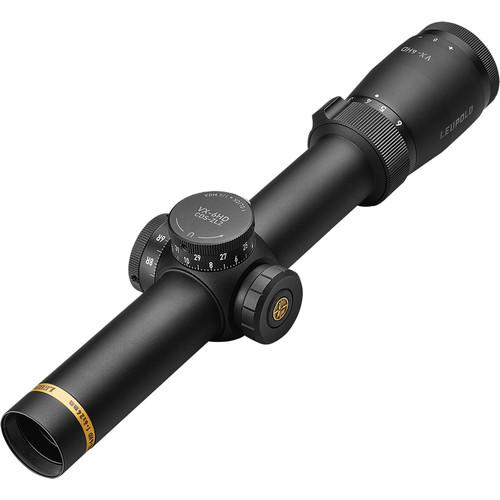

Product description Leopold's 1-6x24 VX-6HD CDS-ZL2 Riflescope features upgrades in the form of high-definition (HD) optics, the Twilight Max Light Management System, and a fast and accurate CDS-ZL2 elevation dial. While the HD optics ensure high contrast and true color images, the revolutionary Twilight Max Light Management System improves transmission, reduces glare, and enhances visibility in low light conditions. Using the featured CDS-ZL2 (ZeroLock 2) finger-operated elevation turret, you will benefit from its extended travel, fast adjustments, and accurate returns to zero. Another highlight is the Guard-Ion rain-shedding coating, which has hydrophobic properties, prevents oil stains, and repels dust and dirt. Another highlight of this optic is its 2nd focal plane FireDot Duplex illuminated reticle. The reticle features a brilliant red center, tapered posts, and a crosshair. The reticle also offers a canting indicator that flashes when your firearm is tilted. To help you compensate for wind drift and ballistic bullet drop, the scope has 170 MOA windage and elevation adjustment ranges with a 1/4 MOA impact point correction.
To ensure superior performance anywhere and anytime, the housing (with a 30mm maintube) is crafted from durable and lightweight 6061-T6 aluminum alloy. It is filled with an argon-krypton mixture to ensure water and fogproof performance. - Optical Performance
-
- 24mm objective
- 1 - 6x magnification
- High-definition (HD) lenses offer higher contrast, stunning clarity, and true color
- Twilight Max Light Management System improves transmission, reduces glare, and enhances visibility in low light
- Guard-Ion rain-shedding hydrophobic lens coating repels water, dirt, and oil stains
- 3.8" eye relief
- 4mm exit pupil
- Illuminated FireDot Duplex Reticle
-
- 2nd focal plane
- Built-in flashing canting indicator
- Four tapered posts with a crosshair
- Brilliant red center dot
- FireDot fiber-optic illumination
- MST: Motion Sensor Technology turns off illumination after five minutes of inactivity and instantly resumes it based on motion
- Push-button brightness control with high/low indicators
- Use and Handling
-
- 1/4 MOA impact point correction
- 170 MOA windage and elevation adjustment range
- Construction Details
-
- 6061-T6 aluminum housing
- 30mm maintube
- CDS-ZL2: capped finger-operated elevation dial (with pinch-and-turn button) provides extended travel and fast adjustments and ensures accurate return to zero
- Twin bias spring erector system provides 30% more holding force to withstand recoil
- Custom Dial System (CDS) has your ballistic data and allows you to change the elevation quickly to different sight-in ranges
- Zero Lock Windage prevents accidental adjustments and ensures accurate returns to zero
- Water and fogproof with an argon-krypton mixture
- Reversible throw lever included
- Alumina flip-back lens covers included
UPC: 030317012441 In the Box Leupold 1-6x24 VX-6HD CDS-ZL2 Riflescope (Illuminated FireDot Duplex Reticle, Matte Black) CR-2032 Battery 2 x Alumina Flip-UP Lens Covers Set of CDS Dials Reversible Throw Lever Limited Lifetime Warranty Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Leupold 1-6x24 VX-6HD CDS-ZL2 Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLeupold 171552 Specs | | | Magnification | 1 to 6x | | Objective Lens Diameter | 24 mm | | Field of View | 1x: 116' @ 100 yd / 36.6 m @ 100 m
6x: 19' @ 100 yd / 6.3 m @ 100 m | | Exit Pupil Diameter | 6x: 4 mm | | Eye Relief | 3.8" / 97 mm | | | | Reticle Type | FireDot Duplex Reticle (Second Focal Plane) | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 170 MOA | | Elevation Adjustment | 170 MOA | | | | Water Resistance | Waterproof | | Fogproof | Yes, Argon/Krypton Filled | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 10.8" / 27.3 cm | | Weight | 13.4 oz / 380 g | | | | Package Weight | 1.6 lb | | Box Dimensions (LxWxH) | 14.0 x 3.4 x 2.9" |
