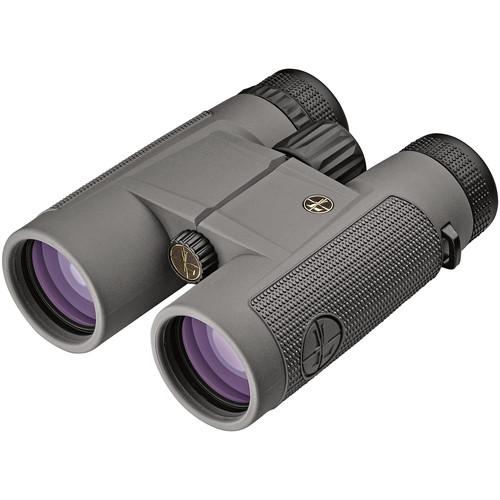

User Manual for Leupold 10x42 BX-1 McKenzie Binoculars Click to enlarge the picture
Contents of the user manual for the Leupold 10x42 BX-1 McKenzie Binoculars
- Product category: Binoculars Leupold
- Brand: Leupold
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Leupold Binoculars
|
User manual for the Leupold 10x42 BX-1 McKenzie Binoculars contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Leupold product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Leupold user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Leupold product will considerably shorten its lifespan!
|
Product description The B&H Binocular Buying Guide Read More The 10x42 BX-1 McKenzie Binoculars from Leupold feature phase-corrected BAK4 roof prisms and anti-reflection fully multi-coated optics that work together to produce a versatile and capable optic with bright and clear high-contrast images and accurate color rendition. Coupled with the optical features are 42mm diameter objectives that boost its light-gathering ability, without the bulk and weight of larger models, for easy use in challenging conditions such as the early morning and late evening. The combination of optics and objectives make the McKenzie ideally suited for most long-range needs and outdoor activities from hunting, to birding, to sporting events.Complementing the optical performance are construction details that make these binoculars durable and comfortable to use. The lightweight and durable aluminum alloy chassis is protected by a gray rubberized armor that is textured for a non-slip grip. The optical tubes are nitrogen-filled and O-ring sealed to be waterproof and resistant to internal fogging when moving through extreme changes in temperatures or environmental conditions. A right-eye diopter adjustment and twist-up eyecups allow the binoculars to be customized to most people's needs and can be comfortably used with or without eyewear. For long-term glassing, the McKenzie is tripod mountable with an optional adapter. - Optical Performance
-
- 10x magnification allows for detailed observations of distant subjects
- 42mm objective lenses improve light-gathering ability versus smaller objectives while helping to maintain a compact form factor
- Roof prism optical path ensures a low-profile design that is easy to hold
- BAK4 prisms deliver a round exit pupil and a crisp and clear image with limited edge distortion
- Phase-corrected prism coatings reduce internal interference to improve contrast, clarity, and resolution
- Anti-reflection fully multi-coated lenses maximize light transmission for bright and clear images with accurate color rendition
- Apparent angle of view approaches wide angle to minimize the appearance of distracting hand shake that is common when holding high-power optics
- 305' field of view at 1000 yards
- Use and Handling
-
- Closed bridge configuration offers a stable platform for the internal focusing mechanism
- Large center focus wheel is easy to manipulate in cold or wet conditions, or when wearing gloves
- Right-eye diopter adjustment enables users to compensate for optical prescription for sharper views
- 56-74mm interpupillary adjustment range allows easy use by wide variety of people
- Twist-up eyecups for comfortable use with or without eyewear
- Tripod mountable with optional adapter for hands-free use to eliminate vibration and arm fatigue
- 13.7mm eye relief
- 4.2mm exit pupil
- Construction Details
-
- Lightweight and durable aluminum alloy chassis
- Nitrogen-filled and O-ring sealed to be waterproof and resistant to internal fogging when moving through extreme changes in temperature and environmental conditions
- Shadow Gray rubberized armoring exterior protects against bumps and impacts
- Ergonomically placed textured palm pads provide a non-slip, stable, and comfortable grip
- Weight: 22 ounces
UPC: 030317017521 In the Box Leupold 10x42 BX-1 McKenzie Binoculars (Shadow Gray) Lens Cloth Carrying Case Shoulder Strap 2 x Objective Lens Cover Limited Lifetime Warranty (Transferable) Summer Binocular Buying Guide Christopher Witt 07/14/2016 A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 Table of Contents
|
Upload User Manual
Have you got an user manual for the Leupold 10x42 BX-1 McKenzie Binoculars in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLeupold 173788 Specs | Prism Type | Roof | | Magnification | 10 x | | Objective Lens Diameter | 42 mm | | Angle of View | 5.8° (Actual) | | Field of View | 305.0' @ 1000 yd / 101.3 m @ 1000 m | | Minimum Focus Distance | 10' / 3 m | | Exit Pupil Diameter | 4.2 mm | | Eye Relief | 13.7 mm | | Interpupillary Adjustment | 56 to 74 mm / 2.2 to 2.9" | | Focus Type | Center | | Tripod Mount | Yes (Adapter Optional) | | Dimensions | Length: 5.8" / 14.7 cm | | Weight | 22.0 oz / 624.0 g | | | | Package Weight | 2.0 lb | | Box Dimensions (LxWxH) | 8.15 x 6.3 x 3.1" |
