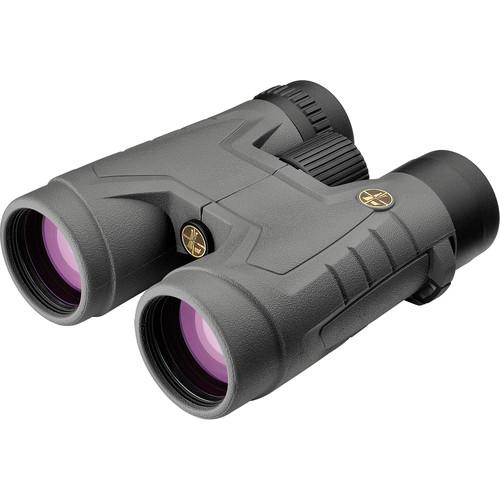

User Manual for Leupold 10x42 BX-2 Acadia Binocular Click to enlarge the picture
Contents of the user manual for the Leupold 10x42 BX-2 Acadia Binocular
- Product category: Binoculars Leupold
- Brand: Leupold
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Leupold Binoculars
|
User manual for the Leupold 10x42 BX-2 Acadia Binocular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Leupold product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Leupold user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Leupold product will considerably shorten its lifespan!
|
Product description The B&H Binocular Buying Guide Read More uzfvuvsbdbxesdyxeccusbatsdyycautu Leupold's 10x42 BX-2 Acadia Binocular utilizes phase-corrected and dielectric-coated BAK 4 roof prisms, with anti-reflection fully multi-coated optics to produce crisp and clear high-contrast images with minimal distortion and accurate color rendition. The 10x magnification is ideal for resolving detail in heavy brush or at long distances where accurate identification is critical. With a comfortable 15.5mm eye relief and wide 70° apparent angle of view, the typical limitations of higher power binoculars, such as visible hand-shake, are virtually eliminated.Built for the rigors of constant outdoor use, the housing features a gray armored exterior that protects the binocular from drops and impacts, while its textured surface provides a slip-resistant grip. The optical tubes are nitrogen-filled and O-ring sealed to be waterproof and resistant to internal fogging when moving through extreme temperature changes or conditions. Tripod-mountable with optional an optional adapter, twist-up eyecups and a locking right-eye dioptric adjustment make the Acadia a comfortable and easy-to-use optic. - Optical Performance
-
- 10x magnification
- 42mm diameter objective
- BAK 4 roof prism light path
- Phase-correcting prism coatings provide enhanced color rendition and contrast
- Highly-reflective dielectric prism coatings improve light transmission across the entire visible spectrum to improve image resolution
- Anti-Reflection fully multi-coated optics increases overall image brightness, color rendition, contrast, and sharpness
- Wide 70° apparent angle of view
- 368' field of view at 1000 yards
- Use and Handling
-
- Closed-bridge configuration
- Large smooth-action center focus wheel is easy to manipulate, even while wearing gloves
- Locking right-eye dioptric adjustment
- Twist-up eyecups for comfortable use with or without eyewear
- Tripod mountable with optional adapter
- Comfortable 15.5mm long eye relief
- 4.2mm exit pupil
- Construction Details
-
- Nitrogen-filled and O-ring sealed to be waterproof and resistant to internal fogging when moving through extreme temperatures or conditions
- Shadow Gray rubberized armoring protects internal optics against drops and impacts
- Textured armor with ridged palm pads provides a slip-resistant grip
- Tethered objective lens caps
- Weight: 28 ounces
UPC: 030317015275 In the Box Leupold 10x42 BX-2 Acadia Binocular (Shadow Gray) Carrying Case 2 x Eyepiece Caps 2 x Tethered Objective Lens Covers Quick Detach Neoprene Strap Golden Ring Lifetime Warranty (Transferable) Summer Binocular Buying Guide Christopher Witt 07/14/2016 uzfvuvsbdbxesdyxeccusbatsdyycautu A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 Table of Contents
|
Upload User Manual
Have you got an user manual for the Leupold 10x42 BX-2 Acadia Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLeupold 172700 Specs | Prism Type | Roof | | Magnification | 10 x | | Objective Lens Diameter | 42 mm | | Angle of View | 7.0° (Actual) | | Field of View | 367.5' @ 1000 yd / 122.5 m @ 1000 m | | Minimum Focus Distance | 13.5' / 4.1 m | | Exit Pupil Diameter | 4.2 mm | | Eye Relief | 15.5 mm | | Interpupillary Adjustment | 57 to 76 mm / 2.2 to 3" | | Focus Type | Center | | Tripod Mount | Yes (Adapter Optional) | | Dimensions | Length: 6.2" / 15.8 cm | | Weight | 28.0 oz / 794 g | | | | Package Weight | 2.355 lb | | Box Dimensions (LxWxH) | 8.8 x 5.95 x 2.95" |
