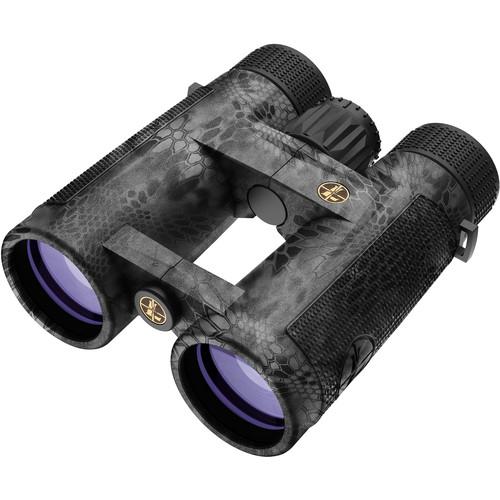

User Manual for Leupold 10x42 BX-4 Pro Guide HD Binoculars Click to enlarge the picture
Contents of the user manual for the Leupold 10x42 BX-4 Pro Guide HD
- Product category: Binoculars Leupold
- Brand: Leupold
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Leupold Binoculars
|
User manual for the Leupold 10x42 BX-4 Pro Guide HD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Leupold product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Leupold user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Leupold product will considerably shorten its lifespan!
|
Product description The B&H Binocular Buying Guide Read More Sporting a powerful magnification, extra low-dispersion glass, and their proprietary Twilight Max HD Light Management System, Leupold 10x42 BX-4 Pro Guide HD Binoculars, in Kryptek's Typhon camouflage pattern, deliver bright and sharp high-contrast images with true-to-life color and crisp clarity even when observing at medium to long-range.Image quality is enhanced through the use of phase-corrected coatings on the prisms. The lenses are made of high-transmittance calcium-fluoride glass, which, by their nature, limit reflection and increase color fidelity and contrast. The Twilight Max HD system complements the glass with index-matched lens coatings that were specifically engineered for the calcium-fluoride lenses to raise the already-high transmittance across the entire visible spectrum — with special emphasis on the blue and violet wavelengths that are most prevalent in low light, such as at dawn and dusk. Their 42mm objectives gather generous amounts of light to further boost performance in less-than-ideal conditions without the bulk and weight of larger objectives, while a wide angle of view helps to reduce the appearance of distracting hand shake that is often associated with powerful optics. All of these optical features work together to present the user with a comfortable and immersive observational experience.Designed to withstand the rigors of the trail, the optical tubes are nitrogen-filled and O-ring sealed to make them waterproof and resistant to internal fogging when moving through extreme temperature variations. The chassis is made from an aluminum alloy to make it lightweight and corrosion resistant without sacrificing strength and stability. To further cut weight while providing users with more area to grip, Leupold employs an open-bridge configuration with a dual hinge. Its oversized, knurled center focusing wheel allows for sharp focusing even while wearing gloves. For long-duration glassing sessions, or to reduce fatigue and visible hand shake that are common with high magnifications and large objectives, the Pro Guide HD can be mounted on a tripod or other support system using an optional adapter. - Optical Performance
-
- 10x magnification allows for detailed observations of distant subjects
- 42mm objective lenses improve light-gathering ability versus smaller objectives while helping to maintain a compact form factor
- BAK4 roof prisms deliver a round exit pupil and a crisp and clear image with limited edge distortion
- High Definition (HD) extra low-dispersion calcium-fluoride glass lens elements reduce chromatic and spherical aberrations for increased contrast, improved color rendition, and sharpness without distortion across the entire field of view
- Phase-corrected prism coatings reduce internal interference to improve contrast, clarity, and resolution
- Twilight Max HD Light Management System improves color, clarity, and contrast using index-matched multi-coatings that complement the optical glass to ensure maximum light transmission across the entire visual spectrum — especially the upper blue/violet range to enhance low-light vision
- Wide 62° apparent angle of view helps to reduce the appearance of distracting hand shake that is common when holding high-power optics, while presenting an immersive observational experience
- Generous 326' field of view at 1000 yards
- Use and Handling
-
- Open-bridge/dual-hinge configuration reduces weight without sacrificing strength or stability
- Large slip-resistant center focusing wheel is easy to manipulate in cold or wet conditions, or when wearing gloves
- Locking right-eye dioptric adjustment on focus wheel allows for precise focusing for sharper and clearer views
- Twist-up click-stop rubber eyecups for comfortable use with or without eyewear; textured for easier handling with gloves
- Tripod mountable with optional adapter for hands-free use to eliminate vibrations and arm fatigue
- Comfortable 16mm eye relief reduces eye strain for easier viewing
- 4.2mm exit pupil will cover pupils as they open in low light to keep the entire scene in view at all times
- Construction Details
-
- Bridge design provides more surface area for hands to improve grip security
- Lightweight and durable aluminum alloy housing
- Nitrogen-filled and O-ring sealed to be waterproof and resistant to internal fogging when moving through extreme changes in temperature and environmental conditions
- Rubberized armoring exterior protects against bumps and impacts
- Kryptek's distinctive Typhon camouflage pattern is designed to blend with the surroundings and not draw attention while observing birds, game, or other animals
- Ergonomically placed textured palm pads provide a non-slip, stable, and comfortable grip
- Weight: 29 ounces
UPC: 030317015107 In the Box Leupold 10x42 BX-4 Pro Guide HD Binoculars (Kryptek Typhon Camo) Lens Cloth Neck Strap Carrying Case 1-Piece Ocular Rainguard 2 x Objective Lens Cap Limited Lifetime Warranty (Transferable) Summer Binocular Buying Guide Christopher Witt 07/14/2016 A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 BINOCULAR GUIDE PDF 114.1kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Leupold 10x42 BX-4 Pro Guide HD Binoculars in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLeupold 172667 Specs | Prism Type | Roof | | Magnification | 10 x | | Objective Lens Diameter | 42 mm | | Angle of View | 6.2° (Actual) | | Field of View | 326.0' @ 1000 yd / 108.2 m @ 1000 m | | Minimum Focus Distance | 7.5' / 2.3 m | | Exit Pupil Diameter | 4.2 mm | | Eye Relief | 16.0 mm | | Interpupillary Adjustment | 58 to 74 mm / 2.3 to 2.9" | | Focus Type | Center | | Tripod Mount | Yes (Adapter Optional) | | Dimensions | Length: 5.6" / 14.2 cm | | Weight | 24.2 oz / 686.0 g | | | | Package Weight | 2.285 lb | | Box Dimensions (LxWxH) | 7.85 x 6.45 x 3.2" |
