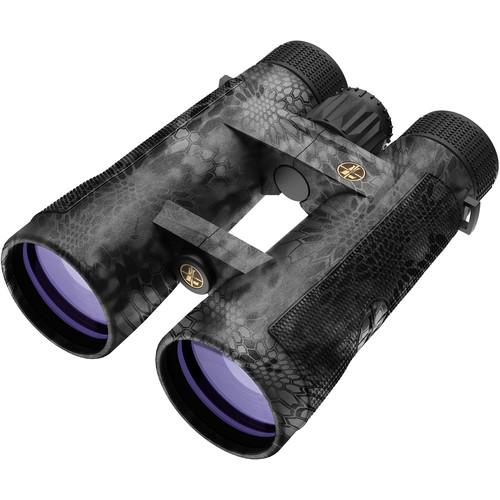

User Manual for Leupold 10x50 BX-4 Pro Guide HD Binocular Click to enlarge the picture
Contents of the user manual for the Leupold 10x50 BX-4 Pro Guide HD
- Product category: Binoculars Leupold
- Brand: Leupold
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Leupold Binoculars
|
User manual for the Leupold 10x50 BX-4 Pro Guide HD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Leupold product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Leupold user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Leupold product will considerably shorten its lifespan!
|
Product description The B&H Binocular Buying Guide Read More Configured with a moderate magnification and large objective combination that maximizes low-light capabilities to assist outdoor enthusiasts, birders, hunters, and sightseers, Leupold's Kryptek Typhon camouflage 10x50 BX-4 Pro Guide HD Binocular is an ideal addition to any kit. The Pro Guide is engineered with lead-free high-transmittance calcium-fluoride glass elements, phase-corrected BAK4 roof prisms, and the proprietary Twilight Max HD lens coating system is engineered to complement the optical properties of the glass to deliver crisp and clear high-contrast images with accurate color rendition and virtually zero distortion across its wide field of view. The Twilight Max system ensures maximum light transmission across the entire visual spectrum, especially in the upper blue/violet wavelength range to enhance low-light vision. The magnification and lens diameter produces a wide exit pupil that, when combined with a long eye relief, provides exceptional comfort during long observation sessions.Its open-bridge/dual-hinge design helps to reduce weight while providing more surface area for your hands to grip the optical tubes — improving grip security and stability. To withstand the rigors of the outdoors, the chassis is made of a lightweight and durable aluminum alloy wrapped in a protective rubberized armor. Textured palm-pads improve grip security for sure-handling even in cold and wet weather, and a large textured focus wheel ensures precision adjustments even when wearing gloves. The optical tubes are nitrogen-filled and O-ring sealed to be waterproof and resistant to internal fogging when moving through extreme temperatures and environmental conditions. - Optical Performance
-
- Moderate 10x magnification
- Large 50mm objective lenses
- Compact roof prism optical path
- BAK4 prisms deliver a round exit pupil, and a crisp and clear image with limited edge distortion
- Phase-correcting prism coatings reduce internal light interference to help improve contrast and overall image sharpness
- Lead-free broad-band high-transmittance calcium-fluoride glass lens elements produce bright and clear images with accurate color rendition and improved contrast
- Twilight Max HD lens coating system employs index-matched multi-coatings that are specifically formulated to complement the optical glass properties and ensure maximum light transmission across the entire visual spectrum - especially the upper blue/violet range to enhance low-light vision
- 299' field of view at 1000 yd
- Long 18.8mm eye relief
- Wide 5mm exit pupil
- Use and Handling
-
- Open-bridge/dual-hinge design reduces weight without sacrificing strength and provides more gripping surface area
- Large, tactile focus wheel is easy to find and use, even while wearing gloves
- 58-74mm interpupillary adjustment range
- Right-eye dioptric correction, located on focusing wheel
- Twist-up rubber eyecups for comfortable use with or without eyewear
- Construction Details
-
- Lightweight and durable aluminum chassis
- Nitrogen-filled and O-ring sealed to be waterproof and resistant to internal fogging
- Slip-resistant rubberized armoring protects against light impacts and bumps
- Raised pebble-textured palm-pads improve grip security
- Slim and lightweight ergonomic design provides a comfortable feel in the hand
- Weight: 28 oz
UPC: 030317015480 In the Box Leupold 10x50 BX-4 Pro Guide HD Binocular (Kryptek Typhon Camo) Carrying Case Shoulder Strap 2 x Objective Lens Caps Golden Ring Full Lifetime Warranty (Transferable) Summer Binocular Buying Guide Christopher Witt 07/14/2016 A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 BINOCULAR GUIDE PDF 114.1kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Leupold 10x50 BX-4 Pro Guide HD Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLeupold 172671 Specs | Prism Type | Roof | | Magnification | 10 x | | Objective Lens Diameter | 50 mm | | Angle of View | 5.7° (Actual) | | Field of View | 299.2' @ 1000 yd / 99.7 m @ 1000 m | | Minimum Focus Distance | 9.8' / 3 m | | Exit Pupil Diameter | 5 mm | | Eye Relief | 18.8 mm | | Interpupillary Adjustment | 58 to 74 mm / 2.3 to 2.9" | | Focus Type | Center | | Tripod Mount | None | | Dimensions | Length: 6.6" / 16.8 cm | | Weight | 28.0 oz / 794 g | | | | Package Weight | 2.6 lb | | Box Dimensions (LxWxH) | 7.7 x 6.4 x 3.4" |
