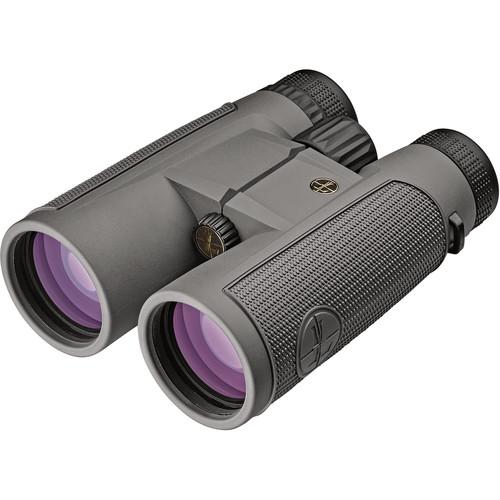

User Manual for Leupold 12x50 BX-1 McKenzie Binocular Click to enlarge the picture
Contents of the user manual for the Leupold 12x50 BX-1 McKenzie Binocular
- Product category: Binoculars Leupold
- Brand: Leupold
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Leupold Binoculars
|
User manual for the Leupold 12x50 BX-1 McKenzie Binocular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Leupold product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Leupold user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Leupold product will considerably shorten its lifespan!
|
Product description The B&H Binocular Buying Guide Read More duxxcu The Leupold 12x50 BX-1 McKenzie Binoculars feature phase-corrected BAK4 roof prisms and anti-reflection fully coated optics that work together to produce a versatile and capable optic with clear, high-contrast images and accurate color rendition. The 50mm objective lenses gather ample light, and the wide exit pupil delivers a bright view in challenging conditions such as the early morning and late evening.Complementing the optical performance are construction details that make these binoculars durable and comfortable to use. The lightweight and durable aluminum alloy chassis is protected by a gray rubberized armor that is textured for a non-slip grip. The optical tubes are nitrogen-filled and O-ring sealed to be waterproof and resistant to internal fogging when moving through extreme changes in temperatures or environmental conditions. A right-eye diopter adjustment and twist-up eyecups allow the binoculars to be customized to most people's needs and can be comfortably used with or without eyewear. For long-term glassing, the McKenzie is tripod mountable with an optional adapter. - Optical Performance
-
- Powerful 12x magnification reveals distant details
- 50mm objective lenses improve light-gathering ability versus smaller objectives while helping to maintain a compact form factor
- Roof prism optical path ensures a low-profile design that is easy to hold
- BAK4 prisms deliver a round exit pupil and a crisp and clear image with limited edge distortion
- Phase-corrected prism coatings reduce internal interference to improve contrast, clarity, and resolution
- Anti-reflection fully coated lenses maximize light transmission for bright and clear images with accurate color rendition
- 242' field of view at 1000 yards
- Use and Handling
-
- Closed bridge configuration offers a stable platform for the internal focusing mechanism
- Large center focus wheel is easy to manipulate in cold or wet conditions, or when wearing gloves
- Right-eye diopter adjustment enables users to compensate for optical prescription for sharper views
- Twist-up eyecups for comfortable use with or without eyewear
- Tripod mountable with optional adapter for hands-free use to eliminate vibration and arm fatigue
- Long 13.7mm eye relief reduces eye strain for easier and more comfortable viewing
- 4.2mm exit pupil
- Construction Details
-
- Lightweight and durable aluminum alloy chassis
- Nitrogen-filled and O-ring sealed to be waterproof and resistant to internal fogging when moving through extreme changes in temperature and environmental conditions
- Shadow Gray rubberized armoring exterior protects against bumps and impacts
- Ergonomically placed textured palm pads provide a non-slip, stable, and comfortable grip
- Weight: 28.5 oz
UPC: 030317017514 In the Box Leupold 12x50 BX-1 McKenzie Binocular Lens Cloth Carrying Case Neck Strap Limited Lifetime Warranty Summer Binocular Buying Guide Christopher Witt 07/14/2016 duxxcu A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 duxxcu Table of Contents
|
Upload User Manual
Have you got an user manual for the Leupold 12x50 BX-1 McKenzie Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLeupold 173790 Specs | Prism Type | Roof | | Magnification | 12 x | | Objective Lens Diameter | 50 mm | | Angle of View | 4.6° (Actual) | | Field of View | 242' @ 1000 yd / 80.344 m @ 1000 m | | Exit Pupil Diameter | 4.2 mm | | Eye Relief | 13.7 mm | | Focus Type | Center | | Tripod Mount | Yes (Adapter Optional) | | Dimensions | Length: 6.7" / 17.0 cm | | Weight | 28.5 oz / 808.0 g | | | | Package Weight | 2.5 lb | | Box Dimensions (LxWxH) | 9.0 x 6.7 x 3.6" |
