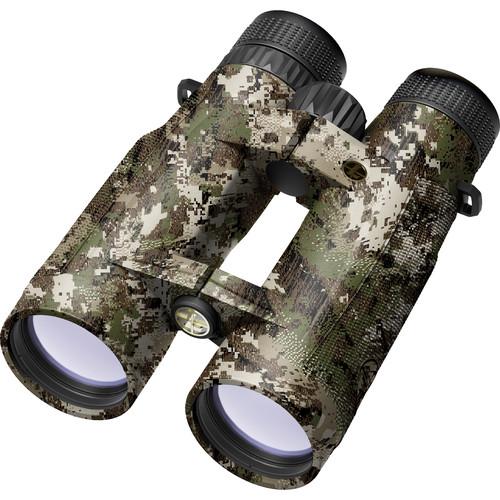

User Manual for Leupold 15x56 BX-5 Santiam HD Binocular Click to enlarge the picture
Contents of the user manual for the Leupold 15x56 BX-5 Santiam HD Binocular
- Product category: Binoculars Leupold
- Brand: Leupold
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Leupold Binoculars
|
User manual for the Leupold 15x56 BX-5 Santiam HD Binocular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Leupold product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Leupold user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Leupold product will considerably shorten its lifespan!
|
Product description The B&H Binocular Buying Guide Read More Sporting over-sized objectives, a powerful magnification, extra-low dispersion glass, and the proprietary Xtended Twilight (XT) Lens System, the Leupold 15x56 BX-5 Santiam HD Binocular, in Sitka Gear Optifade Sub-Alpine camouflage, delivers bright high-contrast images with true-to-life color and crisp clarity even when observing from long distances. Image quality is enhanced through the use of phase-corrected coatings on the prisms, and lenses made of lead-free high-transmittance calcium fluoride glass, which by their nature, limit reflection and increase color fidelity and contrast. The XT system complements the glass through the use of index-matched lens coatings that are specifically engineered for the calcium-fluoride lenses to raise the already high transmittance across the entire visible spectrum — with special emphasis on the blue and violet wavelengths that are most prevalent in low-light, such as at dawn and dusk and under heavily-canopied forests. Its large 56mm objectives gather generous amounts of light to further boost performance in less-than-ideal conditions.Designed to stand up to a life lived outdoors, the optical tubes are nitrogen-filled and O-ring sealed to make them water and fogproof, even when moving through extreme temperature variations. The chassis is made from an aluminum alloy to make it lightweight and corrosion-resistant. And to further cut weight, providing users with more area to grip, Leupold employs an open-bridge configuration with a dual-hinge. For long-duration glassing sessions, or to reduce fatigue and visible hand-shake that are common with high-magnifications and large objectives, the Mojave can be mounted on a tripod or other support systems using the included adapter. - Optical Performance
-
- 15x magnification
- 56mm objectives
- Compact BAK4 Abbe-Koenig roof prism system
- Extra-low dispersion High Definition (HD) lenses improve image clarity, contrast, and color
- Phase-corrected prisms reduce internal light loss
- Lead-free broad-band high-transmittance calcium-fluoride glass lens elements produce bright and clear images with accurate color rendition and improved contrast
- Fully multi-coated optics further improve light transmission, image brightness, color, clarity, and contrast
- Xtended Twilight Lens System employs index-matched multi-coatings that complement the optical glass to ensure maximum light transmission across the entire visual spectrum - especially the upper blue/violet range to enhance low-light vision
- Wide 66° apparent angle of view
- 231' field of view at 1000 yards
- Use and Handling
-
- Open-bridge/dual-hinge configuration reduces weight and provides more surface area for your hand
- Large, knurled center focusing wheel is easy to manipulate in cold or wet conditions, or when wearing gloves
- Locking right-eye dioptric adjustment on focus wheel
- Twist-up click-stop rubber eyecups for comfortable use with or without eyewear
- Long 18mm eye relief
- 3.7mm exit pupil
- Tripod mountable with included tray adapter
- Construction Details
-
- Slim prism design enables smaller hands to grip optical tubes more securely, while allowing for a wide interpupillary distance range
- Bridge design offers a more secure grip without sacrificing strength
- Lightweight and durable aluminum alloy housing
- Nitrogen-filled and O-ring sealed for waterproof and fogproof performance
- Slip-resistant Sitka Gear Optifade Sub-Alpine camouflage rubber armoring
- Weight: 45 ounces
UPC: 030317013967 In the Box Leupold 15x56 BX-5 Santiam HD Binocular (Optifade Sub-Alpine Camo) Binocular Tripod Adapter Tray (Black) zucqtqqbvxbqfztzardvwabwrbebqsebusqy 2 x Objective Lens Caps One-Piece Ocular Rainguard Padded Carrying Case Padded Shoulder Strap Lens Cloth Golden Ring Full Lifetime Warranty (Transferable) Summer Binocular Buying Guide Christopher Witt 07/14/2016 A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 zucqtqqbvxbqfztzardvwabwrbebqsebusqy Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 BINOCULAR GUIDE PDF 114.1kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Leupold 15x56 BX-5 Santiam HD Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLeupold 172458 Specs | Prism Type | Roof | | Magnification | 15 x | | Objective Lens Diameter | 56 mm | | Angle of View | 4.4° (Actual) | | Field of View | 231.0' @ 1000 yd / 77.0 m @ 1000 m | | Minimum Focus Distance | 9.8' / 3 m | | Exit Pupil Diameter | 3.7 mm | | Eye Relief | 18.0 mm | | Interpupillary Adjustment | 55 to 74 mm / 2.2 to 2.9" | | Focus Type | Center | | Tripod Mount | Yes (Adapter Included) | | Dimensions | Length: 8.2" / 20.8 cm | | Weight | 45.0 oz / 1275.8 g | | | | Package Weight | 5.11 lb | | Box Dimensions (LxWxH) | 11.65 x 7.4 x 4.05" |
