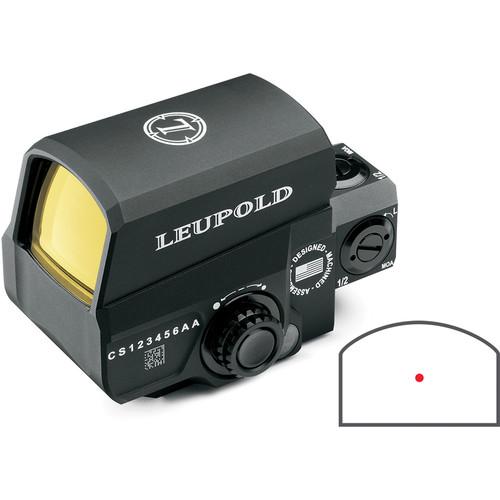

User Manual for Leupold 1x32 LCO Reflex Sight Click to enlarge the picture
Contents of the user manual for the Leupold 1x32 LCO Reflex Sight
- Product category: Red Dot/Holographic Sights Leupold
- Brand: Leupold
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Leupold Red Dot/Holographic Sights
|
User manual for the Leupold 1x32 LCO Reflex Sight contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Leupold product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Leupold user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Leupold product will considerably shorten its lifespan!
|
Product description The Leupold 1x32 LCO Reflex Sight or "Leupold Carbine Optic" has been designed and built for the specific requirements demanded by carbine operators. Its 1x unmagnified 32mm clear aperture allows for convenient both-eyes-open use and enables fast and easy target acquisition and tracking. The minimalistic 1 MOA red dot reticle features 16 manual intensity settings that allow it to be clearly seen in the harshest sunlight, and when dialed down to the lowest output is compatible with NVDs making this a supremely versatile sight. It runs on a single CR123A battery with a maximum runtime of up to five years. Leupold's proprietary DiamondCoat lens coatings resist abrasion while increasing light transmission. The Image clarity is further enhanced with the addition of blackened lens edges.To withstand the rigors of repeated recoils, the housing is made of 6061-T6 aluminum alloy with a corrosion and scratch-resistant matte-black anodized finish. It is nitrogen filled to give it fogproof performance in all weather and temperatures, and is submersible to a depth of up to 66'. An integrated Picatinny rail mount enables users to easily mount, remove, and re-mount with precise repeatability without having to re-zero. - Performance
-
- 1x magnification
- 32mm clear aperture
- Anti-reflection fully multicoated optics
- Proprietary DiamondCoat lens coatings reduce light reflection, increase light transmission, and protect lenses from scratches and abrasions
- Blackened lens edges for increased image clarity
- Use and Handling
-
- 1 MOA red dot
- 16 brightness levels for all light conditions
- Night vision compatible at low intensity settings
- Manual pushbutton on/off switch
- 1/2 MOA per click impact point correction
- 60 MOA windage and elevation adjustment range
- Construction Details
-
- Lightweight 6061-T6 aluminum alloy housing
- Corrosion and scratch-resistant anodized matte black finish
- Nitrogen-filled: Fogproof; Submersible to 66'
- Integrated Picatinny rail mount
- Runs on one CR123A battery with up to 5 year runtime
UPC: 030317006365 In the Box Leupold 1x32 LCO Reflex Sight (1 MOA Red Dot Reticle) Limited 2-Year Warranty Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Leupold 1x32 LCO Reflex Sight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLeupold LCO Specs | | | Reticle | 1 MOA Dot | | Reticle Color | Red | | Power Source | 1 x CR123A | | Runtime | 5 Years | | Mounting | Picatinny / Weaver | | | | Magnification | 1 x | | Objective Lens Diameter | 32 mm | | | | Impact Point Correction | 1/2 MOA | | Windage Adjustment | 60 MOA | | Elevation Adjustment | 60 MOA | | | | Water Resistance | Waterproof | | Fogproof | Yes, Nitrogen Filled | | Material | Aluminum | | Dimensions | L: 3.6" / L: 9.1 cm | | Weight | 9.5 oz / 269.3 g | | | | Package Weight | 0.865 lb | | Box Dimensions (LxWxH) | 7.05 x 4.45 x 3.5" |
