User Manual for Leupold 2-12x42 VX-6HD CDS-ZL2 Riflescope Click to enlarge the picture
Contents of the user manual for the Leupold 2-12x42 VX-6HD CDS-ZL2 Riflescope
- Product category: Riflescopes Leupold
- Brand: Leupold
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Leupold Riflescopes
 |
User manual for the Leupold 2-12x42 VX-6HD CDS-ZL2 Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Leupold product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Leupold user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Leupold product will considerably shorten its lifespan!
|

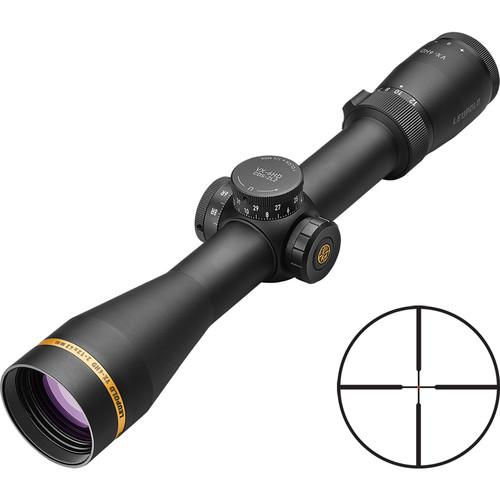

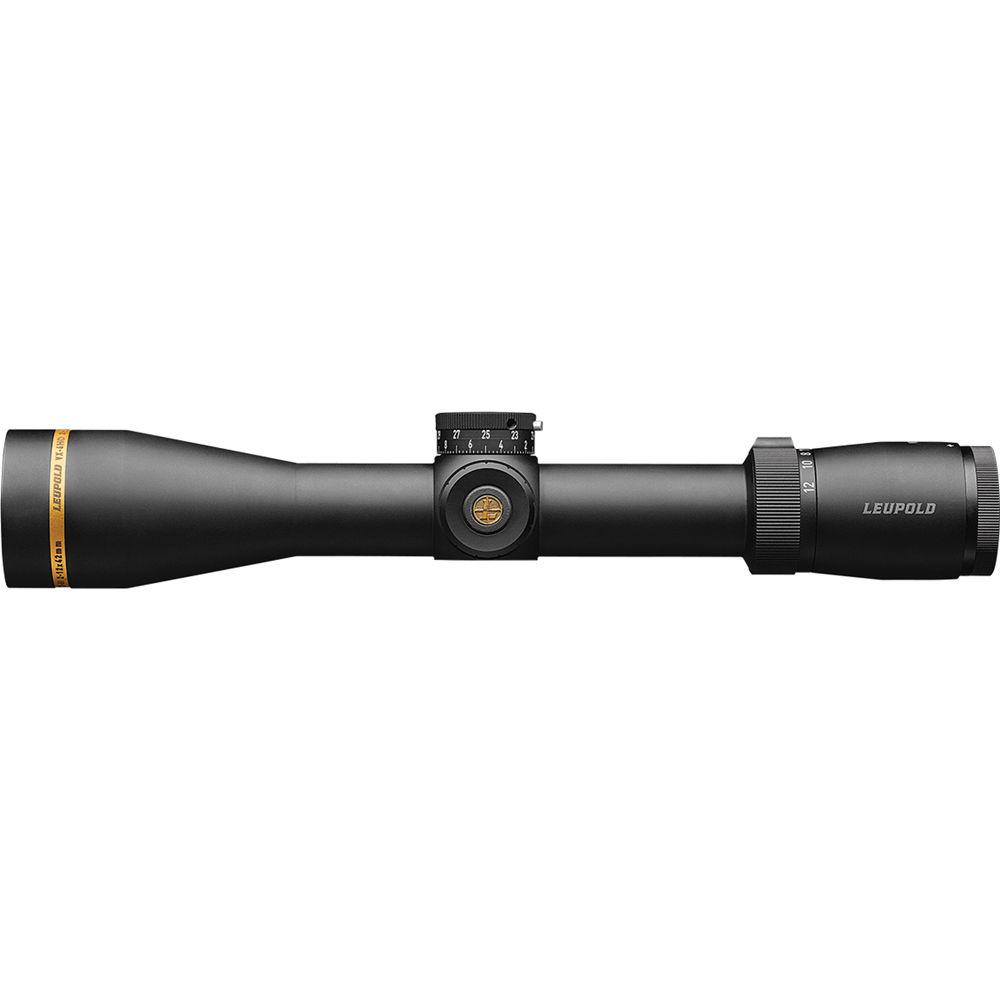

Product description Sporting a magnification range that is ideal for mid- to long-range use, the Leopold 2-12x42 VX-6HD CDS-ZL2 Riflescope features their proprietary Twilight Max Light Management System and Custom Dial System (CDS) turrets to improve performance and shot accuracy. The combination of generous objective lens and Twilight Max Light Management System improve light gathering and transmission throughout the entire visible spectrum—enhancing reds and blues at the spectral edges, while also providing shooters with an ability to see deep into the shadows that come out with the dawn and at twilight.The heart of the riflescope is the CDS turrets that allow you to get custom-set dials matched to your specific ballistics for different ranges so you can quickly and confidently dial in on your target at a variety of distances without guesswork. When you've taken the shot, Leupold's ZeroLock turrets let you return to your zero position without fuss from up to 38 MOA of adjustments to get you ready for the next target. Complementing the turrets is a partially illuminated reticle that is easy to see in all light with enhanced visibility in low light.Designed to withstand the rigors of the hunt, the VX-6HD is built with a robust 30mm one-piece maintube made of lightweight and durable aluminum. Leupold utilizes a proprietary mix of inert argon and krypton gases to fill the housing to make it waterproof and resistant to internal fogging in extreme weather conditions and temperatures. A removable throw lever fits over the zoom collar to make it easy to set the precise magnification even while wearing gloves, and it is reversible to accommodate left- or right-handed shooters. For added convenience and protection, the scope comes with front and rear flip-up covers that allow you to keep the lenses covered while giving you the ability to quickly react when targets present themselves unexpectedly. - Optical Performance
-
- Broad 2-12x zoom magnification range is ideal for mid- to long-range use
- 42mm objective improves low-light performance without adding excessive weight or height above the optic
- Twilight Max HD Light Management System employs index-matched multi-coatings that complement the optical glass to ensure maximum light transmission across the entire visual spectrum, especially the upper blue/violet range, to enhance low-light performance
- Guard-Ion hydrophobic lens coating repels water, dirt, oil, and sap and allows user to keep view clear
- DiamondCoat 2 is an extra layer of coating that defends against external damage and adds to image quality
- Field of view: 57.5-10.2' at 100 yards

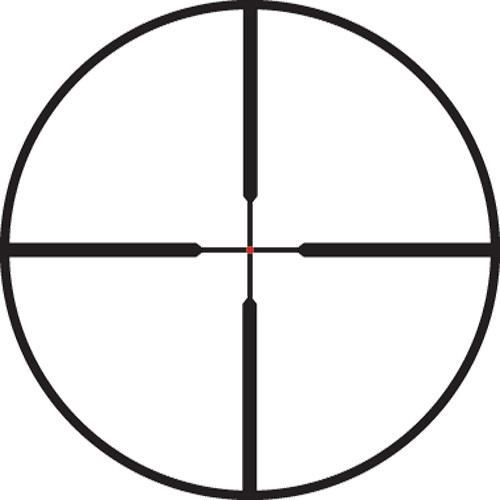

- Reticle Details
-
- 2nd focal plane placement—reticle size remains the same as view changes with zoom
- Electronic Reticle Level indicates when the rifle is being held at an angle by flashing the illuminated portion of the reticle, to improve shot accuracy
- Traditional duplex style is ideal for use at all ranges and magnifications
- Center illuminated red aiming dot draws eye to dead center for easier use in low light
- Thick outer posts are easy to see when targeting at long range
- Thin center aiming hairs won't obstruct small targets
- Motion Sensor Technology (MST) activates the illumination with a single touch of the button or twist of a dial
- Automatic standby mode after five minutes of inactivity
- Use and Handling
-
- Removable and reversible zoom throw lever provides easier magnification adjustments, especially in cold and wet weather or while wearing gloves
- Custom Dial System (CDS) on elevation turret allows user to quickly change the elevation to different preset ranges based on their specific ballistics information, available for free from Leupold after purchase
- ZeroLock 2 (ZL2) elevation and ZeroLock windage dials enable fast and easy return to zero after shooting for faster recover and readjustment from the zero start position
- Precise 1/4 MOA per click impact point correction
- Wide 120 MOA windage and elevation adjustment range is ideal for long-distance use
- Push-button brightness control with eight settings for use in all light conditions
- Generous 3.8" eye relief
- Exceptional 21mm exit pupil on 2x power, 3.5mm at 12x
- Runs on one included CR2032 battery
- Construction Details
-
- Robust 30mm single-piece maintube
- Lightweight and strong 6061-T6 aluminum housing
- Matte black anodized finish reduces glare and blends with all environments
- Twin bias spring erector system ensures optical alignment while providing improved recoil resistance
- Proprietary inert argon-krypton gas mixture injected into housing to make the riflescope waterproof and resistant to internal fogging in extreme conditions
- Flip-back lens covers protect the front and back lenses while providing fast reaction times when targets present themselves unexpectedly
UPC: 030317012373 In the Box Leupold 2-12x42 VX-6HD CDS-ZL2 Riflescope (FireDot Duplex Illuminated Reticle, Matte Black) CR-2032 Battery Zoom Throw Lever 2 x Alumina Flip-Back Lens Covers Limited Lifetime Warranty Limited 2-Year Warranty on Electronics Table of Contents
|
Upload User Manual
Have you got an user manual for the Leupold 2-12x42 VX-6HD CDS-ZL2 Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLeupold 171563 Specs | | | Magnification | 2 to 12x | | Objective Lens Diameter | 42 mm | | Field of View | 2x: 56.5' @ 100 yd / 18.8 m @ 100 m
12x: 10.2' @ 100 yd / 3.4 m @ 100 m | | Exit Pupil Diameter | 2x: 21 mm
12x: 3.5 mm | | Eye Relief | 3.8" / 9.7 cm | | | | Reticle Type | FireDot Duplex Reticle (Second Focal Plane) | | Illumination | Partially Illuminated | | Illuminated Color | Red | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 120 MOA | | Elevation Adjustment | 120 MOA | | | | Water Resistance | Waterproof | | Fogproof | Yes, Argon/Krypton Filled | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Material | Aluminum | | Dimensions | Length: 12.6" / 32 cm | | Weight | 16.8 oz / 476.3 g | | | | Package Weight | 2.01 lb | | Box Dimensions (LxWxH) | 17.15 x 4.55 x 4.0" |
