User Manual for Leupold 2.5-8x32 VX-3 Handgun Scope Click to enlarge the picture
Contents of the user manual for the Leupold 2.5-8x32 VX-3 Handgun Scope
- Product category: Riflescopes Leupold
- Brand: Leupold
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Leupold Riflescopes
 |
User manual for the Leupold 2.5-8x32 VX-3 Handgun Scope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Leupold product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Leupold user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Leupold product will considerably shorten its lifespan!
|

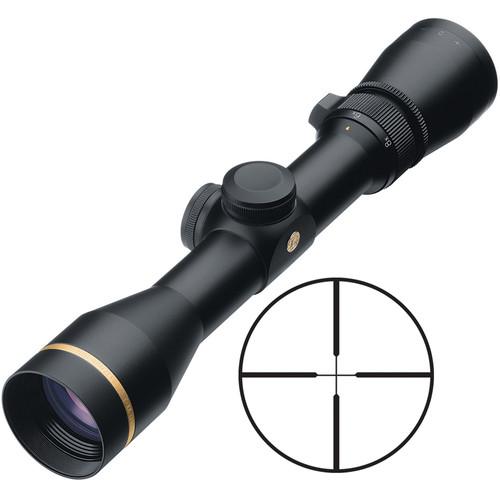

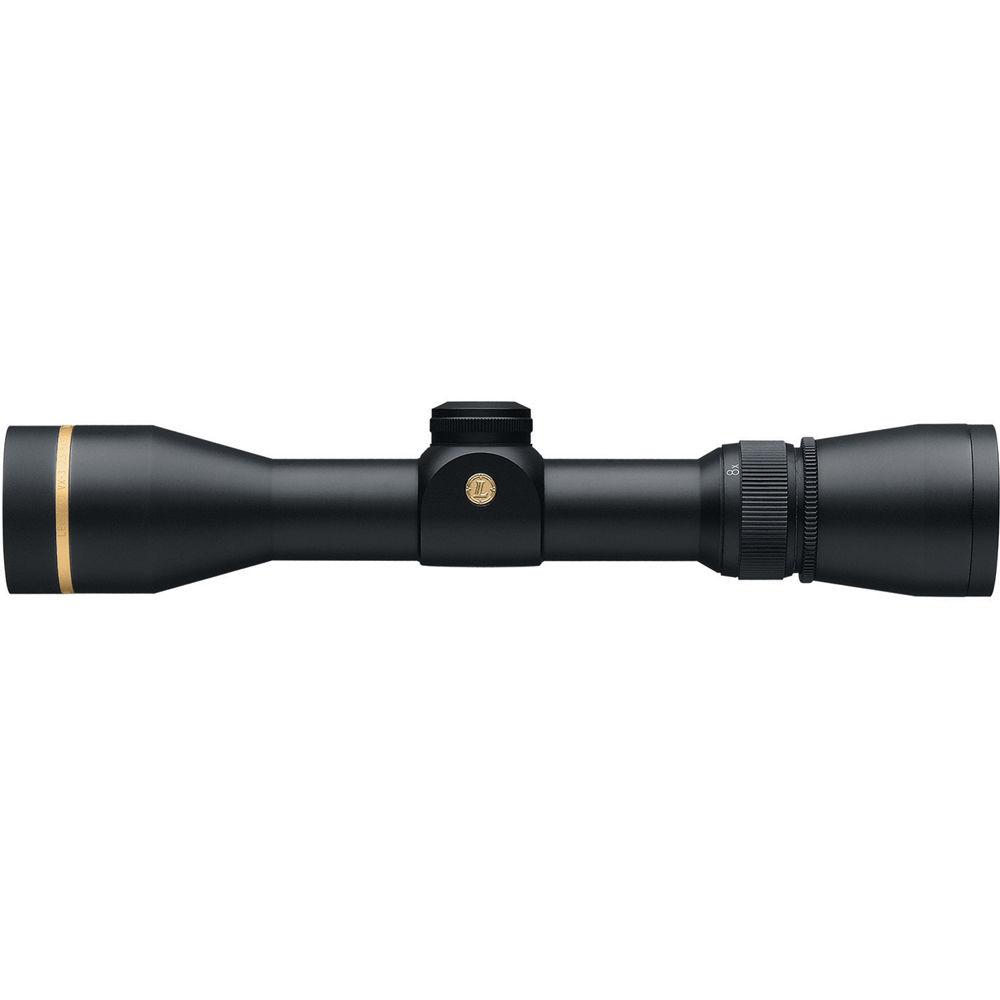

Product description Leupold designed the 2.5-8x32 VX-3 Handgun Scope for handguns by outfitting it with a generous 15" eye relief and capabilities to withstand the toughest of conditions, carrying out the most demanding tasks. The optical system was engineered to provide superior performance and features Leupold's proprietary Xtended Twilight coatings that increases transmission of blue and violet light for improved visibility in low-light conditions such as dusk or dawn, making target recognition easier on dark, shadowy backgrounds. The external lens surfaces were treated with the ion-assisted DiamondCoat 2 process that hardens the lens surface for durability and protection against debris and abrasion. It also increases overall transmission of light through the optical system.

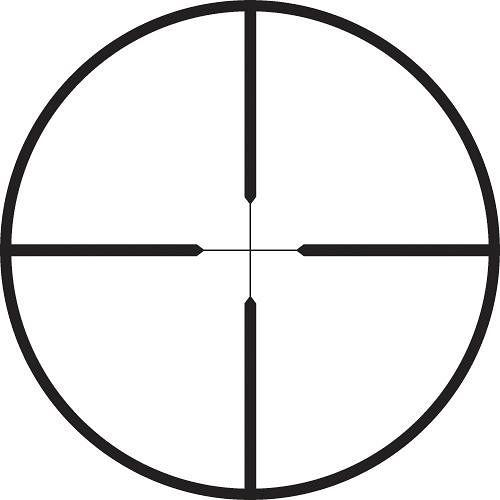

The Duplex reticle is defined by heavy posts and a thin crosshair that are easily visible on any background or in twilight. Because of its location in the second focal plane, the reticle will remain the same in size as you change zoom factor.
Complementing the advanced optical system, this riflescope also features a solid and precise opto-mechanical construction. The housing is made from 6061-T6 aluminum and features a 1" single-piece maintube and a proprietary argon-krypton gas filling for a waterproof and fogproof performance. Also noteworthy is the twin bias spring erector system that provides more holding force to withstand recoil. To protect the optics during transport, this optic includes a neoprene scope cover. - Duplex Reticle
-
- 2nd focal plane
- Four tapered posts
- Thin crosshair
- Optical Performance
-
- Fully multi-coated optics
- 32mm objective lens diameter
- 1.9-7.5x actual magnification
- Xtended Twilight Lens System:
- Improves transmission of blue and violet
- Improves target recognition in low light
- DiamondCoat 2 lens protection:
- Ion-assisted coating provides surface hardness and durability
- Protects from scratches and abrasions
- Increases transmission of light
- Use and Handling
-
- 110 MOA windage and elevation ranges
- 1/4 MOA impact point correction
- Construction
-
- 1" single-piece maintube
- Aluminum alloy housing
- Easy-to-turn power selector on eyepiece
- Capped, finger-operated turrets
- Twin Bias Spring, 3x erector system
- Fogproof with argon-krypton gas mix
- Waterproof
UPC: 030317678258 In the Box Leupold 2.5-8x32 VX-3 Handgun Scope (Duplex Reticle, Matte Black) - Scope Cover
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Leupold 2.5-8x32 VX-3 Handgun Scope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLeupold 67825 Specs | | | Magnification | 2.5 to 8x | | Objective Lens Diameter | 32 mm | | Field of View | 2.5x: 13' @ 100 yd / 4.3 m @ 100 m
8x: 4.8' @ 100 yd / 1.6 m @ 100 m | | Exit Pupil Diameter | 2.5x: 16.8 mm
8x: 4.3 mm | | Eye Relief | 15" / 381 mm | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 110 MOA | | Elevation Adjustment | 110 MOA | | | | Water Resistance | Waterproof | | Fogproof | Yes | | | | Maintube Diameter | 1" | | Battery | None | | Dimensions | Length: 11.4" / 28.9 cm | | Weight | 10.9 oz / 309 g | | | | Package Weight | 1.235 lb | | Box Dimensions (LxWxH) | 14.1 x 3.75 x 2.95" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 22 owners. Add your rating and experience with the product.
