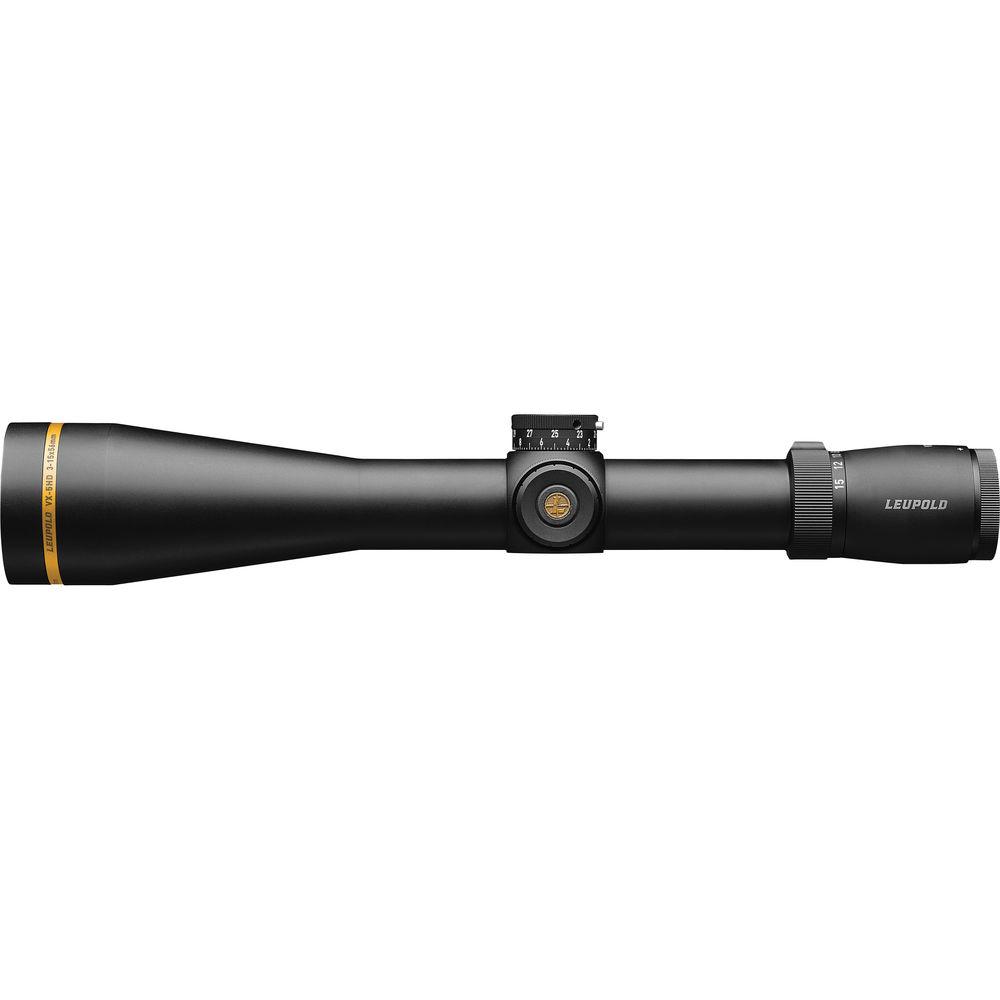

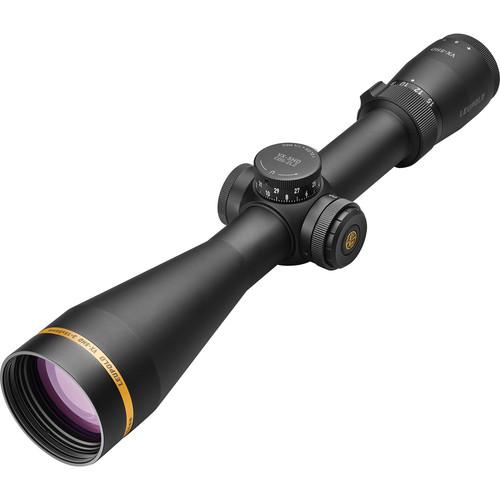

User Manual for Leupold 3-15x56 VX-5HD CDS-ZL2 Side Focus Riflescope Click to enlarge the picture
Contents of the user manual for the Leupold 3-15x56 VX-5HD CDS-ZL2 Side Focus
- Product category: Riflescopes Leupold
- Brand: Leupold
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Leupold Riflescopes
 |
User manual for the Leupold 3-15x56 VX-5HD CDS-ZL2 Side Focus contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Leupold product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Leupold user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Leupold product will considerably shorten its lifespan!
|
Product description Leupold takes low-light optical performance to a new level with its 3-15x56 VX-5HD CDS-ZL2 Riflescope by combining High-Definition (HD) optical glass, the Twilight Max Light Management System, and an extra-wide 56mm objective aperture. While the Twilight Max coatings allow more blue and red light to balance colors and improve contrast in low-light conditions, the HD optical glass reduces color distortion and maintains true color in generated images. The exterior optical surfaces are also treated with scratch-resistant Guard-Ion Rain Shedding Coatings, which repel water droplets, dirt, and oil. To improve aiming accuracy, the second image plane contains an illuminated FireDot 4 Fine reticle. The reticle's pattern features three posts, a thin crosshair, and a brilliant red target dot.The illumination system provides adjustable brightness and a motion-activated on/off control—the Motion Control Sensor Technology (MTS). This function deactivates the illumination after 5 minutes of stillness and reactivates it when you move your gear again. Another highlight is the included Custom Dial System ZeroLock 2 Elevation Dial (CDS-ZL2), which enables slip-free, lockable elevation settings that prevent accidental rotation away from zero. The dial features a pinch release button on the top and a 38 MOA adjustment with 1/4 MOA click values.
To protect delicate alignment of the optical elements for years of service, the housing is crafted from 6061-T6 aluminum and features a single-piece 30mm maintube. It is waterproof, fogproof, and filled with an argon/krypton mixture to reduce the effect of thermal shock. Its opto-mechanics also provide a twin bias erector system to increase holding force and to reduce backlash. - Optical Performance
-
- 3-15x magnification
- 56mm extra-wide objective offers superior light-gathering capacity
- High-Definition (HD) optical glass
- Twilight Max Light Management System allows more red and blue light and improves contrast
- Guard-Ion rain shedding coating protects against scratches and repels water, dirt, and oil
- Optimized for low-light performance
- 38.2 - 7.9' at 100 yd linear field of view
- Use and Handling
-
- 1/4 MOA impact point correction
- 75 MOA maximum windage/elevation adjustment range
- 18.7 - 3.7mm exit pupil
- 3.7" eye relief

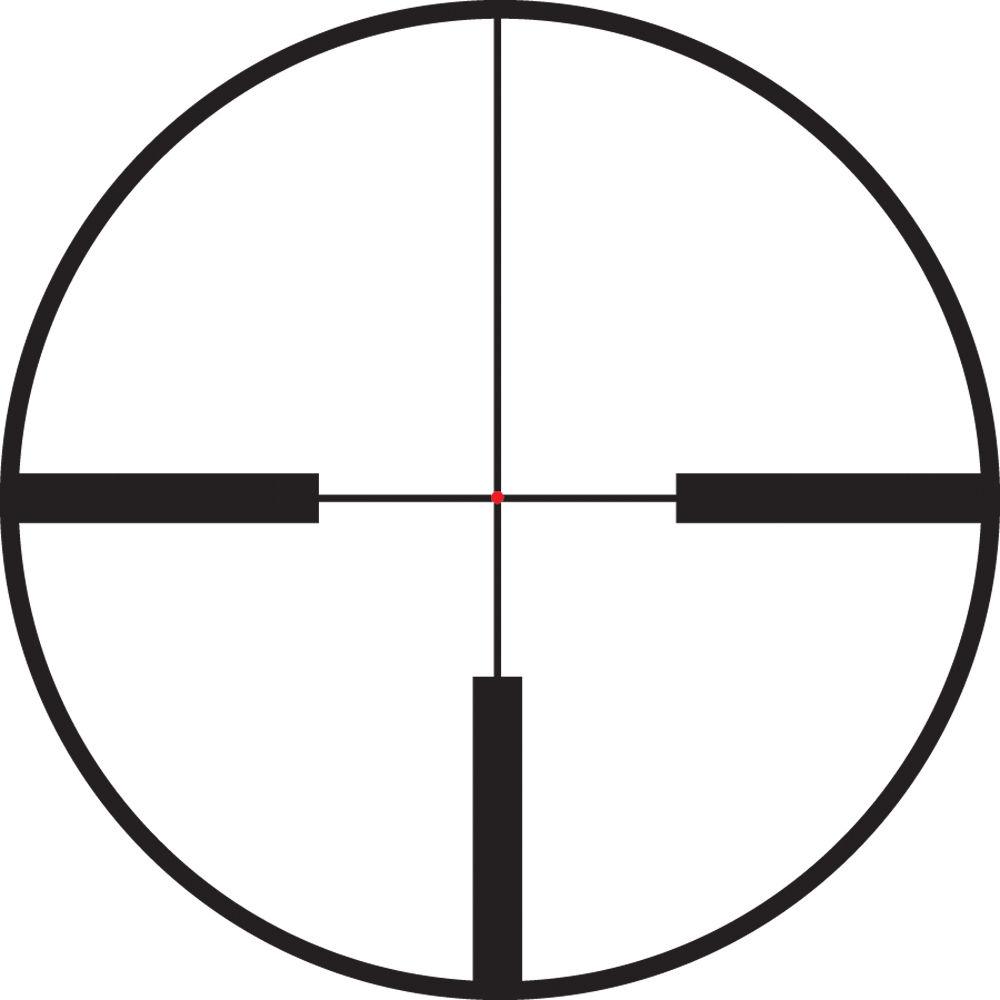

- Illuminated FireDot 4 Fine Reticle
-
- Second focal plane
- Three posts
- Thin crosshair
- Brilliant red fine target dot
- Adjustable illumination
- Motion Sensor Technology (MTS) provides motion-activated control of reticle illumination
- Parallax-free from 50 yards to infinity
- CDS-ZL2—Custom Dial System ZeroLock 2 Elevation Dial
-
- Graduated lockable dial
- Prevents accidental rotation away from zero
- Pinch release button
- 38 MOA adjustment range
- Construction
-
- 30mm diameter maintube
- Lightweight and durable 6061-T6 aluminum housing
- Pop-up re-zero windage knobs offer easy adjustments and re-zeroing without tools
- Twin bias erector system increases holding force and reduces backlash in the gear
- Second-generation argon/krypton fill protects from thermal shock
- Side focus parallax corrector
- Water and fogproof
- Impact resistant
UPC: 030317020439 In the Box Leupold 3-15x56 VX-5HD CDS-ZL2 Side Focus Riflescope (FireDot 4 Fine Illuminated Reticle, Matte Black) CR-2032 Battery Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Leupold 3-15x56 VX-5HD CDS-ZL2 Side Focus Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLeupold 175834 Specs | | | Magnification | 3 to 15x | | Objective Lens Diameter | 56 mm | | Field of View | 3x: 38.2' @ 100 yd / 12.7 m @ 100 m
15x: 7.9' @ 100 yd / 2.5 m @ 100 m | | Exit Pupil Diameter | 3x: 18.7 mm
15x: 3.7 mm | | Eye Relief | 3.7" / 96 mm | | | | Reticle Type | FireDot 4 Fine Reticle (Second Focal Plane) | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 75 MOA | | Elevation Adjustment | 75 MOA | | Parallax Correction | Yes, 50 yd / 45.7 m to Infinity | | | | Water Resistance | Waterproof | | Fogproof | Yes, Argon/Krypton Filled | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 13.5" / 34.3 cm | | Weight | 22.3 oz / 632 g | | | | Package Weight | 2.175 lb | | Box Dimensions (LxWxH) | 17.1 x 4.6 x 3.85" |
