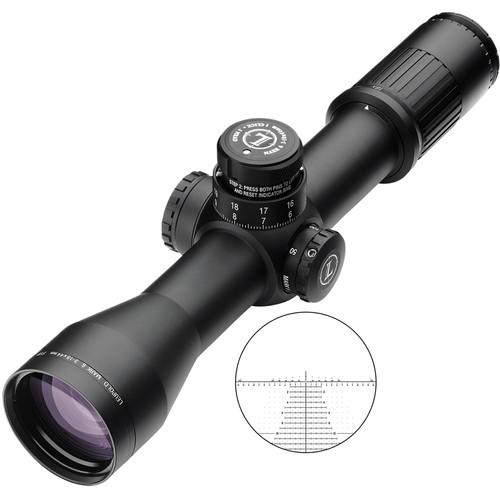

User Manual for Leupold 3-18x44 Mark 6 M5B2 Riflescope Click to enlarge the picture
Contents of the user manual for the Leupold 3-18x44 Mark 6 M5B2 Riflescope
- Product category: Riflescopes Leupold
- Brand: Leupold
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Leupold Riflescopes
|
User manual for the Leupold 3-18x44 Mark 6 M5B2 Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Leupold product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Leupold user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Leupold product will considerably shorten its lifespan!
|
Product description The 3-18x44 Mark 6 M5B2 Riflescope from Leupold features a weather-sealed housing, 34mm optical path and an illuminated Horus 59 first plane reticle. Leupold's Xtended Twilight multi-layer lens coatings provide maximum light transmission and image clarity. Blackened lens edges also help to improve image contrast by reducing glare within the lens system.Complementing the advanced optical system and broad zoom range, this Mark 6 series scope is configured with a durable housing that is built to endure regular use in unforgiving conditions. The scope's one-piece aluminum tube is weather-sealed and filled with an argon-krypton gas mixture that that provides greater thermal stability and fogproof protection than conventional nitrogen gas. Additionally, the spring-loaded erector system enables a generous impact point correction range; it also helps the windage and elevation turrets maintain zero even after repeated recoil.This Mark 6 features the Horus H59 reticle. This reticle system, developed by Horus Vision, is a precise reticle with a uniform grid etched on glass. The design and layout of the reticle features a built-in rangefinder to provide the rifleman a clear picture and numeric information about the target. It is optimized for extreme long range use, especially in low-light conditions. The reticle features a wide lower horizontal grid in 1-mil increments for increased wind holdover. The center cross has been "broken" so groupings are less obscured. - Optical Performance
-
- Magnification: 3-18x
- Objective lens: 44mm diameter
- Main tube diameter: 34mm
- Eye relief: 3.8-3.9"
- Lead-Free Glass: Eco-friendly materials and production process
- Quantum Optical System: Index matched elements with Xtended Twilight coatings
- Reticle: TMR ballistic with wind drift, bullet compensation marks in various mil increments
- Horus 59 Reticle
-
- Horus H59 reticle: precise reticle with a uniform grid etched on glass; built-in rangefinder, wide lower horizontal grid in 1-mil increments for increased wind holdover; center cross "broken" so groupings are less obscured.
- First (front) focal plane
- Use and Handling
-
- 0.1 mrad impact point correction
- 50 MOA windage, 90 MOA elevation adjustment range
- Pinch-and-Turn locking windage/elevation turrets
- Fast focus eyepiece with position lock
- 12-level reticle brightness control
- Intermediate position reticle-Off settings
- Construction Details
-
- One-piece aluminum housing
- Argon/Krypton-filled for improved weather-sealing
- DiamondCoat 2 hard coat protects exposed lens surfaces
- Weight: 23.6 oz
UPC: 030317005269 In the Box Leupold 3-18x44 Mark 6 M5B2 Riflescope (Horus 59 Reticle) Limited 2-Year Warranty Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Leupold 3-18x44 Mark 6 M5B2 Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLeupold 119213 Specs | | | Magnification | 3 to 18x | | Objective Lens Diameter | 44 mm | | Field of View | 3x: 36.8' @ 100 yd / 12.3 m @ 100 m
18x: 6.3' @ 100 yd / 2.1 m @ 100 m | | Exit Pupil Diameter | 3x: 14.6 mm
18x: 2.4 mm | | Eye Relief | 3.8 to 3.9" / 96.5 to 99.1 mm | | | | Reticle Type | Horus 59 Reticle | | | | Impact Point Correction | 1/10 MRAD per Click | | Windage Adjustment | 50 MOA | | Elevation Adjustment | 100 MOA | | Parallax Correction | Yes, 150 yd / 137.2 m | | | | Water Resistance | Waterproof | | Fogproof | Yes | | | | Maintube Diameter | 34 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 11.9" / 30 cm | | Weight | 23.6 oz / 669 g | | | | Package Weight | 2.3 lb | | Box Dimensions (LxWxH) | 17.0 x 4.1 x 3.4" |
