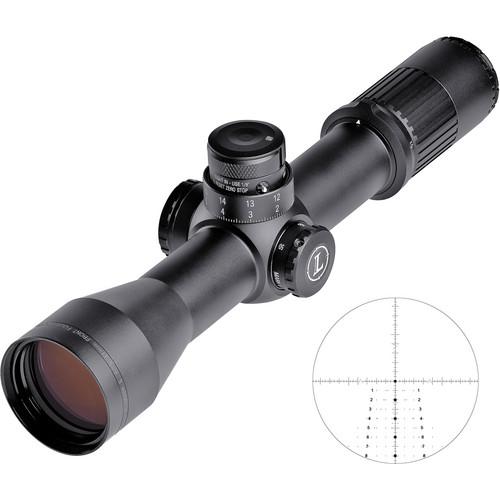

User Manual for Leupold 3-18x44 Mark 6 M5C2 Tactical Riflescope Click to enlarge the picture
Contents of the user manual for the Leupold 3-18x44 Mark 6 M5C2 Tactical
- Product category: Riflescopes Leupold
- Brand: Leupold
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Leupold Riflescopes
|
User manual for the Leupold 3-18x44 Mark 6 M5C2 Tactical contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Leupold product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Leupold user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Leupold product will considerably shorten its lifespan!
|
Product description The 3-18x44 Mark 6 M5C2 Riflescope from Leupold features a weather-sealed housing, 34mm maintube and a TREMOR 2 first plane reticle. Leupold's uses index-matched, lead-free glass and Xtended Twilight multi-layer lens coatings to provide maximum light transmission and image clarity. Blackened lens edges also help to improve image contrast by reducing glare within the lens system.Complementing the advanced optical system and broad zoom range, this Mark 6 series scope is configured with a durable housing that is built to endure regular use in unforgiving conditions. The scope's one-piece aluminum maintube is weather-sealed and filled with an argon-krypton gas mixture that provides greater thermal stability and fogproof protection than conventional nitrogen gas. Additionally, the spring-loaded erector system enables a generous impact point correction range; it also helps the windage and elevation turrets maintain zero even after repeated recoil.This Mark 6 features features Horus Vision's advanced TREMOR 2 reticle, which has markings on both axes in various increments to help calculate target size and distance, as well as assist wind drift and bullet drop compensation throughout the scope's zoom range. - Optical Performance
-
- Magnification: 3-18x
- Objective lens: 44mm diameter
- Maintube diameter: 34mm
- Eye relief: 3.8-3.9"
- Lead-Free Glass: Eco-friendly materials and production process
- Quantum Optical System: Index matched elements with Xtended Twilight coatings
- Reticle
-
- Horus Vision's Advanced TREMOR 2 reticle: markings on both axes in various increments to help calculate target size and distance, as well as assist wind drift and bullet drop compensation throughout the scope's zoom range
- First focal plane
- Use and Handling
-
- 0.1 mil impact point correction
- 15 mil windage, 26 mil elevation adjustment range
- Pinch-and-Turn locking windage/elevation turrets
- Fast-focus eyepiece with position lock
- Construction Details
-
- One-piece aluminum housing
- Argon/Krypton-filled for improved weather-sealing
- DiamondCoat 2 hard coat protects exposed lens surfaces
- Weight: 23.6 oz
UPC: 030317002497 In the Box Leupold 3-18x44 Mark 6 M5C2 Tactical Riflescope (TREMOR 2 Reticle) Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Leupold 3-18x44 Mark 6 M5C2 Tactical Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLeupold 117876 Specs | | | Magnification | 3 to 18x | | Objective Lens Diameter | 44 mm | | Field of View | 3x: 36.8' @ 100 yd / 12.3 m @ 100 m
18x: 6.3' @ 100 yd / 2.1 m @ 100 m | | Exit Pupil Diameter | 3x: 14.7 mm
18x: 2.4 mm | | Eye Relief | 3.8 to 3.9" / 96.5 to 99.1 mm | | | | Reticle Type | TREMOR 2 Reticle | | | | Impact Point Correction | 0.1 MIL per Click | | Windage Adjustment | 15 MIL | | Elevation Adjustment | 26 MIL | | Parallax Correction | Yes, 150 yd / 137.2 m | | | | Water Resistance | Waterproof | | Fogproof | Yes | | | | Maintube Diameter | 34 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 11.9" / 30 cm | | Weight | 23.6 oz / 669 g | | | | Package Weight | 2.25 lb | | Box Dimensions (LxWxH) | 17.3 x 4.0 x 3.4" |
