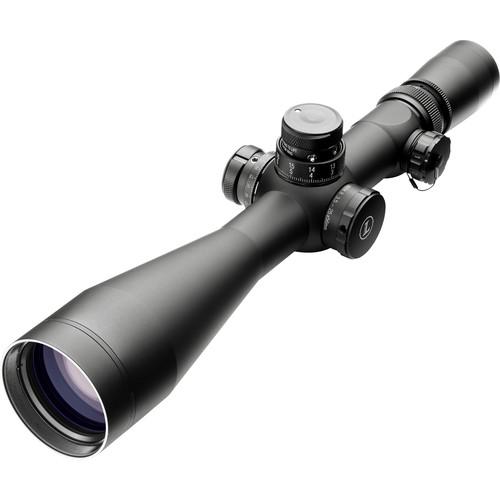

User Manual for Leupold 3.5-25x56mm Mark 8 M5B2 Riflescope Click to enlarge the picture
Contents of the user manual for the Leupold 3.5-25x56mm Mark 8 M5B2 Riflescope
- Product category: Riflescopes Leupold
- Brand: Leupold
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Leupold Riflescopes
|
User manual for the Leupold 3.5-25x56mm Mark 8 M5B2 Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Leupold product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Leupold user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Leupold product will considerably shorten its lifespan!
|
Product description Leupold's matte black Mark 8 3.5-25x56mm M5B2 Riflescope features a front focal Tremor 3 illuminated reticle and a 35mm tube. The Xtended Twilight Lens System places extra emphasis on matching coatings to glass indices to achieve the transmission of the blue/violet spectrum, without sacrificing the color balanced light transmission across the visual spectrum of the Index Matched Lens System.
The M5B2 Auto-Locking Pinch and Turn Adjustment unlocks when you grip it to adjust. It comes with a tactile revolution counter that allows you to easily adjust windage and elevation while preventing accidental changes in the field. (1/10th mil per click - 20 mils/2 revolutions total).
With a 25x zoom range, the riflescope offers a wide field of view at lower magnifications and improved long-range target discrimination at higher powers. The 56mm objective and locking fast focus eyepiece yield a forgiving eyebox throughout the entire zoom range. Illuminated front focal plane reticle allows for accurate ranging and shot correction at any magnification under any lighting conditions. The 7 illumination brightness settings, with an off position between each setting, extend battery life and are compatible with night vision devices.
A durable 35mm maintube creates over 25 milliradians of total elevation adjustment. The elevation dial features a two turn zero stop with a tactile revolution indicator providing 20 mils of travel (10 mils per revolution) and eliminates under or over rotating the dial. The Quick change BDC (Bullet Drop Compensation) rings allow the scope to be matched to any ammunition for long range precision. In addition, the riflescope is completely waterproof and fog proof. In the Box Leupold 3.5-25x56mm Mark 8 M5B2 Riflescope (Tremor 3 Reticle, Matte Black) Leupold Gold Ring Full Lifetime Guarantee Table of Contents
|
Upload User Manual
Have you got an user manual for the Leupold 3.5-25x56mm Mark 8 M5B2 Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLeupold 170813 Specs | | | Magnification | 3.5 to 25x | | Objective Lens Diameter | 56 mm | | Field of View | 3.5x: 32.5' @ 100 yd / 10.8 m @ 100 m
25x: 4.4' @ 100 yd / 1.6 m @ 100 m | | Exit Pupil Diameter | 3.5x: 8 mm
25x: 2.2 mm | | Eye Relief | 3.7 to 3.3" / 93.8 to 82.9 mm | | | | Reticle Type | Tremor 3 Reticle (First Focal Plane) | | Illumination | Illuminated | | | | Windage Adjustment | 50 MOA | | Elevation Adjustment | 90 MOA | | | | Maintube Diameter | 34 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 16" / 406 mm
Eyepiece Diameter: 1.7" / 43.2 mm
Objective Diameter: 2.7" / 68.6 mm | | Weight | 37 oz / 1049 g |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 36 owners. Add your rating and experience with the product.
