Leupold 3-9x40 Mark AR MOD 1

Search your instruction manual in PDF to download

User Manual for Leupold 3-9x40 Mark AR MOD 1 Riflescope

Click to enlarge the picture
Leupold 3-9x40 Mark AR MOD 1 Riflescope Contents of the user manual for the Leupold 3-9x40 Mark AR MOD 1
  • Product category: Riflescopes Leupold
  • Brand: Leupold
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Leupold Riflescopes

Leupold 3-9x40 Mark AR MOD 1 Riflescope Leupold 3-9x40 Mark AR MOD 1 Riflescope
User manual for the Leupold 3-9x40 Mark AR MOD 1 contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Leupold product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Leupold user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Leupold product will considerably shorten its lifespan!



Product description

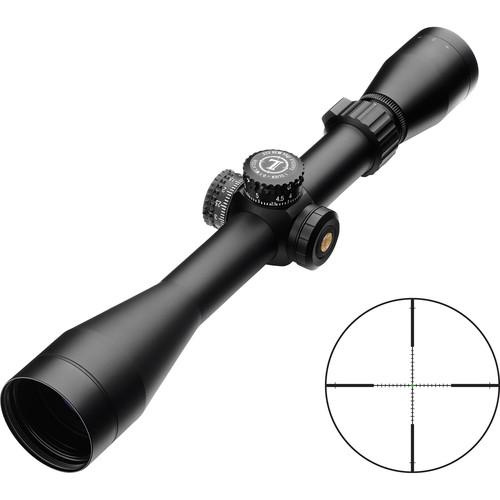

Leupold built the Mark AR MOD 1 3-9x40 Riflescope for short-to-medium-range shooting and outfitted it with a P5 BDC elevation dial for a .223/5.56, 55-grain FMJ projectile with a muzzle velocity of 3100 feet per second. The optical system features 3-9x zoom, Mulitcoat 4 anti-reflection coatings that reduce glare and increase transmission, and a linear field of view range of 33.5-14.1' at 100 yards. To help you compensate for wind drift and ballistic bullet drop, the scope offers a 60 MOA windage and elevation adjustment range with a 1/10 MIL impact point correction.

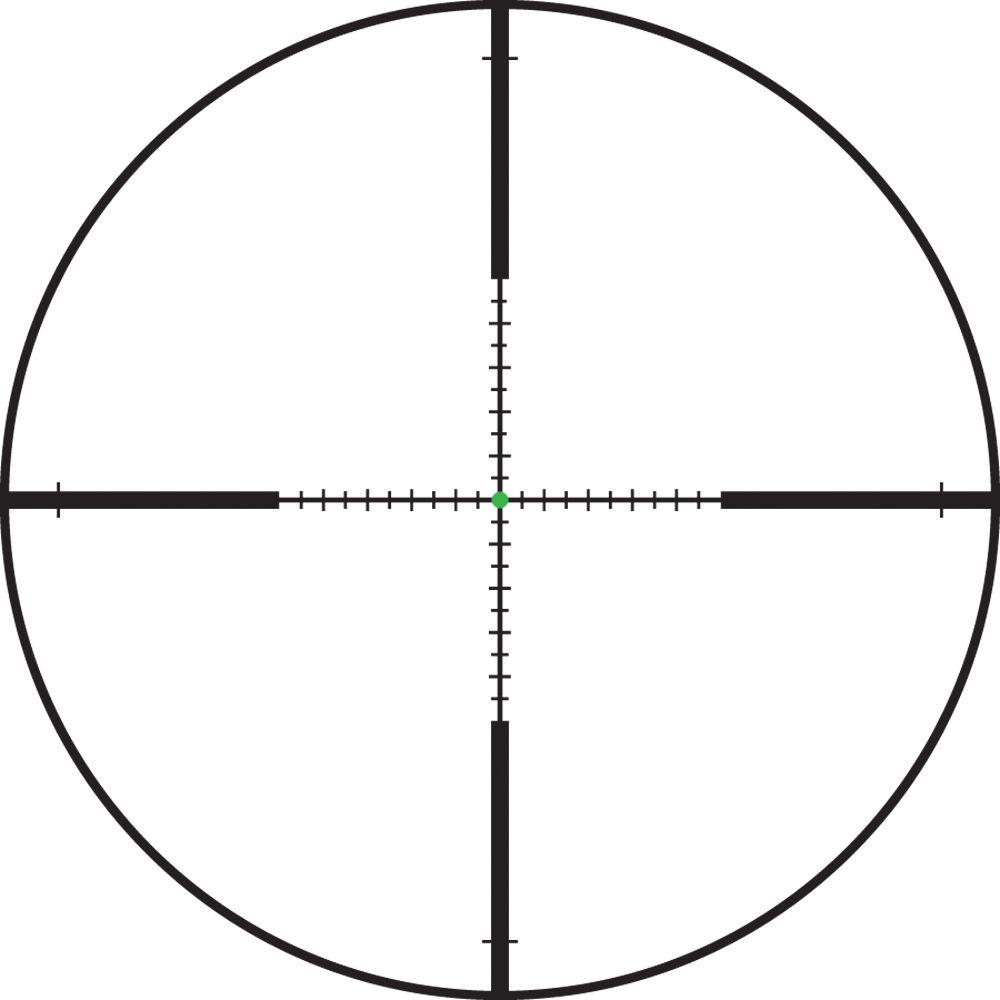

Expanding on the traditional Mil Dot, the Illuminated FireDot-G Tactical Milling Reticle features an illuminated green center dot. For increased ranging precision and accuracy, its hash marks are spaced at 0.5 MIL increments along the vertical and horizontal stadia. The green center dot is visible during day or night. Because of its location in the second focal plane, the reticle will remain the same in size as you change the zoom factor.

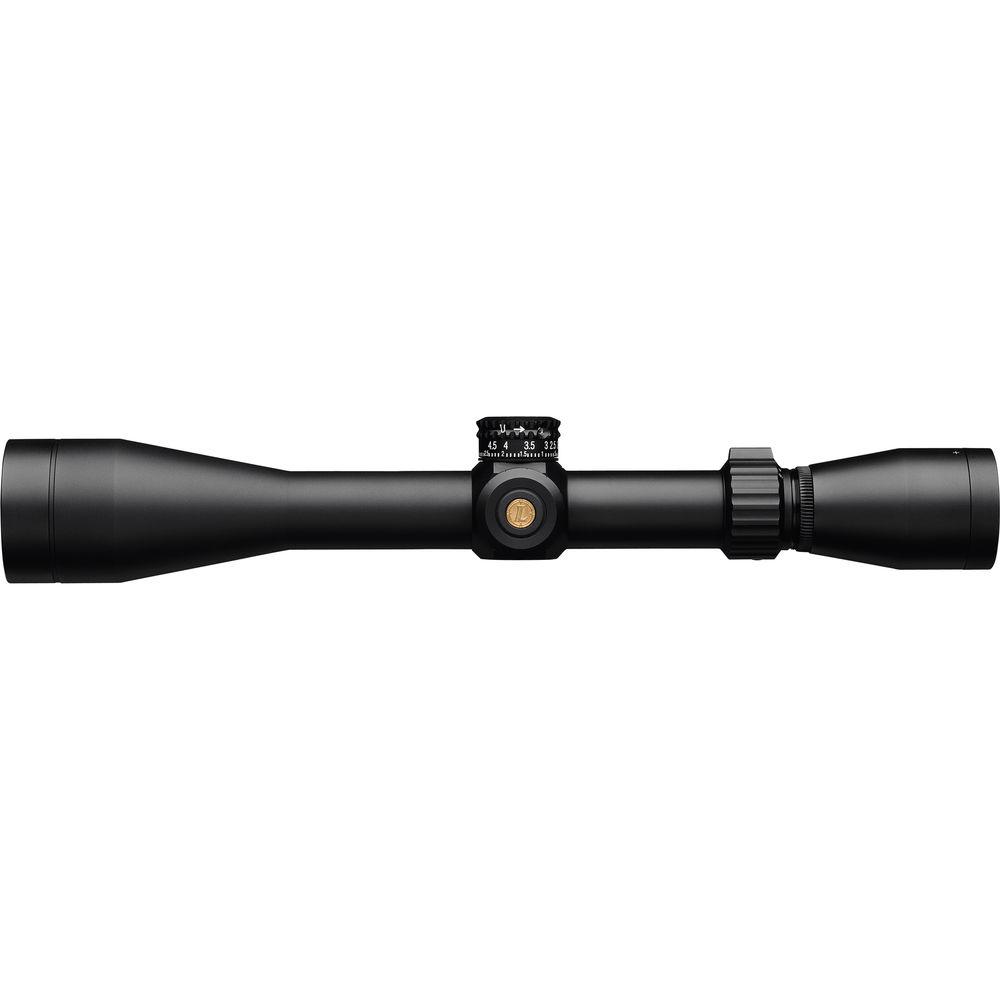

The aluminum housing is lightweight, durable, waterproof, and argon-krypton-filled fogproof. It is compatible with 1" riflescope mounting rings and has a lockable fast focus eyepiece with a low-profile tactile zoom lever, which helps you with an instant one-finger zoom adjustment.
    Optical Performance
    • Actual magnification: 3-9x
    • Objective lens diameter: 40mm
    • Maintube diameter: 1"
    • Linear field of view is 33.5-14.1' at 100 yards
    • Eye relief: 4.3-3.6"
    • Proprietary Multicoat 4 anti-glare coatings minimize reflections of the sky and maximize transmission
      Use and Handling
      • 1/10 MIL impact point correction
      • 60 MOA windage and elevation adjustment ranges
        Construction Details
        • 1" single-piece maintube
        • Aluminum housing with matte black finish
        • Oversized knurled knobs for non-slip tuning
        • Exposed, tactical P5 elevation adjustment turret for .223/5.56, 55gr FMJ
        • Low-profile tactile zoom lever allows fast one-finger operation
        • Elevation dial knob is graduated and knurled for a sure grip
        • Fogproof: filled with argon and krypton
        • Waterproof
          Illuminated FireDot-G TMR Reticle
          • Second focal plane
          • Four posts
          • Crosshair with vertical and horizontal stadia with 0.5 MIL intervals
          • Green fiber-optic illuminated target dot
          • Intended for use at 9x magnification
          • Motion Sensor Technology (MST): motion-sensing reticle on & off switch
          UPC: 030317153700 In the Box Leupold 3-9x40 Mark AR MOD 1 Riflescope (Illuminated FireDot-G TMR Reticle, Matte Black)
        • CR2032 Battery
        • Limited Lifetime Warranty
        Table of Contents




Upload User Manual

Have you got an user manual for the Leupold 3-9x40 Mark AR MOD 1 Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Upload PDF user manual Upload DOC user manual
Please enter here the link to the user manual of this product:





OR

Enter here the file with the user manual of this product from your computer/phone:
(60MB max; Permitted formats: pdf, docx, jpg)

0%


Technical parameters

Leupold 115370 Specs

Magnification 3 to 9x
Objective Lens Diameter 40 mm
Field of View 3x: 33.5' @ 100 yd / 10.2 m @ 100 m
9x: 14.1' @ 100 yd / 4.3 m @ 100 m
Exit Pupil Diameter 3x: 13.3 mm
9x: 4.4 mm
Eye Relief 3.6 to 4.3" / 91.4 to 109.2 mm
Reticle Type FireDot-G TMR Reticle (Second Focal Plane)
Illumination Illuminated
Impact Point Correction 1/10 MIL per Click
Windage Adjustment 60 MOA
Elevation Adjustment 60 MOA
Water Resistance Waterproof
Fogproof Yes
Maintube Diameter 1"
Battery 1 x CR2032
Dimensions Length: 12.6" / 32 cm
Weight 12.9 oz / 366 g
Package Weight 1.33 lb
Box Dimensions (LxWxH) 14.15 x 3.7 x 2.95"
