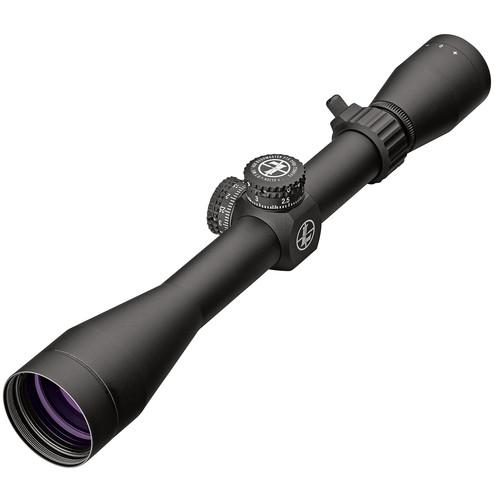

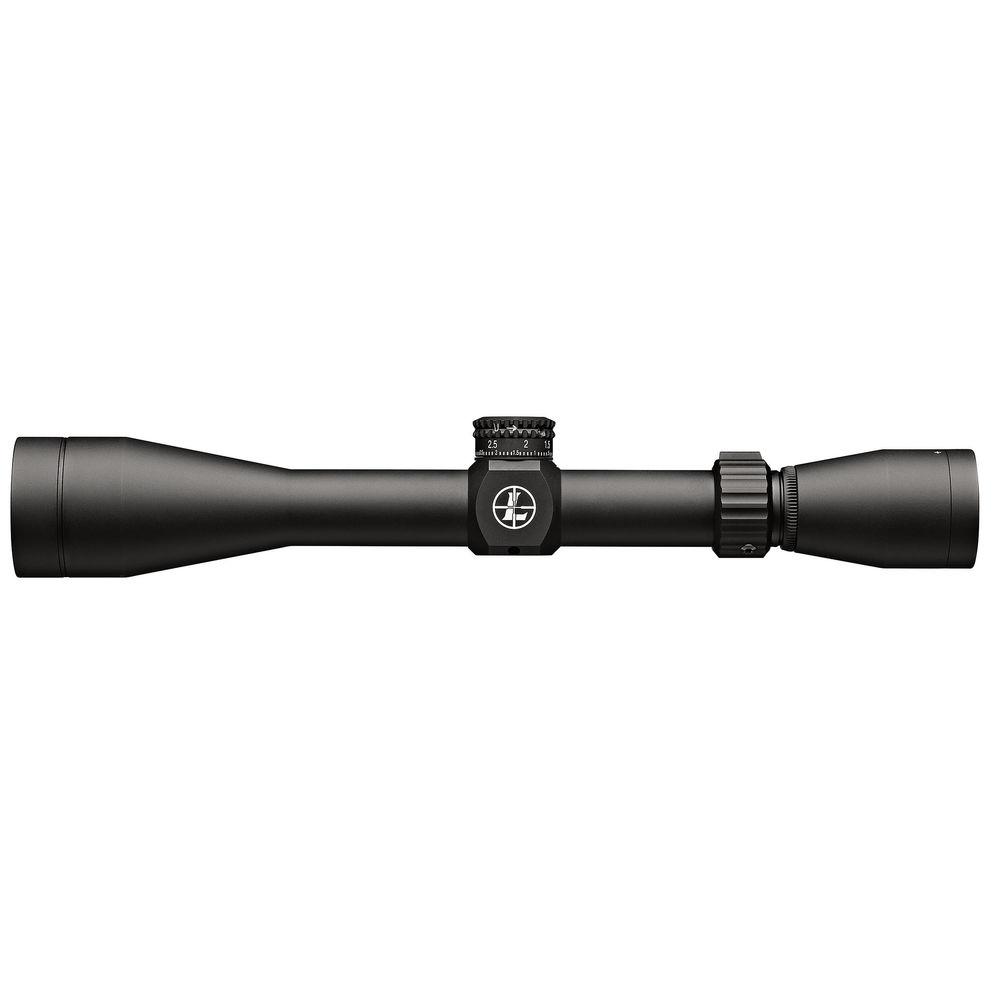

Product description Leupold built the Mark AR MOD 1 3-9x40 Riflescope for short-to-medium-range shooting and outfitted it with a P5 BDC elevation dial for the M450 Bushmaster. The optical system features 3-9x zoom, Mulitcoat 4 anti-reflection coatings that reduce glare and increase transmission, and a linear field of view range of 33.5-14.1' at 100 yards. To help you compensate for wind drift and ballistic bullet drop, the scope offers a 60 MOA windage and elevation adjustment range with a 1/10 MIL impact point correction.

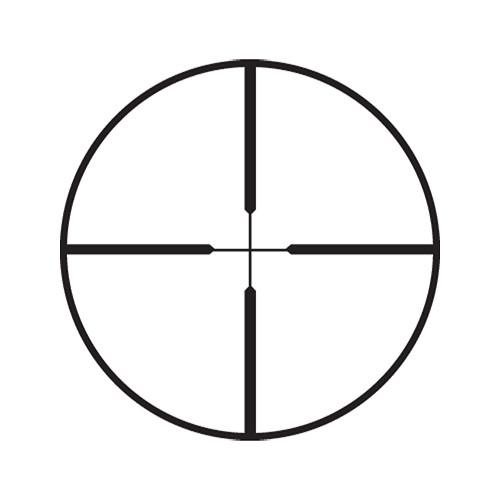

The Duplex Reticle is defined by heavy posts and a thin crosshair that are visible well on any background or in twilight. Because of its location in the second focal plane, the reticle will remain the same in size as you change zoom factor.
The aluminum housing is lightweight, durable, waterproof, and argon-krypton-filled fogproof. It is compatible with 1" riflescope mounting rings and has a lockable fast focus eyepiece with a low-profile tactile zoom lever, which helps you with an instant one-finger zoom adjustment. - Optical Performance
-
- Actual magnification: 3-9x
- Objective lens diameter: 40mm
- Maintube diameter: 1"
- Linear field of view is 33.5-14.1' at 100 yards
- Eye relief: 4.3-3.6"
- Proprietary Multicoat 4 anti-glare coatings minimize reflections of the sky and maximize transmission
- Use and Handling
-
- 1/10 MIL impact point correction
- 60 MOA windage and elevation adjustment ranges
- Construction Details
-
- 1" single-piece maintube
- Aluminum housing with matte black finish
- Oversized knurled knobs for non-slip tuning
- Exposed, tactical P5 elevation adjustment turret for M450 Bushmaster
- Low-profile tactile zoom lever allows fast one-finger operation
- Elevation dial knob is graduated and knurled for a sure grip
- Fogproof: filled with argon and krypton
- Waterproof
- Duplex Reticle
-
- Second focal plane
- Four bold posts and a crosshair
UPC: 030317017163 In the Box Leupold 3-9x40 Mark AR MOD 1 Riflescope (Duplex Reticle, Matte Black) - Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Leupold 3-9x40 Mark AR MOD 1 Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLeupold 173465 Specs | | | Magnification | 3 to 9x | | Objective Lens Diameter | 40 mm | | Field of View | 3x: 33.5' @ 100 yd / 10.2 m @ 100 m
9x: 14.1' @ 100 yd / 4.3 m @ 100 m | | Exit Pupil Diameter | 3x: 13.3 mm
9x: 4.4 mm | | Eye Relief | 3.6 to 4.3" / 91.4 to 109.2 mm | | | | Reticle Type | Duplex Reticle (Second Focal Plane) | | | | Impact Point Correction | 1/10 MIL per Click | | Windage Adjustment | 60 MOA | | Elevation Adjustment | 60 MOA | | | | Water Resistance | Waterproof | | Fogproof | Yes | | | | Maintube Diameter | 1" | | Battery | None | | Dimensions | Length: 12.6" / 320 mm | | Weight | 12.4 oz / 352 g | | | | Package Weight | 1.245 lb | | Box Dimensions (LxWxH) | 14.3 x 3.9 x 2.95" |
