User Manual for Leupold 3-9x40 VX-Freedom Riflescope Click to enlarge the picture
Contents of the user manual for the Leupold 3-9x40 VX-Freedom Riflescope
- Product category: Riflescopes Leupold
- Brand: Leupold
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Leupold Riflescopes
 |
User manual for the Leupold 3-9x40 VX-Freedom Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Leupold product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Leupold user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Leupold product will considerably shorten its lifespan!
|

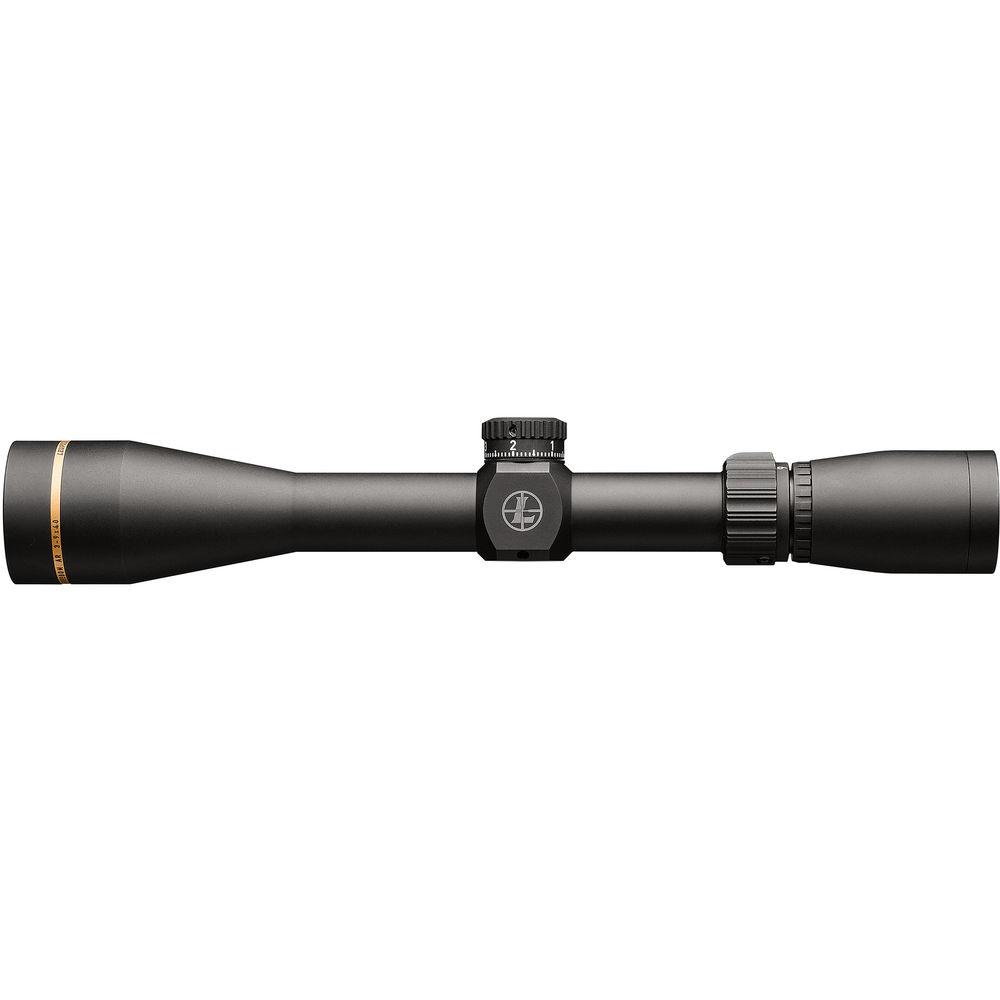

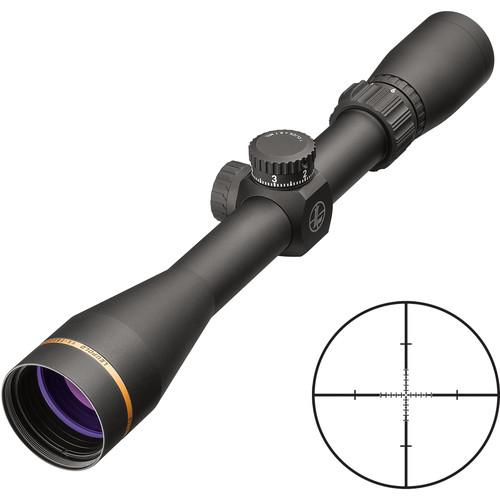

Product description Leupold designed the 3-9x40 VX-Freedom Riflescope to give hunters a new generation scope with clear and bright optics that is packaged into a compact, durable, waterproof, and fogproof body. The optical system is optimized to excel in low light using a wider than average 40mm objective and the proprietary Twilight Light Management System, which lets more usable light reach your eye and reduces glare. For comfortable aiming, the eyepiece offers a 4.17 - 3.7" eye relief, and for making trajectory adjustments, windage and elevation give you a 17.5 MIL range with 0.1 MIL clicks. Another central highlight of the optical system is the second focal plane TMR reticle, featuring four posts and a milling crosshair with dense horizontal and vertical stadia. The stadia give you 10 MOA of range in each direction, 1 MOA minor marks, and 5 MOA major marks.
To ensure durability and strength, the housing is crafted from 6061-T6 aluminum alloy and treated with a matte black finish. It also has a 1" maintube, capped turrets, and an eyepiece with a short zoom lever. Additionally, to give you extra peace of mind, the exterior lenses are protected with a scratch-resistant coating. - Optical Performance
-
- 3-9x zoom magnification
- 40mm objective delivers bright images in low light and allows you to hunt at dusk or dawn
- Twilight Light Management System increases amount of usable light and reduces glare
- Anti-reflection coated optics
- Scratch-resistant coating
- Use and Handling
-
- 0.1 MIL impact point correction
- 17.5 MIL windage and elevation range
- Construction Details
-
- 6061-T6 aluminum alloy
- 1" diameter maintube
- Capped hunting turrets
- Water and fogproof

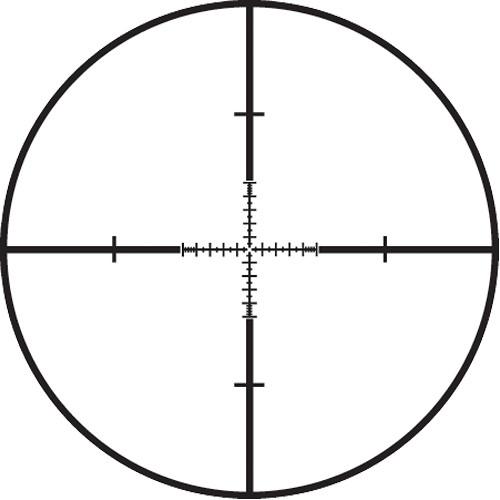

- TMR Reticle
-
- Second focal plane
- Four medium posts
- Crosshair has dense ballistic and wind stadia
In the Box Leupold 3-9x40 VX-Freedom Riflescope (TMR Reticle, Matte Black) - Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Leupold 3-9x40 VX-Freedom Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLeupold 175076 Specs | | | Magnification | 3 to 9x | | Objective Lens Diameter | 40 mm | | Field of View | 3x: 33.7' @ 100 yd / 11.2 m @ 100 m
9x: 13.6' @ 100 yd / 4.5 m @ 100 m | | Exit Pupil Diameter | 3x: 13.3 mm
9x: 4.4 mm | | Eye Relief | 3.7 to 4.2" / 93 to 106 mm | | | | Reticle Type | TMR Reticle (Second Focal Plane) | | | | Impact Point Correction | 0.1 MIL per Click | | Windage Adjustment | 60 MOA | | Elevation Adjustment | 17.5 MRAD | | | | Water Resistance | Waterproof | | Fogproof | Yes | | | | Maintube Diameter | 1" | | Battery | None | | Dimensions | Length: 12.4" / 34.6 cm | | Weight | 12.2 oz / 346 g |
