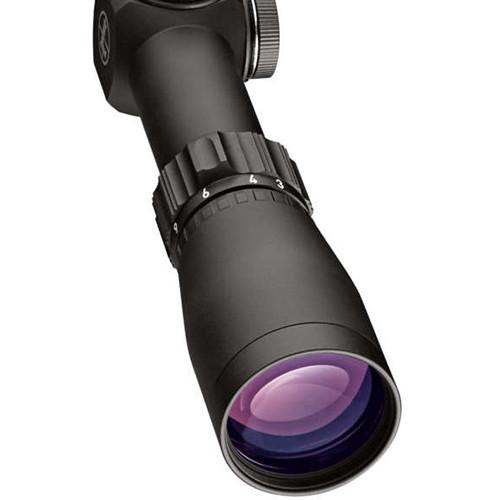

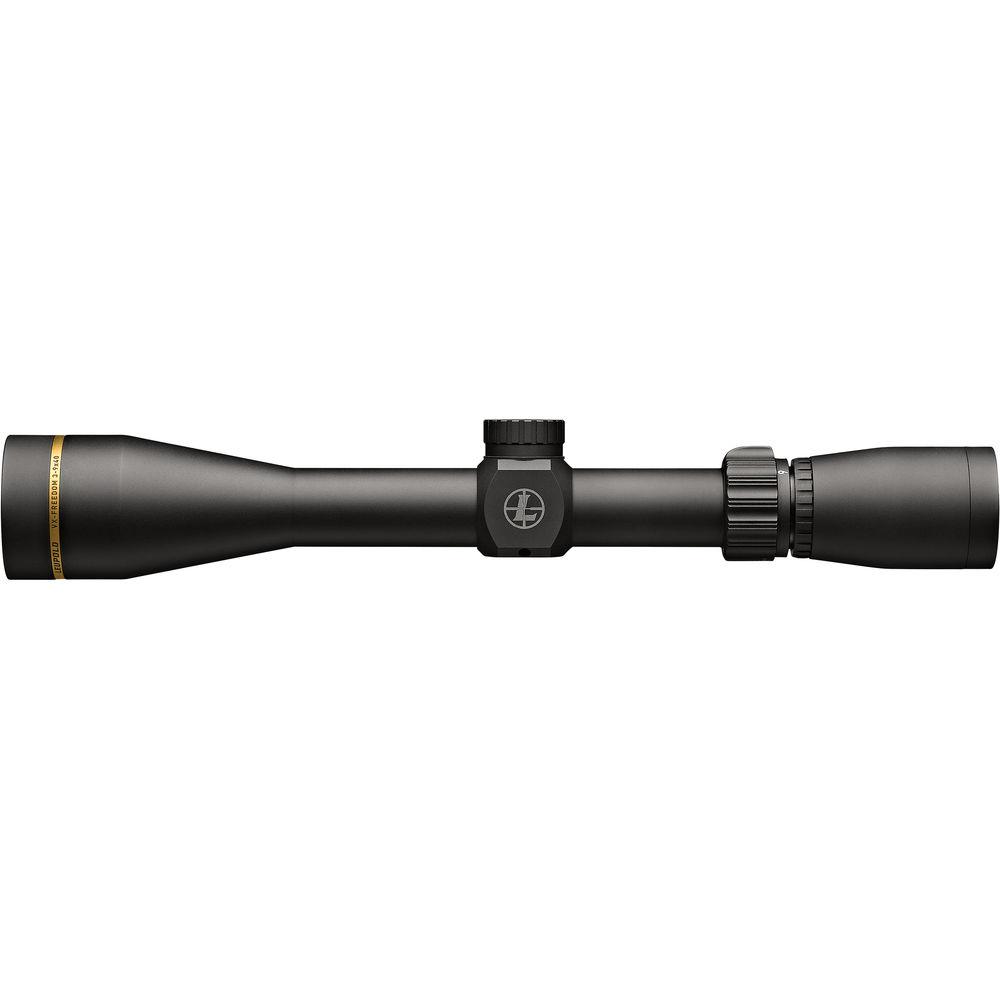

Product description Leupold designed the 3-9x40 VX-Freedom Riflescope to give hunters a new generation scope with clear and bright optics that is packaged into a compact, durable, waterproof, and fogproof body. The optical system is optimized to excel in low light using a wider than average 40mm objective and the proprietary Twilight Light Management System, which lets more usable light reach your eye and reduces glare. For comfortable aiming, the eyepiece offers a 4.17 - 3.7" eye relief, and for making trajectory adjustments, windage and elevation give you a 60 MOA range with 1/4 MOA clicks. Another central highlight of the optical system is the second focal plane Duplex reticle, which features a crosshair and four heavy tapered posts.
To ensure durability and strength, the housing is crafted from 6061-T6 aluminum alloy and treated with a matte black finish. It also has a 1" maintube, capped turrets, and an eyepiece with a short zoom lever. Additionally, to give you extra peace of mind, the exterior lenses are protected with a scratch-resistant coating. - Optical Performance
-
- 3-9x zoom magnification
- 40mm objective delivers bright images in low light and allows you to hunt at dusk or dawn
- Twilight Light Management System increases amount of usable light and reduces glare
- Anti-reflection coated optics
- Scratch-resistant coating
- Use and Handling
-

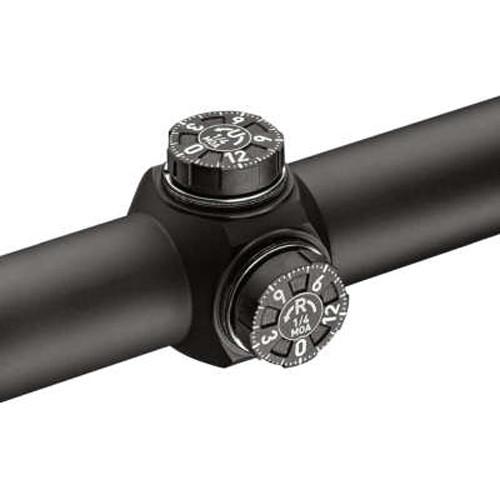

- 1/4 MOA impact point correction
- 60 MOA windage and elevation range
- Construction Details
-
- 6061-T6 aluminum alloy
- 1" diameter maintube

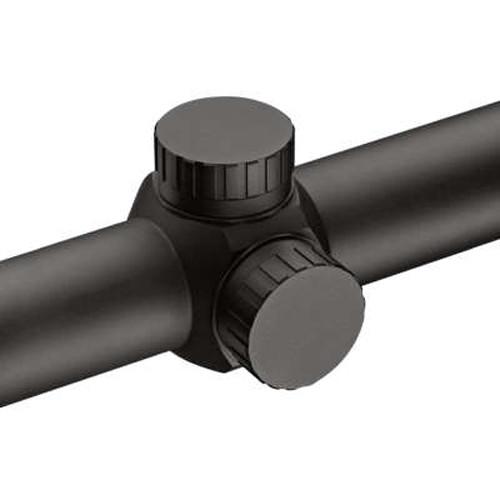

- Capped hunting turrets
- Water and fogproof

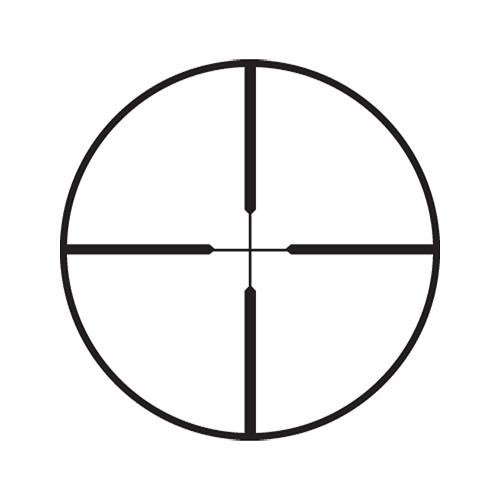

- Duplex Reticle
-
- Second focal plane
- Crosshair and four heavy tapered posts
UPC: 030317018702 In the Box Leupold 3-9x40 VX-Freedom Riflescope (Duplex Reticle, Matte Black) - Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Leupold 3-9x40 VX-Freedom Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLeupold 174180 Specs | | | Magnification | 3 to 9x | | Objective Lens Diameter | 40 mm | | Field of View | 3x: 33.7' @ 100 yd / 11.2 m @ 100 m
9x: 13.6' @ 100 yd / 4.5 m @ 100 m | | Exit Pupil Diameter | 3x: 13.3 mm
9x: 4.4 mm | | Eye Relief | 3.7 to 4.2" / 93 to 106 mm | | | | Reticle Type | Duplex Reticle (Second Focal Plane) | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 60 MOA | | Elevation Adjustment | 17.5 MRAD | | | | Water Resistance | Waterproof | | Fogproof | Yes | | | | Maintube Diameter | 1" | | Battery | None | | Dimensions | Length: 12.4" / 34.6 cm | | Weight | 12.2 oz / 346 g | | | | Package Weight | 1.21 lb | | Box Dimensions (LxWxH) | 14.15 x 3.7 x 3.0" |
