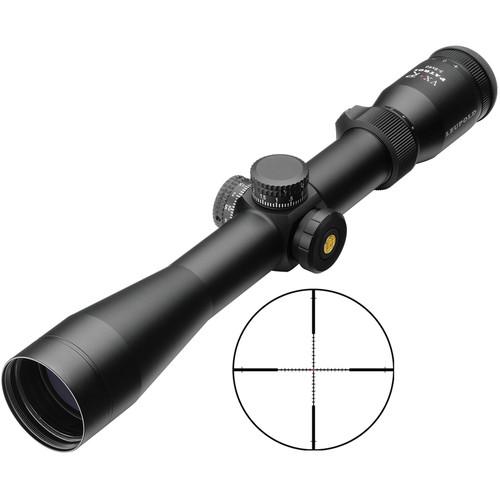

Product description The matte black 3-9x40 VX-R Patrol Riflescope from Leupold is designed for medium-range targeting and features the Leupold Index Matched Lens System and lead free, eco-friendly glass to maximize light transmission. The rugged design is bolstered by the use of DiamondCoat protective lens coatings and water and fogproof performance is ensured by the use of an argon/krypton gas mixture.This tactical VX-R Patrol scope features a fiber optic FireDot illuminated reticle with eight variable brightness settings that illuminates an aiming dot while the rest of the reticle remains non-illuminated. This system is designed to lead your eye naturally to the center aiming point and speed target acquisition. The one-turn, extended range focus eyepiece provides a wide focus range.This scope features a proprietary TMR (Tactical Milling Reticle), an advanced system based on miliradians (Mil-Dots). The reticle stays relatively uncluttered, but is far more flexible than standard USA or USMC Mil-Dot reticles. Mils are denoted by hash marks, not dots. Between the hash marks, smaller stadia lines denote half-mils, and on the posts' outer sections smaller markings denote 1/5 mils. The posts' thickness can also be used for range estimation and the hash marks can be used for holdovers. Reticle adjustments are in 1/10th of a mil per click. Optical Performance -
- Magnification: 3 - 9x
- Objective lens: 40mm diameter
- Main tube diameter: 30mm
- Eye relief: 4.2 - 3.7"
- Quantum Optical System: Index matched, lead-free elements designed to maximize light transmission
- Index Matched: different lens coatings are specified based on the lens’ index of refraction, placement, and function for maximum light transmission
- Blackened Lens Edges: reduce unwanted glare and diffusion through the lens edges to provide better resolution, improved contrast
- BAS (Ballistic Aiming System): takes into account the variables crucial to accurate, long-range shooting; a special ballistics indicator ring allows users to customize their power settings for their cartridge’s ballistics, then saves that setting
FireDot Duplex Illuminated Reticle -
- Duplex reticle: thick outer posts, thin crosshairs, and an illuminated center
Use and Handling -
- 1/10 mil impact point correction: finger click adjustments for windage and elevation offer absolute repeatability and dependability over a lifetime of use
- Pop-Up Rezero Adjustments: finger click windage and elevation adjustments assure maximum adjustment range, precision and instant re-zeroing
- 60 MOA windage/elevation adjustment range
- Dedicated side focus parallax correction
- Reticle illumination system with 12 brightness settings
- FireDot Illumination: dot within the reticle illuminates with bright, sharp definition, while the rest of the reticle is non-illuminated
- MST (Motion Sensor Technology): a single touch of the button or twist of the dial activates the illumination. The reticle will automatically switch to “stand-by mode” after five minutes of inactivity
- One Turn, Extended Range Focus: accommodates a wider spectrum of visual acuity, even in diminishing light
Construction Details -
- One-piece housing made of 6061-T6 aluminum
- 2nd Generation Argon/Krypton Waterproofing: special Argon/Krypton gas blend designed to eliminate the effects of thermal shock while reducing the diffusion of gases sealed inside the scope
- NITROGEN
- Twin-Bias spring erector system resists recoil to maintain zero
- Lead Free: eco-friendly lead-free glass lenses avoid damaging by-products common to standard glass production
- DiamondCoat: protective lens coating for higher light transmission and abrasion resistance
- Weight: 15.3oz
UPC: 030317137717 In the Box Leupold 3-9x40 VX-R Patrol Riflescope (FireDot TMR Illuminated Reticle) Protective Lens Cover CR2032 Battery Limited 2-Year Warranty Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Leupold 3-9x40 VX-R Patrol Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLeupold 113771 Specs | | | Magnification | 3 to 9x | | Objective Lens Diameter | 40 mm | | Field of View | 3x: 33.6' @ 100 yd / 11.2 m @ 100 m
9x: 13.6' @ 100 yd / 4.5 m @ 100 m | | Exit Pupil Diameter | 3x: 13.3 mm
9x: 4.4 mm | | Eye Relief | 3.7 to 4.2" / 94 to 106.7 mm | | | | Reticle Type | Tactical Milling Reticle | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 60 MOA | | Elevation Adjustment | 60 MOA | | Parallax Correction | Yes, 150 yd / 137.2 m | | | | Water Resistance | Waterproof | | Fogproof | Yes | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 12.6" / 32 cm | | Weight | 15.3 oz / 434 g | | | | Package Weight | 1.495 lb | | Box Dimensions (LxWxH) | 14.3 x 3.9 x 3.0" |
